Subject to change without notice

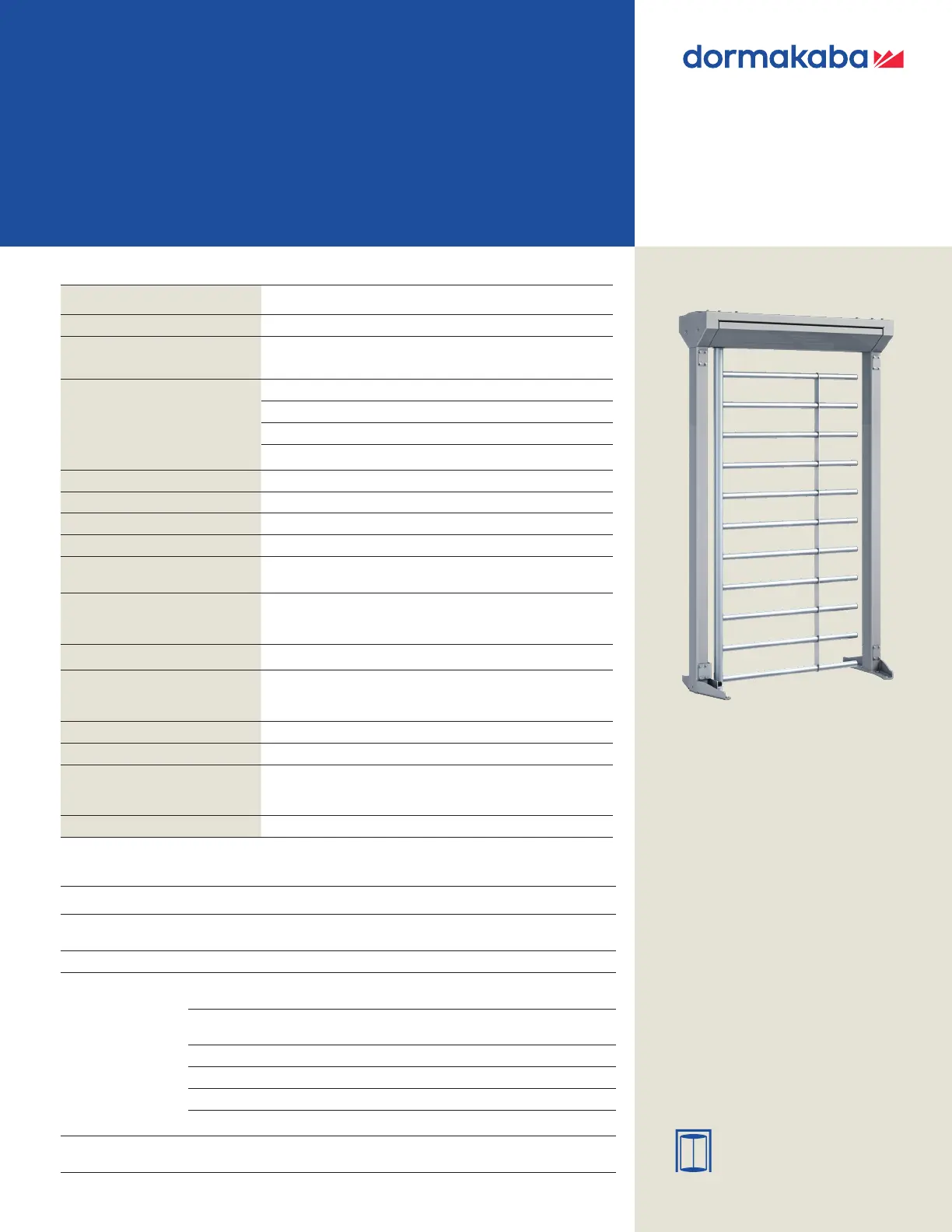

FGE-M01

Standalone full height hinged gate

Entrance systems

Standard unitFGE-M01

ApplicationPassage of persons and material handling

Construction

Portal width53-15/16" (1370)

Total height89-3/8" (2270)

with optional canopy D194-1/16" (2390)

with optional canopy D295-1/4" (2420)

with optional canopy D395-1/4" (2420)

Passage height81-1/8" (2060)

Passage width41-1/2" (1080)

Portal and housingSteel

Lockable maintenance openingAluminum

Hinge door with tubular

column Ø3-1/2" (Ø89 mm)

With 11 straight crossbars Ø1-9/16" (Ø40 mm) and vertical

reinforcement plate made of glossy AISI 304 stainless steel.

FinishHinge door made of glossy stainless steel. Hot-dip

galvanized steel elements. Aluminum elements in RAL 9006

(white aluminum).

Rotor2-blade rotor

Function

Power Assist—Power-assisted motion; servo-positioning drive/

electronically controlled in both directions (behavior in event of

power failure can be selected for each direction: free or blocked).

Electrical equipmentControl system integrated in the unit.

Power supply100 – 240 VAC, 50/60 Hz, 253 VA.

InstallationFinish floor

Sub-floor

Sleeve foundation

Protection classesHousing IP33, components conducting supply voltage IP43.

Note

Full height gates in a matching

design offer a fitting solution for

ADA compliance.

OptionFGE-M01

ConstructionFor each direction: mechanical pivoted lever unlocking with profile half

cylinder, installed in maintenance opening.

FinishSteel and aluminum parts: additional plastic coating according to RAL.

Electrical equipmentInstallation preparation on flat surface as rectangular cut-out for

components provided by the customer.

Different consoles made completely of stainless steel or plastic or

aluminum in color of unit or in RAL 9006.

Operating panels and frames or surface mount housing.

Various signal devices.

Heating.

Various lighting and twilight switch options.

InstallationFinish floor

Sub-floor

Optional components
