Wall-Mount EnclosurEs Type 12 enclosures

Spec-00289 H

EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEMild stEEl1

Spec-00289

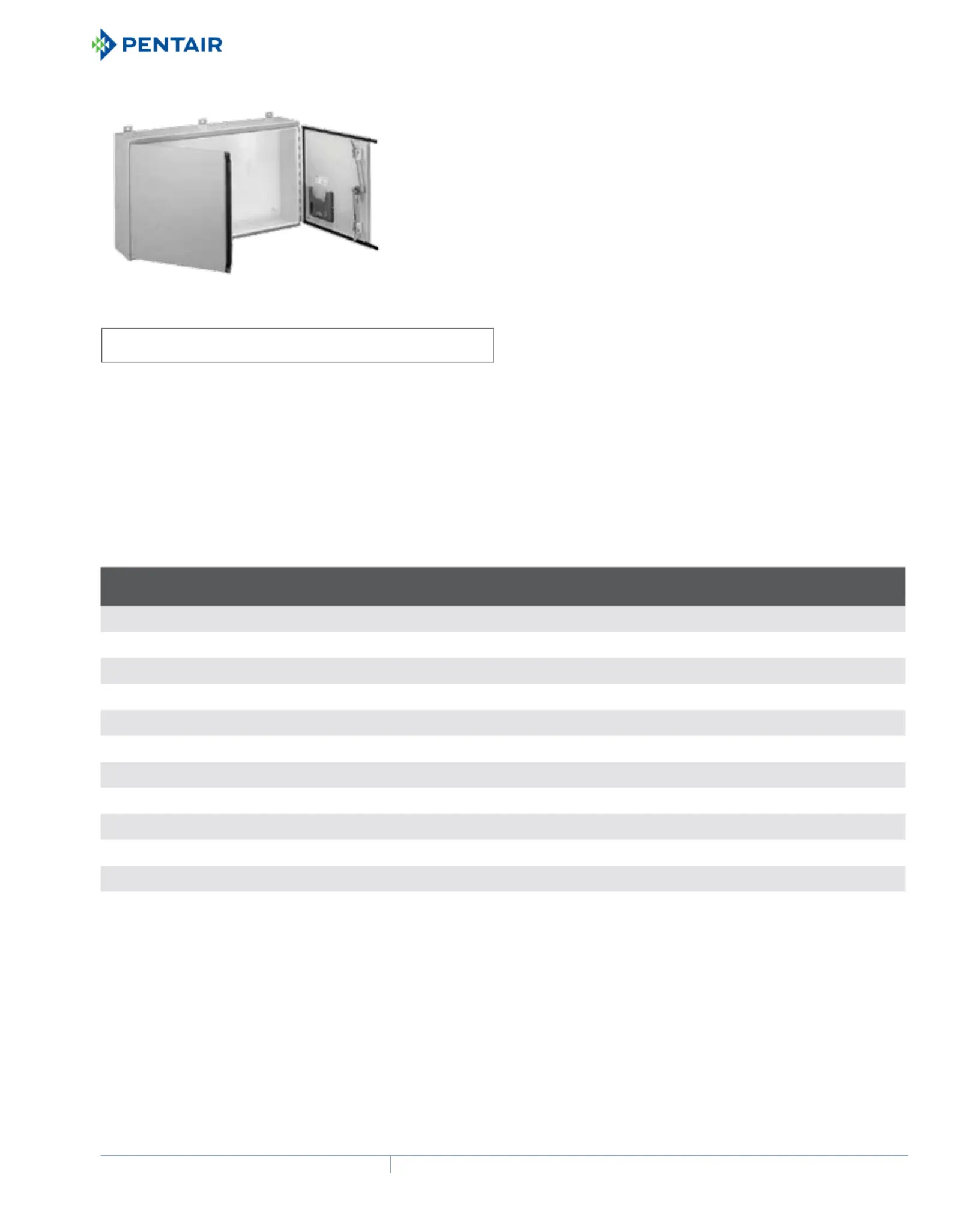

continuous HingE tWo-door WitH HandlE, typE 12

industry standards

UL 508A Listed; Type 12; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997

NEMA/EEMAC Type 12

CSA, File No. 42186: Type 12

IEC 60529, IP55

application

Ideal for larger wall-mount applications requiring ease of

installation and access to full-width internal panel. Overlapping

door design allows easy access in areas with minimal aisle space.

spEciFications

•

14 gauge steel

•

Seams continuously welded and ground smooth

•External welded-on mounting brackets for easy installation

•External formed body flange channels away liquids

•Gasketed overlapping doors eliminate need for center post

•Oil-tight key-locking handle with 3-point latch

•Removable door with continuous hinge

•Oil-resistant gasket

•Removable heavy gauge continuous hinge pin

•Data pocket is high-impact thermoplastic

•Collar studs for mounting optional panels

•Bonding provision on both doors

FinisH

Body: White inside with ANSI 61 gray finish outside.

Door: ANSI 61 gray inside and outside.

accEssoriEs

See also Accessories.

Door Stop Kit

Compact Cooling Fans

Incandescent Light Package

Steel and Stainless Steel Window Kits

ModiFication and custoMiZation

Hoffman excels at modifying and customizing products to

your specifications. Contact your local Hoffman sales office or

distributor for complete information.

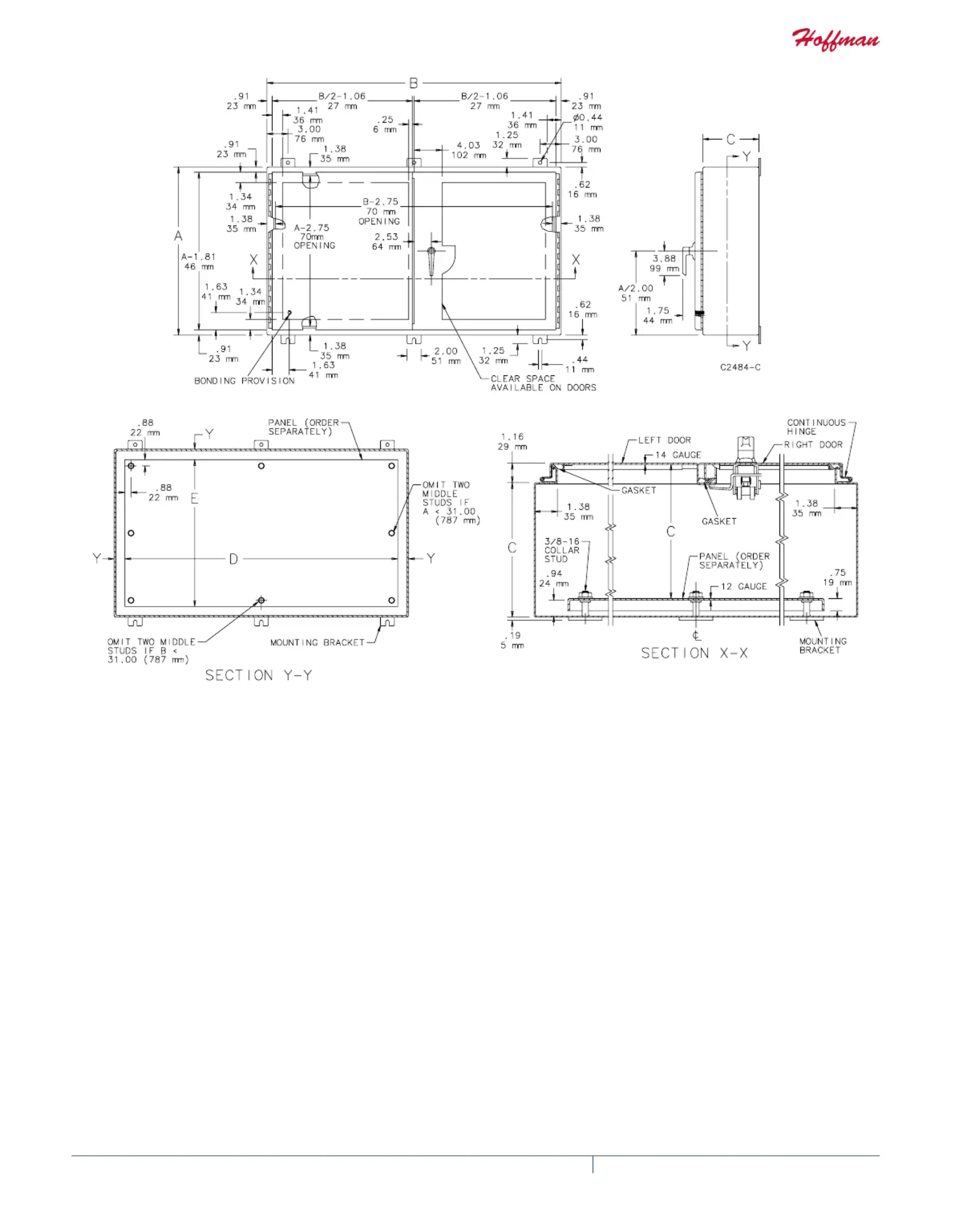

Bulletin: A12

Standard Product

Catalog Number

AxBxC in./mmPanel

Conductive

Panel

Panel

Gauge

Panel Size

D x E

in./mm

Y

in./mm

Stiffener

(Body)

A244208WFLP24.00 x 42.00 x 8.00

610 x 1067 x 203

A42P24A42P24G1239.00 x 21.00

991 x 533

1.50

38

0

A244808WFLP24.00 x 48.00 x 8.00

610 x 1219 x 203

A48P24 A48P24G1245.00 x 21.00

1143 x 533

1.50

38

0

A304210WFLP30.00 x 42.00 x 10.00

762 x 1067 x 254

A42P30 A42P30G1239.00 x 27.00

991 x 686

1.50

38

0

A304810WFLP30.00 x 48.00 x 10.00

762 x 1219 x 254

A48P30 A48P30G1245.00 x 27.00

1143 x 686

1.50

38

0

A306010WFLP30.00 x 60.00 x 10.00

762 x 1524 x 254

A60P30 A60P30G1257.00 x 27.00

1448 x 686

1.50

38

0

A364212WFLP36.00 x 42.00 x 12.00

914 x 1067 x 305

A42P36 A42P36G1239.00 x 33.00

991 x 838

1.50

38

0

A364812WFLP36.00 x 48.00 x 12.00

914 x 1219 x 305

A48P36 A48P36G1245.00 x 33.00

1143 x 838

1.50

38

0

A366012WFLP36.00 x 60.00 x 12.00

914 x 1524 x 305

A60P36 A60P36G1257.00 x 33.00

1448 x 838

1.50

38

0

A424212WFLP42.00 x 42.00 x 12.00

1067 x 1067 x 305

A42P42 A42P42G1239.00 x 39.00

991 x 991

1.50

38

3

A424812WFLP42.00 x 48.00 x 12.00

1067 x 1219 x 305

A48P42 A48P42G1245.00 x 39.00

1143 x 991

1.50

38

3

A426012WFALP42.00 x 60.00 x 12.00

1067 x 1524 x 305

A60BFP42 A60BFP42G1056.00 x 38.00

1422 x 965

2.00

51

1

A484812WFLP48.00 x 48.00 x 12.00

1219 x 1219 x 305

A48P48 A48P48G1044.00 x 44.00

1118 x 1118

2.00

51

0

Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.

A484812WFLP back is 10 gauge.
