Oldal 1/4

X + 0 + Y

0 M

H Z

”

X + 0 + Y

MH Z

T H A N K Y O U F O R C H O O S I N G J B L

For more than 50 years, JBL has

been involved in every aspect

of music and film recording

and reproduction, from live

performances to the recordings

you play in your home, car or

office.

We’re confident that the JBL

loudspeakers you have chosen

will provide every note of

enjoyment that you expected –

and that when you think about

purchasing additional audio

equipment for your home, car

or office, you will once again

choose JBL.

Please take a moment to

complete the enclosed profile

card. It enables us to keep you

posted on our latest

advancements, and helps us to

better understand our customers

and build products that meet

their needs and expectations.

JBL Consumer Products

T W E E T E R T Y P E : Pure-titanium dome with EOS waveguide™

D E S I G N G O A L : Bring the thrill of live performance and movie sound to

the homeenvironment by calling on JBL’s professional engineering leadership.

C R O S S O V E R N E T W O R K : Straight-Line Signal Path™ (SSP)

E N C L O S U R E D E S I G N : Sealed

P R O F E S S I O N A L R E F E R E N C E : Studio Monitor

O W N E R ’S G U I D E

W O O F E R T Y P E :

Cast-aluminum basket with HeatScape™ motor structure

P R O D U C T L I N E : S T U D I O ™S E R I E S

S36 S36AW,

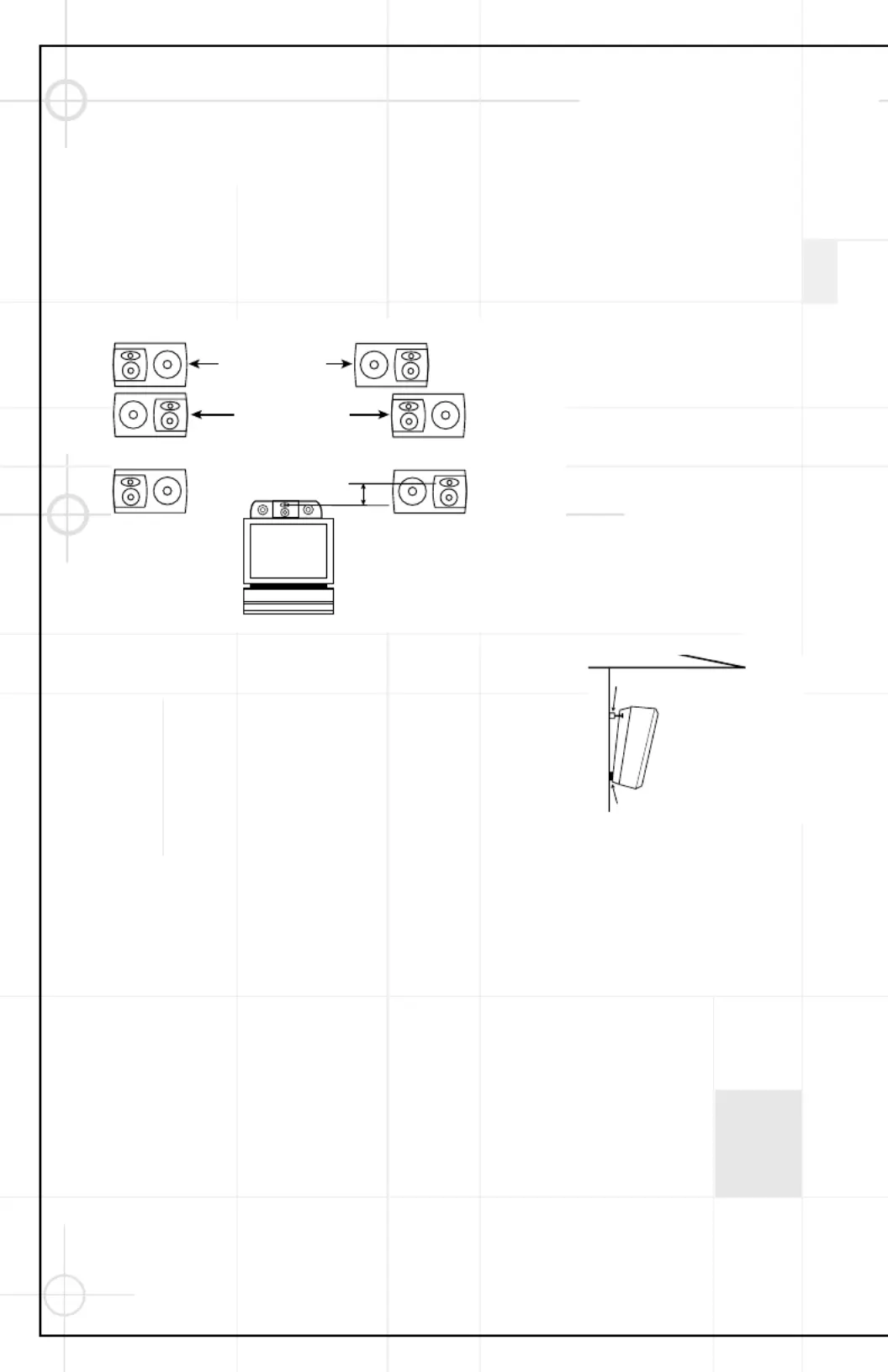

S P E A K E R P L A C E M E N T

Proper placement of the

speakers is an important step in

obtaining the most realistic

soundstage possible. These

recommendations are for the

optimal placement of the

loudspeakers. Use these

placement recommendations as

a guide. Slight variations will not

diminish your listening pleasure.

The Studio Series S36II and

S36AWII loudspeakers are video-

shielded and can safely be

placed near a television.

The S36AWII loudspeakers are

weather-resistant and are

specifically designed for outdoor

use, such as in a patio area. As

noted below, we recommend

mounting the speakers under an

overhang, such as roof eaves,

for added protection. The

S36AWII speakers, because they

are resistant to moisture, are

also appropriate for mounting in

a bathroom, although not inside

a bathtub or shower stall.

Although these loudspeakers are

designed as a mirrored pair, the

decision as to which one is left

or right will depend on the

amount of space left between

them.

A wider stereo image is

presented with the

tweeter/midrange array

outboard, and a tighter image is

presented with the array

inboard.

Less than 6 – 8 feet

More than 6 – 8 feet

0-2 ft.

For stereo-only applications:

For home theater applications:

This placement provides

a wide spread in sound,

supplemented by the center

channel speaker.

Do not attempt to mount these

speakers on a ceiling, on the

underside of roof eaves or in a

shower stall.

The S36 and S36AWII II loud-

speakers may be positioned on

the wall either horizontally or

vertically. The grille logo on each

speaker may be rotated

depending on how the speaker is

positioned. Gently pull the logo

away from the grille slightly, rotate

it to the desired position, and let

go. The logo will snap back into

place.

When mounted vertically, the

tweeter array may be positioned

either up or down, depending on

the height of the placement. If the

speakers will be above ear level,

the tweeter array should be

positioned down, preferably no

more than two feet above ear

level. If the speakers will be

mounted very low, it may be best

to position the tweeter array

upward so that it will be no more

than two feet below ear level.

The S36II IIand S36AW

enclosures are specially

designed to angle the speakers

toward the listener when

mounted flush against the wall.

When mounting the S36AWII

speakers outdoors, we

recommend that you place them

under an overhang, such as roof

eaves, for added protection, and

that you use two of the supplied

special angle-mount screws

per speaker, which angle the

speakers downward at a greater-

than-usual angle, facilitating

water drainage.

NOTE: When using the enclosed

angle-mount screws, always use

the top two screw locations

appropriate for the specific

mounting orientation of your

S36AWII. Referring to the

enclosed installation template,

screw locations (1) and (2) are to

be used when mounting the

S36AWII horizontally so that

these locations are on top. To

mount the loudspeakers

vertically, use locations (2) and

(4) or locations (1) and (3),

depending on the mounting

orientation. Do not mount the

S36AWII upside down (with

screw locations (3) and (4) on

top) because it won t be able to’

lock onto the screw heads.

Remember that the JBL logo on

the tweeter/mid faceplate can be

rotated with choice of speaker

position (vertical or horizontal).

At least one screw per speaker

should be installed in a wooden

wall stud. Select an appropriate

wall anchor for the other screw.

If the special angle-mount

screws are not being used, size

10 screws of at least 1-1/2" in

length are recommended. If the

screws are used in drywall or

other surfaces incapable of

holding the screw by itself,

selection of proper anchors is

essential. The customer is solely

responsible for proper selection

and installation of screws,

anchors and other installation

hardware. Further installation

details are included on the

installation template.

W A L L - M O U N T I N G

Supplied Rubber Pad

S36AW

Wall

Supplied Angle-Mount Screw

(When using angle-mount

screws, always utilize the

top two screw holes

on the S36AW

depending on

mounting orientation.)

Horizontal mounting:

Use screwholes (1) and (2).

Vertical mounting: Use

screwholes (1) and (3), or (2)

and (4), whichever are uppermost.

Roof eave

If there is no sound from any of

the speakers:

• Check that receiver/amplifier is

on and that a source is playing.

• Review proper operation of

your receiver/amplifier.

• Make sure all wires are

connected. Make sure none

of the speaker wires are frayed,

cut or punctured.

If the system plays at low

volumes but shuts off as volume

is increased:

• Check all wires and con-

nections between receiver/

amplifier and speakers.

• Make sure all wires are

connected. Make sure none of

the speaker wires are frayed, cut

or punctured.

• If more than one pair of main

speakers is being used, check

the minimum impedance

requirements of your receiver/

amplifier.

If there is no sound coming from

one speaker:

• “ ” Check the Balance control on

your receiver/amplifier.

• Check all wires and connec-

tions between receiver/amplifier

and speakers. Make sure no

wires are touching other wires or

terminals and creating a short

circuit.

• Make sure all wires are

connected. Make sure none of

the speaker wires are frayed, cut

or punctured.

• In Dolby* Digital or DTS®mode,

make sure that the receiver/

processor is configured so that

the speaker in question is

enabled.

• Turn off all electronics and

switch the speaker in question

with one of the other speakers

that is working correctly. Turn

everything back on, and

determine whether the problem

is in the same place, i.e., the

speaker that was working

previously now has no sound and

the speaker that was not working

now sounds fine; or whether it

has moved, i.e., the speaker that

was not working still has no

sound and the speaker that was

working is still fine. If the

problem is in the same place, the

source of the problem is most

likely with your receiver or

amplifier, and

you should consult

the owner’s manual for that

product for further information.

the problem has followed the

speaker, consult your dealer for

further assistance or, if that is

not possible, visit our Web site

at www.jbl.com for further

information.

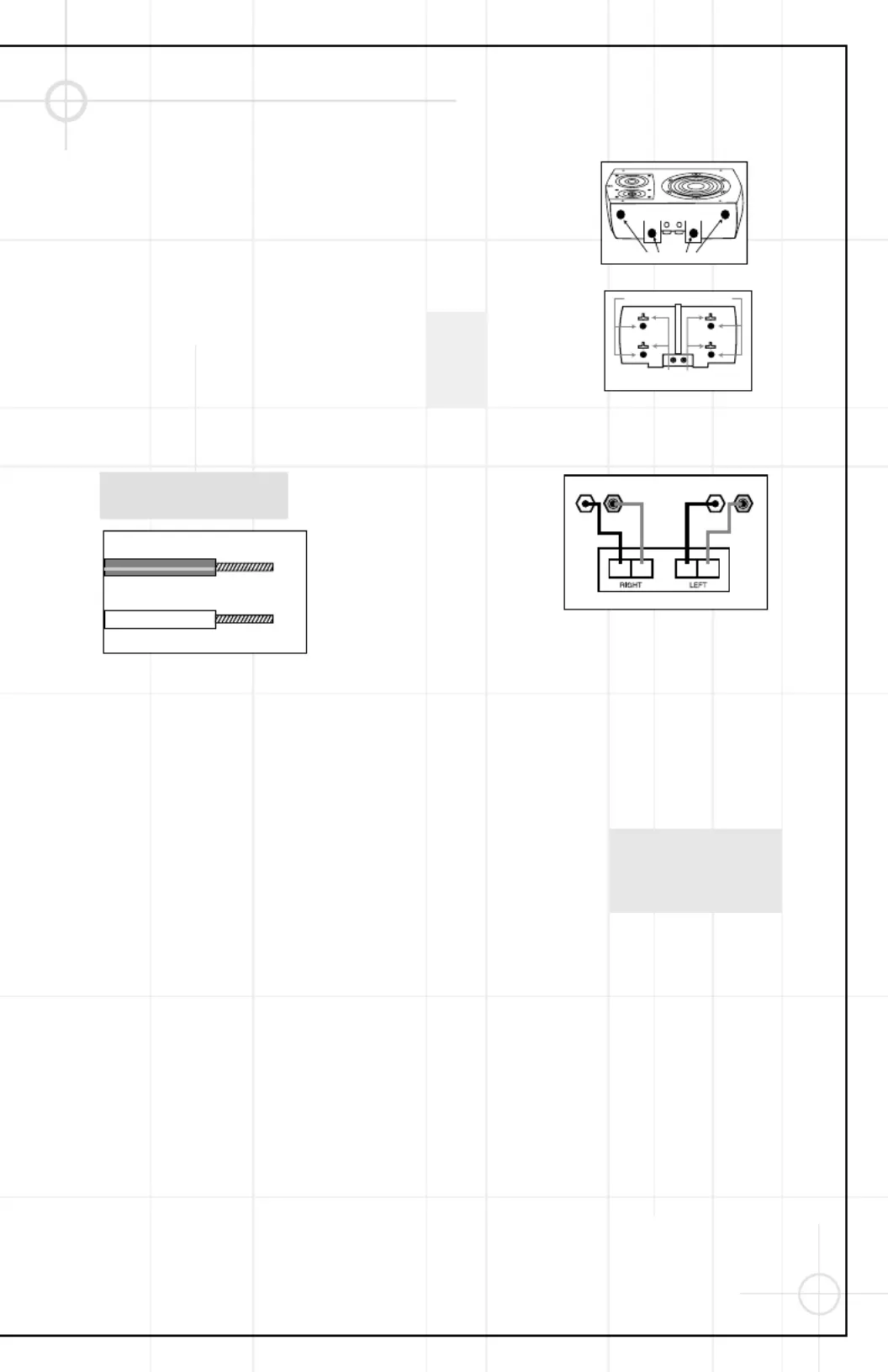

CONNECTION TIPS

S P E A K E R C O N N E C T I O N S

Speakers and electronics

terminals have corresponding (+)

and ( ) terminals. It is important–

to connect both speakers

identically: (+) on the speaker to

(+) on the amplifier and ( ) on the–

T R O U B L E S H O O T I N G

– +– +

– +

Speaker Outputs

LEFTRIGHT

– +

Installation of Self-Adhesive

Rubber Pads: If the speaker is to

be placed on a surface (such as

a table top or shelf) rather than

wall-mounted, the enclosed self-

adhesive rubber pads are to be

attached to the bottom of the

speaker cabinet in their

designated recessed locations.

If the speaker is to be wall-

mounted, then the four self-

adhesive rubber pads should be

attached to the back of the

speaker, as shown in the bottom

right diagram.

When angle-mounting the

S36AWII, only two of the rubber

pads are required, and they

need to be installed on the back

of the loudspeaker, near the

lower edge, so that they are

located between the S36AWII

back and the mounting surface.

Please see the enclosed

installation template for more

details.

NOTE: The threaded inserts on

the bottom of the speakers are

to be used only with JBL

accessories that have been

developed specifically for the

S36 and that may become

available at a future date.

Do not attempt to install bolts

or any non-JBL brackets or

accessories to these threads, as

this might damage the speaker

and dislodge the insert.

PADS GO HERE

speaker to ( ) on the amplifier.–

Wiring “out of phase” results in

thin sound, weak bass and a

poor stereo image. With the

advent of multichannel surround

sound systems, connecting all of

the speakers in your system

with the correct polarity remains

equally important in order to

preserve the proper ambience

and directionality of the program

material.

To use the binding-post speaker

terminals, unscrew the collar

until the pass-through hole in

the center post is visible under

KEYHOLES FOR

MOUNTING HARDWARE

PLACE RUBBER PADS HERE

For wall-mounting

For tabletop or shelf placement

the collar. Insert the bare end of

the wire through this hole; then

screw the collar down until the

connection is tight. The hole in

the center of each collar is

intended for use with banana-

type connectors.

Termékspecifikációk

Márka:	JBL
Kategória:	hangszóró
Modell:	Studio S36AW II

Szüksége van segítségre?

Ha segítségre van szüksége JBL Studio S36AW II, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek

Az Ön neve*

Az Ön e-mail címe*

Írja ide kérdését

Útmutatók hangszóró JBL

JBL Control 426LP Útmutató

9 Április 2025

JBL Conceal C83 Útmutató

8 Április 2025

29 Március 2025

12 Január 2025

12 Január 2025

12 Január 2025

JBL Tower X Marine MT10HLW Útmutató

6 Január 2025

JBL Control CM42AW Útmutató

1 Január 2025

JBL Performance P36AW Útmutató

1 Január 2025

JBL Balboa 30 Útmutató

1 Január 2025

Útmutatók hangszóró

Legújabb útmutatók hangszóró

Behringer B2520 PRO Útmutató

10 Április 2025

Marshall Willen Útmutató

10 Április 2025

Crestron SAROS IC8T Útmutató

8 Április 2025

LD Systems STINGER G3 TMB Útmutató

8 Április 2025

Crestron SAROS ICE4T Útmutató

7 Április 2025

Crestron SAROS ICI6T Útmutató

7 Április 2025

Focal K2 Power M FRAK Útmutató

5 Április 2025

Match UP C42BMW-FRT.3 Útmutató

3 Április 2025

Turbosound PQ12-SB Útmutató

3 Április 2025

Trust Tytan GXT 658 Útmutató

3 Április 2025
