Oldal 1/4
LYNXTechnik AG | Broadcast Television Equipment
®
yellobrik
®
CDH1411-rev02 – Specifications subject to change
www.lynx-technik.com
• Support for SDI video inputs up to 12G (2160p)
• Supports HDR and WCG indication at HDMI output
• Automated detection of input signal color range via VPID
information
• 3G SDI Level A and Level B support
• Automatic input standard and format detection
• Fiber input and output options
• HDMI video output with embedded audio
• Analog and AES audio outputs
• Selectable timecode burn-in and Metadata burn-in
• CEA 708 Closed caption burn-in
• 16 channel on screen audio level meter
• H/V delay & H flip and safe area markers
• yelloGUI compatible: Gain access to additional features
The CDH 1411 is a versatile, compact 12G SDI to HDMI converter designed to
combat a host of monitoring and display applications in broadcast, post
production and pro AV markets. Convert any SDI video signal into an HDMI signal
for monitoring and display. Fiber connectivity options add SDI fiber transmission
and/or SDI fiber reception using the integrated fiber SFP socket.
Two channels of audio can be de-embedded providing digital AES and analog
audio outputs. Analog audio outputs have selectable full scale range presets.
The two selected audio channels can also be embedded into the HDMI output.
Alternatively 8 channels selected from the input signal (8 audio groups in 64
channels) can be embedded into the HDMI output. Various burn in features
make the CDH 1411 a true monitoring tool. Individually selectable timecode
burn-in, Closed Caption burn-in, 16 channel audio metering, safe area markers
and Metadata display are just a few of the on-screen monitoring features. The
yelloGUI software provides support for a host of additional settings and features
which are accessed using a PC and the USB port on the module.
Model Description Power
SDI Fiber Transmitter Options
OH-TX-12G-LC/ST
12G SFP Fiber TX - Singlemode - LC or ST conn. - 10km -5.. +0.5dBm
SDI CWDM Fiber Transmitter Options
OH-TX-12G-XXXX-LC
XXXX=Wavelength
CWDM SFP Fiber TX - Singlemode LC Conn. - 10km*
18 according to ITU T G692.2 [ 1270nm - 1610nm ]
-2.. +3dBm
Model Description Sensitivity
SDI Fiber Receiver Options
OH-RX-12G-LC/ST
12G SFP Fiber RX - Singlemode - LC or ST connector -16...-10dBm
Model Description Power Sense
SDI Fiber Transceiver Options
OH-TR-12G-LC
SFP Fiber RX/TX - Singlemode, LC Connector - 10km -5...+0.5
dBm
-10dBm
SDI CWDM Fiber Transceiver Options
OH-TR-12G-XXXX-LC
XXXX=Wavelength
CWDM SFP Fiber RX/TX - Singlemode LC Conn. - 10km*
18 according to ITU T G692.2 [ 1270nm - 1610nm ]
-2..
+3dBm
-14 ...
-10dBm

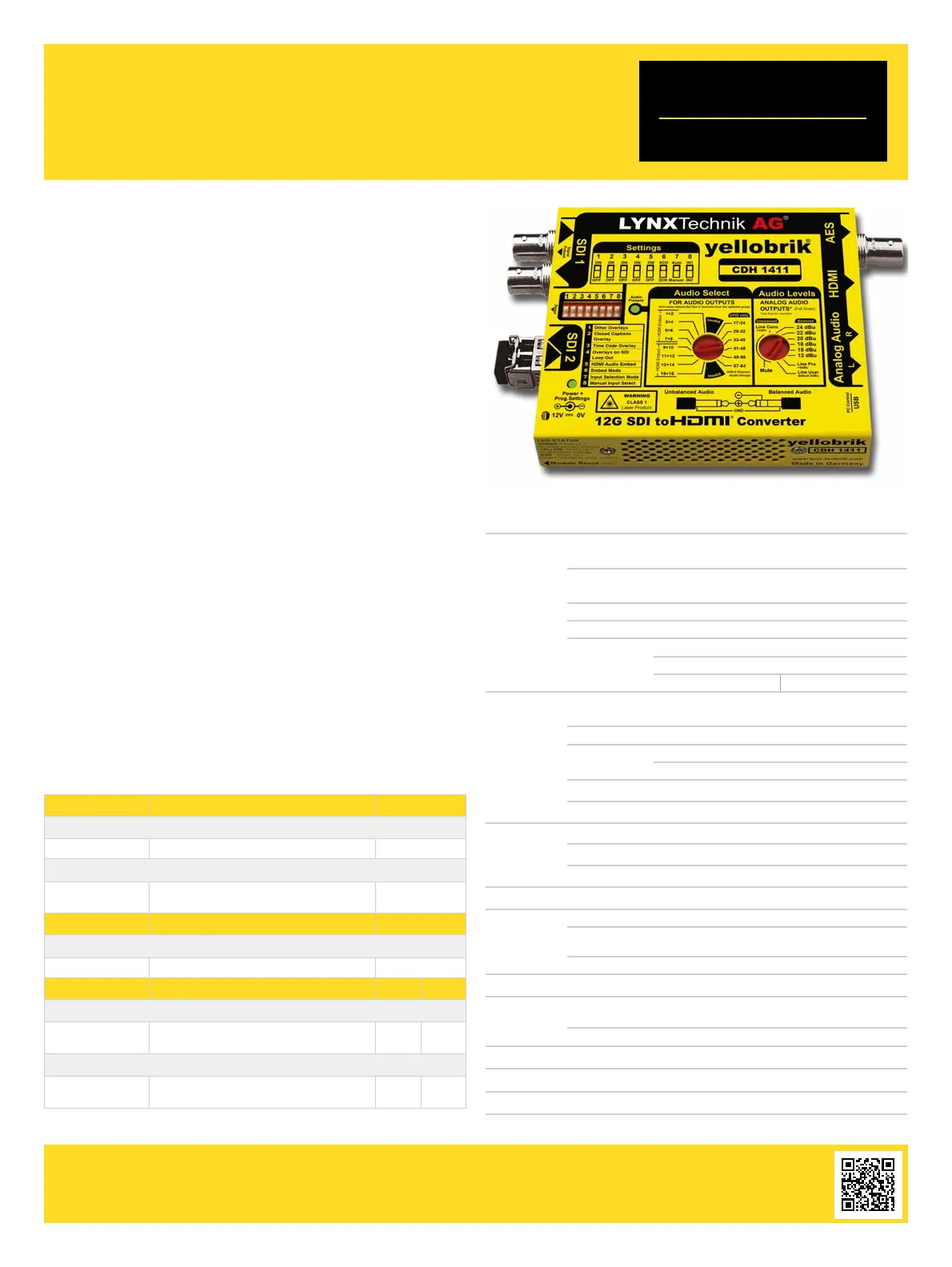

Shown with Fiber SFP
Option Installed
CDH 1411
12G SDI to hdmi
®
Converter
Technical Specifications
SDI Video
1 x SDI input on 75 Ohm BNC connectors
1 x SDI output on 75 Ohm BNC connectors
SMPTE 2082, SMPTE ST 2081, SMPTE 424M, SMPTE 292
3G Level A & B Dual-Link according to SMPTE ST 425-1
Multi-standard operation from 1.5Gbit/s to 12Gbit/s
Multirate reclocking: 1.5Gbit/s - 3Gbit/s - 6Gbit/s - 12Gbit/s
Automatic
cable EQ
1.5Gbit/s 3Gbit/s 12Gbit/s
190m 150m 85m
Belden 1694A Belden 4794R
Fiber Optic
1 x fiber optic input, 1 x fiber optic output
Duplex (singlemode) using LC/PC connection
SMPTE 297M - 2006
Transmitter
Wavelength See Optional SFP Table
Optical power See Optional SFP Table
Receiver Sensitivity See Optional SFP Table
Max. distance* See Optional SFP Table
HDMI
Output
10bit HDMI 2.0b Type A connector - deep color and embedded audio
24bit (3x8bit) and 30bit (3x10bit) deep color (R,G,B / Y,Cr,Cb / X,Y,Z)
2 or 8 channel audio embedding (selectable)
AES Output
AES3-id on 75 Ohm BNC, 2 channels (selectable)
Audio
Output
Left and right analog audio using 3.5mm jack sockets
Balanced mode with 24, 22, 20, 18, 15, 12dBu,
Line Level Pro (4dBu) and Line User
Unbalanced mode with Consumer Line Level (-10 dBV)
Power
+12V DC @ 8.7W nominal - (supports 10 - 24V DC input range)
Physical
Size
(incl. connectors)
140m x 90mm x 22mm
(5.51” x 3.54” x 0.86”)
Weight: 230g (8.11oz)
Ambient
5 - 40ºC (41 - 104ºF) 90% Humidity (non condensing)
Model #
CDH 1411 4250479327436
Includes
Module, AC power supply, HDMI + mini USB cable
yelloGUI compatible
CWDM Wavelength Options. ITU-T G.694.2 (select one)
Other SFP sticks are available. Ask our sales team for the right solution for you.
