Receiver Wiring Adaptor

120 70-7001

Revision 04/18/16

STEP 1 -- MATCH & CONNECT WIRES

*120707001*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call

Crutchfield at 1-888-955-6000.

Copyright 2016 Crutchfield Corporation

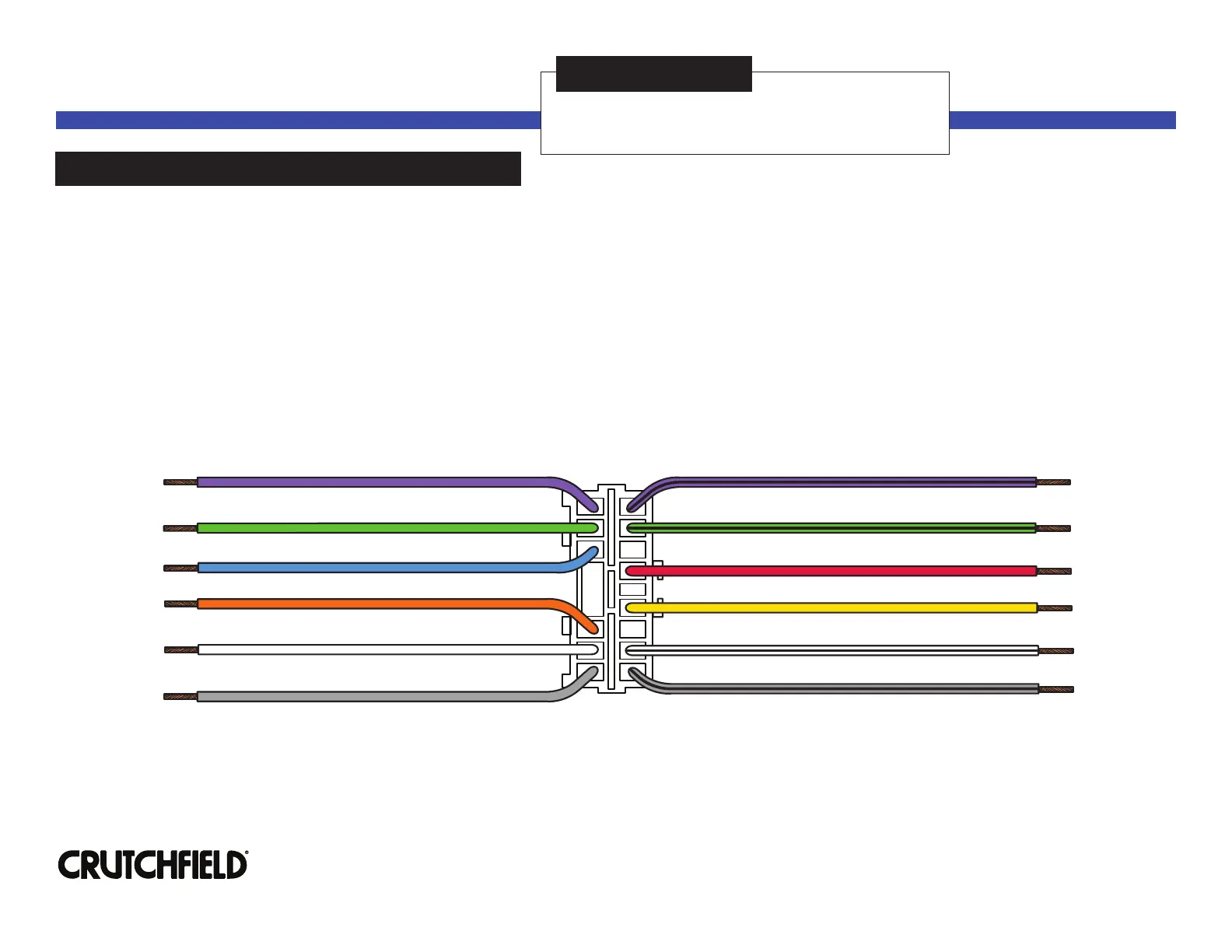

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to illumination wire in this harness by

function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.

Individually tape off any unused wires.

Make final wiring connections following instructions on the next page.

Ground receiver to vehicle chassis.

A.

B.

C.

D.

Ground receiver to vehicle chassis.

Orange - Illumination

Yellow - 12 Volts Constant Power

Red - 12 Volts Switched Power

White - Left Front Speaker Positive

Blue - Power Antenna

Violet - Right Rear Speaker Positive

Green - Left Rear Speaker Positive

Gray - Right Front Speaker Positive

Gray/Black - Right Front Speaker Negative

White/Black - Left Front Speaker Negative

Violet/Black - Right Rear Speaker Negative

Green/Black - Left Rear Speaker Negative

E.
