Oldal 1/8
Installation & Operation
T0 - DVC - DUAL VOICE COIL SUBWOOFERS
Serial Number: Date of Purchase:
Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:
Length of Warranty
Speakers - 1 Year. Any Factory Refurbished Product - 90 days (receipt required)
What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate
Dealers in the United States of America or its possessions.Product purchased by consumers from an
Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distributor and
not by Rockford Corporation.
Who is Covered
This warranty covers only the original purchaser of Rockford product purchased from an Authorized
Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide
Rockford with a copy of the receipt stating the customer name, dealer name, product pu
rchased and date of
purchase. Products found to be defective during the warranty period will be repaired or replaced
(with a product deemed to be equivalent) at Rockford's discretion.
What is Not Covered
1.Damage caused by accident, abuse, improper operations,water, theft,shipping
2.Any cost or expense related to the removal or reinstallation of product
3.Service performed by anyone other than Rockford or an
Authorized Rockford Fosgate Service Center
4.Any product which has had the serial number defaced, altered, or removed
5.Subsequent damage to other components
6.Any product purchased outside the U.S.
7.Any product not purchased from an Authorized Rockford Fosgate Dealer
Limit on Implied Warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the
period of the express warranty set forth above.Some states do not allow limitations on the length of an implied
warranty, so this limitation may not apply.No person is authorized to assume for Rockford Fosgate any other
liability in connection with the sale of the product.
How to Obtain Service
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further
assistance, call
1-800-669-9899 for Rockford Customer Service.You must obtain an RA# (Return
Authorization number) to return any product to Rockford Fosgate.You are responsible for shipment
of product to Rockford.
EU Warranty
This product meets the current EU warranty requirements, see your Authorized dealer for details.
2010 Rockford Corporation.All rights reserved.
Rockford Fosgate, the Rockford Fosgate logo, and the POWER logo are either
registered trademarks or trademarks of Rockford Corporation.
LIMITED W
ARRANTY
STATEMENT
Check our website for additional information and
updates on these products.
www.RockfordFosgate.com
10" 12" 15"
Dual 2-Ohm T0D210 T0D212 T0D215
Dual 4-Ohm T0D410 T0D412 T0D415
19/11 B.M.
1230-56548-01
Printed in China
2
BUILDING AN ENCLOSURE
To work properly, the walls of the enclosure must be rigid and not flex
when subjected to the high pressures generated by the speaker's
operation. For optimum performance, we recommend using 3/4" MDF
(Medium Density Fiberboard) and internal bracing.The enclosure should
be glued together and secured with nails or screws.
SAFETY
PRACTICE SAFE SOUND™
Continuous exposure to sound pressure levels over 100dB may
cause permanent hearing loss. High powered auto sound systems
may produce sound pressure levels well over 130dB. Use common
sense and practice safe sound.
CARTON CONTENTS
• (1) Power DVC Subwoofer
• (1) Trim ring
• (4) Socket head trim ring screws
• (8) Socket head wood screws
• (1) Socket head driver bit
• (1) Installation & operation manual
VENTED ENCLOSURES
Vented enclosures vary only from the sealed enclosure in that a vent or
port is added to “tune” the enclosure.The enclosures recommended are
designed for great overall performance. Larger boxes tend to be easy to
tune to lower frequencies while medium and small boxes are easier
to tune to higher frequencies.The vented design is less linear in
response than the sealed box but with noticeably more output at
the tuning frequency.
Advantages of vented enclosures:
• Higher average output than sealed
• Tuning frequency can be easily adjusted by changing port length
• Deep bass response with lower power requirements
• Great for high output with limited power
RECOMMENDED ENCLOSURES
CALCULATING VOLUME
Calculating volume is merely a matter of measuring the dimensions in
inches and using the formula: H x W x D divided by 1728 (cubic feet).
See block below.
If two facing sides are of uneven length, add them together and divide by
two to take the average. Using this number will give you the volume
without the necessity of calculating the box in sections and adding the
sections together.The thickness of the baffle material reduces the internal
volume so this must be subtracted from the outside dimensions to
determine the internal volume.The speaker itself also reduces the
internal volume.The amount of air displaced by each model is listed on
the specification sheet and should also be subtracted from the gross
volume calculation.
Box Volume Height
"
x Width
"
x Depth
"
Divided by (cubic feet) 1728
This symbol with “CAUTION” is intended to
alert the user to the presence of important
instructions. Failure to heed the instructions
can result in injury or unit damage.
This symbol with “WARNING” is intended to
alert the user to the presence of important
instructions. Failure to heed the instructions
will result in severe injury or death.
CAUTION
CAUTION
CAUTION
To prevent injury and damage to the unit, please
read and follow the instructions in this manual. We
want you to enjoy this system, not get a headache.
If you feel unsure about installing this system
yourself, have it installed by a qualified Rockford
Fosgate technician.
Before installation, disconnect the battery negative
(-) terminal to prevent damage to the unit, fire
adn/or possible injury.
DESIGN FEATURES
These woofers were designed for use primarily in small ported
enclosures. By utilizing the latest materials and construction techniques,
we are able to offer a speaker with high output at low frequencies while
requiring a minimum of operating space.
NOTE: Vb is the gross volume, which is the TOTAL internal volume, before any speaker and/or port displacement.
All external dimensions were based on the use of 3/4" (1.90cm) materials.
NOTE: When using enclosures other than recommended, call Technical Support for correct application.
V EENTED NCLOSURES
Specifications subject to change without notice
Specifications subject to change without notice
Number of ports noted in ( )

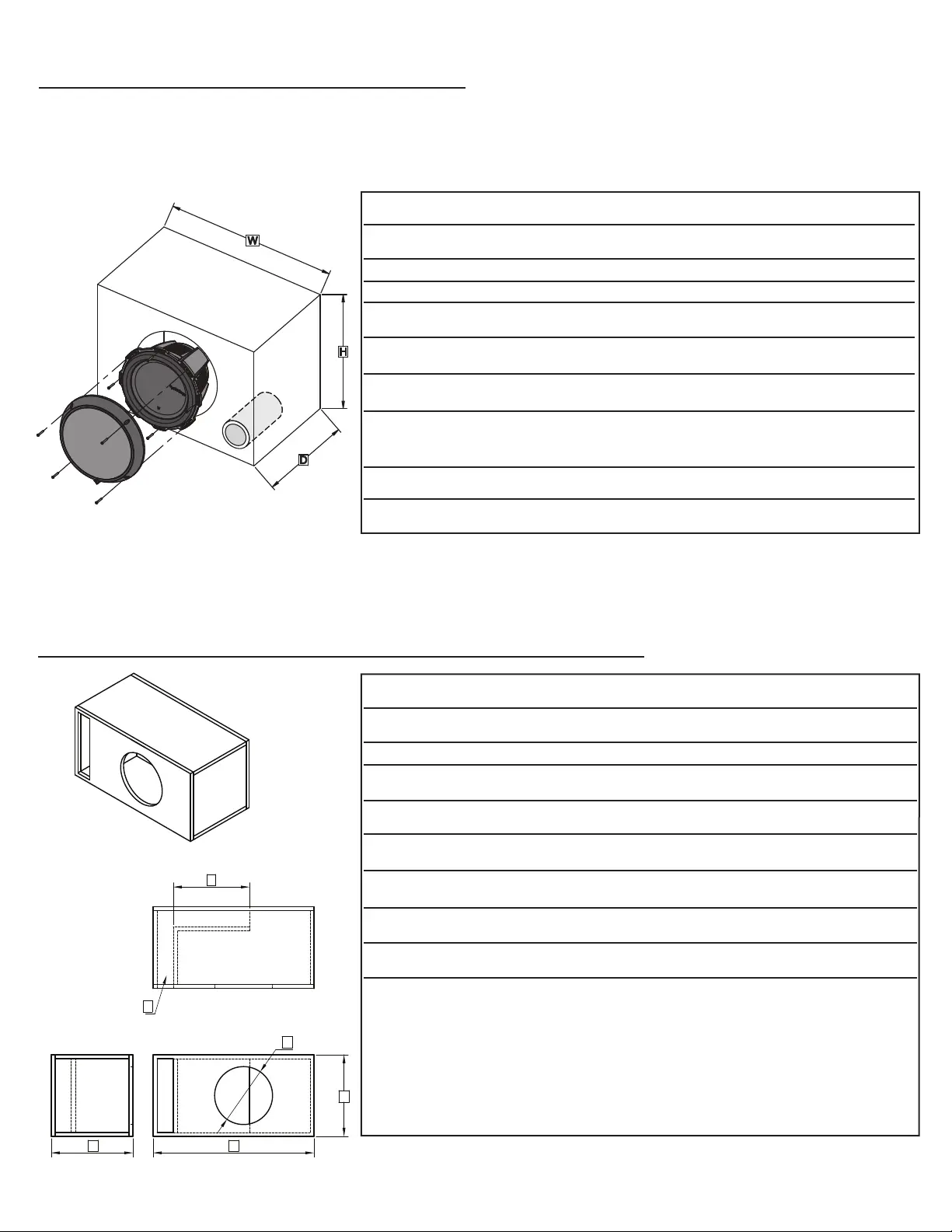

Optimum Vented(Ported) Enclosure Sizes
VENTED ENCLOSURES 10" 12" 15"
T0D210 / T0D410 T0D212 / T2D412 T0D215 / T0D415
V
b
- Internal Area cu. ft.
1.50 1.75 2.66
(49.55)(42.47)
)retiL(
SEALED ENCLOSURES 10" 12" 15"
T0D210 / T0D410 T0D212 / T0D412 T0D215 / T0D415
V
b
- Internal Area cu. ft.
0.75 1.25
(35.39)
2.25
(63.71)(21.24)
)retiL(
F
b
- Tuning Frequency (Hz)
40.0 40.0 32.0
F
3
- -3dB Point (Hz)
32.0 32.0 29.0
H - Height-inch
15.5 16.5 18.0
(41.91)(39.37)
)mc(
W - Width-inch
20.25 25.5 28.0
(64.77)(51.44)
)mc(
D - Depth-inch
12.5 10 12.0
(25.40)
(75.32)
(45.72)
(71.12)
(30.48)(31.75)
)mc(
P - Port Diameter and
Length-inch
(1) 4 x 11 (1) 4 x 9 (1) 4 x 10
(cm) (1) (10.16 x 27.94) (1) (10.16 x 22.86) (1) (10.16 x 25.40)
NOTE: The port shown can be placed on any face of the enclosure as long as the port ends are not obstructed.
NOTE: When using vented enclosures, for maximum reliability and power handling ensure that a subsonic or "infrasonic" filter is used so that
only usable low frequency signal is sent to the subwoofer.
3
Number of ports noted in ( )
VENTED ENCLOSURES 10" 12" 15"
T0D210 / T0D410 T0D212 / T0D412 T0D215 / T0D415
V
b
- Box Volume Net / Gross - cu. ft.
1.5 / 2.04 2.25 / 3.12 3.25 / 4.22
(63.71 / 88.35)
(42.48 / 57.77)
)retiL(
F
b
- Tuning Frequency (Hz) 38.0 40.0 38.0
B - Height-inch 13.5 15.25 18.0
(38.74)
(34.29)
)mc(
C - Depth-inch 13.5 15.25 17.0
(38.74)
(34.29)
)mc(
E - Length-inch
14.75 14.25 9.25
(36.20)
(37.47)
)mc(
F - Mounting Diameter-inch 9-1/8 11-1/4 13-15/16
(28.50)
(23.20)
)mc(
Baffle / Back-inch
Cut List
26 x 13.5 30 x 15.25 30 x 18
(76.20 x 38.74)
(66.04 x 34.29)
)mc(
Top / Bottom-inch 26 x 12 30 x 13.75 30 x 15.5
(76.20 x 34.93)
(66.04 x 30.48)
)mc(
Ends -inch 12 x 12 13.75 x 13.75 15.5 x 16.5
(34.93 x 34.93)
(30.48 x 30.48)
)mc(
Port -inch 14 x 12 - 10 x12 13.75 x 13.5 - 13.75 x 10.75 8.5 x 16.5 - 12.5 x 16.5
(34.93 x 34.29 - 34.93 x 27.31)
(35.56 x 30.48 - 25.4 x 30.48)
)mc(
A - Width-inch 26.0 30.0 30.0
(76.20)
(92.03 / 119.50)
(45.72)
(43.18)
(23.50)
(35.30)
(76.20 x 45.72)
(76.20 x 39.37)
(39.37 x 41.91)
(21.59 x 41.91 - 31.75 x 41.91)
(76.20)
(66.04)
)mc(
D - Port area and Length - inch
(1) 2 x 12.0 x 25.5 (1) 3 x 13.75 x 25.75 (1) 3 x 16.5 x 22.5
(cm) (1) (5.08 x 30.48 x 64.77) (1) (7.62 x 34.93 x 65.41) (1) (7.62 x 41.91 x 57.15)
“ H
IGH
O
UTPUT
” S
LOT
L
OADED
E
NCLOSURES
E
A
B
C
F
D
3/4" MDF
D
W
H
