Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: February 6, 2020 10:29 AM

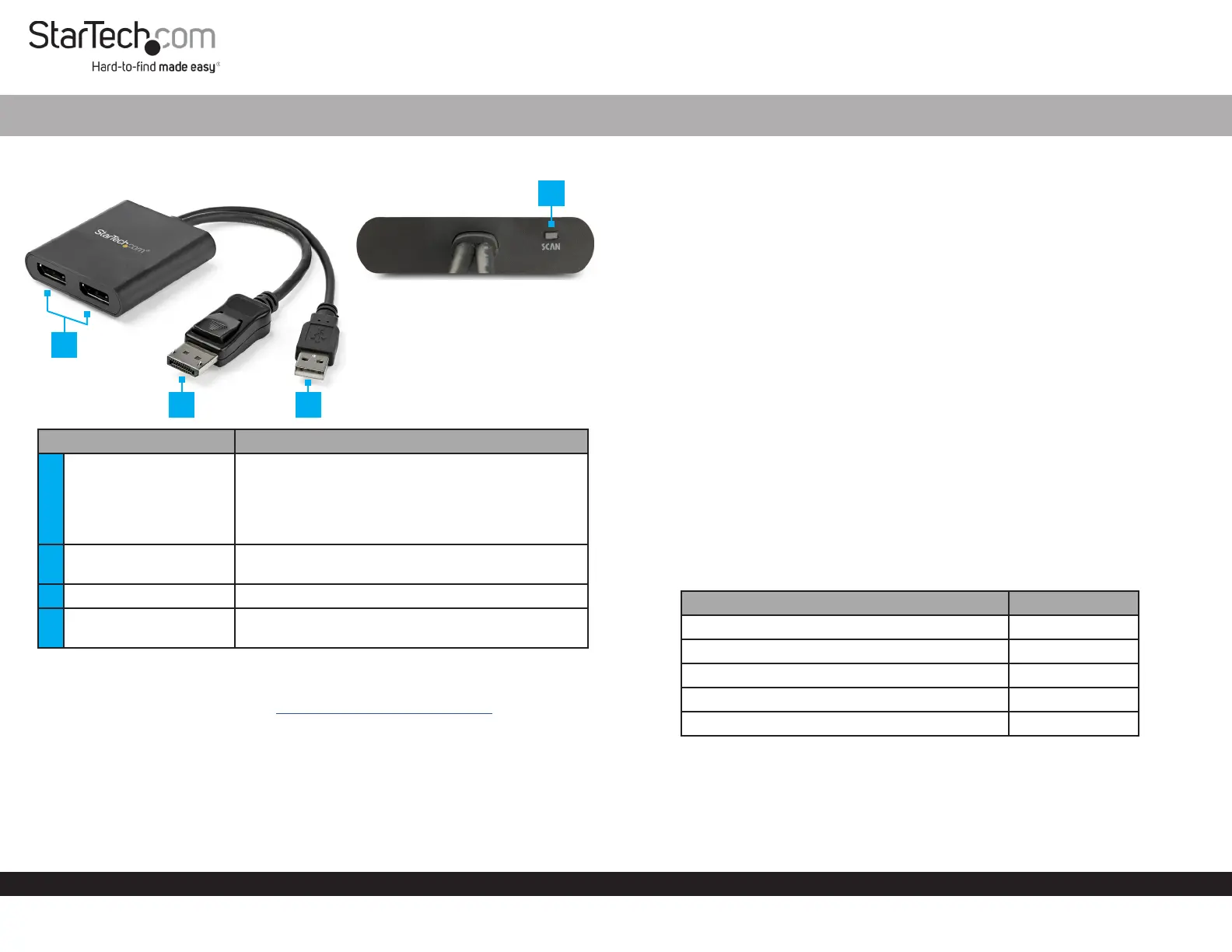

Product Diagram (MSTDP122DP)

ComponentFunction

1DisplayPort Connector

• Connects the Hub to the Host Computer.

• After the MST hub has been connected to the

Host Computer it may be necessary to initiate

the operation of additional displays from within

your Windows Display Settings.

2

USB-A Power

Connector

• Connect the Hub to a USB Power Adapter.

3DisplayPort Ports x 2• Connect up to 2 Display Devices to the Hub.

4 Scan Button

• Re-syncs all of the attached displays, and can be

utilized if any of the displays are not detected.

Requirements

For the latest requirements, please visit www.startech.com/MSTDP122DP

• DisplayPort 1.2 enabled Host Computer x 1

Note: MST is certied for operation with Microsoft® Windows 10, 8, 8.1, and 7 devices.

• DisplayPort Monitors x 2

• DisplayPort Cables (max.15 ft.) x 2

• USB Power Adapter x 1

Multi Stream Transport Hub – DisplayPort™ 1.2 to Dual Head DisplayPort MST Hub

Installing the Hub

1. Ensure the Host Computer and Displays are powered o.

2. Connect the DisplayPort Connect on the Hub to a DisplayPort port on a Host

Computer.

3. Connect a DisplayPort Cable (sold separately) to one of the DisplayPort Ports on

the Hub and the other end up to a DisplayPort port on a Display Device.

4. Repeat step 3 to connect a second Display Device to the Hub.

Note: Certain graphics adapters have limited MST support and will only output to

three displays in total. If more than three monitors are attached, the fourth will be

disabled, including built-in laptop monitors or touchscreen displays.

5. Connect the USB-A Power Connector on the Hub to a USB Power Adapter.

6. Connect the USB Power Adapter to an AC Electrical Outlet.

7. Power on the connected Display Devices followed by the Host Computer.

8. The system will now detect the Hub, and add the attached Display Devices to the

Display Settings on the System.

Average Resolution Bandwidth Allocation

MST shares 21.6Gbps of bandwidth across all attached displays. Higher resolutions

can restrict the bandwidth available for the remaining ports. Please see our guidelines

below for determining the ideal resolution for your setup.

ResolutionBandwidth

1920x1080 (High-denition 1080p) @ 60Hz22%

1920x1200 @ 60Hz30%

2560x1440 @ 60Hz35%

2560x1600 @ 60Hz38%

3840x2160 (Ultra HD 4K) @ 30Hz38%

Note: Exceeding 100% will prevent monitors from turning on.

1

23

4
