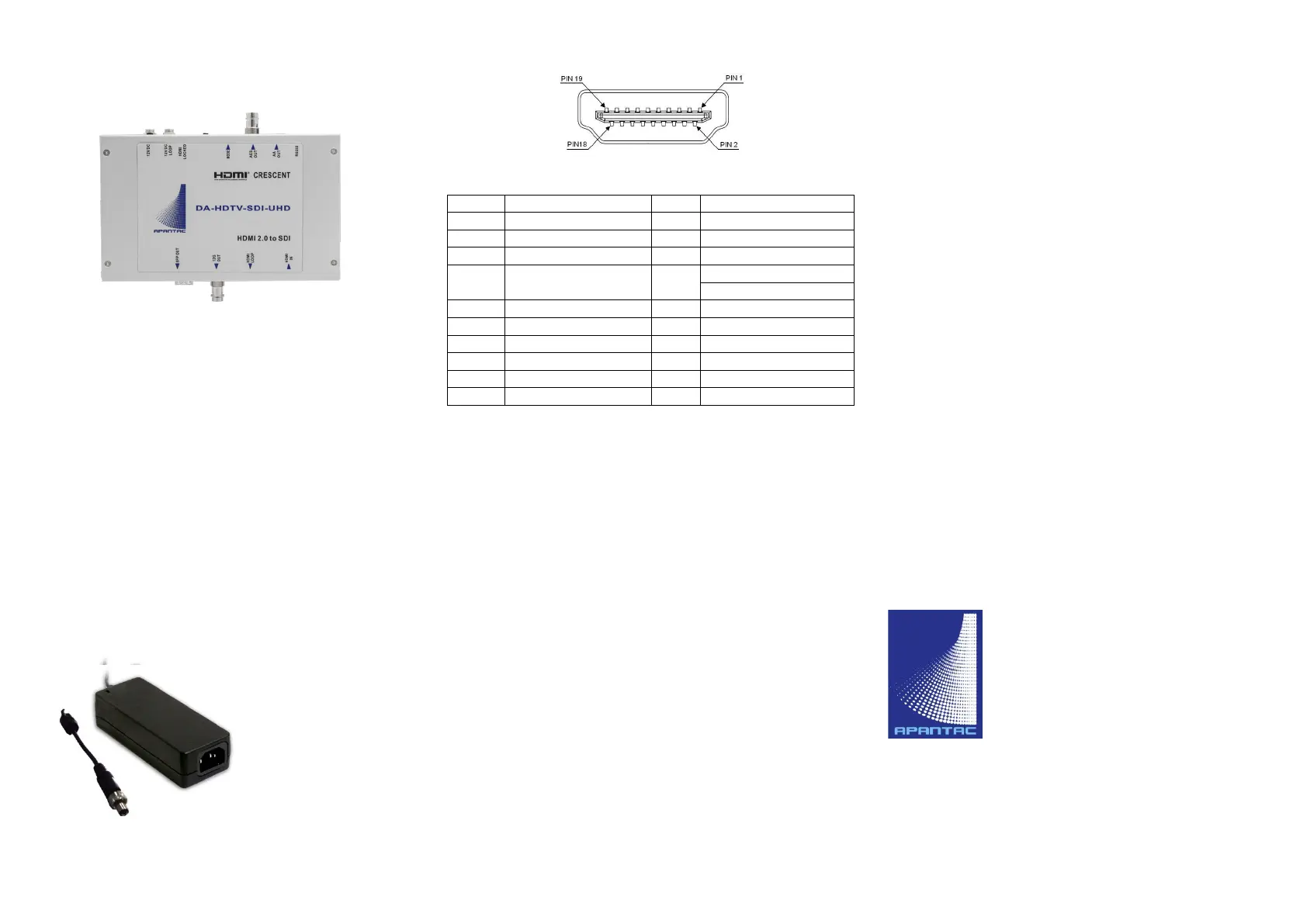

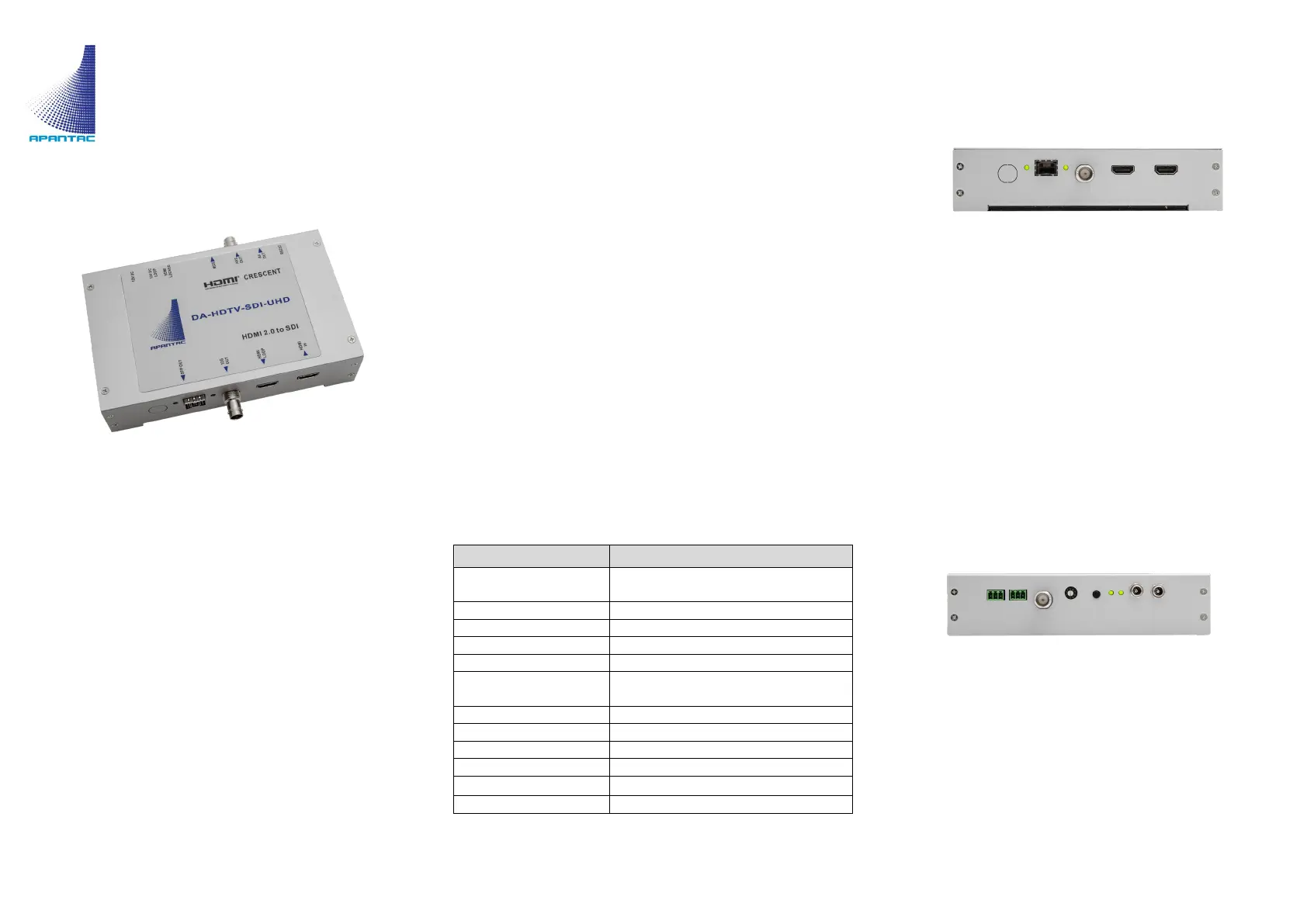

DA-HDTV-SDI-UHD

User Manual

HDMI 2.0 to 12G SDI

Converter w/o

Scaler

OVERVIEW

DA-HDTV-SDI-UHD is a HDMI UHD to 12G SDI converter. It

supports HDMI 2.0, 1.4 (including 4K30Hz and 4K60 4:2:0)

input and converts to SDI up to 12G SDI output with

optional SDI fiber output

PACKAGE CONTENTS

•DA-HDTV-SDI-UHD

•Locking Power Supply (12V/3.34A)

•Magnetic Mounting Plate

FEATURES

•Supports HDMI 1.4 and HDMI 2.0input

•HDCP Compliant

•HDMI loop out

•Supports up to 12G SDI output

•1 x SDI output

•1 x SFP output for optional SDI SFP

SPECIFICATIONS

Function

DA-HDTV-SDI-UHD

DESCRIPTION

HDMI 2.0(UHD) to 12G Converter with

Looping HDMI input

VIDEO INPUT

1 x HDMI 2.0

INPUT RESOLUTIONS

HDMI 1.4/2.0 up to 3840x2160P

VIDEO OUTPUT

1 x HDMI Loopout, 1 x SDI, 1 x SFP

OUTPUT RESOLUTIONS

Up to 12G SDI

AUDIO OUTPUT

8 Channels of SDI Embedded Audio,

AES/AA stereo pairs

ROTARY SWITH

Audio pair selection

RS-232

FW Upgrade Port

POWER

12V DC 3.34A

POWER LOOP OUT

12V DC 3.34A

Cable Distance

10 m on Certified 4K Cables

Housing

Metal

FRONT VIEW

1.LED for I/O SFP status

2.SFP cage for optional SDI Fiber Tx

3.LED for SDI status

4.SDI output

5.HDMI Loopout

6.HDMI Input

REAR VIEW

1.RS-232

2.AA monitoring output

3.AES monitoring output

4.Rotary switch for audio pair selection

5.Selection switch for BNC or SFP output

6.LED for HDMI status

7.12V DC Loop out to power external device

8.12V DC input
