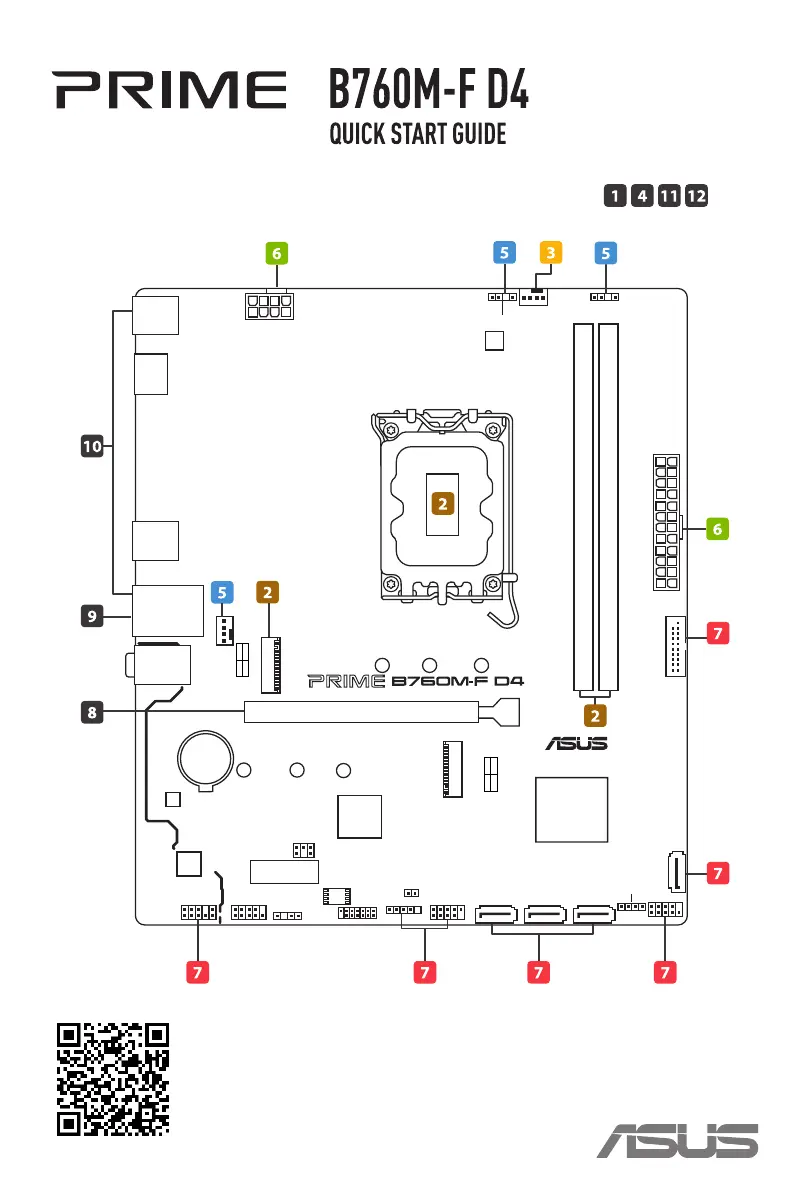

DDR4 DIMM_A (64bit, 288-pin module)
DDR4 DIMM_B (64bit, 288-pin module)
CPU_FAN
ADD_GEN 2_1
ADD_GEN 2_2
DIGI+
VRM
CHA_FAN
F_PANEL
SPDIF_OUT
COM_DEBUG
SATA6G_1
CLRTC
TPM
SATA6G_2 SATA6G_3
SATA6G_4
128Mb
BIOS
CPU_12V
ATX_PWR
U5G_12
BATTERY
HDMI
LAN_U5G_34
U5G_910
USB_56
Audio
Codec
Super
I/O
PCIEX1(G4)
2280 2260 2242
LGA1700
PCIEX16(G4)
USB_1114
F_AUDIO
COM
AUDIO
M.2_2(SOCKET3)
PCIE
SATA
4.0 X4 X
M.2_1(SOCKET3)
PCIE
SATA
4.0 X4 X
SPEAKER
Intel
®
B760
Ethernet
2242 2260 2280
USB_7
The items labeled below correspond to the installation steps, for steps
and more information on the steps, please refer to the rest of the guide.
ARGB
USB 5Gbps
USB 2.0
Chassis Fan
Front Panel
Front Audio
Support
SEEKING A SOLUTION?
Scan now for assistance
ARGB

2
Install key components
Prepare the components
• Install the CPU
NOTE: The components listed above are recommendations, please prepare components according to your needs.
NOTE: Do not remove the PnP cap before the CPU is properly installed.
Chassis
CPU Memory M.2 SSD
SATA device
Power supply unit Graphics card
CPU Cooler
• Install the Memory
Thermal paste
OROR
NOTE: Please refer to the manual(s) for more information:
Please refer to the manual(s) for more information:
Motherboard
Motherboard
CPU installation
Q24048 / Revised Edition V2 / June 2024

3
Install the cooling system
• Air Cooler
• AIO Cooler
AIO_PUMP / W_PUMP
(connect to pump)
CPU_FAN / CPU_OPT
(connect to radiator)
CPU_FAN / CPU_OPT
OR
• Install the M.2 SSD
Remove
Install the bundled
rubber for M.2 when
installing a single
sided M.2 module.
OPTIONAL
NOTE: Please refer to these manual(s) for more information:
NOTE: Please refer to the manual(s) for more information:
Cooler Chassis
Motherboard
Remember to rotate the M.2 Q-latch, secure the
screw properly, or insert the pin of the M.2 Anchor
into the hole.
