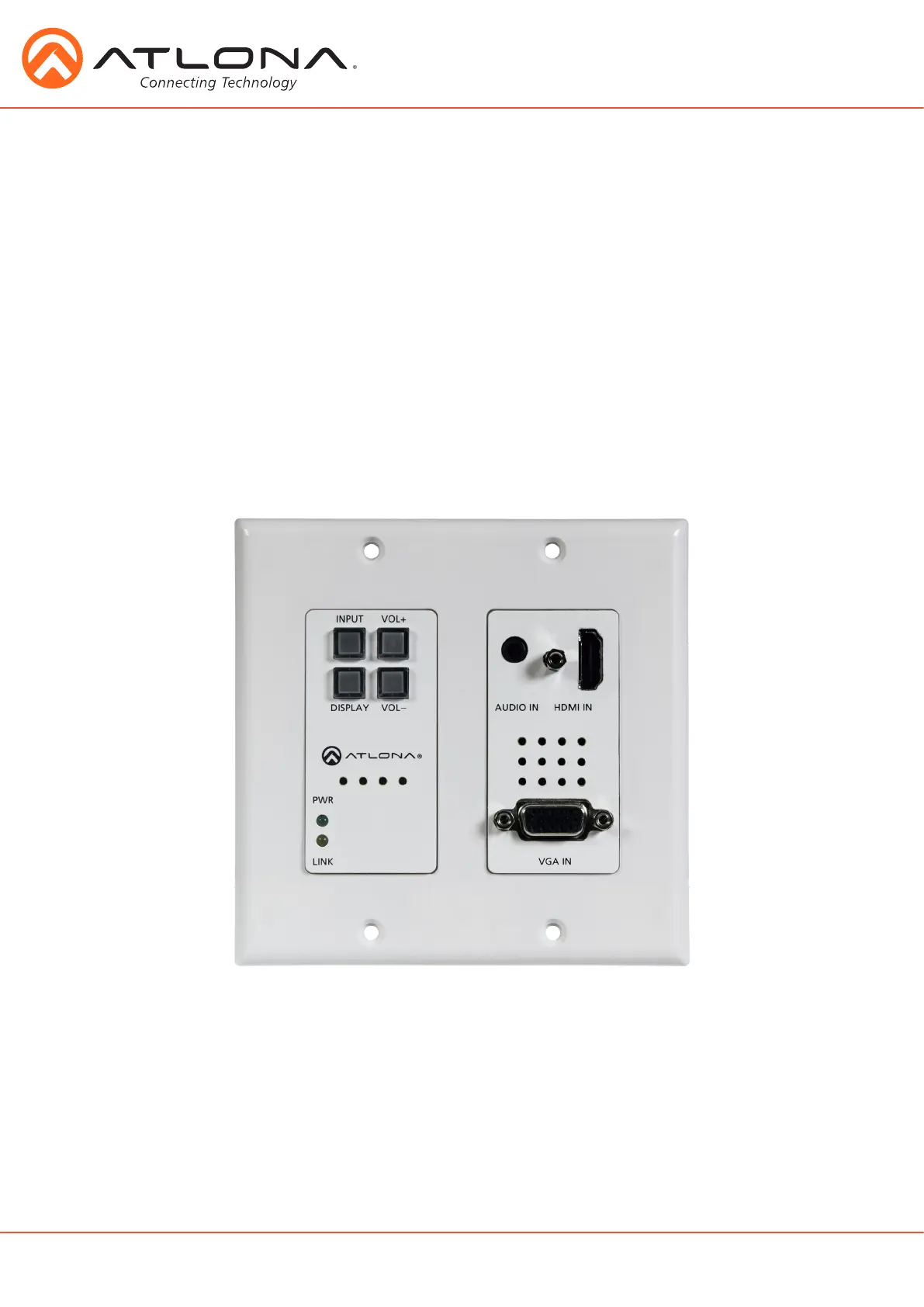

User Manual

Two-Input Wall Plate Switcher

for HDMI and VGA with

Ethernet-Enabled HDBaseT

Output

AT-HDVS-200-TX-WP

Please check http://www.atlona.com/

products/AT-HDVS-200-TX-WP for

the most recent firmware update or

manual.

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

1. Introduction ................................................................................... 3

2. Package Contents ................................................................................... 3

3. Features ................................................................................... 3

4. Panel Descriptions

a. Front Panel ................................................................................... 4

b. Rear Panel ................................................................................... 4

5. Category Cable ................................................................................... 5

6. WebGUI ................................................................................... 6-16

7. RS-232

a. Connection ................................................................................... 17

b. Set Up ................................................................................... 17

c. IP and RS-232 Commands............................................................................... 18-21

d. IP Commands ................................................................................... 22

8. Connection Diagram

a. with HDVS-200-RX ................................................................................... 23

b. with UHD-CLSO series ................................................................................... 24

9. Specifications ................................................................................... 25

10. Safety Information ................................................................................... 26

11. Warranty ................................................................................... 27-28

12. Atlona Product Registration ................................................................................... 28

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

Table of Contents

Note: To ensure compatibility, please be certain both transmitter and receiver have blue HDBaseT ports. This ensures

both products are PoE (48V) compliant. The HDVS-200-TX is not compatible with PoCC (black RJ45, 24V) devices

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

Introduction

The AT-HDVS-200-TX-WP is a 2×1 wall plate switcher for HDMI and VGA inputs with HDBaseT

output. It features a US, two-gang, Decora form factor with one HDMI and one VGA input with an

always-on 3.5mm audio connector. HDMI signals up to 4K/UHD @ 60Hz (YUV 4:2:0 color sub-sampling),

VGA input signals up to 1920×1200, embedded audio, and control signals can be extended up to

328 feet (100 meters). The switcher receives power from the AT-HDVS-200-RX scaler via Power over

Ethernet and together they create a standalone AV switching and control system with scaling for

classrooms and huddle rooms. Display control and volume commands are transmitted via CEC, IP,

or RS-232 to any display, control system, switcher or other controllable device.

The AT-HDVS-200-TX-WP can be the central component of a small, automated AV system.

Automatic display control turns-on the display automatically whenever a source is connected. When

the source is removed, the display is turned off. Volume is controlled by using the front panel or

other control signals. Automatic input selection on the AT-HDVS-200-TX-WP works by sensing

the presence of any video signal. With automatic input selection, manual control systems can be

eliminated.

Package Contents

Features

with AT-HDVS-200-RX

• 1 x AT-HDVS-200-TX-WP (w/face plate - LAN port exposed)

• 1 x Captive screw connector (3 pin: RS-232)

• 1 x Face plate (w/LAN port covered)

• 1 x User Manual

• 1 HDMI (accepts DVI and DisplayPort with adaptors) and 1 VGA/analog audio input

• Auto display control when using TCP/IP, RS-232, or CEC*

• Auto switching with video detection technology (activated through RS-232, IP, or webGUI)

• Device priority - Option to return to a specific port when receiving no signal from the current source

• Control audio volume for HDBaseT output or display

• Adjust volume through front panel, RS-232, or TCP/IP control

Note: Together, CEC and HDBaseT output audio control provide a simple solution for complete audio and

video control, without the need for IP, RS-232, or spending extra programming time.

• Analog audio embedding

• Stand alone audio option - pass analog audio input with no video

• Supports up to 4K @ 60Hz 4:2:0 (when used with 4K compatible receivers/switchers e.g. UHD-CLSO series)

• Ethernet pass through for configuration, upgrading, and device management/control

• Supports Dolby TrueHD and DTS-HD Master Audio when using HDMI for audio input and output

• HDCP management

• EDID management for better compatibility

• Firmware upgrade via USB or webGUI for easy field service

• Scales incoming signals at a variety of common resolutions up to 1080p or 1920x1200

• Dry contact closure control capabilities for up to two devices

• Complete control of video brightness, contrast, saturation, hue, and more

• Projector control through RS-232, IP, or webGUI

• Dual RS-232 port for control systems in addition to projector control

*Note: Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current

Samsung, Panasonic, and Sony TVs. Many manufacturers do not support the CEC “Off” command when sent from a source and older TVs use proprietary

commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We

encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to

control their displays if Atlona CEC is not compatible with the installed displays.
