Oldal 1/34

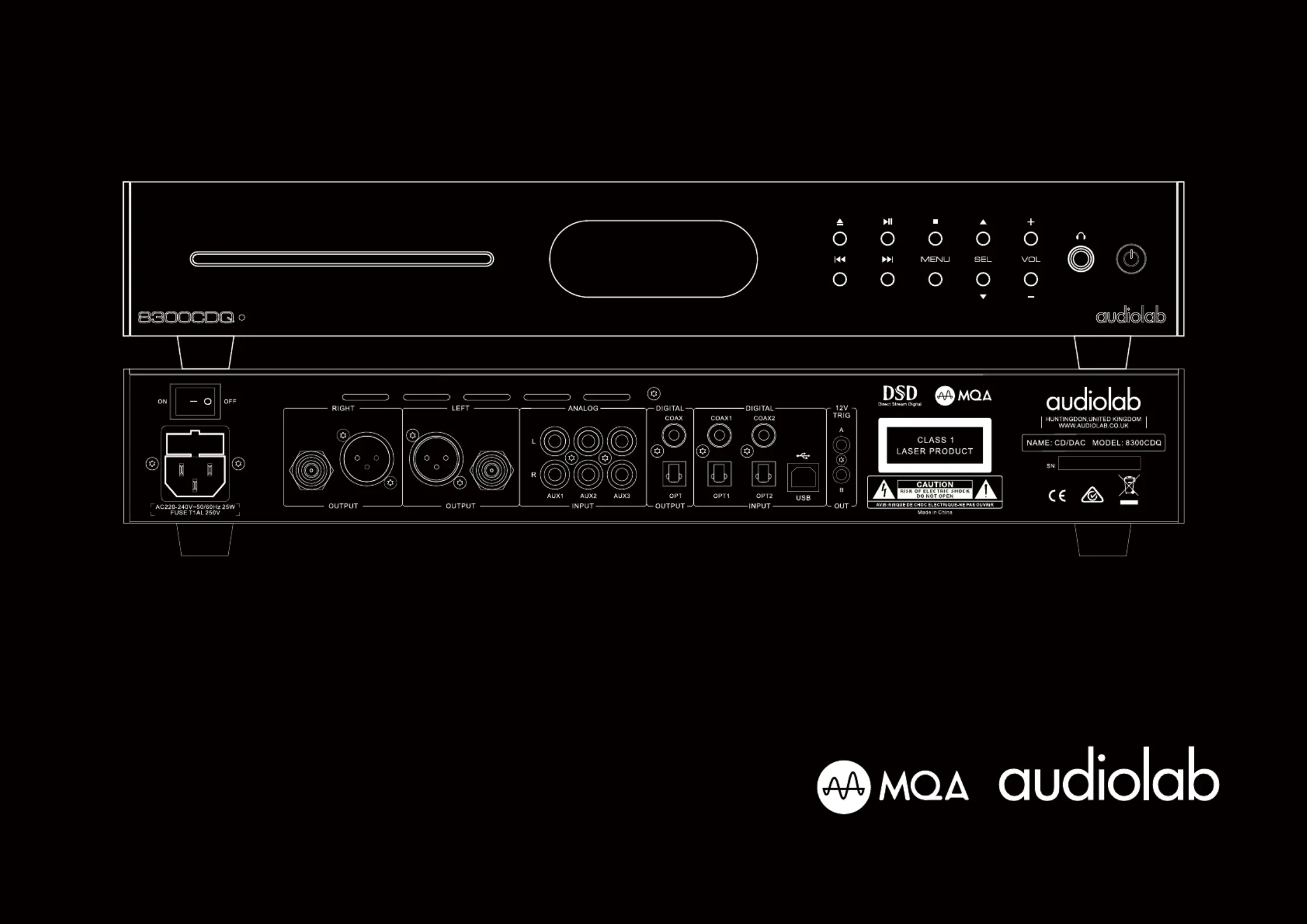

User Instructions
8300CDQ
one wider than the other. A grounding plug has two
blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at the plugs, convenience receptacles, and at
the point where they exit from the apparatus.
Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart or rack
is used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
CAUTION: These servicing instructions are for use by
qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than
that contained in the operating instructions unless you are
qualified to do so.
Do not install this equipment in a confined or built-in
space such as a bookcase or similar unit, and keep well
ventilated in open space. The ventilation should not be
impeded by covering the ventilation openings with items
such as newspaper, table-cloths, curtains etc.
WARNING: Only use attachments/accessories specified
or provided by the manufacturer (such as the exclusive
supply adapter, battery etc).
WARNING: Please refer to the information on the exterior
panel of the enclosure for electrical and safety information
before installing or operating the apparatus.
WARNING: The battery (battery or batteries or battery
pack) shall not be exposed to excessive heat such as
sunshine, fire or the like.
CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
This label tells you that the unit
co nta ins a l ase r c omp one nt .
Opening the unit will expose the
user to radiation from the laser
beam.
Mains Supply: The mains operating voltage of Audiolab
8300 series units is shown on the rear panel. If this voltage
does not match the mains voltage in your area, consult
your Audiolab dealer about converting the unit.
The mains supply fuse on the rear panel is accessible when
the IEC mains plug has been removed. In the rare event
that it has broken, check for any obvious cause before
replacing the fuse with one of the correct rating and type.
The fuse values are:
220 – 240V (UK, China, etc.) T1AL 250V Slow Blow
100 – 120V (USA, Japan, etc.) T1.6AL 250V Slow Blow
1: Important Safety Information
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS
OUVRIR WARNING: SHOCK HAZARD-DO NOT OPEN
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of non-insulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock.
Warning: To reduce the risk of electric shock, do not
remove cover (or back) as there are no user-serviceable
parts inside. Refer servicing to qualified personnel.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance instructions in the literature
accompanying the appliance.
IMPORTANT SAFETY INFORMATION
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
Page 1
• Analogue output level selectable between fixed and variable.
• Three display brightness levels with on/off options.
• Auto standby function with on/off options.
Note:
The should be used with the variable outputs connected directly to 8300CDQ a
power amplifier. If there are gain controls on the power amplifiers, set them to maximum and
leave them there. Use the volume control on the 8300CDQ exclusively to alter the level.
If you wish to connect the outputs of into a pre-amplifier, you may wish to disable 8300CDQ
the volume control functions, so that the player operates at a fixed gain. In this mode the unit
behaves as a CD/ AC operating in the digital domain. D
Unpacking
• Unpacking the product fully. The carton should contain:
• The Audiolab 8300CDQ
• One IEC power cord suitable for your area.
• One C -ROM for USB driver.D
• One emote handset with two AAA batteries.R
• This instruction manual.
If an item is missing or damaged report this to your dealer as soon as possible. etain the R
packing for safe transport of your unit. If you dispose of the packing, do so with regard to
any recycling regulation in your area.
Placement
The unit is designed to run warm during normal operation but ensure you do not block any
ventilation openings.
Pl uni ur sh lf us ui surace the t on a st dy e or table. f you Ie an eq pment rack en e the unit has
adequate ventilation and is on its own shelf.
Ensure your mains voltage corresponds to the rating plate on the rear of the product’s power
supply. If in doubt, consult your dealer. If you move to an area with a different
mains voltage
seek advice from an Audiolab appointed dealer or a competent service technician.
2: Getting tart S ed
Welcome to Audiolab 8300 Series.
8300CDQ is the late ompactst ve on of Audiolab s cla c rsi ’ssi C c player th gh qua ty C Dis wi hi li DA
incorporated.
This versatile digital player now accepts inputs from a variety of digital sources right up to 24-bit/192kHz
(USB even high to 32-bit/384kHz) resolution and decodes them utilizing the high end Sabre 32-bit C -DA
with Audiolab’s precision filters.
You can select between different filter choices based on personal preference as well as suitability for 7
different sources, all at the touch of a button on the versatile remote control.
More than just a player, is a versatile digital decoder that will serve you for many years to CD 8300CDQ
come.
Please read through this manual to obtain the very best performance from 8300CDQ.
Inputs:
• CD disc playback.
• Two external SPDIF stereo LPCM coaxial digital input
• Two external SPDIF stereo LPCM optical digital input
• USB 2.0 port for replaying stereo from a compatible host
• Three external analogue inputs
• Built in certified hardware MQA decoder
Outputs:
• Balanced and unbalanced stereo analogue output
• Optical and coaxial SPDIF digital output
• A stereo 6.3mm headphone output
Operating Features:
• Automatic detection decoding of external digital input source.
• Selectable digital filter setting.
•
Mute and balance controls.
• Automatic standby on off switching of connected equipment via 12V trigger output.-
Page 2
