Oldal 1/35

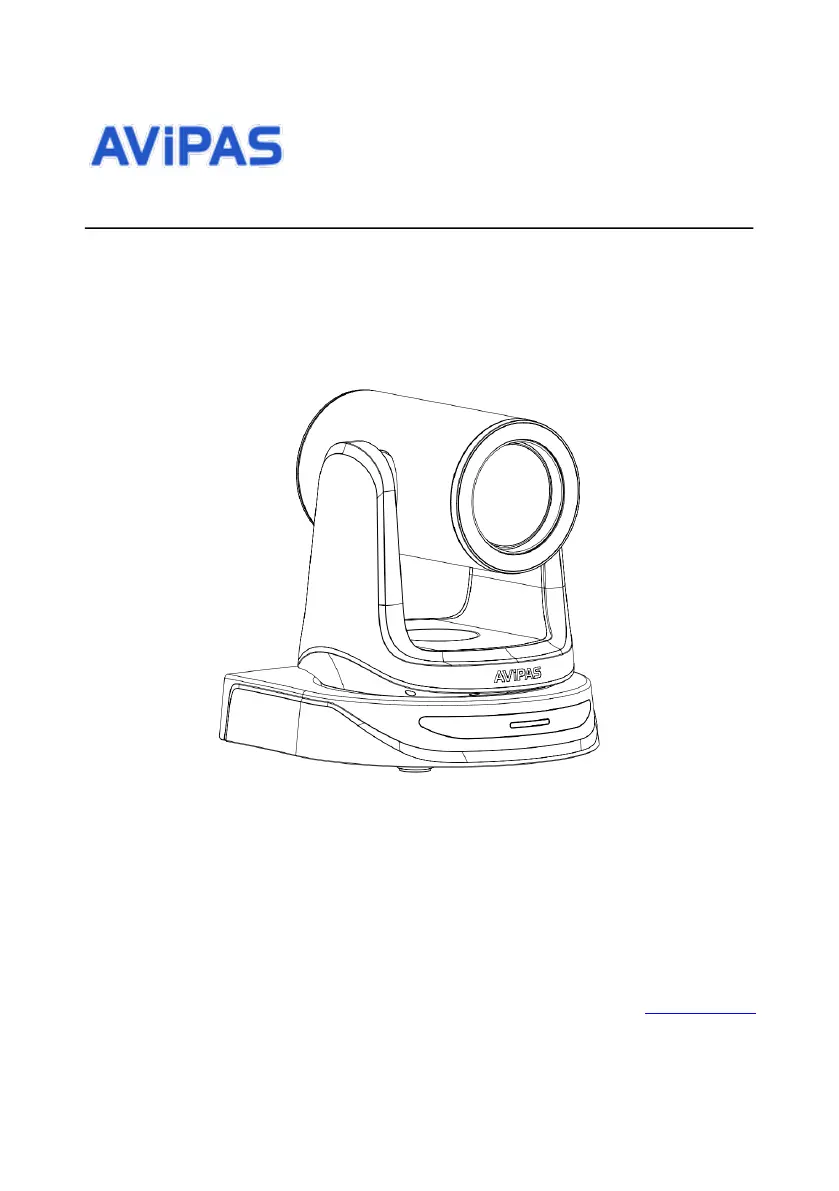

Model: AV-2020

20x HD All- -one PTZ Camerain

User Manual

V1.0

Please read this user manual

thoroughly before using.

www.avipas.com

Preface

Thank you for using this HD All- -one PTZ Camera. in

This manual introduces the functions, installation process and operation of the HD camera. Prior to

installation and usage, please read the manual thoroughly.

Precautions

This product should only be used under the specied conditions in order to avoid any damage to the

camera:

◼ Do not subject the camera to rain or moisture.

◼ Do not remove the cover. Otherwise, you may risk receiving an electric shock. In case of

unintended equipment operation, contact an authorized engineer.

◼ Never operate under unspecied temperature, humidity or power supply.

◼ Please use soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted

neuter detergent; do not use any type of solvents, which may damage the surface.

Note:

This is a class A production. Electromagnetic radiation at certain frequencies may aect the image

quality of TV in home environment.

CONTENT

SAFETY GUIDES ......................................................................................................................................... 1

PACKING LIST 2 .............................................................................................................................................

QUICK START .............................................................................................................................................. 2

PRODUCT HIGHLIGHTS. ........................................................................................................................... 3

CAMERA SPECIFICATIONS ....................................................................................................................... 3

CAMERA INTERFACE. ............................................................................................................................... 5

CAMERA DIMENSION. 5 ..............................................................................................................................

IR REMOTE CONTROLLER. ...................................................................................................................... 6

VISCA IN ( ) PORT. 9 RS232 ............................................................................................................................

OSD MENU ................................................................................................................................................. 10

UVC CONTROL ......................................................................................................................................... 13

WEB SETTINGS ......................................................................................................................................... 14

VIEW RTSP STREAM VIA VLC ............................................................................................................... 18

VISCA OVER IP ......................................................................................................................................... 19

VISCA PROTOCOL .................................................................................................................................... 22

PELCO-D PROTOCOL ............................................................................................................................... 29

PELCO-P PROTOCOL ................................................................................................................................ 30

WARRANTY ............................................................................................................................................... 32
