AXDIS-BW122
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/8/24 INSTAXDIS-BW122
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS

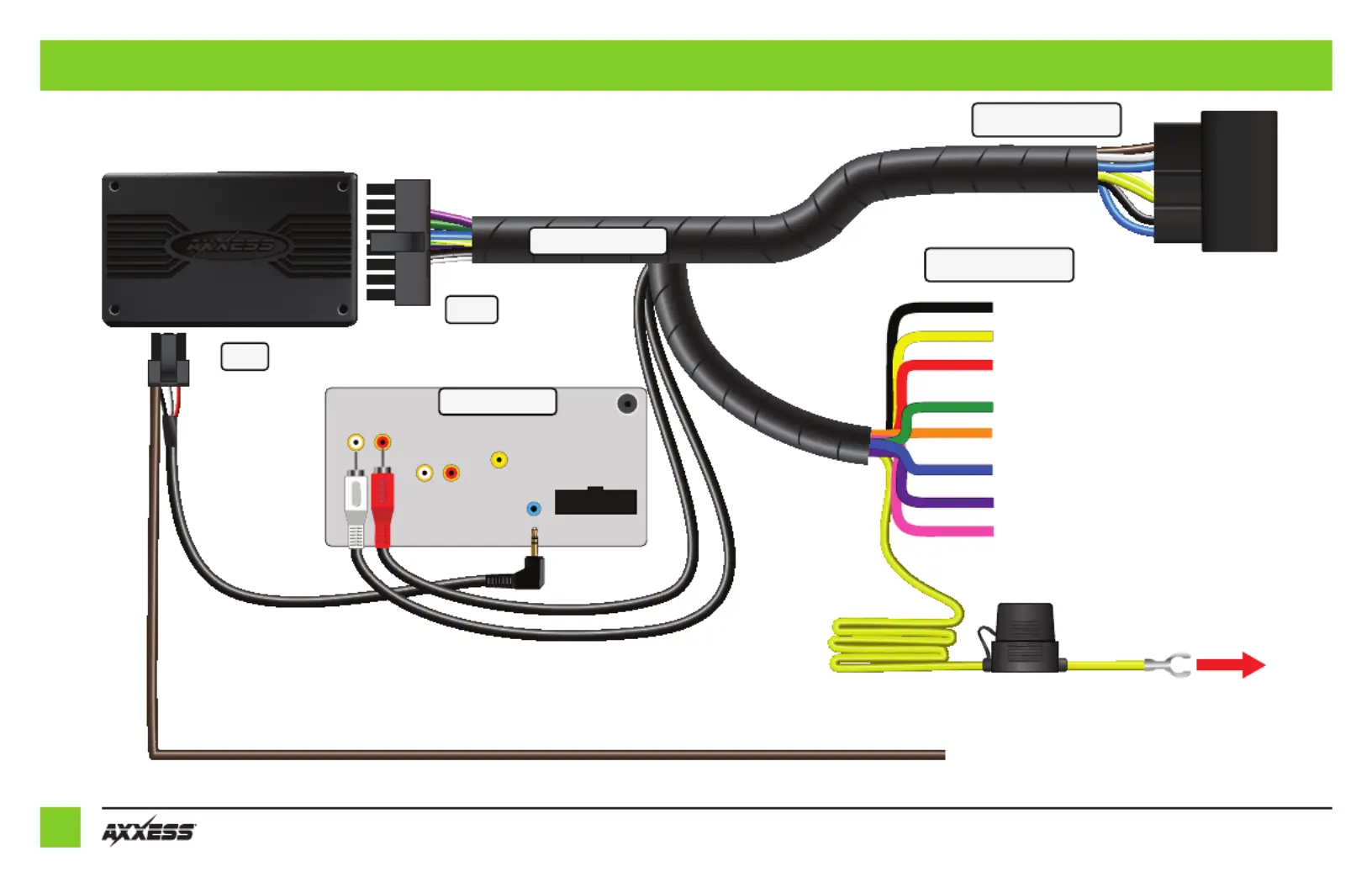

Connections: BLK-AXDIS-BW122 B Harness2 .........
Steering Wheel Control (SWC) Chart3 ...................
Installing the AXDIS-BW122 interface4 ..................
Installing the Fiber Optic Cable.............................4
BMW (with MOST 25 amplifier)
Interface System2004-2014
• Designed for MOST* 25 amplified systems
• Provides accessory power (12 volt)
• Retains audio controls on the steering wheel controls
• Easy to set Dipswitches for SWC configuration
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Micro-B USB updatable

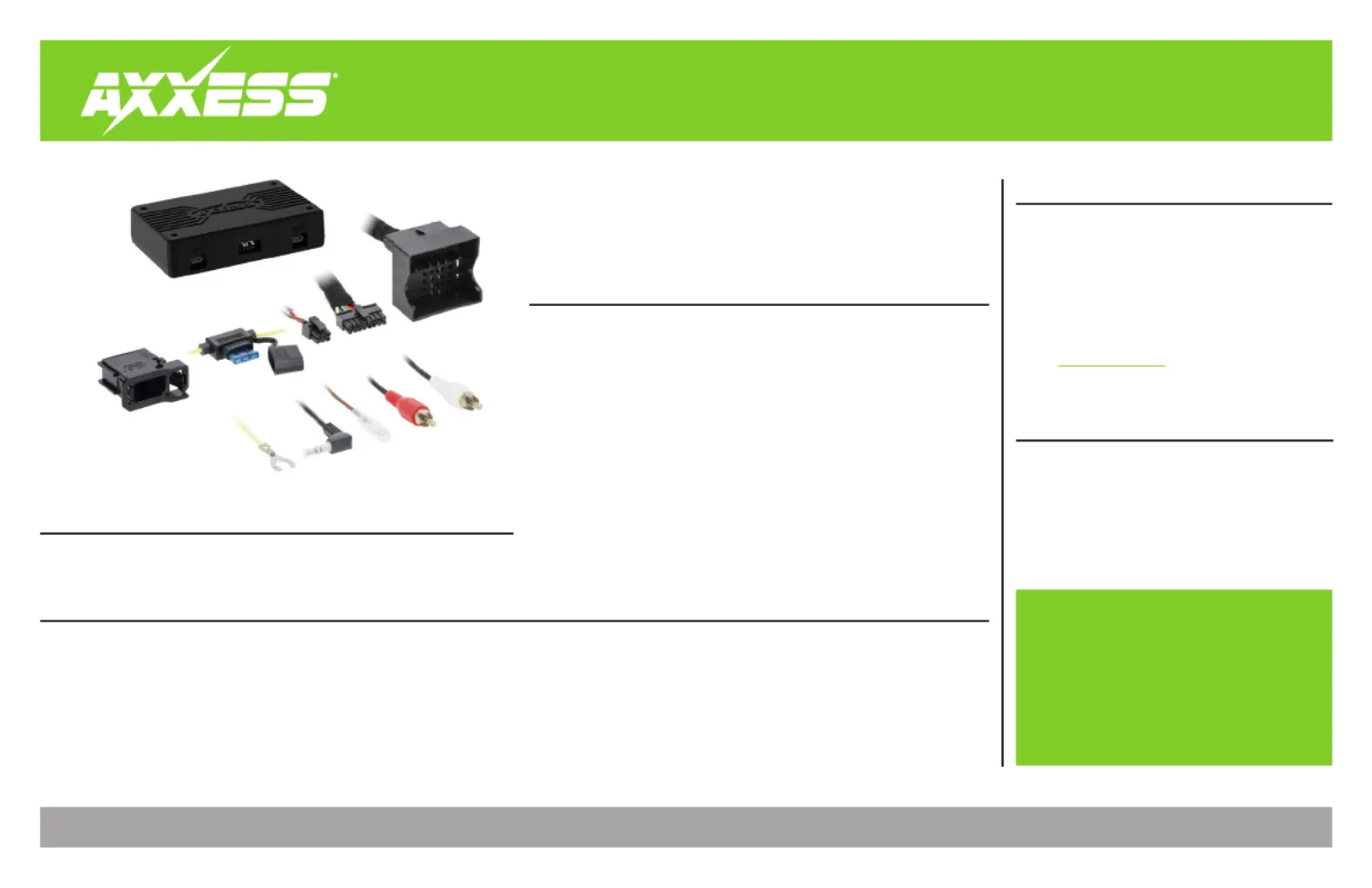

• AXDIS-BW122 interface • BLK-AXDIS-BW122 B harness
APPLICATIONS
US Applications
BMW
1 Series (E82, E87, E88)2008-2013 ................................
3 Series (E90, E91, E92, E93)2006-2012 ........................
5 Series (E60, E61) 2004-2010 .......................................
X6 (E71)2008-2014 .........................................................
World Applications
BMW
1 Series (E82, E87, E88)2008-2013 ................................
3 Series (E90, E91, E92, E93)2006-2012 ........................
5 Series (E60, E61)2004-2010 ........................................
X6 (E71)2008-2014 .........................................................
Note: Warning and parking sensor chimes are not retained
Backup Camera not retained if equipped.
* Media Oriented System Transport
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications.
