AXDIS-LR92

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/8/24 INSTAXDIS-LR92

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

INTERFACE COMPONENTS

Range Rover Land Rover2004-2009

(with MOST25 amplifiers) Data Interface with SWC

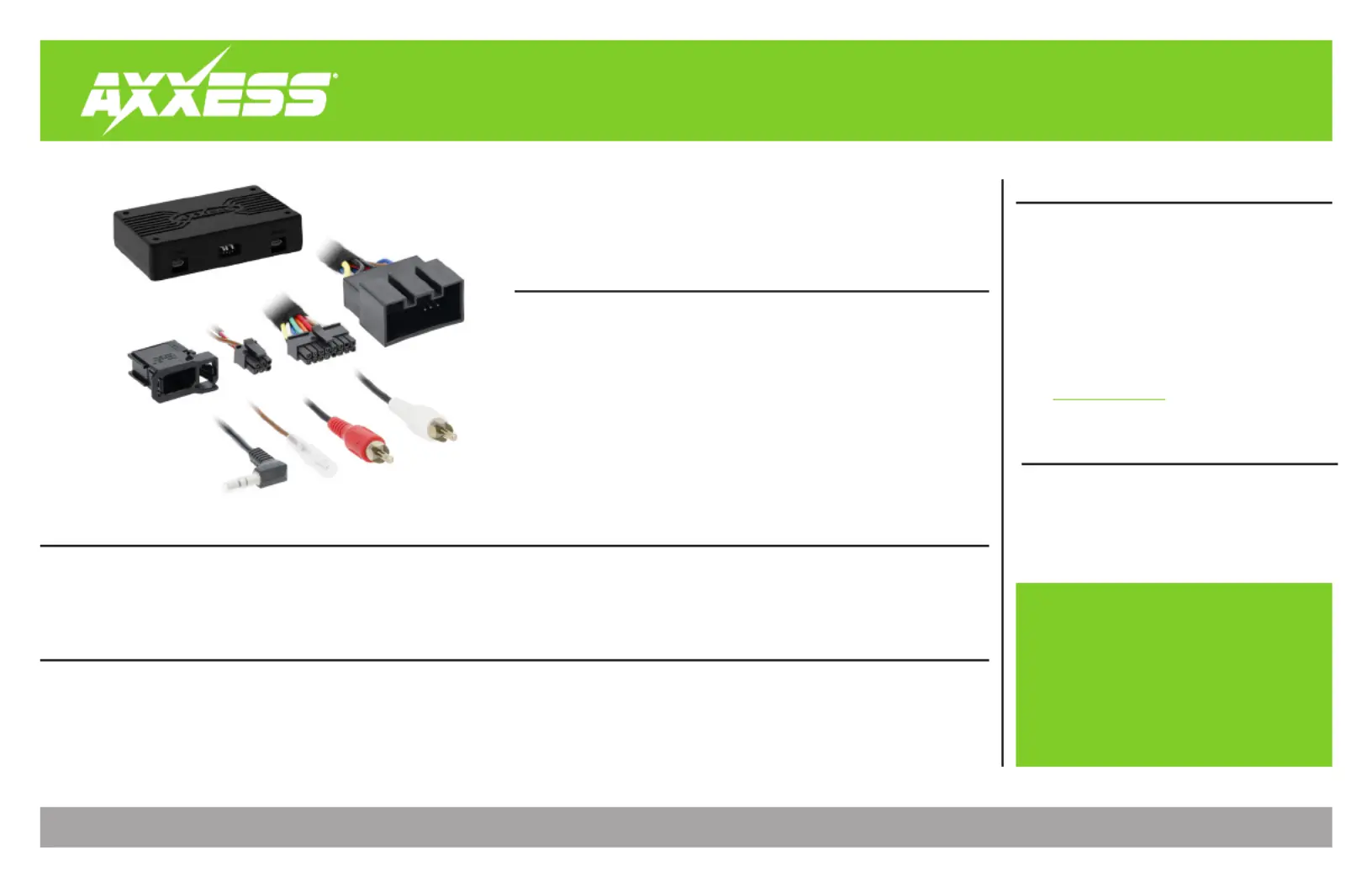

• AXDIS-LR92 harness

• AXDIS-LR92 interface

• SWC harness

• Fiber cap

TOOLS REQUIRED

• Wire cutter • Crimp tool and connectors

(example: butt-connectors, bell caps, etc.) or

• Solder gun, solder, heat shrink

• Tape • Zip-ties

INTERFACE FEATURES

• Designed for MOST*25 amplified systems

• Provides accessory power (12-volt)

• Retains audio controls on the steering wheel controls

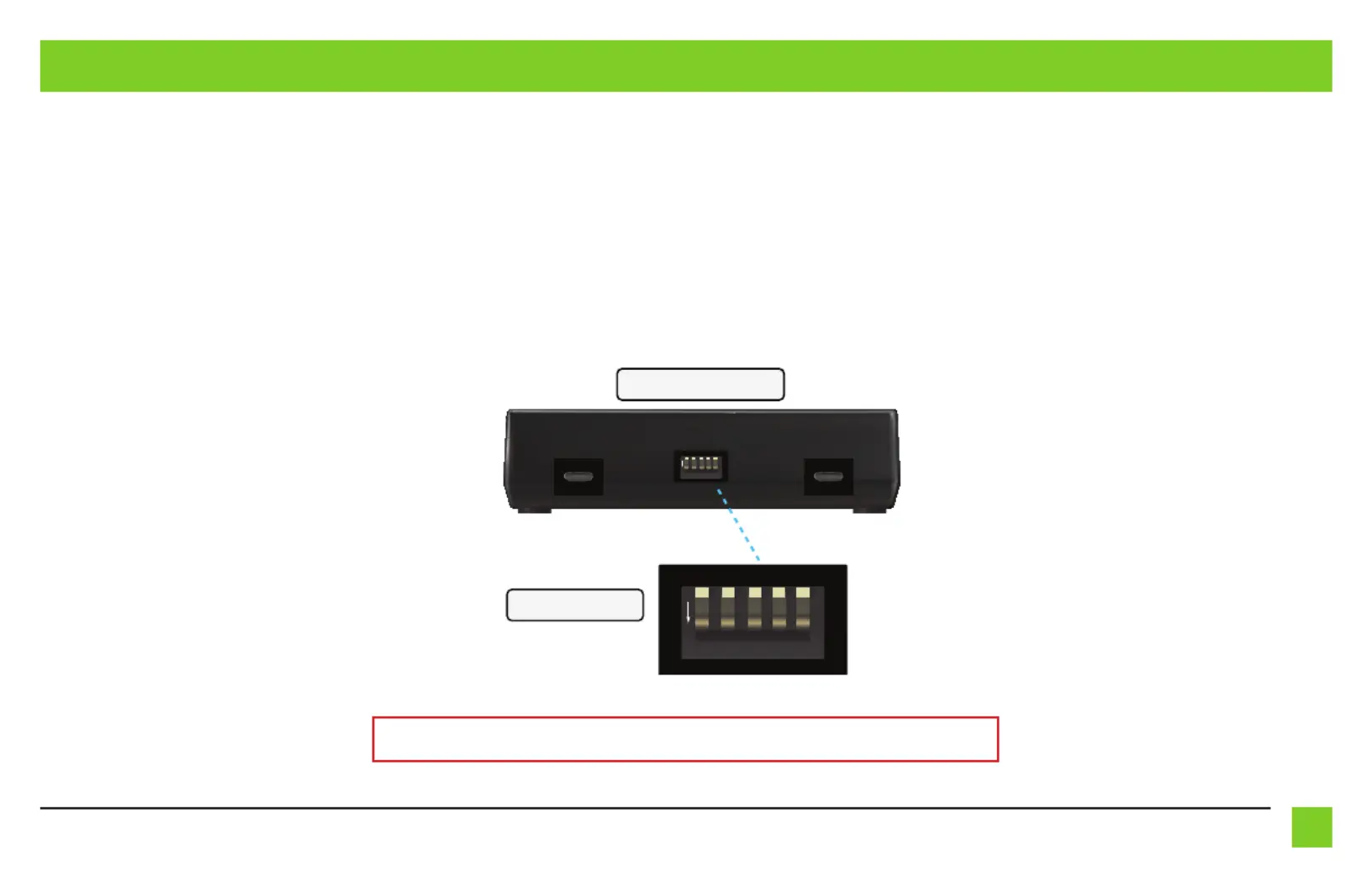

• Easy to set Dipswitches for SWC configuration

• Provides NAV outputs (parking brake, reverse, and speed sense)

• Micro B USB updatable

Note: Backup Camera not retained if equipped.

* Media Oriented System Transport

Visit for more detailed information AxxessInterfaces.com

about the product and up-to-date vehicle specific applications

APPLICATIONS

US Applications: Range Rover

Range Rover Sport (L320)2006-2009 ............................................

Land Rover LR3 (L319) 2005-2009 .................................................

World Applications: Range Rover

Range Rover Sport (L320) 2005-2009 ............................................

Land Rover LR3 (L319) 2004-2009 ..................................................

TABLE OF CONTENTS

Connections: BLK-AXDIS-LR92 harness2 ................

Installing the AXDIS-LR92 interface3 .....................

Steering Wheel Control Chart (SWC)4 ...................

Installing the Fiber Optic Cable.............................5

Applicable Radio5 ....................................................
