Oldal 1/15
AXDSPL-CH5
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/24/24 INSTAXDSPL-CH5
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties • Multimeter
TABLE OF CONTENTS
Installation & Installation Options 2 ........................
Connections 3-4 ........................................................
Rebooting the U-Connect Radio 5 ..........................
Mobile App: Quick Setup 6-7 ...................................
Specifications 8 .........................................................
• Includes a DSP (Digital Signal Processor)
• Selectable 15 Band graphic EQ or 5 Band Parametric EQ
• Designed for both amplified and non-amplified models
• 4 inputs and 6 individually assignable outputs
• Independent equalization for front, rear, and sub
• Selectable low pass, band pass, and high pass filters
• Selectable crossover slopes; 12db, 24db, 36db, 48db
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Retains factory parking sensor chimes
• Retains U-Connect voice prompts
(Features continued on next page)
APPLICATIONS
Visit for current application listAxxessInterfaces.com
INTERFACE COMPONENTS
• AXDSPL-CH5 interface
• AXDSPL-CH5 interface harness
• AXDSPL-CH5 vehicle T-harness • Bass knob
Chrysler DSP Interface (with Pre-Wired Harness)
2014-Up
www.MetraOnline.com
MetraOnline.com may be used to assist
with dash assembly instructions. Simply
enter your Year, Make, Model vehicle
into the vehicle fit guide and look for the
Dash Kit Installation Instructions.
Google Play Store Apple App Store
iOS 12.1 or higher
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
2
INSTALLATION OPTIONS INSTALLATION
FEATURES CO NT.
• Adjustable chime level
• Easy behind the radio installation with pre-wired harness
• Internal header port for adding interface modules
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth®
in a smart device application (tablet or mobile phone), compatible
with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*
2. AXDSPL-CH5 vehicle T-harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
Note: If installing a full range amp on the front and rear speakers, the resistor pad
harness must be used to present a load to the factory radio. Two are provided with
different value resistors. Use whichever one works and discard the other.
3. AXDSPL-CH5 vehicle T-harness AXDSPL-CH5 interface Plug the to the .
4. AXDSPL-CH5 interface harness AXDSPL-CH5 interface Plug the to the .
5.
Download and install the from the or .AX-DSP-X app Google Play Store Apple App Store
6. Cycle the ignition on.
7. Bluetooth Open the app then select the ® Connection tab. Follow the instructions to
pair the mobile device to the interface. Refer to for more information.Page 6
8. Configuration Lock Down Scroll to the tab then select the vehicle type. Press the **
button to save the configuration. Refer to for more information.Page 7
9. Connect the amp turn-on wire.
10. Lock Down Adjust the settings in the app as desired. Press the ** button to save any
new configurations,
*For dash disassembly instructions, refer to . Enter the year, make, and model metraonline.com
of the vehicle in the Vehicle Fit Guide and find instructions under Metra Radio Install kits.
**Anytime the interface is locked down the key must be cycled off then back on.
Adding a subwoofer to a factory system:
This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-
amplified. (Refer to )Page 3
Adding a full-range amp & subwoofer to a factory system: This feature offers the ability to add a full-
range amp and sub to a factory system, whether amplified*
or non-amplified. (Refer to )Page 4
* For amplified models the amp must be bypassed/unplugged, and chosen in With OE Amplifier
the tab under . Use either Axxess or (sold Configuration Vehicle Type AXABH-CH2 AXABH-CH4
separately) to bypass the amp for best results.
16-pin header port: Inside the interface is a 16-pin header port for adding optional modules
(sold separately).
• - BluetoothAXDSPL-BT ® streaming interface
• - Toslink digital outputAXDSPL-SP
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number (sold separately) for best results.E-123
3
REV. 7/24/24 INSTAXDSPL-CH5

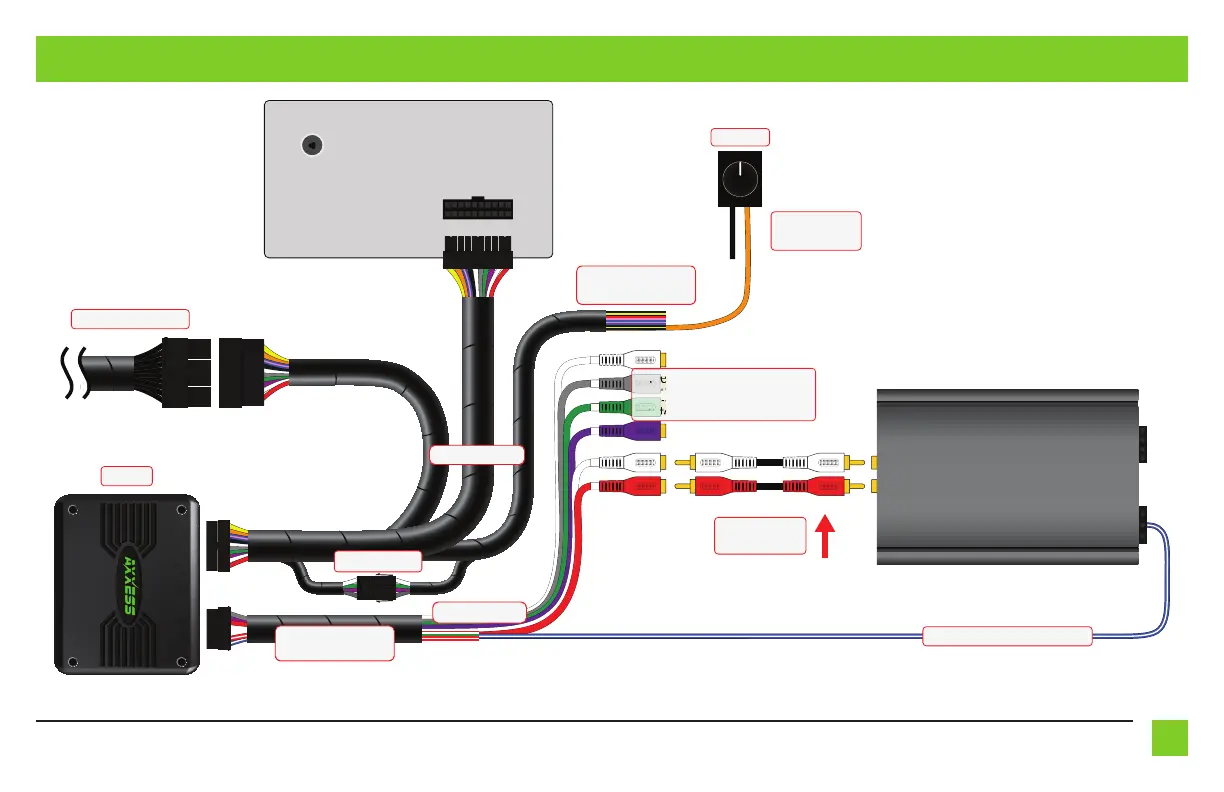

ADDING A SUBWOOFER TO A FACTORY SYSTEM
Factory Radio
These outputs can be used for
additional sub amps, or for adding
onto the em at a later datesyst
6
5
4
3
2
1
RCA Jacks
(sold separately)
K deep Connecte
Any remaining wires
tape off and disregard
Black - Ground
Orange - Control
Bass Knob
Factory Radio Harness
Interface
Any remaining wires
tape off and disregard
Vehicle T-Harness
Blue/White - Amp Turn-On Wire
Interface Harness
