AXPIO-STY1

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/30/24 INSTAXPIO-STY1

TABLE OF CONTENTS

Speaker Installation...............................................2

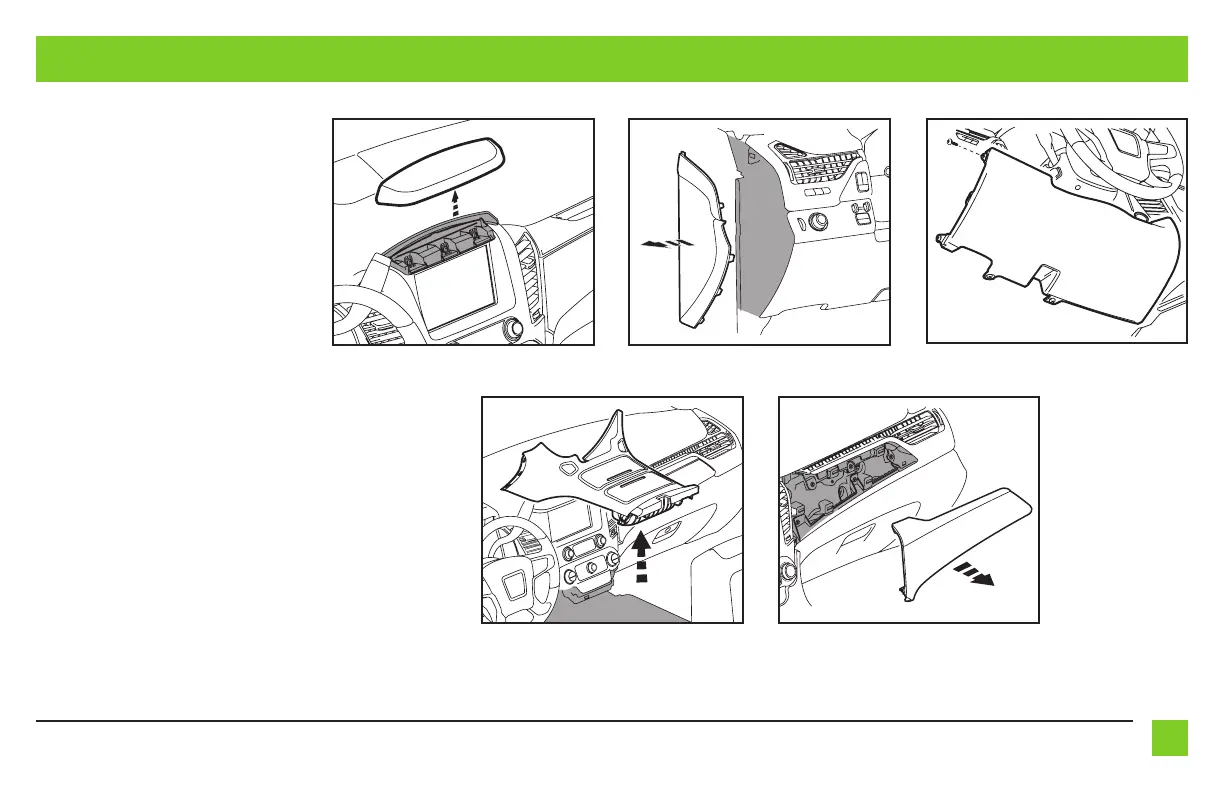

Dash Disassembly ..............................................3-5

Connections ............................................................6

Kit Assembly ..........................................................7

Radio Operations ...............................................8-9

Chevrolet Suburban/Tahoe 2015-2020

GMC Yukon 2015-2020

KIT FEATURES

•

Designed for Pioneer DMH-W4600NEX/W4660NEX or DMH-WC5700NEX receivers

• Allows for the retention and adjustment of the factory personalization menu

through the Pioneer radio

• Provides a visual view of HVAC and gauges on the Pioneer screen (cannot be

adjusted via the screen)

(cont. on page 2)

KIT COMPONENTS

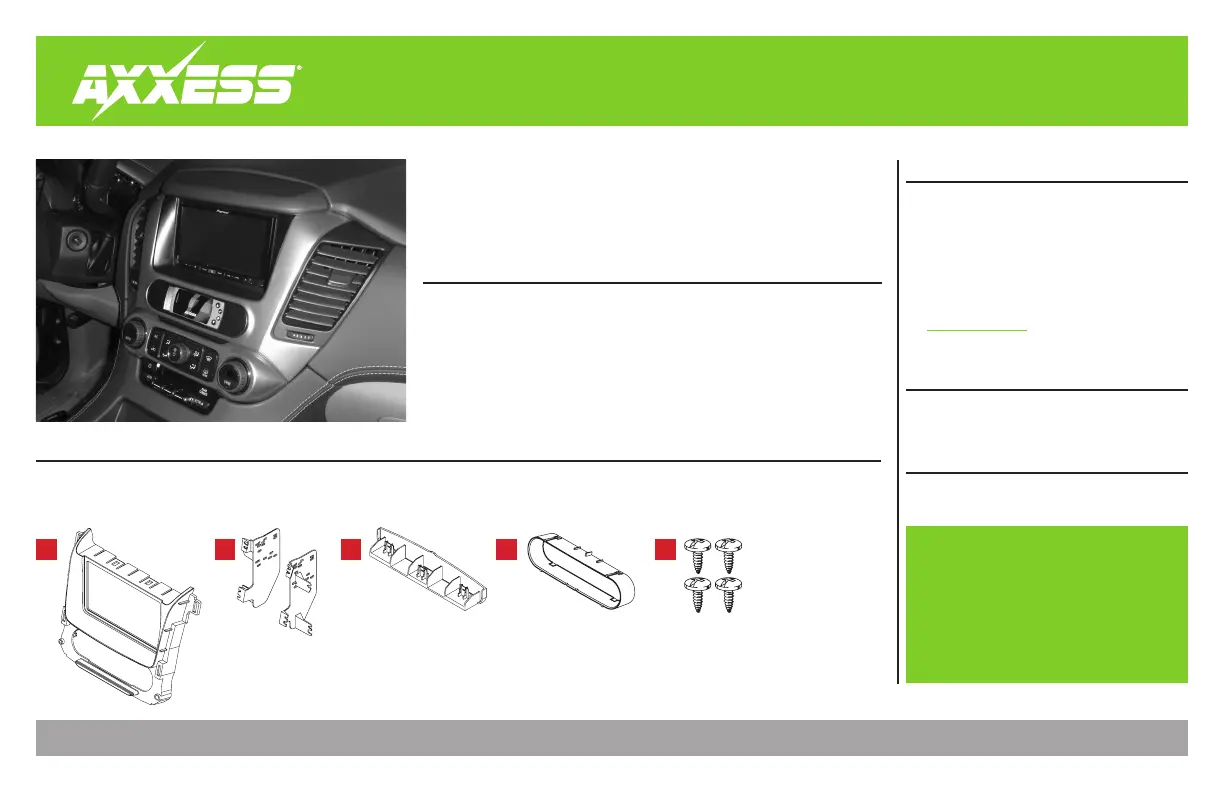

A) Radio housing trim panel • B) Brackets • C) Trim panel bracket • D) Pocket • E) #8 x 3/8" Truss-head Phillips screws (4)

Not Shown: Radio Interface, LD-GMLAN09-PIO, LD-BACKCAM-MOST, LD-GMSWC, AD-EU5, 40-GPS-PIO,

PR04AVIC-PIO / PRO4-PIORCA, LD-AX-SPK, AXUSB-GM6

Visit AxxessInterfaces.com for more detailed information about

the product and up-to-date vehicle specific applications.

WIRING & ANTENNA CONNECTIONS (sold separately)

•

RGB Extension Cable: Pioneer part # CD-RGB150A

(not sold by Metra)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32" socket wrench

ABDCE

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.
