AXTC-FOC

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 1/4/24 INSTAXTC-FOC

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip-ties

TABLE OF CONTENTS

Connections2 ............................................................

Programming3 .........................................................

Troubleshooting.....................................................4

Ford SWC (Steering Wheel Control)

and Data Interface 2014-2019

APPLICATIONS

• Designed for amplified and non-amplified models

• Provides accessory power (12-volt 10-amp)

•

Provides wires for multimedia radios (park brake, reverse, speed sense)

• Retains audio controls on the steering wheel

• Designed to be compatible with all major radio brands

• Auto detects vehicle type, radio connection, and preset controls

• Ability to dual assign steering wheel control buttons

• Retains memory settings even after battery disconnection or interface

removal (non volatile memory)

• Provides illumination output

• Retains the 3.5mm AUX-IN jack

• USB Micro-B updatable

• Retains factory backup camera

Ford

Escape 2015-2018 (with 8 inch screen) .....................................................

Fiesta 2014-2019 (with 8 inch screen) .......................................................

Focus 2015-2018 (with 8 inch screen) .......................................................

Transit full size van 2014-2019 (with 8 inch screen) ................................

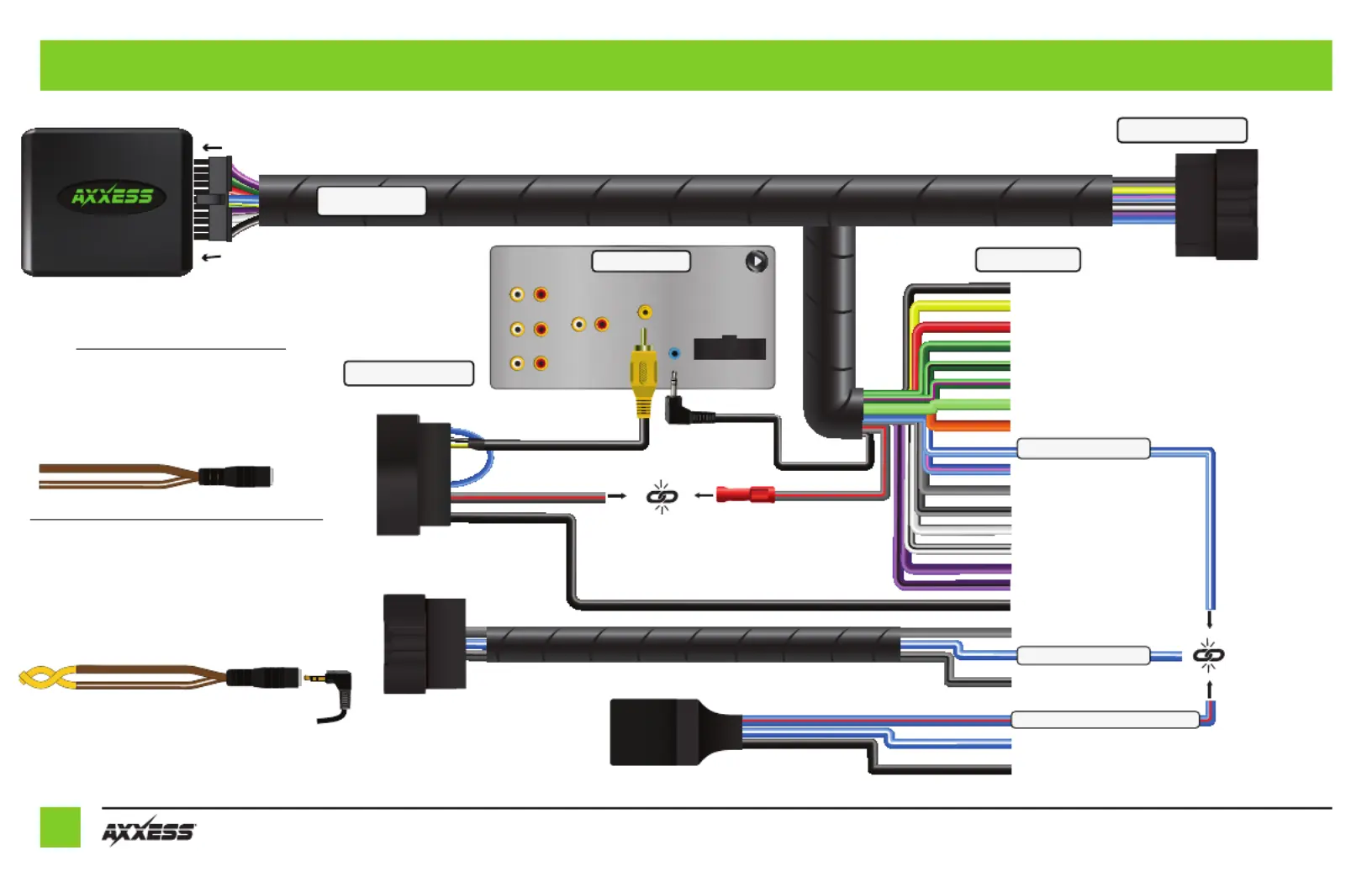

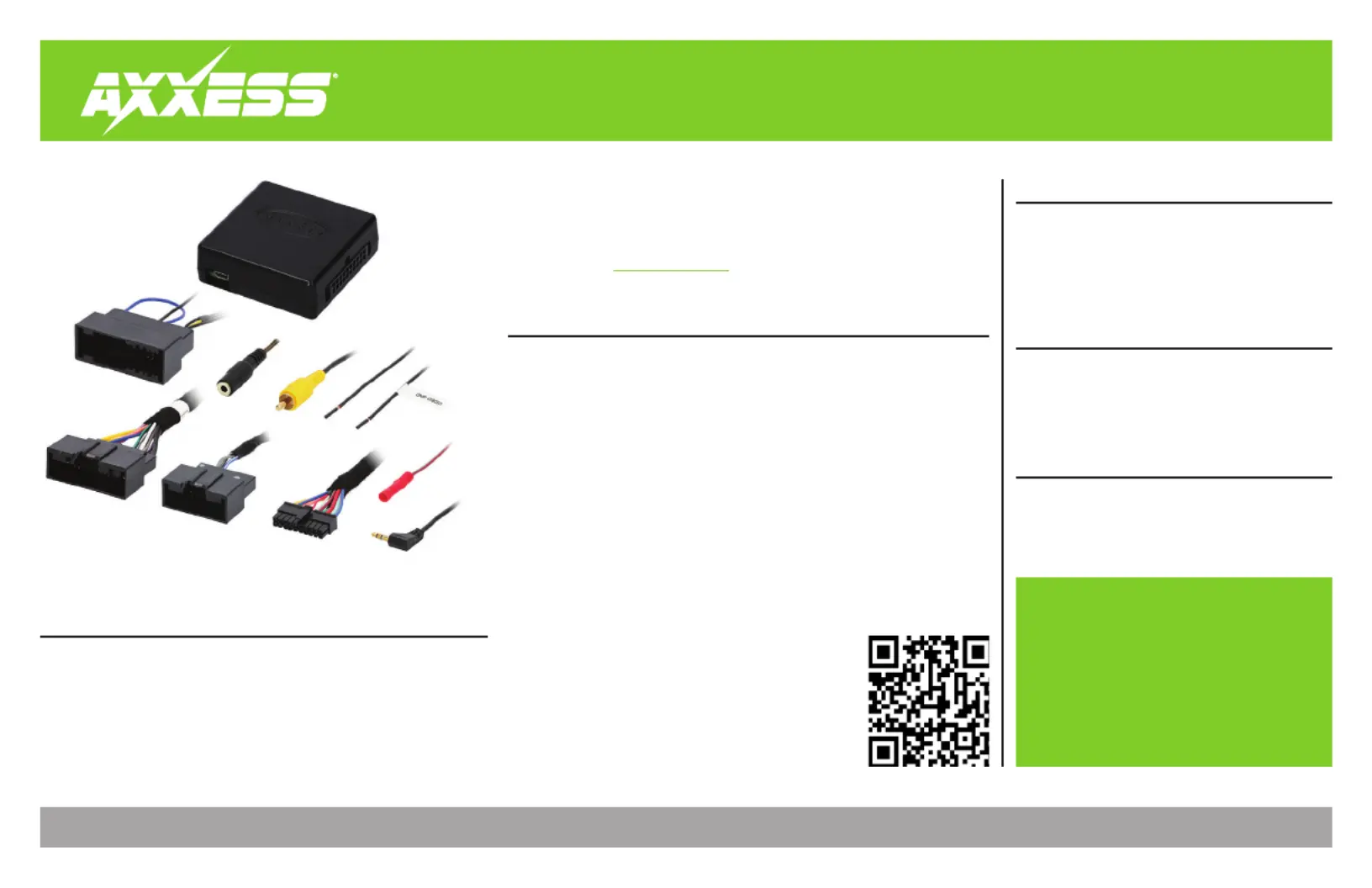

• AXTC-FOC interface • LD-SWCX-FOC harness

• 3.5mm adapter

• LD-FD54SWC amplifier step-down

Visit for more detailed information AxxessInterfaces.com

about the product and up-to-date vehicle specific applications.

Product Info

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.
