INSTRUCTION MANUAL
BAOF30G
GLASS BASE
DESK fan
BAOF30GIUK06EM1.qxd 11/16/06 14:51 Page 1
PLEASE READ AND SAVE THESE
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic safety
precautions should always be taken including
the following:
• Use the fan only for purposes described in the
instruction manual.
• To protect against electrical shock, do not
immerse the fan, plug or mains cable in water
or spray with liquids.
• Close supervision is necessary when any
appliance is used by or near children.
• Unplug from the electrical outlet when not in
use, when moving the fan from one location to
another, before putting on or taking off parts
and before cleaning.
• Avoid contact with any moving parts.
• Do not operate in the presence of explosive
and/or flammable fumes.
• Do not place the fan or any parts near an
open flame, cooking or other heating
appliance.
• Do not operate any appliance with a damaged
mains cable, plug, after the appliance
malfunctions, or has been dropped/ damaged
in any manner.
• The use of attachments not recommended or
sold by the appliance manufacturer may
cause hazards.
• Do not use outdoors.
• Do not let the mains cable hang over the edge
of a table or counter, or come into contact with
hot surfaces.
• To disconnect from the electrical supply,
grip the plug and pull from the wall outlet.
DO NOT pull on the mains cable.
• Always use on a dry, level surface.
• Do not operate without the fan grills properly
in place.
• This product is intended for household use
ONLY and not for commercial or industrial
applications.
• If the supply cord or plug is damaged, it must
be replaced by the manufacturer or its service
agent or a similarly qualified person in order to
avoid hazard.
• The appliance contains no user serviceable
parts and should the product suffer damage
or breakdown it must be returned to the
manufacturer or its service agent.
• Should the appliance stop working, first check
the fuse in the plug (UK only) or fuse/circuit
breaker at the distribution board is operating,
before contacting the manufacturer or service
agent.
NOTE: Use caution when adjusting the tilt
angle of the fan head to ensure that your
fingers do not get caught.
• If the supply cord or plug is damaged, it must
be replaced by the manufacturer or its service
agent or a similarly qualified person in order to
avoid hazard.
MISSING A PART FOR YOUR FAN?
Please call 0800 052 3615 for assistance.

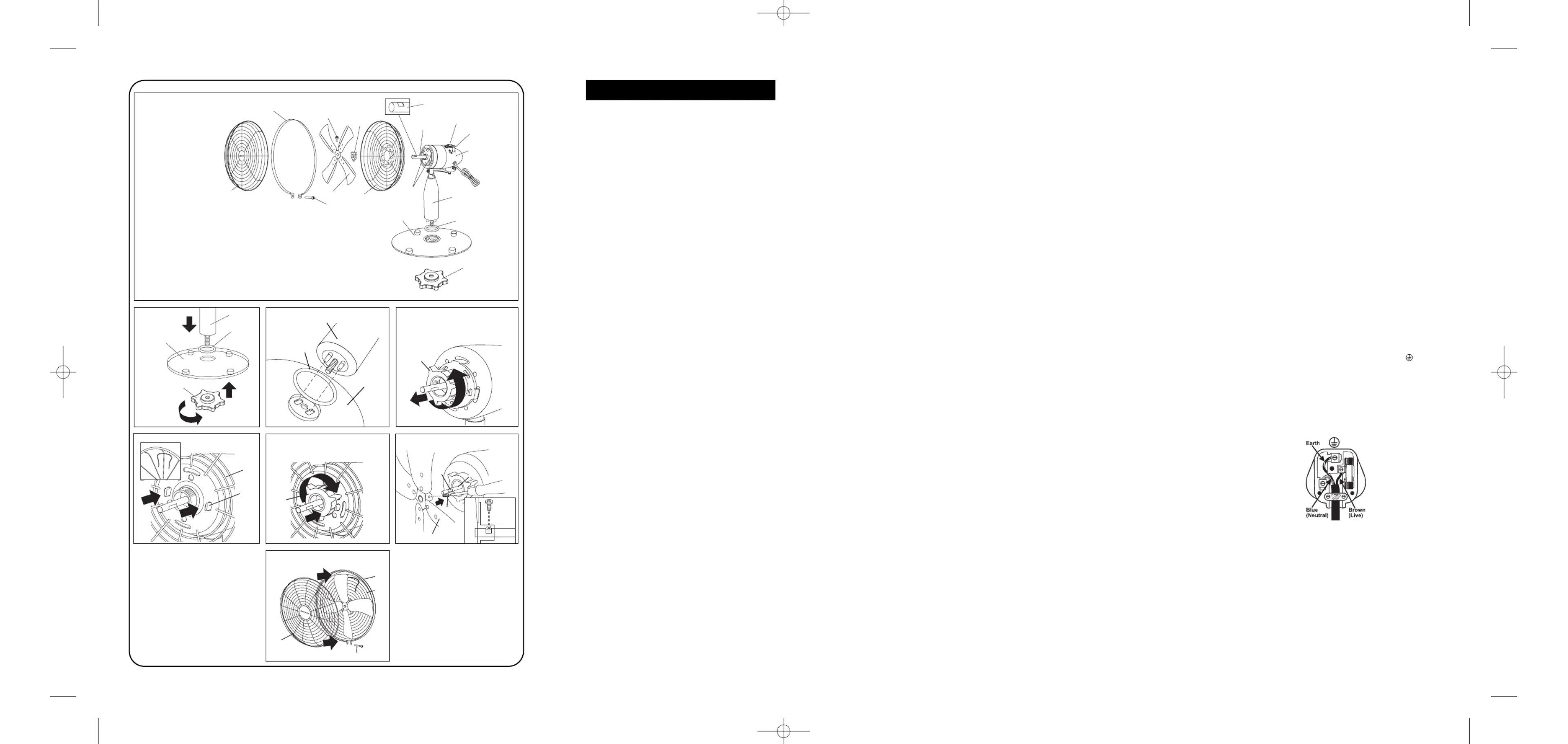

ASSEMBLY INSTRUCTIONS
(see Fig. 1 - 8)
Assembly Time: 10-15 Minutes.
Tools Required: Cross Head Screw Driver.
1. Unscrew Base Nut (C) from Pole (A).
2. Fit the Pole (A) and Rubber Ring (H) over the
opening of the Glass Base (B) and secure
with the Base Nut (C). (Fig. 2 and 3)
3. Unscrew the Rear Grill Nut (D) from the Motor
Housing (E). (Fig. 4)
4. Position the Rear Grill (F) over the Motor
Housing (E). Fit the 2 Prongs (I) into the
holes. The handle should be on top. (Fig. 5)
5. Secure the Rear Grill (F) to the Motor Housing
(E) with the Rear Grill Nut (D). (Fig. 6)
6. Remove the protective sleeve from the Motor
Shaft (G).
7. Slide the Fan Blade (J) over the Motor Shaft
(G) and tighten Blade Screw (L). (Fig. 7)
8. Position the Grill Ring (M) over the Rear Grill
(F) with the Grill Ring Screw (O) positioned at
the bottom. (Fig. 8)
NOTE: You may have to loosen the Grill
Ring Screw (O).
9. Snap the Front Grill (N) into the Grill Ring (M)
with Bionaire logo aligned in horizontal position
and tighten Grill Ring Screw (O). (Fig. 8)
U.K. and IRELAND OPERATING INSTRUCTIONS (See Fig. 1)
1. Make sure the Speed Control is in the OFF
(0) position.
2. Plug the cord into a suitable outlet.
3. To adjust speed, turn Speed Control (P)
located on top of Motor Housing (E) to the
desired setting:
0- Off
I- Low
II - Medium
III - High
ADJUSTMENT
Tilt adjustment
To change the tilting angle of the fan head,
simply move the fan head to the desired angle.
Oscillation adjustment
To start oscillation, press Oscillation Control (Q).
To stop oscillation, pull (Q).
CLEANING AND MAINTENANCE
• Always unplug the fan before cleaning or
disassembly.
• Do not allow water to drip on or into the fan
motor housing.
FAN STORAGE
It is important to keep the fan in a safe, dry
location.
• We recommend using the original (or
appropriately sized) box.
FITTING A REPLACEMENT PLUG
FOR U.K. AND IRELAND ONLY
If the plug is not suitable for the socket outlets in
your home, it can be removed and replaced by a
plug of the correct type. Please refer to
"Installation of a plug" below.
Installation of a plug Applicable to U.K.
and Ireland.
WARNING - THIS APPLIANCE MUST BE
EARTHED.
The wires in the mains lead are coloured as such:
GREEN AND YELLOW - EARTH
BROWN - LIVE
BLUE - NEUTRAL
Please note that the colour of these mains wires
may not correspond with the colour markings
that identify the terminals in your plug.
Please proceed as follows:
The wire which is coloured GREEN AND YELLOW
must be connected to the terminal which is marked
with the letter 'E' or by the earth symbol or
coloured GREEN or GREEN AND YELLOW.
The BROWN coloured wire must be connected
to the terminal, which is marked with the letter
"L" or is coloured RED.
The BLUE coloured wire must be connected to
the terminal, which is marked with the letter "N"
or is coloured BLACK.
NOTE: If the terminals in the plug are not
marked or if you are unsure or in doubt about
the installation of the plug please contact a
qualified electrician.
If a 13A 3-pin plug is fitted, it must be an ASTA
approved plug, conforming to BS1363 standard.
Replacement 3A fuses must be BSI or ASTA
BS1362 approved.
3 amp
A. Pole
B. Glass Base
C. Base Nut
D. Rear Grill Nut
E. Motor Housing
F. Rear Grill
G. Motor Shaft
Rubber RingH.
J. Fan Blade
K. Notch on Motor Shaft
L. Locking Screw
M. Grill Ring
N. Front Grill
O. Grill Ring Screw
P. Speed Control
Q. Oscillation Control
G
K
M
O
L
DP
B
NJ
Q
C
E
I
FA
. PrI ongs
H
C
B
Fig. 2
A
H
D
Fig. 4
F
I-(2)
D
Fig. 6
G
K
J
L
N
O
F
M
Fig. 8
Fig. 1
Fig. 2 Fig. 3 Fig. 4
Fig. 7Fig. 6
Fig. 5
Fig. 8
A
H
B
BAOF30GIUK06EM1.qxd 11/16/06 14:51 Page 4
