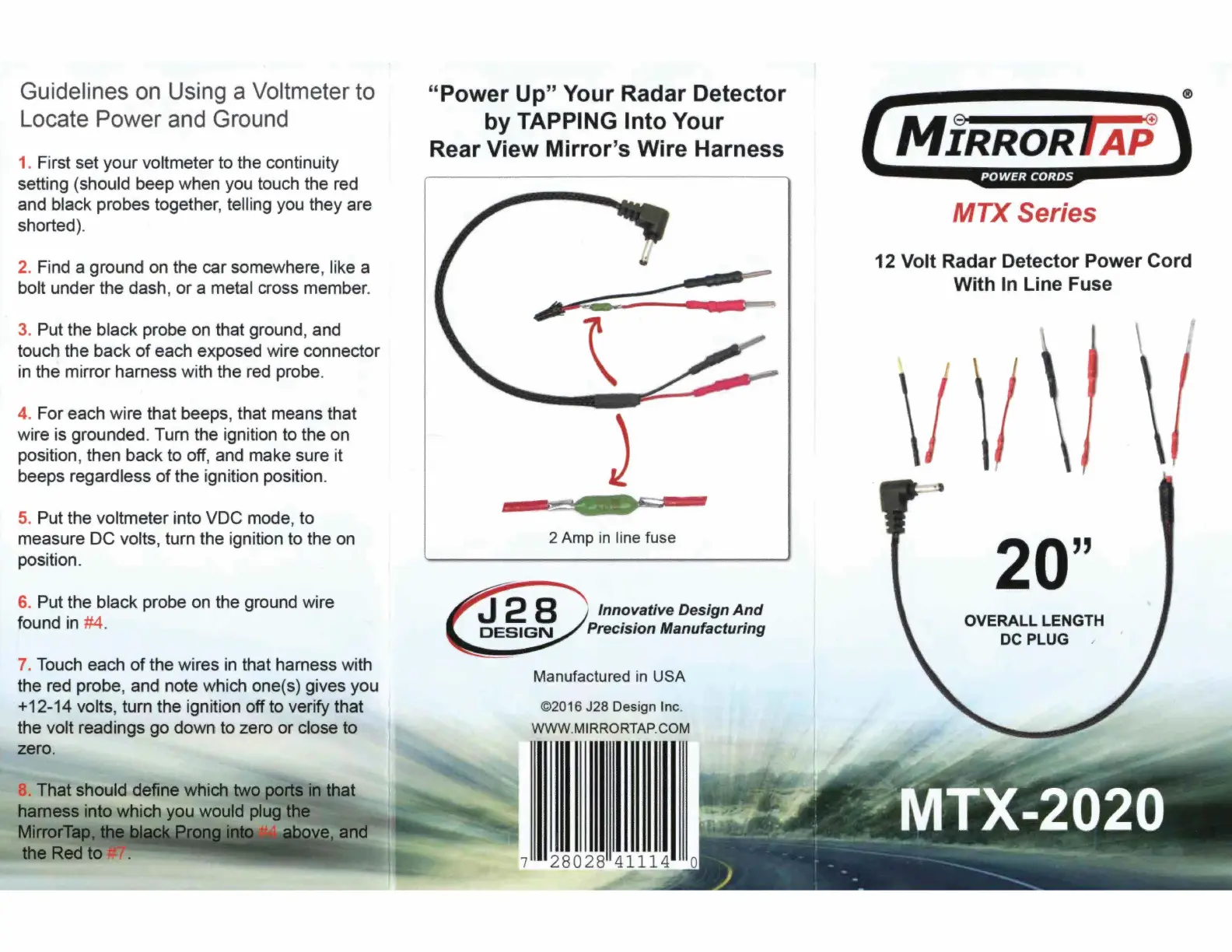

Guidelines on Using a Voltmeter to
Locate Power and Ground
1. First set your voltmeter to the continuity
setting ( should beep when you touch the red
and black probes together, telling you they are
shorted).
2.
Find a ground on the car somewhere, like a
bolt under the dash, or a metal cross member.
3. Put the black probe on that ground, and
touch the back
of
each exposed wire connector
in the mirror harness with the red probe.
4. For each wire that beeps, that means that
wire is grounded. Tum the ignition to the on
position, then back to off, and make sure it
beeps regardless
of
the ignition position.
5.
Put the voltmeter into VDC mode, to
measure DC volts, turn the ignition to the on
position.
6. Put the black probe on the ground wire
found
in
#4.
7. Touch each
of
the wires
in
that harness with
the red probe, and note which one( s) gives you
+12-14 volts, turn the ignition off to verify that
the volt readings go down to zero or close to
zero.
8. That should define which two
harness
into which you would plug
Mirror
the
Red
to
"Power Up" Your Radar Detector
by TAPPING Into Your
Rear View Mirror's Wire Harness
\
2 Amp
in
line fuse
Innovative Design
And
Precision Manufacturing
Manufactured
in
USA
©2016 J28 Design Inc.
WWW
.MIRRORTAP.
COM
MTX
Series
12 Volt Radar Detector Power Cord
With In Line Fuse
20
"
OVERALL
LENGTH
DC
PLUG
~
MTX
Series
You

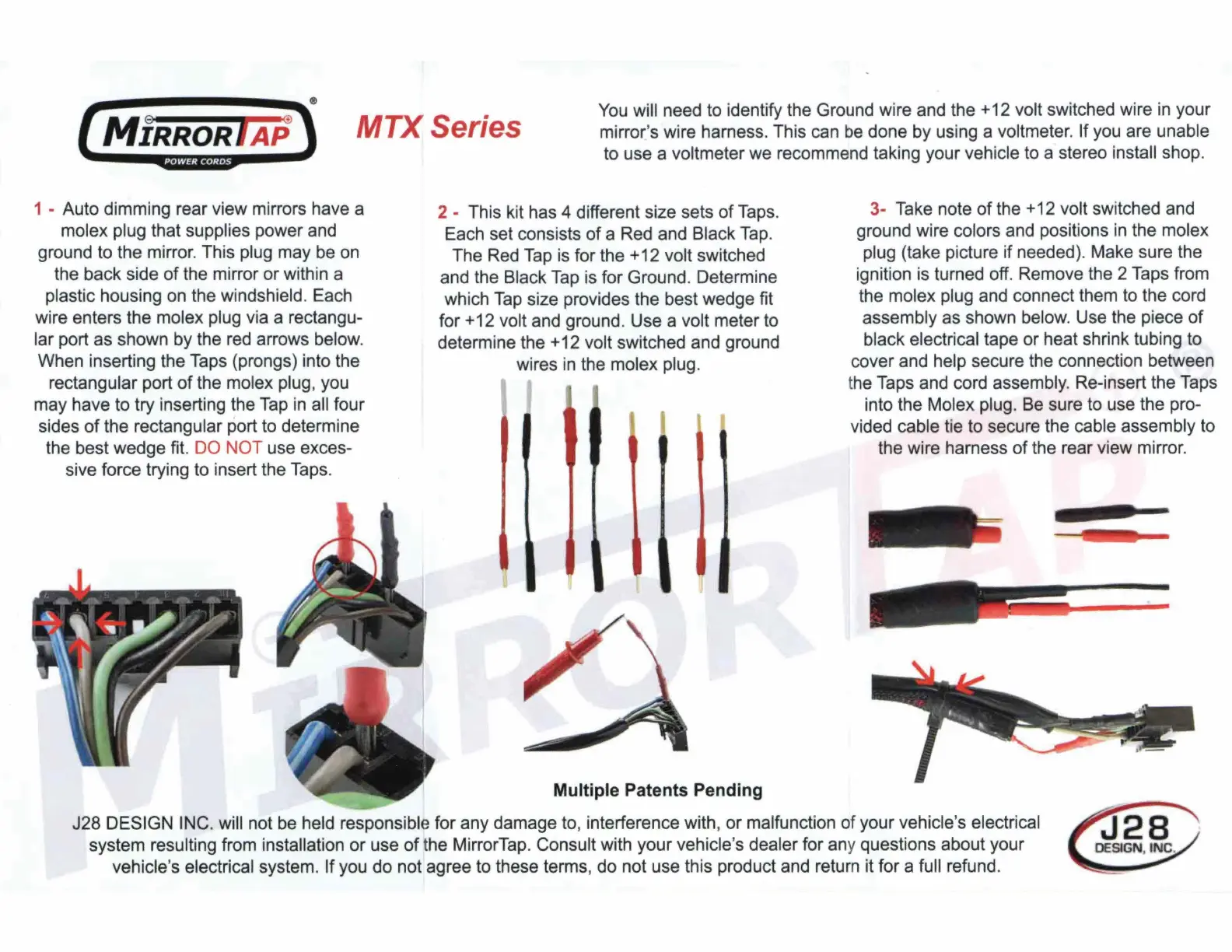

will need to identify the Ground wire and the +12 volt switched wire in your
mirrofs
wire harness. This can
be
done by using a voltmeter. If you are unable
to use a voltmeter we recommend taking your vehicle to a stereo install shop.
1 - Auto dimming rear view mirrors have a
molex plug that supplies power and
ground to the mirror. This plug may be on
the back side
of
the mirror
or
within a
plastic housing on the windshield. Each
wire enters the molex plug via a rectangu-
lar port as shown by the red arrows below.
When inserting the Taps (prongs) into the
rectangular port
of
the molex plug, you
may have to try inserting the Tap in all four
sides
of
the rectangular port to determine
the best wedge fit. DO NOT use exces-
sive force trying to insert the Taps.
2 - This kit has 4 different size sets
of
Taps.
Each set consists
of
a Red and Black
Tap.
The Red
Tap
is for the +12 volt switched
and the Black Tap is for Ground. Determine
which Tap size provides the best wedge fit
for +12 volt and ground. Use a volt meter to
determine the +12 volt switched and ground
wires in the molex plug.
Multiple Patents Pending
3- Take note
of
the +12 volt switched and
ground wire colors and positions in the molex
plug (take picture
if
needed). Make sure the
ignition is turned off. Remove the 2 Taps from
the molex plug and connect them to the cord
assembly as shown below. Use the piece
of
black electrical tape or heat shrink tubing to
cover and help secure the connection between
the Taps and cord assembly. Re-insert the Taps
into the Molex plug.
Be
sure to use the pro-
vided cable tie to secure the cable assembly to
the wire harness
of
the rear view mirror.
J28 DESIGN INC. will not be held responsible for any damage to, interference with,
or
malfunction of your vehicle's electrical
system resulting from installation
or
use
of
the MirrorTap. Consult with your vehicle's dealer for any questions about your
vehicle's electrical system. If you do not agree to these terms, do not use this product and return it for a full refund.
