continued . . .

The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. Rev. 6/10/21

R/B

Printed in U.S.A.

The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions. © 2021 by Bobrick Washroom Equipment, Inc.

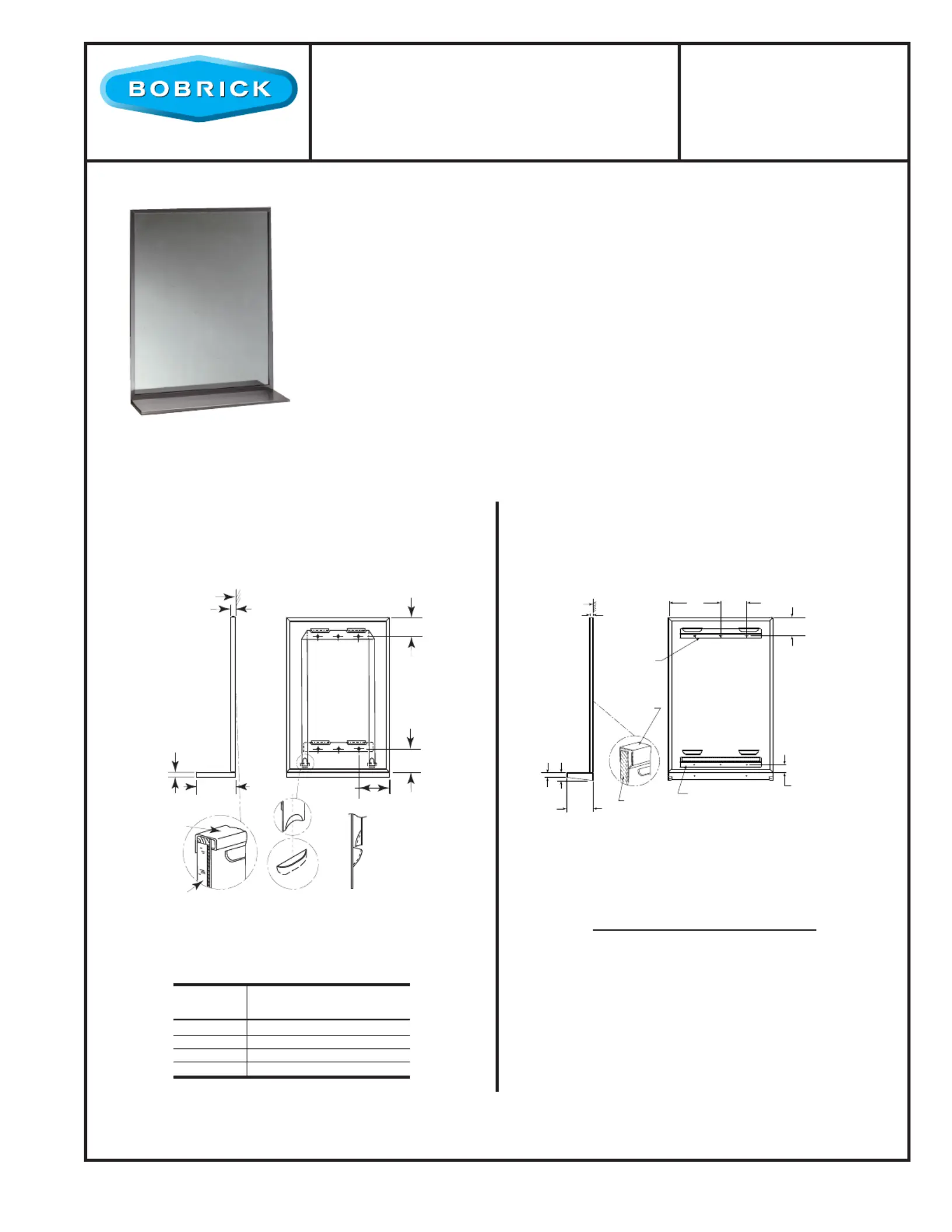

Technical Data

Designer’s Notes:

1. Special-order sizes available on request.

2. Maximum size mirror available, 60'' x 48'' (152 x 122cm) or 48'' x 60'' (122 x 152cm); minimum size, 12" x 12"

(30 x 30cm).

3. All Bobrick framed mirror/shelf models are manufactured to overall width and height dimensions of mirror, not

including shelf. EXAMPLE: B-166 2436'' (61 x 94cm) mirror will be furnished 24'' x 37-1/4'' (61 x 94cm) outside-of-

frame to outside-of-frame including shelf.

4. To specify special sizes use Series Number followed by width x height in inches. EXAMPLE: B-166 2024 20"x 24"

(51 x. 61cm).

5. Bobrick framed mirror/shelf models are manufactured to a tolerance 1/8'' (3.2mm).±

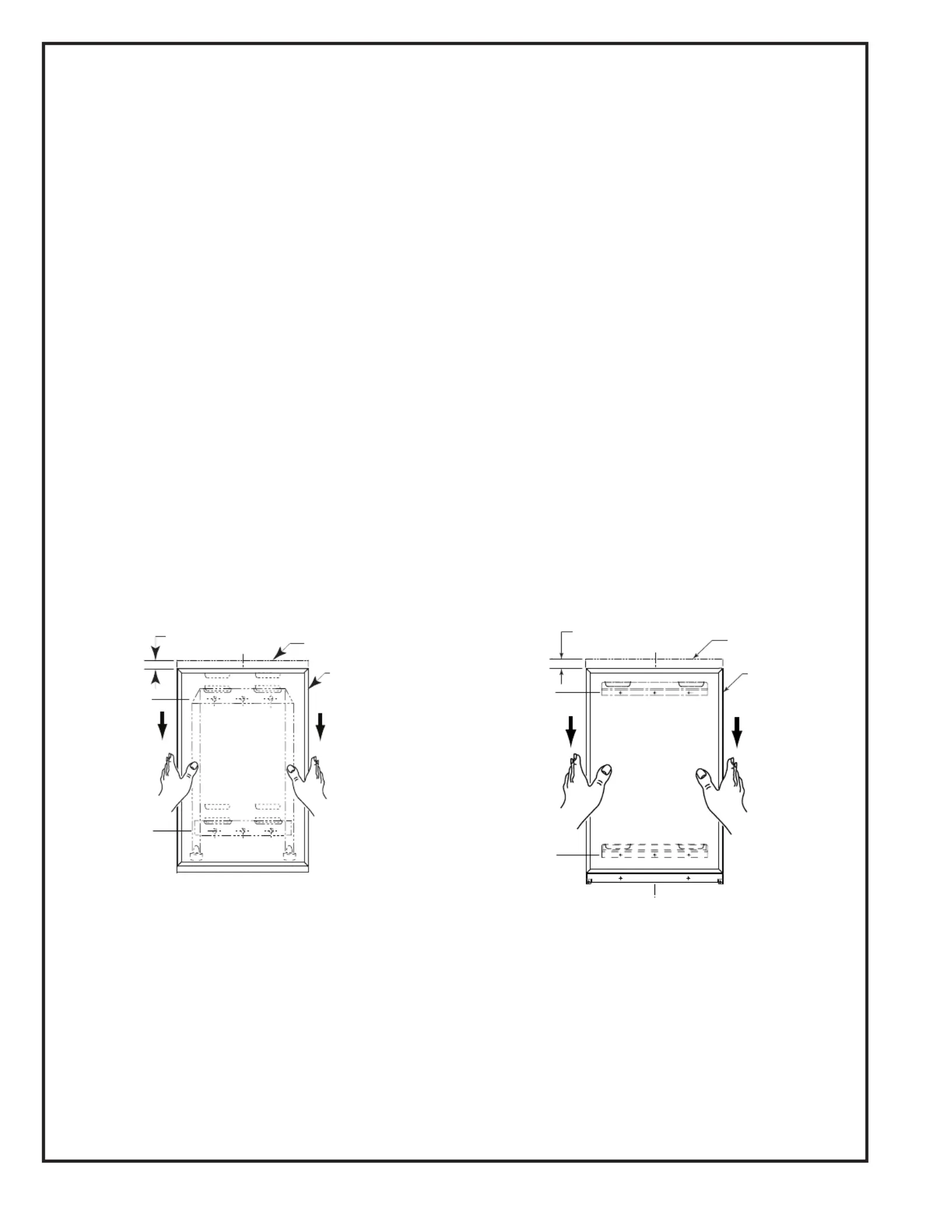

6. For sufficient space to lift mirror onto wall hanger(s), provide 1" (25.4mm) minimum clearance above top of

mirror frame.

7. Provide 1'' (25mm) minimum clearance at bottom of mirror for unlocking mirror from wall and 1/2''

(12.7mm) minimum clearance on each side.

Figure: 1

MIRROR WITH

STAINLESS STEEL

CHANNEL FRAME

AND SHELF

B-166

SERIES

Snap Locking Design

(Rear View)

"2S" Tab Design

(Rear View)

Figure: 2

Note: Mirrors greater than 36" in width will have multiple

hanger brackets with a typical 8" o󰀨 each edge.

1/2''

13mm

5-9/16''

141mm

3/8''

19mm

2-1/2''

65mm

S

2-9/16''

65mm

S

4'' or 5" Typ.

100 or 125mm

S

Side View

Back Plate/Wall Hanger

Frame

Mirror

Finish Face of Wall

Frame

Mirror

S

S

S

1" to 1-1/2"

25mm to 40mm

S

Half

Mirror Width

4"

100mm Typ.

Mirror Bracket w/Tape

2-7/8"

75mm

Mirror

Bracket

1/2"

13mm

Finish Face

of Wall

1-5/16"

33mm

4"

100mm

3/4"

19mm

STANDARD B-166 SERIES MIRRORS

MODEL

NO.

OVERALL SIZE

WH

B-166 1824 18'' (46cm) 25-1/4'' (64cm)

B-166 1830 18'' (46cm) 31-1/4'' (79cm)

B-166 1836 18'' (46cm) 37-1/4'' (94cm)

B-166 2436 24'' (61cm) 37-1/4'' (94cm)

All Other Size Mirrors
