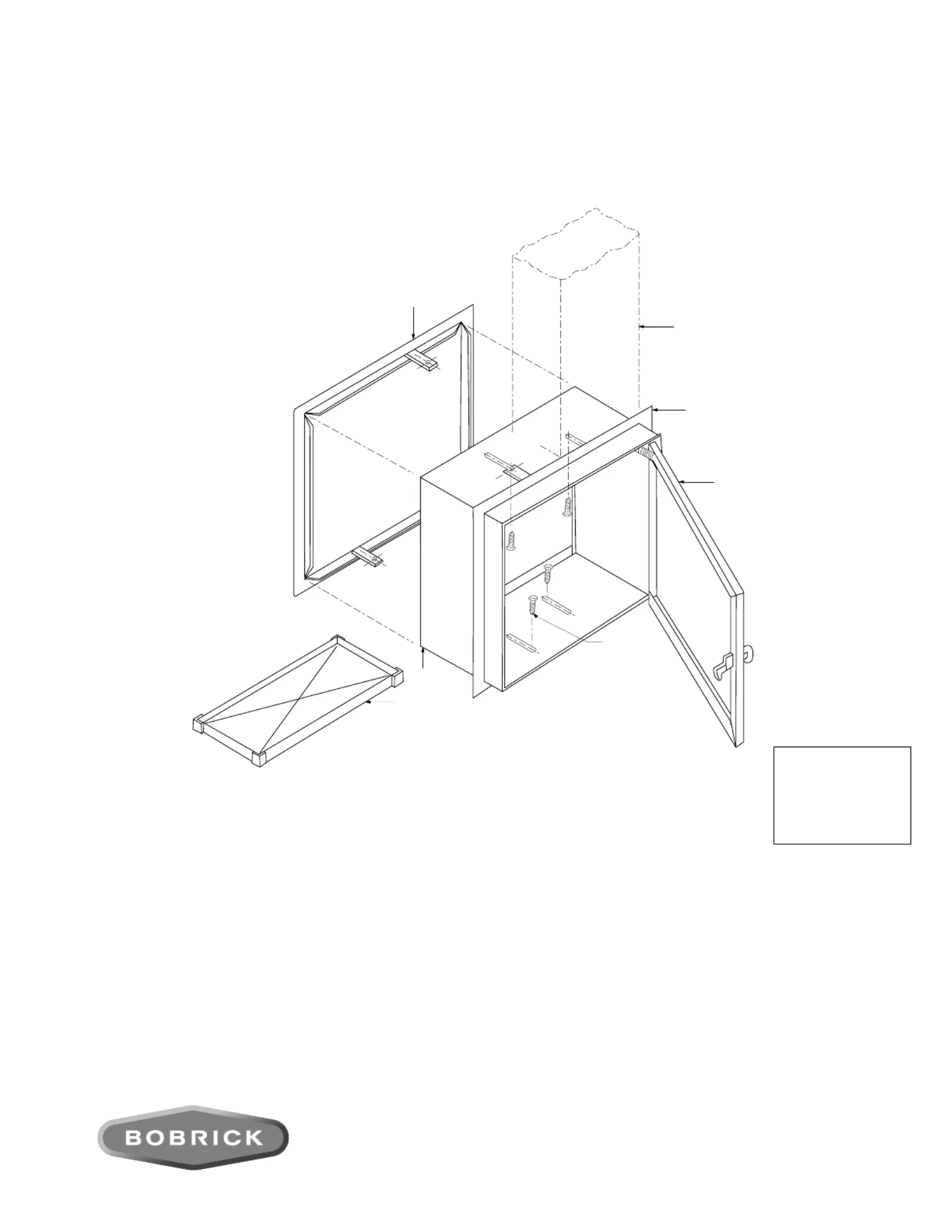

Wall 3" to 5-3/4" Thick
Adjustable Flange
Wall Box
Mounting
Screws (4)
Spillage Tray
(Sets in bottom
of wall box)
Adjustable Flange
Doors (2)
INSTALLATION INSTRUCTIONS
BOBRICK MODEL B-505 SPECIMEN PASS-THRU CABINET
Rough Wall Opening
11-1/2" (290mm) wide
10-7/8" (275mm) high
3" to 5-3/4"
(75 to 145mm)
recessed depth
This unit is designed to be mounted within the wall between a restroom and the test lab or other room into which the specimen is to
be received. Flanges adjust to fit from 3" to 5-3/4" (75 to 145mm) thick walls. Doors are interlocked so that when one door is
opened, the opposite door is locked. Supply four (4) #10 x ¼" (4.8 x 6.4mm) mounting screws to secure unit.
INSTALLATION INSTRUCTIONS
1. Prepare framed rough wall opening 11-1/2" wide x 10-7/8" high (290 x 275mm).
2. Open one of the doors and remove the spillage tray.
3. Slide one flange over the wall box so that holes in mounting tabs are aligned with slots in wall box.
4. Position wall box and flange so that bottom of wall box is level and unit is centered in wall. See diagram above.
5. Slide second flange into place, aligning tabs and screw holes.
6. Install mounting screws through wall box and flange tabs, into framing. Caution: Do not overtighten screws or rack wall box.
7. Check the door latching mechanism to assure that both doors are
unlocked
when both doors are closed. Also check to see that
each door locks when opposite door is opened.
8. Install spillage tray inside cabinet. The spillage tray is removable for cleaning.
© 2006 by Bobrick Washroom Equipment, Inc.
Form No. 505-69 Revised 7/06 Printed in U.S.A.
In the U.S.A.: BOBRICK WASHROOM EQUIPMENT, INC.
200 Commerce Drive, Clifton Park, New York 12065-1350 Tel: (518) 877-7444 FAX: 518-877-5029• •
11611 Hart Street, North Hollywood, California 91605-5882 Tel: (818) 982-9600 FAX: 818-503-1102• •
225 Bobrick Drive, Jackson, Tennessee 38301-5635 Tel: (901) 424-7000 FAX: 901-424-7800• •
In Canada: BOBRICK WASHROOM EQUIPMENT COMPANY
45 Rolark Drive, Scarborough, Ontario M1R 3B1 Tel: (416) 298-1611 FAX: 416-298-6351• •
