MODELS L100E - L150E - L200E - L250E - L300E
USER AND INSTALLER MANUAL
INSTALLER: READ THESE INSTRUCTIONS
SAVE THEM FOR USER
RESIDENTIAL AND LIGHT COMMERCIAL USE ONLY
1108065B
LIGHT COMMERCIAL
ENERGY STAR
®
CERTIFIED VENTILATORS
CEILING/WALL MOUNT
®
2
Please take note that this manual uses the following symbols to emphasize particular information:
NOTE: Indicates supplementary information needed to fully complete an instruction.
LIMITATION
For residential (domestic) and light commercial installation only.
⚠ WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON(S) OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to
prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into a wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. To reduce the risk of fire, use only metal ductwork.
8. Models L100E, L150E, L200E, L250E and L300E only:
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI
(Ground Fault Interrupter) - protected branch circuit.
9. Never place a switch where it can be reached from a tub or shower.
10. This unit must be grounded.
11. The wearing of safety glasses and gloves is recommended when installing, maintaining or cleaning the unit to reduce the risk of injury
that could be caused by the presence of thin metal and/or moving parts.
12. If the fan makes excessive noise or if there is unusual noise or smells of smoke, disconnect power supply and contact customer
service.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
3. Please read specification label on product for further information and requirements.
WARNING
Identifies an instruction which, if not followed, might cause serious personal injuries including possibility of death.
!
CAUTION
Denotes an instruction which, if not followed, may severely damage the unit and/or its components.

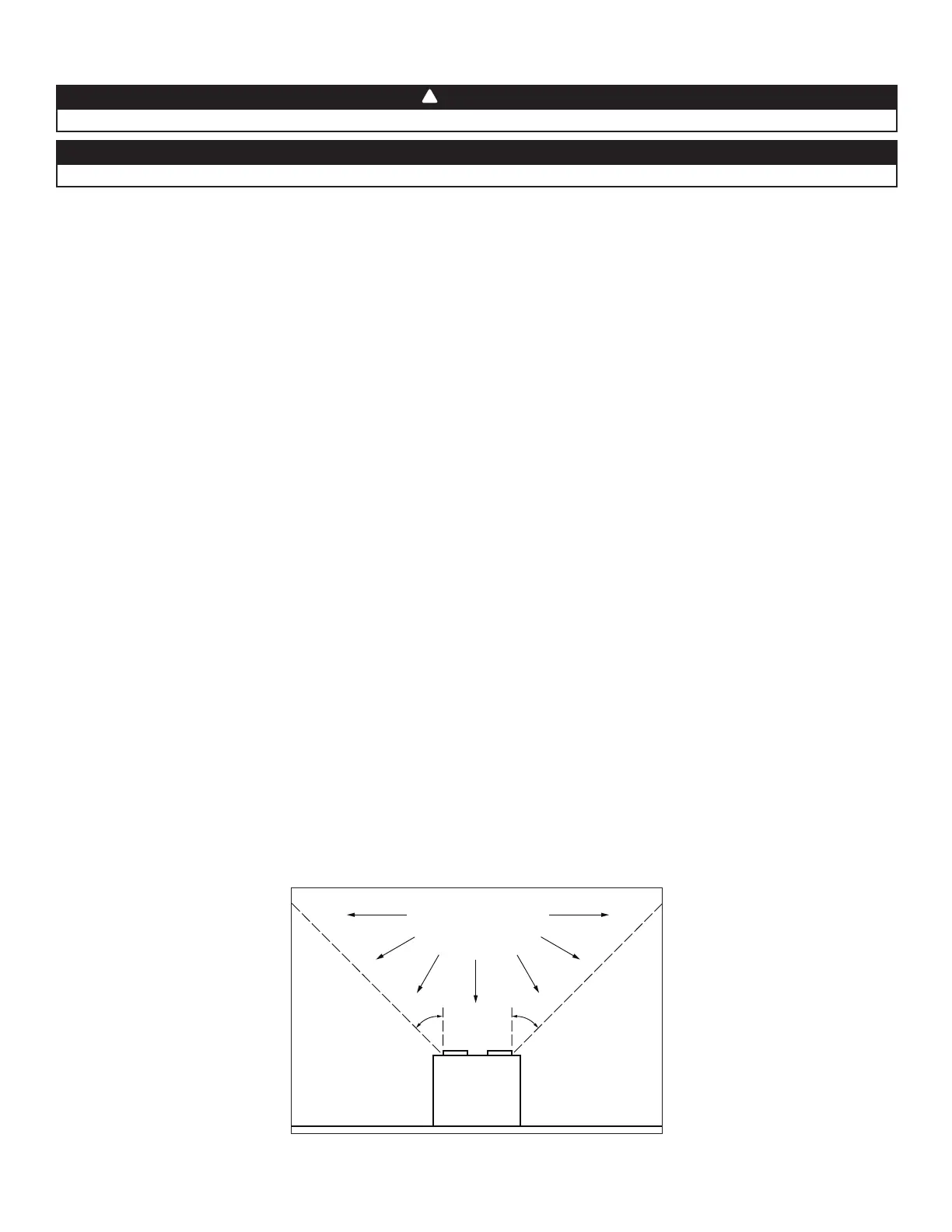

Cooking
Equipment
Floor
COOKING AREA
Do not install above or
inside this area.
45º
45º
NOT FOR USE IN
A COOKING AREA.
BH0007A
3
TABLE OF CONTENTS
1. WARRANTY ................................................................................................................ 4
2. TYPICAL INSTALLATION ............................................................................................. 5
2.1 MOUNTING (NEW FRAME CONSTRUCTION) ...........................................................................................5
2.2 MOUNTING (EXISTING FRAME CONSTRUCTION) ................................................................................... 5
3. MOUNTING OPTIONS ................................................................................................ 6
4. WIRING ....................................................................................................................... 7
5. DUCTING ................................................................................................................. 7-8
5.1 BLOWER DISCHARGE POSITIONS ............................................................................................................. 8
5.2 HORIZONTAL BLOWER DISCHARGE ......................................................................................................... 8
5.3 VERTICAL BLOWER DISCHARGE ...............................................................................................................8
6. USE AND CARE .......................................................................................................... 8

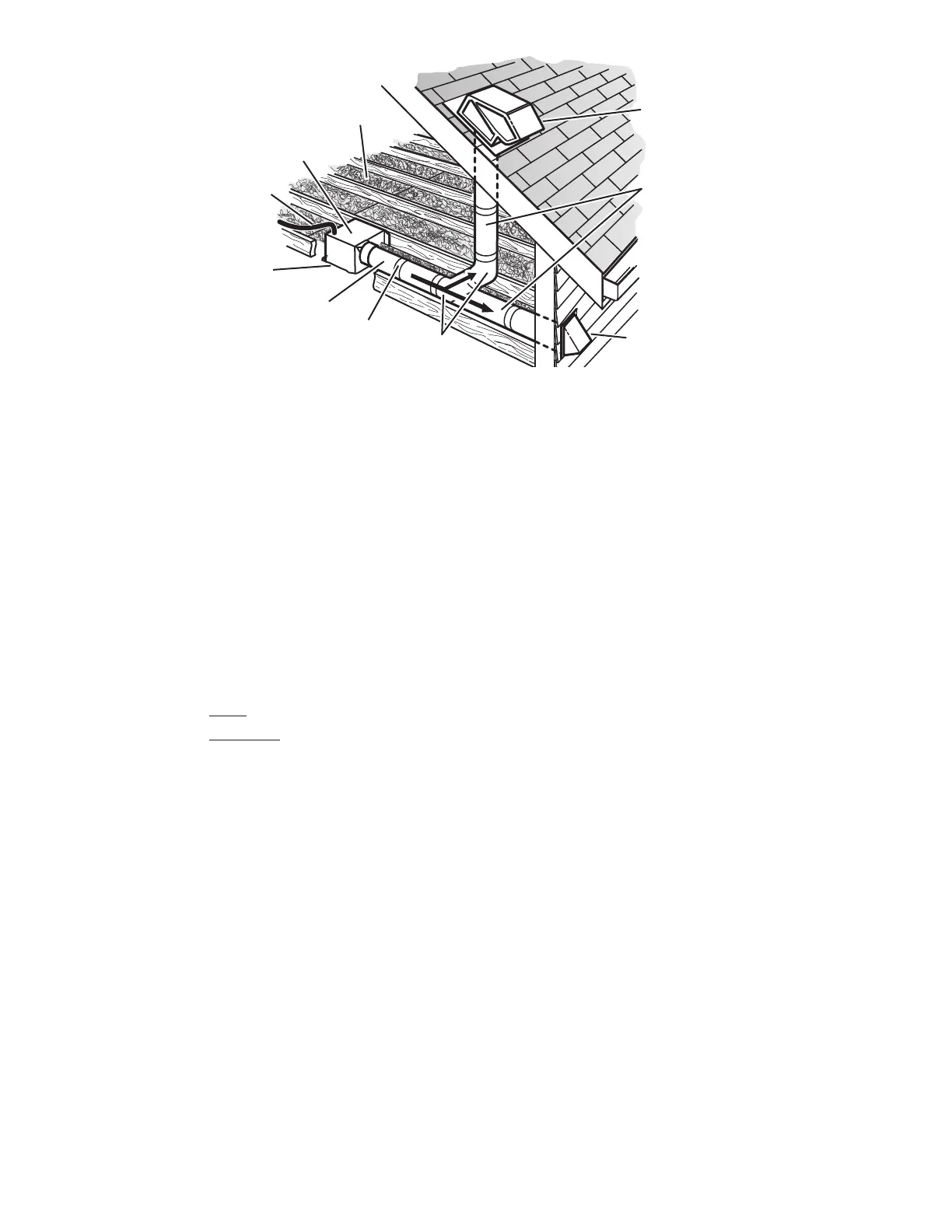

*Purchase
separately.
INSULATION*
(Place around and
over Fan Housing.)
ROOF CAP*
(with built-in
damper)
FAN
HOUSING
POWER
CABLE*
ROUND
DUCT*
ROUND
ELBOWS*
Seal gaps
around
Housing.
Seal duct
joints with
tape.
OR
Keep duct
runs short.
WALL CAP*
(with built-in
damper)
Ducting has a strong effect on the air flow, noise and energy use of the fan. Use the shortest,
straighest duct routing possible for best performance, and avoid installing the fan with smaller ducts
than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth.
Fans installed with existing ducts may not achieve their rated airflow.
8-inch round rigid metal duct is recommended for best performance.
