CANYON USB PC Camera User’s Manual
Please read this manual before use
Notice: DO NOT PLUG WEB-CAM INTO USB PORT BEFORE DRIVER IS
INSTALLED! If have already plugged the PC-Cam, please get it unplugged
and follow the following Step.
1. Features
√ Perfect for video chatting
√ 1.3Mega Pixels CMOS sensor
√ True 1280 x 960 @ 15 fps
√ Snap shot button
√ 24-bit true color JPEG/BMP file format
√ Works with messenger software like Skype, MSN, Yahoo
2. System requirement
* IBM PC or compatible PC or laptop with USB port
* Pentium 1G or higher CPU
* Windows 2000/ Windows XP/ Windows 2003
* Over 500MB free hard-disc space
* CD-ROM driver and 256MB memory
* Support DirectX 9.0 VGA card
3. Package Content
* PC Camera
* User’s manual
* Driver CD
4. Installation/Uninstallation
4.1 Place the driver CD into your CD-ROM, the computer screen will autorun the driver
installation, please choice install driver, and then the system will automatically install the
driver (figure 1).
Figure 1
4.2 Click”Next” to continue installation (Figure 2).
Figure 2

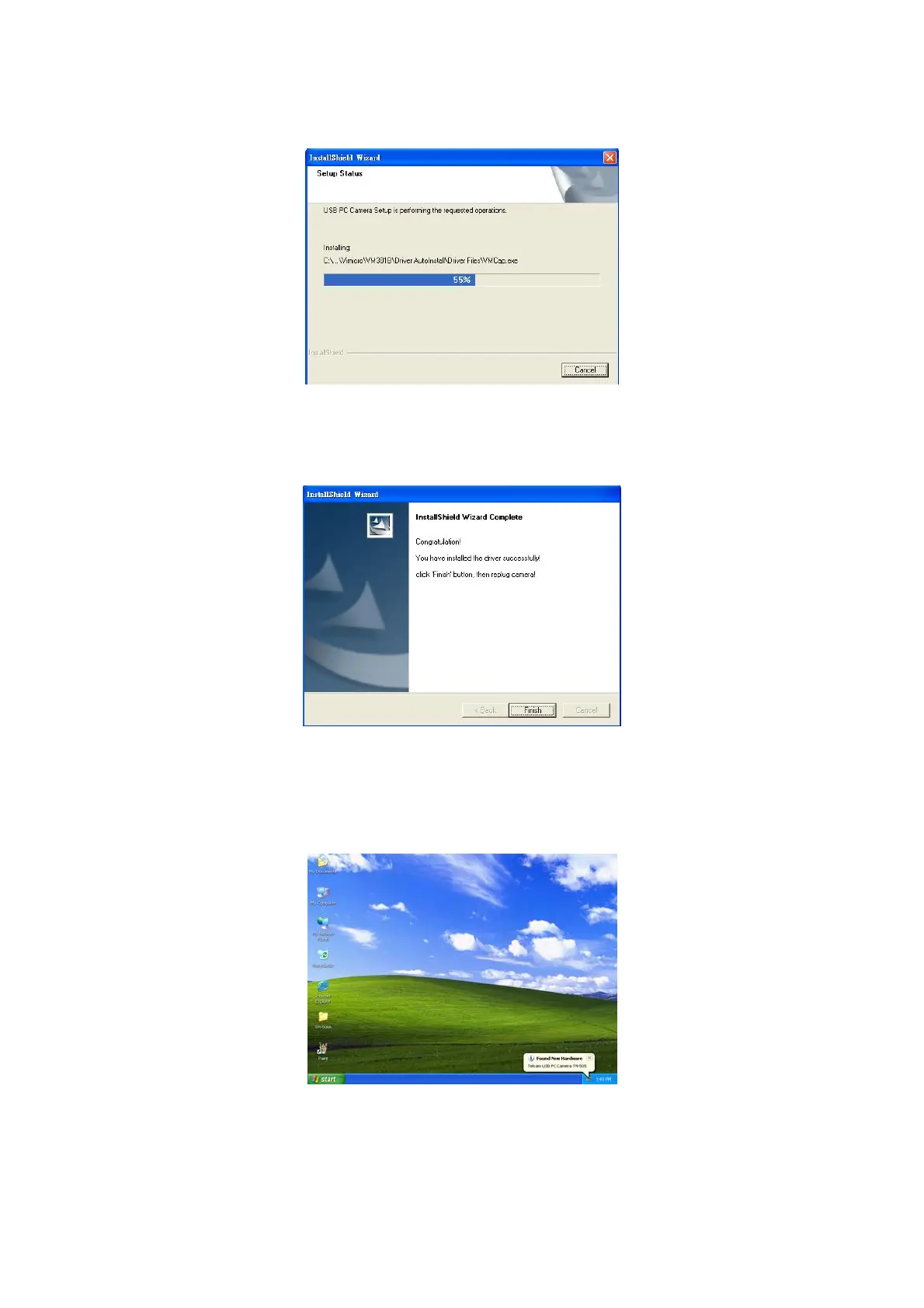

4.3 Installing (Figure 3)
Figure 3
4.4 Click”Finish” to complete installation (Figure 4).
Figure 4
4.5 After finishing installation, reboot the system, connect the camera USB connector to the
computer USB port, the system will automatically detect the device (Figure 5).
Figure 5

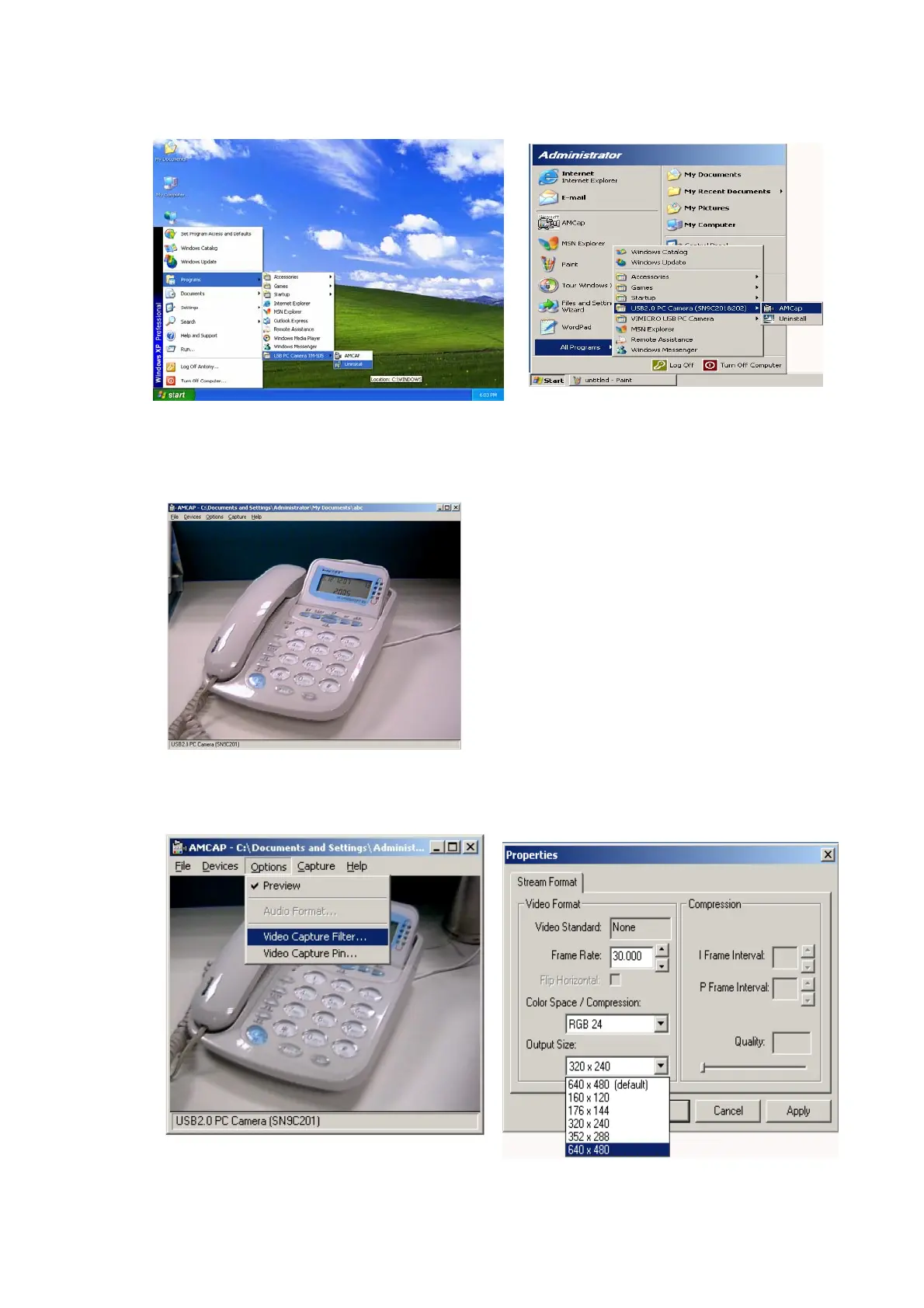

4.6 After system reboot, you can find the USB PC Camera information either in the Start menu
(Figure 6). And now it’s available for using.

4.7 Start your Web Cam by selecting the Application Program from Start menu as shown below.
Figure 6
4.8 You will see the preview picture of the Web-Cam
4.9 By Clicking the Video Capture Pin.... from Option Menu you can adjust the resolution of
preview window
