Quick Reference Guide
English EN
Español ES
Français FR
Nederlands NL
COLORdash Batten-Quad 6 QRG EN
2
About this
Guide
The COLORdash Batten-Quad 6 Quick Reference Guide (QRG) has basic
product information such as connection, mounting, menu options, and
DMX values. Download the User Manual from
www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to
change without notice.
Safety Notes
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during
periods of non-use completely disconnect the product from power via
breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature
environments, (e.g. cold truck to warm humid ballroom) condensation
may form on the internal electronics of the product. To avoid causing
a failure, allow product to fully acclimate to the surrounding
environment before connecting it to power.
• CAUTION: This product’s housing may be hot when lights are
operating.
• Mount this product in a location with adequate ventilation, at least 20
in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product
while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust,
excessive heat, water, or humidity may affect it.
• DO NOT operate this product if the housing, lenses, or cables appear
damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate
this product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact
your distributor to request
support or return a product. Visit
www.chauvetprofessional.com for contact information.
What Is
Included
• COLORdash Batten-Quad 6
• Power Input Cord
• 2 Trunnion
• Warranty Card
• Quick Reference Guide
AC Power
This product has an auto-ranging power supply that can work with an input
voltage range of 100–240 VAC, 50/60 Hz.
To eliminate unnecessary wear and improve its lifespan, during
periods of non-
use completely disconnect the product from power via
breaker or by unplugging it.
Power Linking
You can link up to 17 COLORdash Batten-Quad 6 products at 120 VAC or
33
at 230 VAC. Never exceed this number. Power linking cords can be
purchased separately.
COLORdash Batten-Quad 6 QRG EN
3
AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
Replacing the
Fuse
1. Disconnect this product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the
housing.
3. Remove blown fuse and replace with a good fuse of the same type and
rating.
4. Screw the fuse holder cap back in place and reconnect power.
DMX Linking
The COLORdash Batten-Quad 6 will work with a DMX controller using a
regular DMX serial connection. A DMX Primer is avai
lable from
www.chauvetprofessional.com.
DMX Connection
The COLORdash Batten-Quad 6 uses a regular DMX data connection for
its DMX personalities: 4 Ch, 6 Ch, 10 Ch, 24 Ch, and 28 Ch
. See the User
Manual to connect and configure for DMX operation.
Master/Slave
Connection
The COLORdash Batten-Quad 6 uses the DMX data connection for its
Master/Slave mode. See the User Manual to connect and configure for
Master/Slave operation.

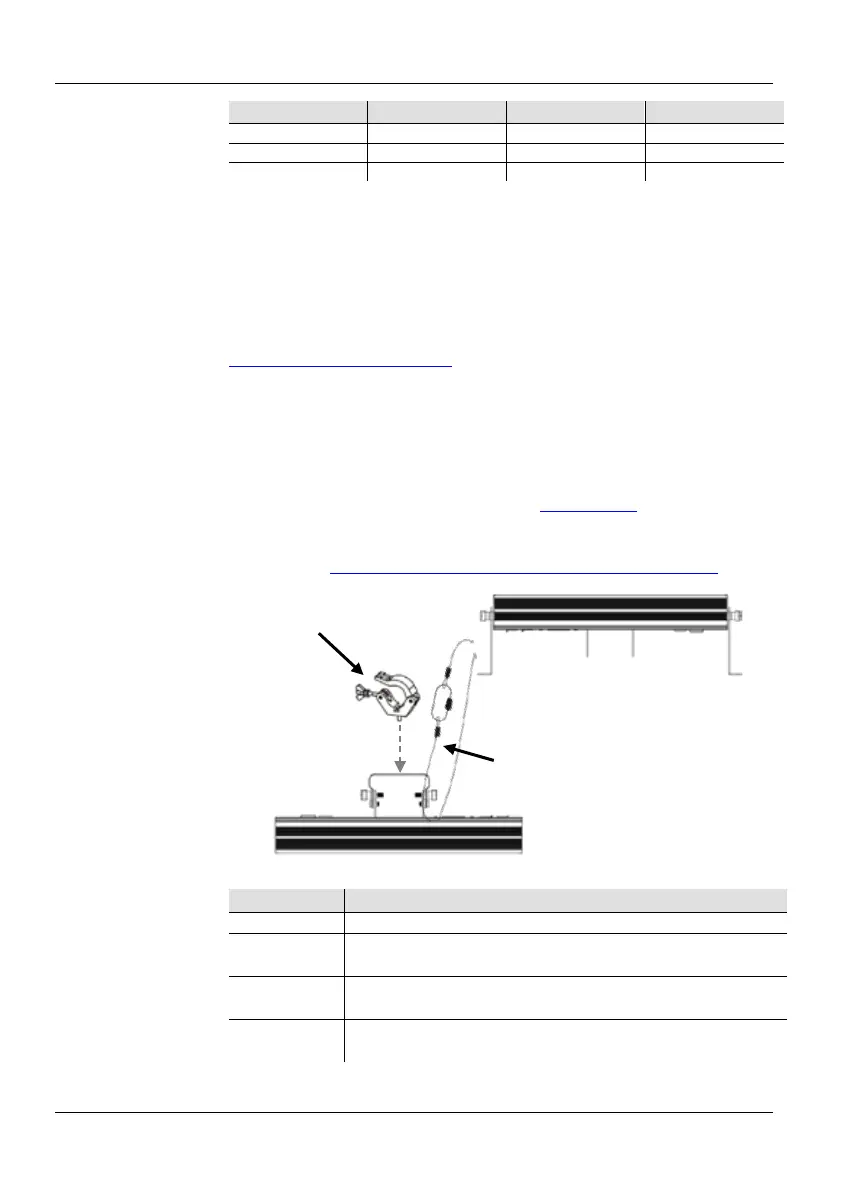

Mounting
Before mounting this product, read the Safety Notes. Use at least one
mounting point per product. Make sure the mounting clamps are capable of
supporting the weight of the product. For our Chauvet line of mounting
clamps, go to www.trusst.com/productcategory/accessories-clamps/.
Product
Mounting
Diagram
Control Panel
Description
Button
Function
<MENU>
Exits from the current menu or function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function
<UP>
Navigates upwards through the menu list and increases the
numeric value when in a function
<DOWN>
Navigates downwards through the menu list and decreases
the numeric value when in a function
Overhead Mounting
Floor Mounting
Mounting Clamp
Safety Cable
