Oldal 1/5
Quick Installation Guide
KAYNE01ES
Schnellinstallationsanleitung
Guide d'Installation Rapide
Guía de Instalación Rápida
Guida di Installazione Rapida
Gyors Telepítési Útmutató
Szybka Instrukcja Instalacji
Guia de Instalação Rápida
INSTALLATION
SPECIFICATIONS
Compliance
EMV 4.0 Level 1 Specification Certified
PBOC2.0 Level 1 Certified
USB 2.0 Full-Speed, USB-IF Certified
USB-CCID
ISO7816 Class A, B and C (5V/3V/1.8V)
I2C memory card, SLE4418, SLE4428,
SLE4432, SLE4442, SLE4436, SLE5536,
SLE6636, AT88SC1608, AT45D041 card
and AT45DB041 card
PC Smart Card Industry Standard -
PC/SC 2.0
Microsoft Smart Card for Windows
Microsoft WHQL Smart Card Reader
requirements
US Federal Information Processing
Standards (FIPS) Publication 201
requirements on smart card reader
interoperability
Connector
USB 2.0, USB-A male
Power Supply/Current
5V/120mA
Operating Temperature
0°C ~ 50°C
Operating Humidity
20% ~ 90%RH
Dimensions
454 x 164 x 56 mm
Cable Length
1.5m
Weight
639±20g
Package Contents
KAYNE01ES
Quick Installation Guide
English
Congratulations on the purchase of your Conceptronic KAYNE01ES.
When problems occur, we advise you to visit our support site (go to www.conceptronic.net
and click on 'Support'). If you have other questions about your product and cannot find it on
our website, please contact us at: support@conceptronic.net.
For more information about Conceptronic products, please visit the Conceptronic website:
www.conceptronic.net.
System Requirements
◼ Windows XP/Vista/7/8/10/11
◼ Mac OS, Linux, Chrome OS
◼ PC, laptop with available USB port

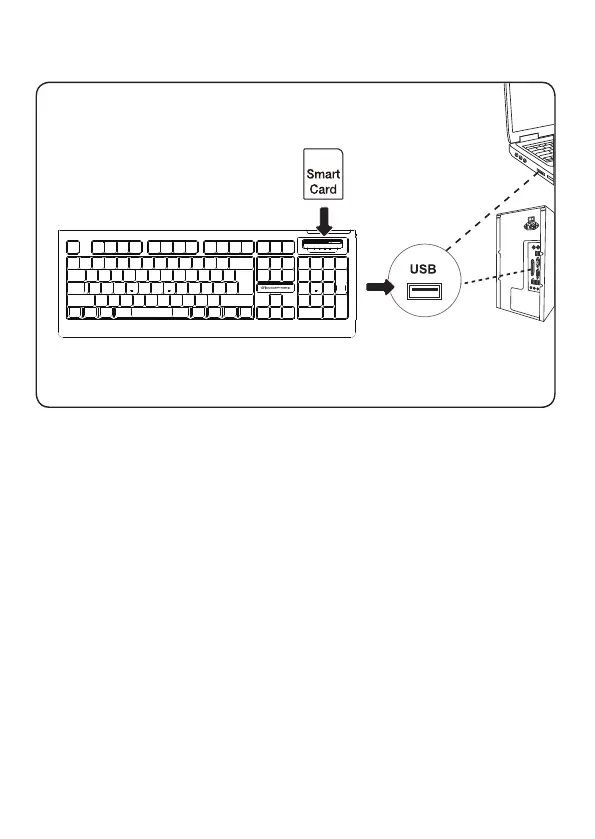

Installation & Usage
1. Simply plug the KAYNE01ES's USB connector into an available USB port on your
computer. No driver installation is required.
2. In order to use the smart card reader, you need to install the software from the company
or authority which requires the use a smart card.
Check with the company of government authority which software you need to use to access
their system.
When you insert the smart card in the smart card reader, make sure the chip of the smart
card reader is faced up inserted in the smart card reader.
Safety & Warnings instructions
Read the operating instructions carefully and especially observe the safety information.
If you do not follow the safety instructions and information on proper handling in this
manual, we assume no liability for any resulting personal injury or damage to property.
Such cases will invalidate the warranty/guarantee.
◼ Keep the device away from water, humidity, fire or hot environments.
◼ Keep your device and all its parts and accessories out of the reach of small children.
◼ Do not leave the packaging material lying around carelessly. This may become
dangerous playing material for children.
◼ Avoid dropping, throwing or crushing the device.
◼ Do not open, change or damage the device.
◼ Disconnect the product from the mains before cleaning.
◼ Clean the product with a dry, fibre-free cloth.
Disposal of waste electrical equipment: Dispose of the product at a
recycling point. Do not dispose of together with household waste. Incorrect
storage/disposal can harm the environment and/or cause injury.
CE / UKCA marking: Conceptronic declares that this product
complies with the directives listed in the section 'Declaration of
Conformity'.
