- Retains factory features in select GM LAN 11 Bit vehicles while functioning with an aftermarket radio.

- Pre-programmed to retain factory Steering Wheel Controls.

- Supports Non-Bose and Bose amplified systems.

- Provides navigational outputs: Reverse Output, Parking brake Output, Illumination, & Vehicle Speed Sense

- Retains factory OnStar

®

- Retains chime functions.

-EIA color coded wiring for easy installation.

PRODUCT FEATURES:

PARTS INCLUDED:

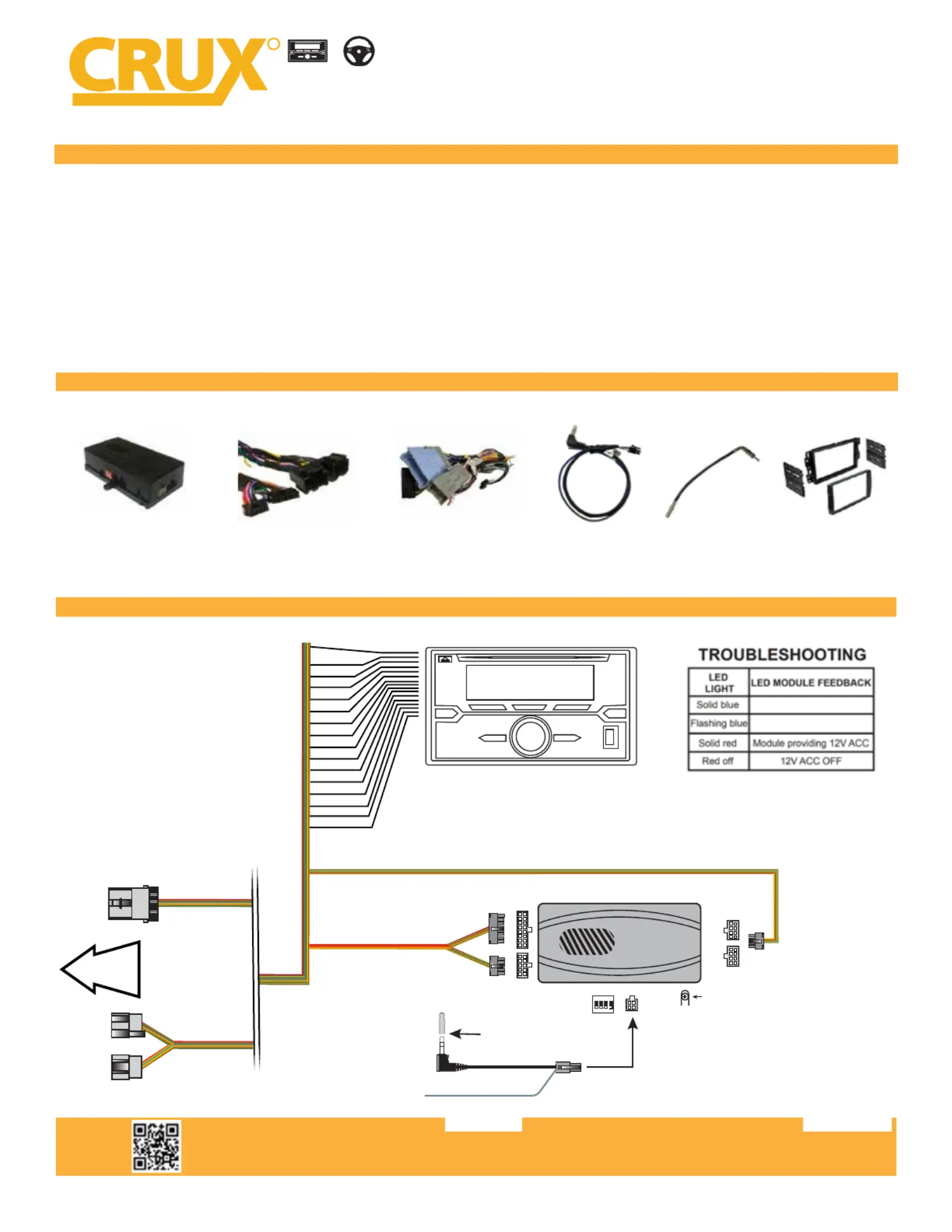

INSTALLATION DIAGRAM:

DKGM-16B MODULEDKGM-16B 14 & 16 PIN HARNESSDKGM-16B 24 PIN HARNESSSWC CABLES

16 & 14-Pin Connector Harness

DKGM-16B

Onstar Radio Replacement interface with SWC Retention

and Dash Kit for GM LAN 11-Bit Vehicles 2006 - 2012

AFTERMARKET

RADIO

Reverse GearPurple/White

Parking Brake Yellow/Black

Illumination (+) Orange

+12V Constant Yellow

+12V ACC Red

Ground Black

Right Front (+) Gray

Right Front (-) Gray/Black

Left Front (+) White

Left Front (-) White/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

Left Rear (+) Green

Left Rear (-) Green/Black

Vehicle Speed OutputRed/Black

Amplifier Turn-onBlue/White

24-Pin

Connector

8-Pin

Connector

BOSENON

BOSE

10-Pin

Connector

SWC DIP SWC

1 2 3 4

ON

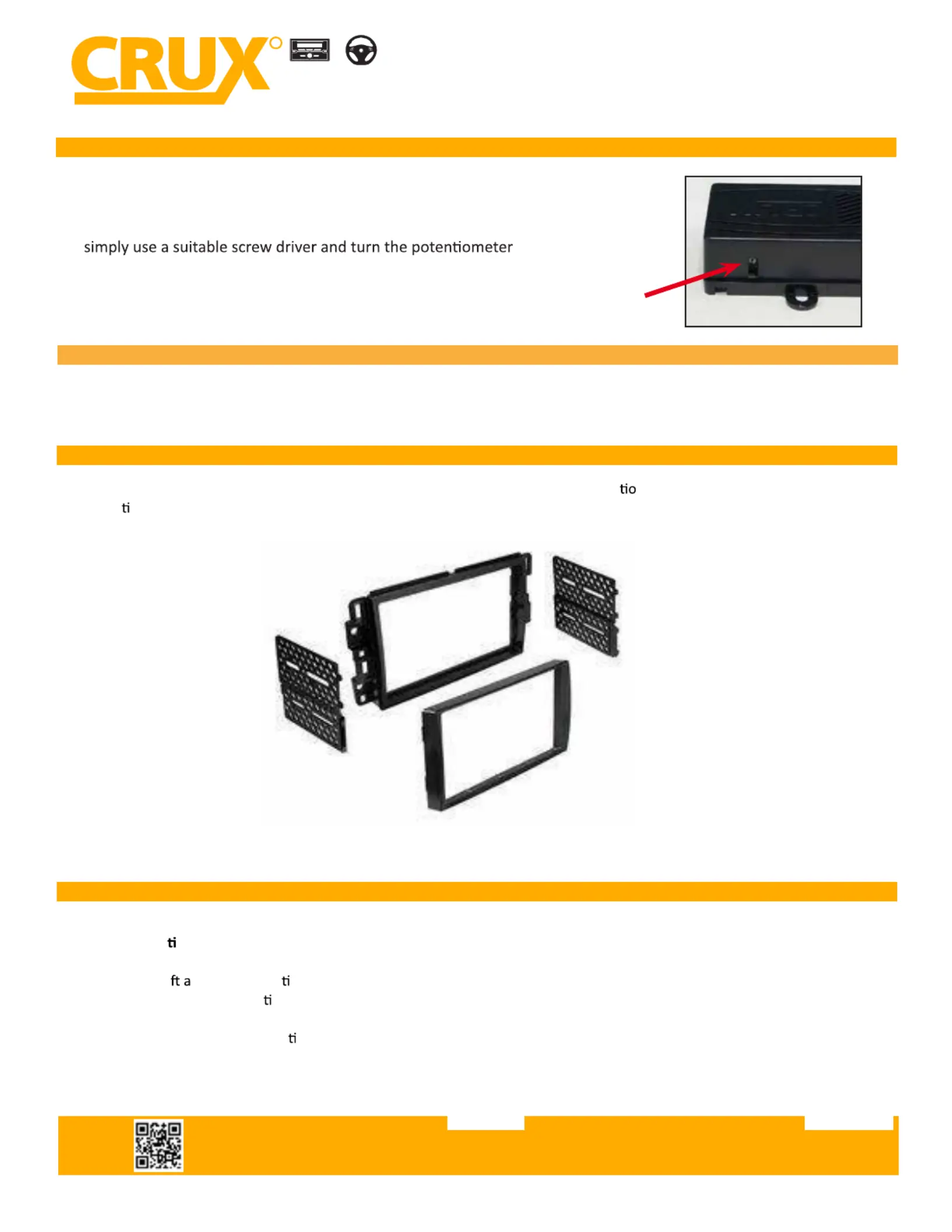

Chime Volume

Adjustment

4-Pin

Connector

Cap or insulate if

not being used

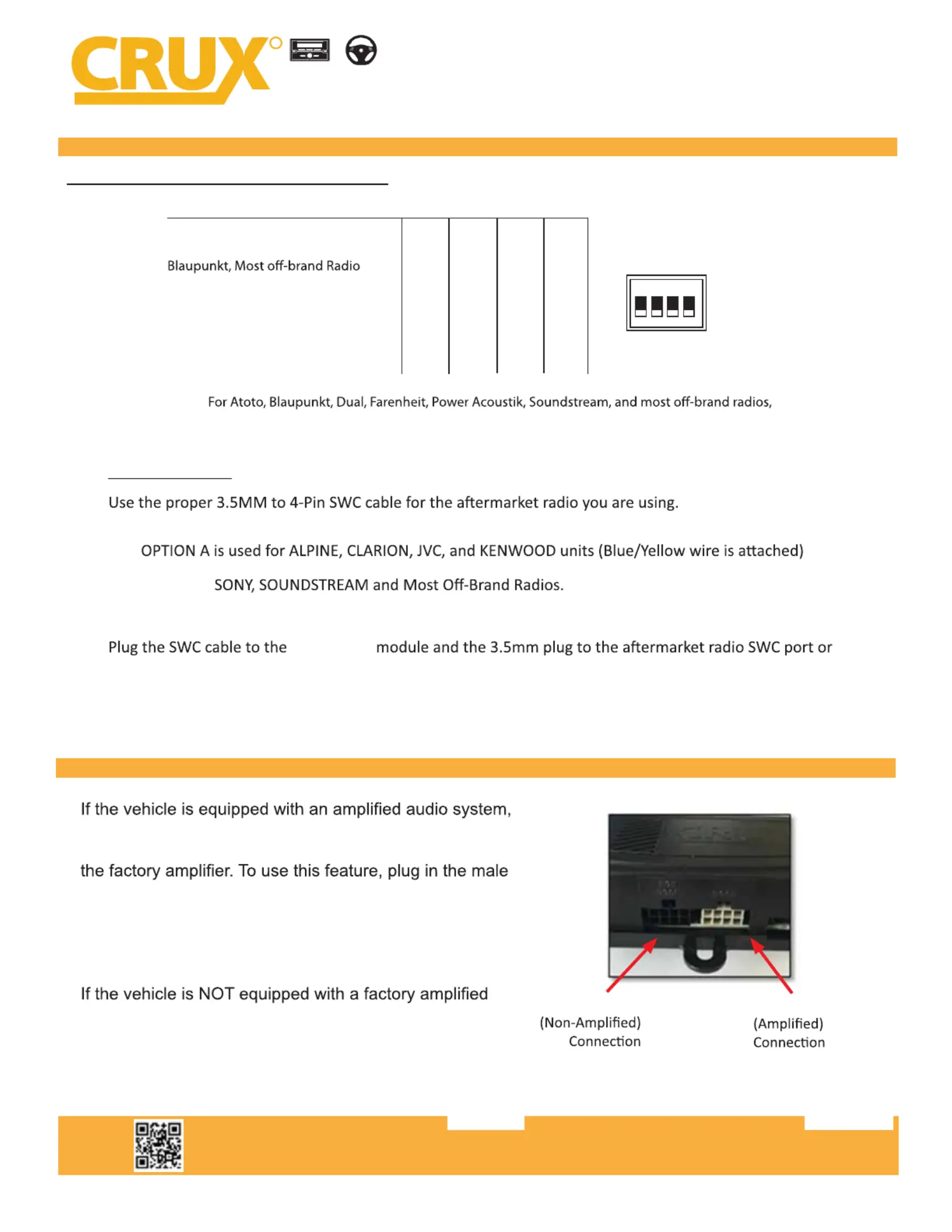

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

JVC/Kenwood (Blue / Yellow)

To aftermarket

radio SWC wire or

3.5mm port

LAN Bus not recognized

LAN Bus recognized

24-Pin Connector Harness

Select

Appropriate

Harness

ANTENNA ADAPTERDASH KIT

TO FACTORY

HARNESS
