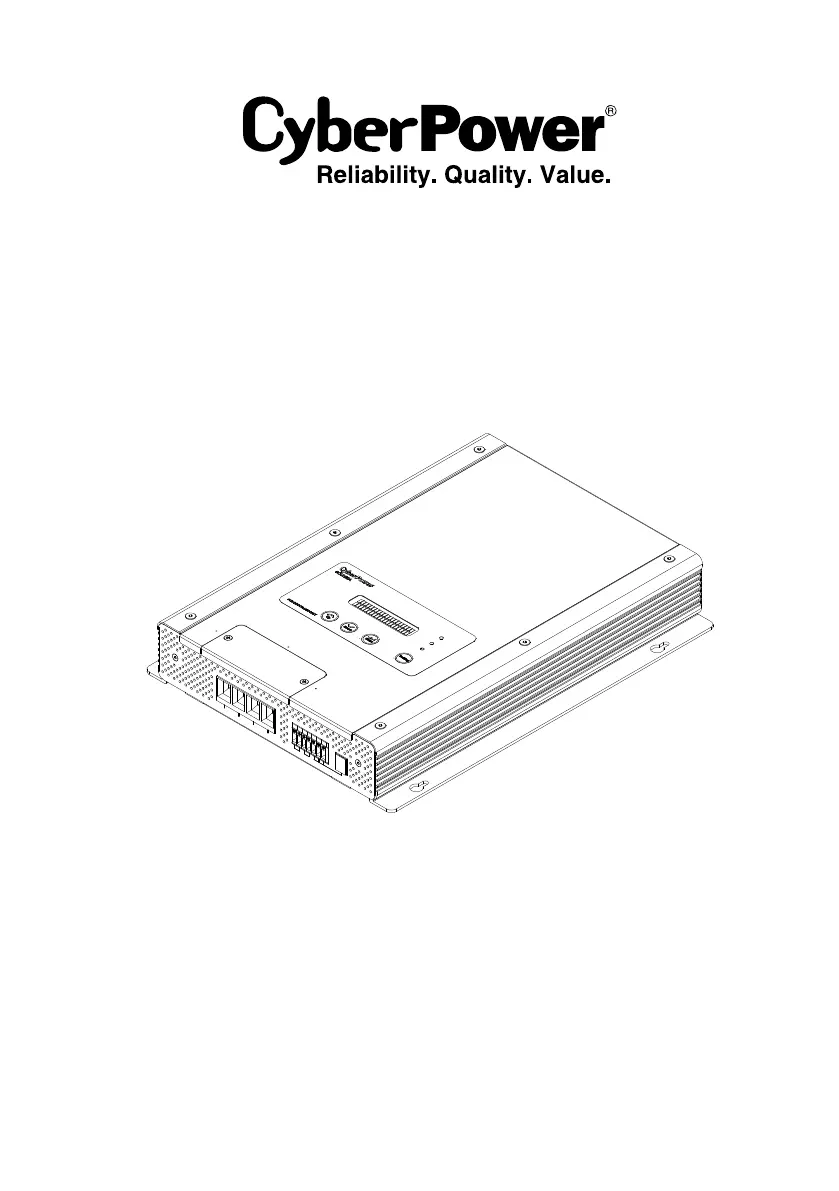

User`s Manual
Installation and Programming
MPPT Solar Charger Series
Maximum Power Point Tracking Technology
Connection the solar array
or battery with reverse
polarity will permanently
damage the Charger.
RESERVED
BVS BTSPV+PV-BAT-BAT+
1
TABLE OF CONTENTS
1. Important Safety information ........................................................2
2. Introduction ................................................................................................3
2.1 Overview .....................................................................................................3
2.2 Maximum Power Point Tracking Technology .......................................5
2.3 Four-Stage Battery Charging Capability ...............................................5
2.4 Setting the Charging Point ......................................................................6
3. Installation ...................................................................................................7
3.1 PV Array Requirements ............................................................................7
3.2 Battery Voltage Sensor .............................................................................8
3.3 Battery Temperature Sensor ...................................................................8
3.4 Load Control Function and Wiring .........................................................8
3.5 Mounting Location ....................................................................................10
3.6 Grounding and Ground Fault Interruption ...........................................11
3.7 Wiring ..........................................................................................................11
4. Operation ......................................................................................................13
4.1 Power On ....................................................................................................13
4.2 Interface ......................................................................................................13
4.3 Initialization ................................................................................................13
4.4 General Operating .....................................................................................17
4.5 Protections .................................................................................................20
4.6 Inspection and Maintenance ...................................................................20
5. Troubleshooting ......................................................................................21
6. Specications ...........................................................................................22
7. Warranty ........................................................................................................23
8. Appendix .......................................................................................................24
Wire Size and Length ..................................................................................24
Error Codes Indication ................................................................................25
Abbreviated ..................................................................................................26
Initialization Setting ..............................................................................26
Load Control Setting ............................................................................27
2
1. Important Safety information
This manual contains important instructions, safety, installation and operation for Sola Charger.
* Please make sure you have read, understood and kept it for future reference.
In case of any risk of electric shock, re or personal injury, please pay careful attention to the
following symbols throughout this manual which indicate dangerous conditions, important safety
information, or operational instructions.
WARNING CAUTION IMPORTANT
Identify conditions that could
result in loss of perperties or
fatal injuries.
Indicate items critical for safe
installation or operation of the unit
Follow these instructions closely
for proper operation of the unit.
Safety information
This charge controller is to be connected to DC circuits only. These DC connections are identied
by the symbol below.
Install external fuses/breakers as required. The battery circuit fuse or circuit breaker must be rated
to 125% of the maximum current or more.
FCC requirements:
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operations.
About This Manual
This manual provides detailed information of installation and user instructions for Solar Charger.
All information in this manual is intended for the system owner/operation and only qualied
electricians and technicians who are familiar with solar system design and wiring practices should
perform the installation.
General Safety Instructions
1. All electrical works must be done in accordance with local, national, and/or international
electrical codes.
2. Before installing or using this device, read all instructions and cautionary markings located in
(or on) this guide, the unit, the batteries, PV array, and any other equipment used.
3. Shut off all DC breakers before connecting any wiring.
4. Copper wiring must be rated at 75° C or higher.
5. Keep cables together (e.g., using a tie-wrap) as much as possible.
6. Ensure both cables pass through the same knockout and conduit ttings to allow the inductive
currents to cancel.
7. DC battery over-current protection must be used as part of the installation.
8. This product is designed for indoor mounting only. Do not expose this unit to rain, snow or
liquids of any type.
