TROUBLE SHOOTING
1. and -Only black - white display
- Check the Saturation, Brightness and Contrast for proper setting.
- Verify that the monitor color is not in Mono or a single color setting.
2. Power on but no image
- Ensure that the cables are properly connected.
- Press MODE to ensure that the proper input signal is selected.
- Use the included power adapter. Incorrect power input may cause
damage to equipment.
3. No Sound
- Ensure that the cables are properly connected.
- Check the AUDIO input to ensure there is an audio signal present.
5 Triple 3G SDI/HDMI "-
Rackmount LCD Video Monitor
Delvcam
DELV 3LCD 3GHD- -
User Guide
IMPORTANT SAFETY INSTRUCTIONS
• Read manual before using this product.
• Keep manual for future reference.
• Do not place the display screen on the ground .
• Avoid heavy impact or dropping.
• Do NOT use chemical solutions to clean this product.
Wipe with a clean soft cloth to maintain the brightness of the surface.
• Do not block any vent holes.
• Follow the instructions when making adjustments.
Improper adjustments may result in damage.
• Unplug the power and remove the battery if you do not plan to use the
monitor for an extended period of time or during a thunderstorm.
FEATURES
Three 5 inch Screens-
LCD vibrant color
Ultra slim design with grip handles-
Durable black powder coated steel 2RU cabinet-
Three color Tally Indicator
Controlled via DB 15 port-
Mutliple Inputs/Outputs
HDMI, 3G SDI, CVBS, audio inputs, and HDMI, 3G SDI, CVBS outputs- -
INCLUDED ACCESSORIES
• Tally Interface Board
• 12VDC/3A Power Adapter
OPTIONAL ACCESSORIES
• Battery Plate Bracket
• V mount/Anton Bauer Mount Power Cable -
Delvcam DELV 3LCD 3GHD- - Page 2
Delvcam DELV-3LCD 3GHD- Page 7
SETTINGS
• Center Marker: Set cross marks
• Safe Frames: Adjust screen markers
• Image Freeze: Capture function
• Image Flip: Turn the image, HV
Flip, H Flip, V Flip
• Check Field: Color, Mono, Red,
Green, Blue
• P2P: Image resolution
• Focus Assist: Use as auxiliary
focus function when used as
camera viewfinder
Use /F1 or V/F2 to select button.∧
Press < or > to enter Function Menu.
Use /F1 or V/F2 to scroll through ∧
options (Center Marker, Safe Frames,
Check Field, Focus Assist, Image
Freeze, Aspect Ratio, Image Flip).
When desired option appears, press
MENU to confirm selection.

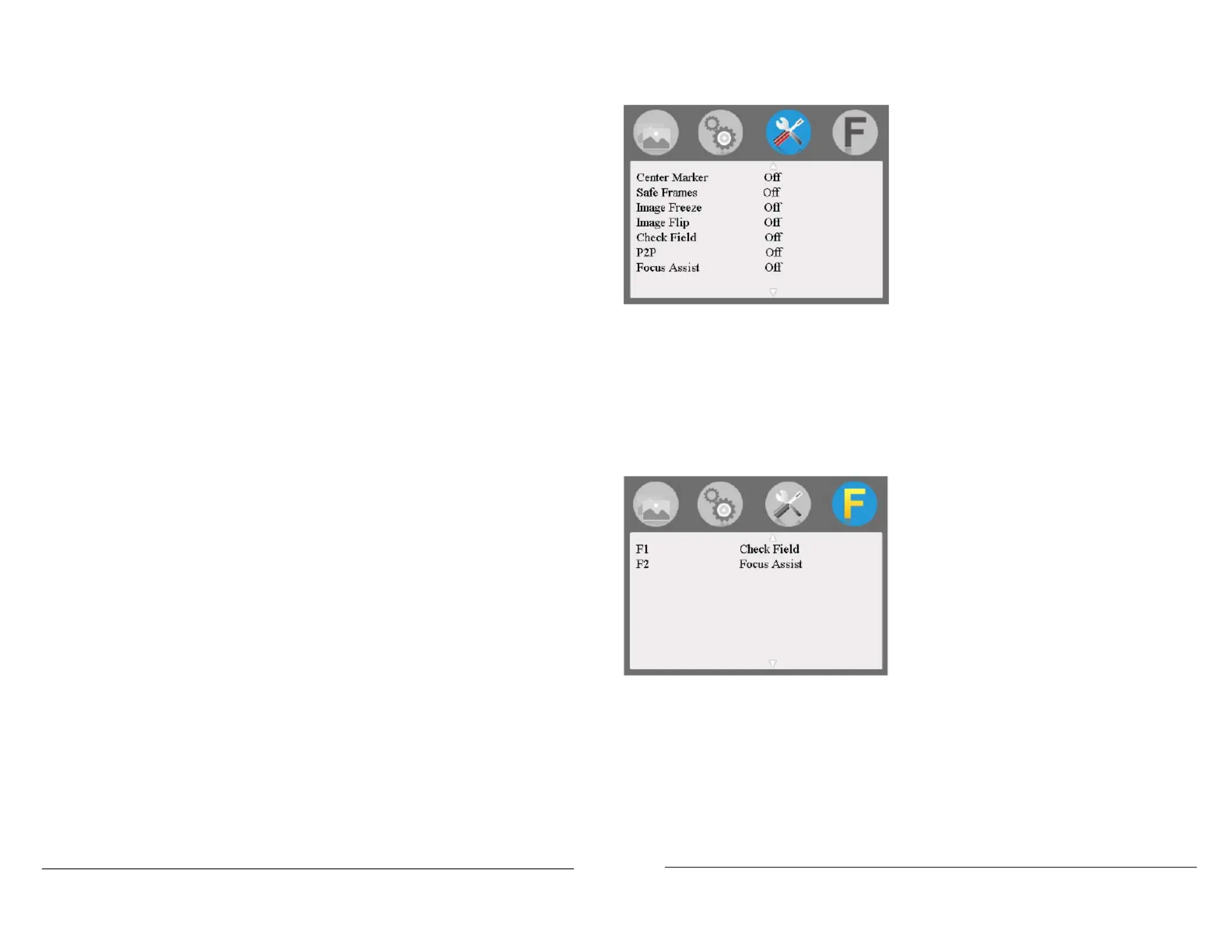

SET SHORTCUT BUTTONS F1 & F2
OPERATION
1. Turn power ON.
2. Press MENU button.
3. Press < or > to scroll through menu selections.
4. Press /F1 or V/F2 to scroll through secondary menu.∧
5. Use < or > to make adjustments.
6. Press Menu button to exit.
Delvcam DELV 3LCD 3GHD- - Page 6

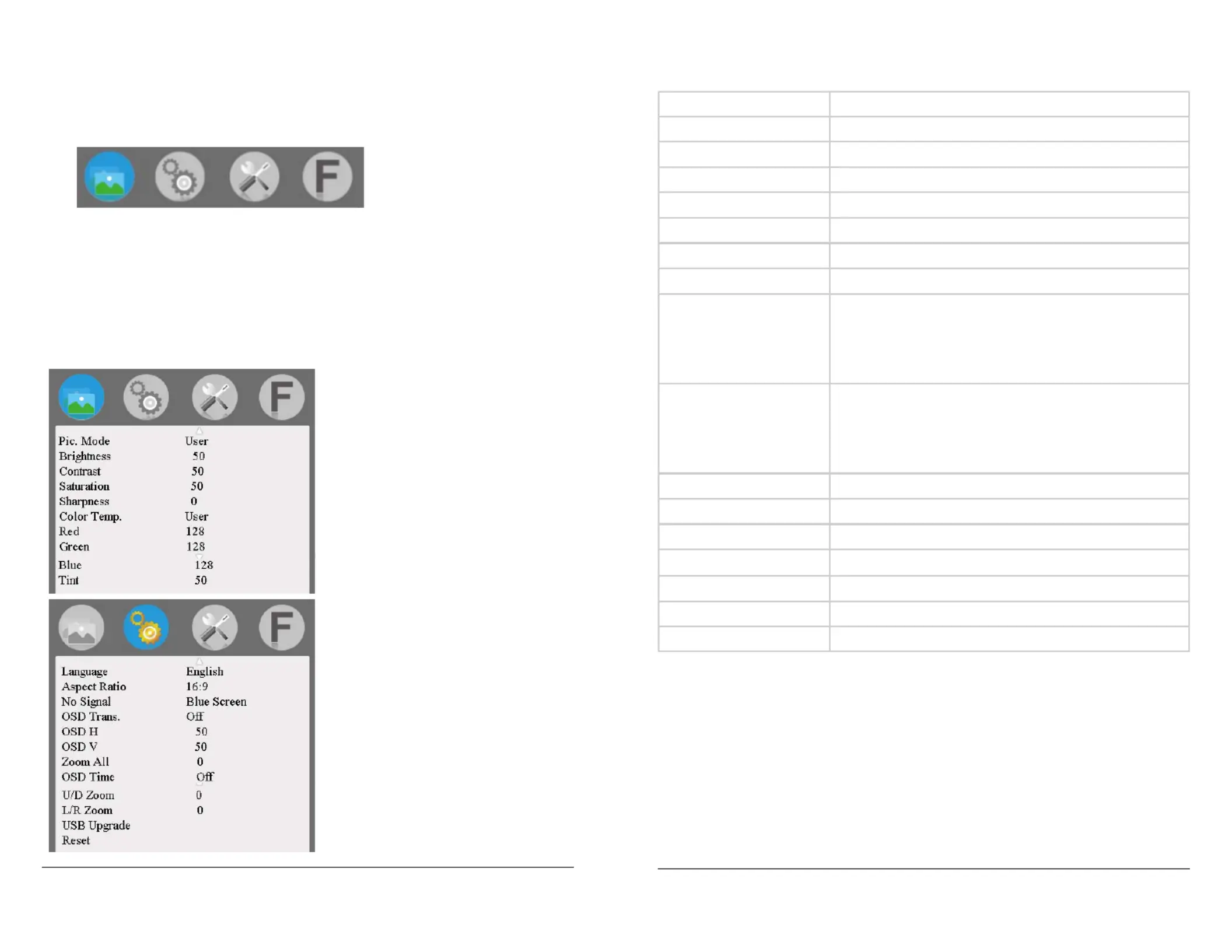

• Pic. Mode: Select User to “ ”
adjust Brightness, Contrast,
Saturation and Sharpness
• Color Temp.: Select User to “ ”
adjust Red/Green/Blue
• Tint: For use in NTSC video mode
• No Signal: Background screen
color
• Zoom All: Use < or > to adjust
the image
• OSD Time: Menu display time
• U/D Zoom: < or > to adjust
the image
• L/R Zoom: < or > to adjust
the image
SPECIFICATIONS
Delvcam DELV-3LCD 3GHD- Page 3
Display Screen: 3, 5-inch LCD
Resolution: 800 x 480 x 3 (RGB Contrast: 500:1)
Brightness: 500cd/m²
Aspect Ratio: 16:9
Viewing Angle: 70°/70°(L/R) 50°/70°(U/D)
Input Signal: HDMI/3G-SDI/Video/Audio(L/R)
Output Signal: HDMI/3G-SDI/Video/Stereo Headphone
Color Format: PAL-4.43 /NTSC- 3.58
HDMI Support Format:
480i /480p /576i /576p
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24fps/
23.98/23.98fps)
SDI Support Format:
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24fps/
23.98/23.98fps)
Headphone Output: Stereo/3.5mm interface
Power Input: 12VDC 4-pin XLR
Input Voltage: 9- 24VDC
Power Consumption: 25W
Backlight; LED
Dimensions (LxHxD): 19 x 3.5 x 1.34 in /482.6 x 88 x 34mm
Weight: 3.5 lb/1570g
