Oldal 1/13

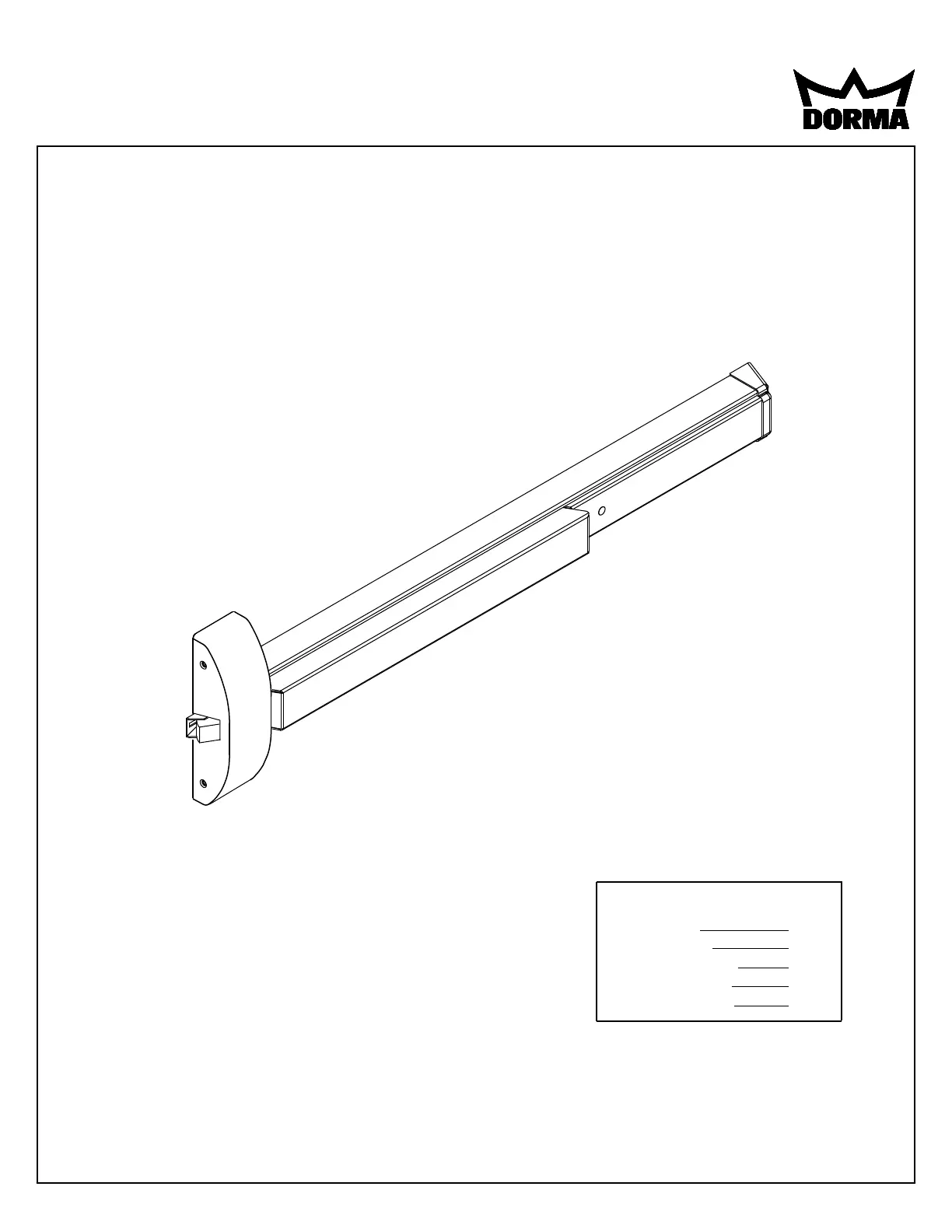

I 9300-12 1/2011
RIM EXIT DEVICE
9300/F9300 SERIES
INSTALLATION INSTRUCTIONS
1135-27 95011756 www.dorma-usa.com 1-800-523-8483
Index:
Screw chart
Tools required
Device installation
Options available
Spotting template
1
2
3-7
8-11
12
Note: One set of instructions should be left
with building owner after device has been
installed.
1
SCREW CHART
(4) #12 x 1 1/4" R.H.P.T.S. (Wood Door)
(4) 12-24 x 1" R.H.P.M.S. (Metal or Thru Bolts)
(2) #12 x 1 1/4" R.H.P.T.S. (Wood Door)
(2) 12-24 x 1" R.H.P.M.S. (Metal or Thru Bolts)
(6) 8-32 x 3/8" F.H.P.M.S.
Chassis Mounting
End Cap Bracket
Chassis Cover
& End Cap
Chassis Mounting
End Cap Bracket
(2) #10 x 1" F.H.P.T.S. (Wood Door)
(2) 10-32 x 5/8" F.H.P.M.S. (Metal) Strike Mounting
Strike Mounting
(6) #12 x 1" F.H.P.T.S. (Wood Door)
(6) 12-24 x 3/4" O.H.P.M.S. (Metal) Strike Mounting
Strike Mounting
(2) #10 x 1" F.H.P.T.S. (Wood Door)
(2) 10-32 x 3/8" F.H.P.M.S. (Metal) Strike Mounting
Strike Mounting
(2) #10 x 1" F.H.P.T.S. (Wood Door)
(2) 10-32 x 5/8" F.H.P.M.S. (Metal) Strike Mounting
Strike Mounting
Strike Angle
2
HANDING OF DOOR
HANDING OF DOOR
HANDING OF DOOR
HANDING OF DOORHANDING OF DOOR
TYPICAL APPLICATIONS
TYPICAL APPLICATIONS
TYPICAL APPLICATIONS
TYPICAL APPLICATIONSTYPICAL APPLICATIONS
SPECIAL TOOLS FOR INSTALLATION
SPECIAL TOOLS FOR INSTALLATION
SPECIAL TOOLS FOR INSTALLATION
SPECIAL TOOLS FOR INSTALLATIONSPECIAL TOOLS FOR INSTALLATION
Read the entire instruction sheet prior to installation.
Before Installing Hardware:
1. Door should be fitted and hung.
2. Verify door width, handing and product with carton label for correct exit device and length. (See Step 7)
3. For hand reversal of outside lever trim see Step 4. Additional instruction sheet also packaged with
trim.
Note: If device is to be installed over glass lite panels, shim kit may be required, order No.
GK9000.
12-24 Tap, 10-32 Tap
Drill bits: 1/8", #25, #16, #21 & 3/8"
Hole saws: 1", 1 1/4", & 2 1/8" diameter for trim (if required).
Jig saw or router may be required for thumbpiece trims.
RHR LHR
9100
Series
Device
9300
Series
Device
9400
Series
Device
9300
Series
Device
9300
Series
Device
9300
Series
Device
9300
Series
Device
