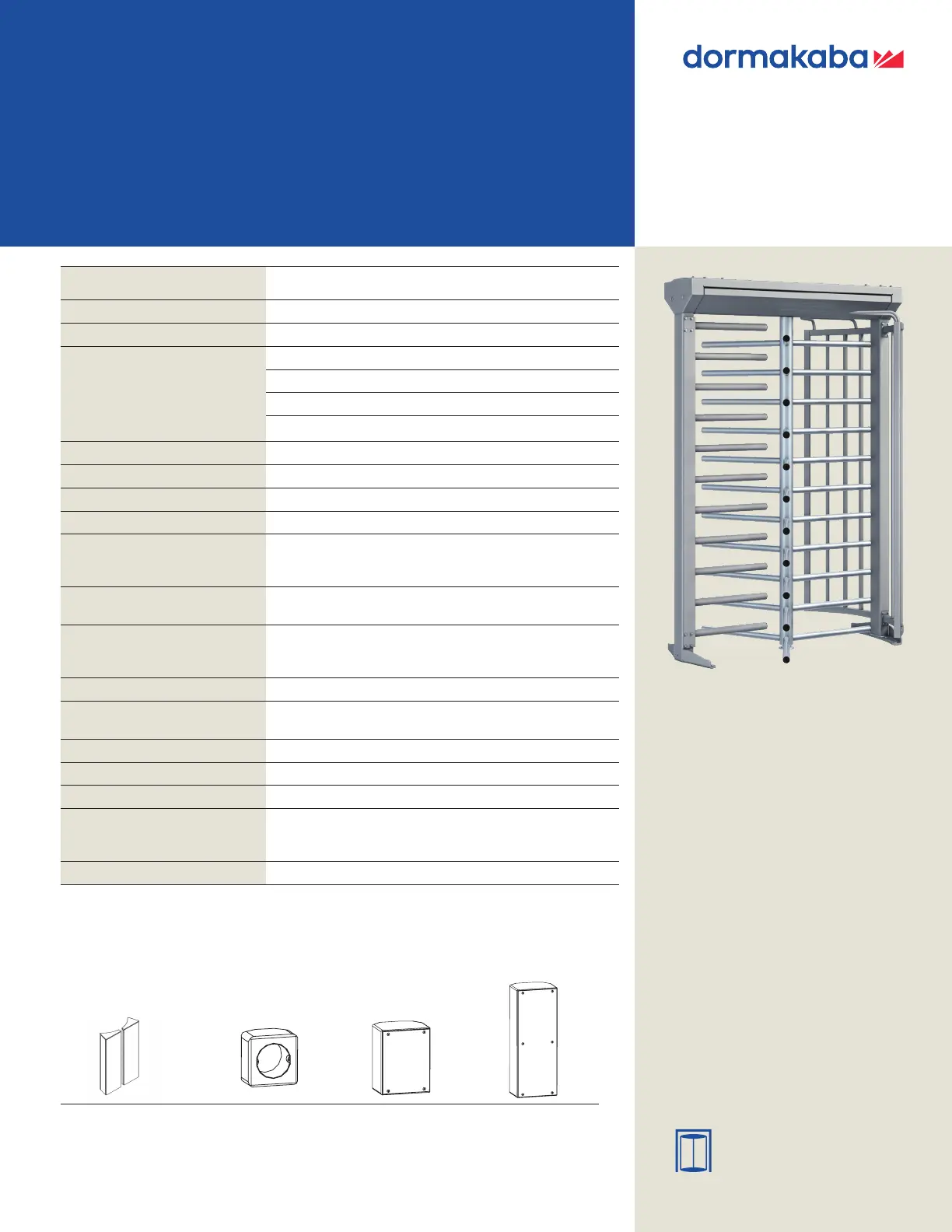

FTS-E02

Full height turnstile with choice

of straight or looped crossbars

Entrance systems

Standard unitsFTS-E02

Construction column diameter51-13/16" (1300 mm)

Portal width60-5/8" (1540 mm)

Total height89-3/8" (2270 mm)

with optional canopy D194-1/16" (2390 mm)

with optional canopy D295-1/4" (2420 mm)

with optional canopy D395-1/4" (2420 mm)

Passage height81-1/8" (2060 mm)

Passage width25-7/16" (646 mm)

Portal and housingSteel

Lockable maintenance openingAluminum

Rotating unit with tubular

column, Ø3-1/2" (Ø89 mm)

120° each with 11 straight or 7 looped crossbars

Ø1-9/16" (Ø40 mm), made of glossy AISI 304 stainless

steel with black plastic cover caps.

Barrier elementWith 11 straight or 7 looped crossbars Ø1-5/8"

(Ø42 mm), made of steel.

FinishRotating unit made of glossy stainless steel, hot-dip

galvanized steel elements, aluminum elements in RAL

9006 (white aluminum).

Rotor3-blade rotor

Function (see Function note)Mechanical (Manual)

Power assist

Electrical equipmentControl system integrated in the unit.

Power supply100 – 240 VAC, 50/60 Hz, 253 VA.

Standby power consumption10 VA.

InstallationFinish floor

Sub-floor

Sleeve foundation

Protection classesHousing IP33, components conducting supply voltage IP43.

Function

• Manual—Mechanical operation, free in

one direction/opposite direction blocked.

• Power assist—Power-assisted motion;

servo-positioning drive/electronically

controlled in both directions (behavior

in event of power failure can be selected

for each direction: free or blocked).

Konsole 4

Konsole 2

Konsole 1

Konsole 3

Konsole 5

Konsole 4

Konsole 2

Konsole 1

Konsole 3

Konsole 5

Konsole 4

Konsole 2

Konsole 1

Konsole 3

Konsole 5

Housing with lockable front

panel made of silver

anodized aluminum,

plastic-coated according to

RAL or glossy stainless steel

Plastic in color of

unit or in RAL 9006

W: 3-11/16" (94 mm)

H: 3-11/16" (94 mm)

D: 2-9/16" (65 mm)

Aluminum in color of

unit or in RAL 9006

W: 5-1/2" (140 mm)

H: 7-1/16" (180 mm)

D: 4-5/16" (110 mm)

Aluminum in color of

unit or in RAL 9006

W: 5-1/2" (140 mm)

H: 14-3/8" (365 mm)

D: 4-5/16" (110 mm)

Optional components

Housing

Console 1

Console 2

Console 3
