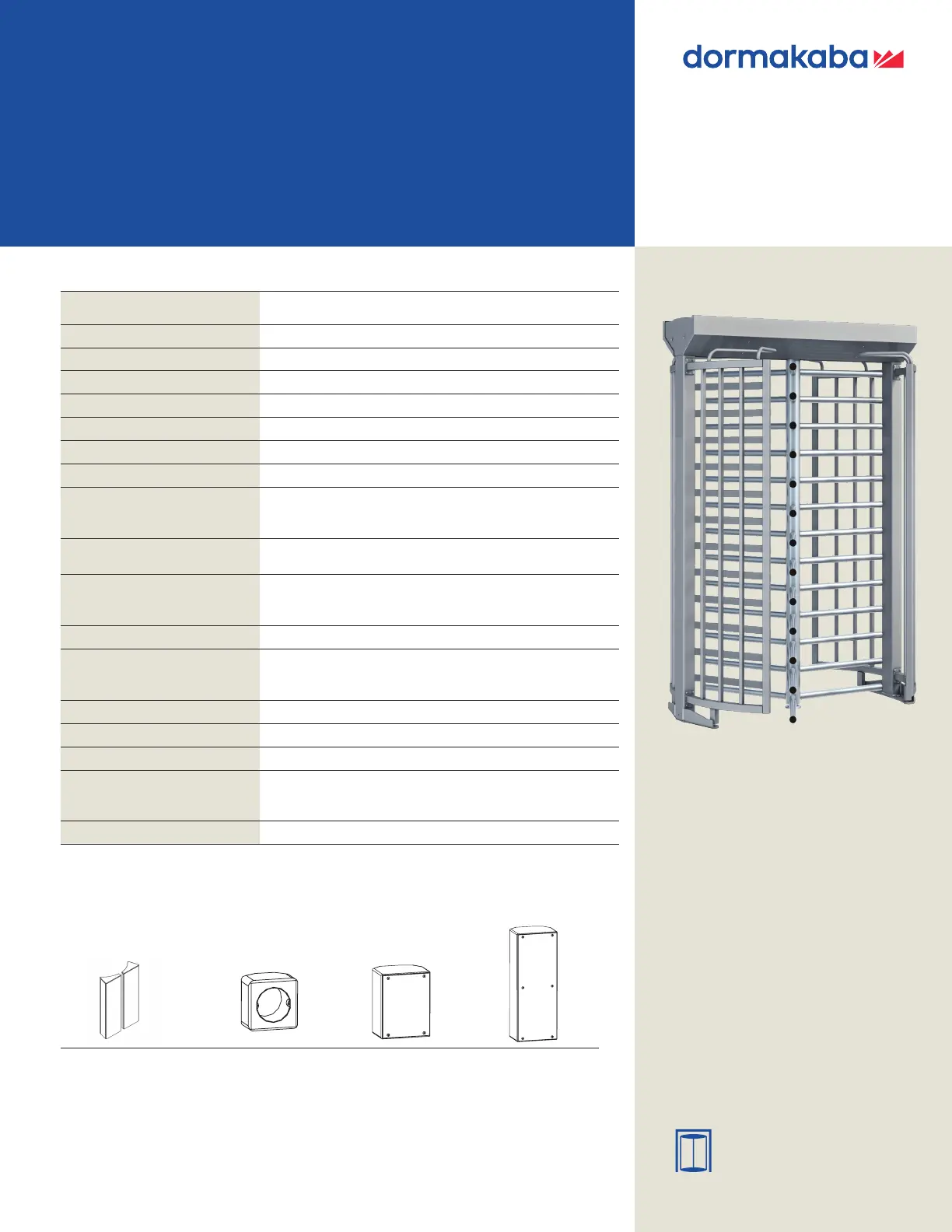

FTS-E04

Vandal-resistant full height turnstile

with reinforced arms

Entrance systems

Standard unitsFTS-E04

Construction column diameter

51-13/16" (1300 mm)

Portal width

60-5/8" (1540 mm)

Total height

89-3/8" (2270 mm)

Passage height

81-1/8" (2060 mm)

Passage width

25-7/16" (646 mm)

Portal and housing

Steel

Lockable maintenance opening

AISI 304 stainless steel

Rotating unit with tubular

column, Ø3-1/2" (Ø89 mm)

120° each with 13 straight crossbars Ø1-9/16" (Ø40 mm),

made of glossy AISI 304 stainless steel with black plastic

cover caps.

Barrier element

Curved with 12 steel bars and protection against sawing

through in the vertical tubes.

Finish

Rotating unit made of glossy stainless steel, hot-dip

galvanized steel elements, stainless steel maintenance

opening in RAL 9006 (white aluminum).

Rotor3-blade rotor

Function

Power assist—Power-assisted motion; servo-positioning drive/

electronically controlled in both directions (behavior in event of

power failure can be selected for each direction: free or blocked).

Electrical equipment

Control system integrated in the unit.

Power supply

100 – 240 VAC, 50/60 Hz, 253 VA.

Standby power consumption

20 VA.

Installation

Finish floor

Sub-floor

Sleeve foundation

Protection classes

Housing IP33, components conducting supply voltage IP43.

Konsole 4

Konsole 2

Konsole 1

Konsole 3

Konsole 5

Konsole 4

Konsole 2

Konsole 1

Konsole 3

Konsole 5

Konsole 4

Konsole 2

Konsole 1

Konsole 3

Konsole 5

Housing with lockable front

panel made of silver

anodized aluminum,

plastic-coated according to

RAL or glossy stainless steel

Plastic in color of

unit or in RAL 9006

W: 3-11/16" (94 mm)

H: 3-11/16" (94 mm)

D: 2-9/16" (65 mm)

Aluminum in color of

unit or in RAL 9006

W: 5-1/2" (140 mm)

H: 7-1/16" (180 mm)

D: 4-5/16" (110 mm)

Aluminum in color of

unit or in RAL 9006

W: 5-1/2" (140 mm)

H: 14-3/8" (365 mm)

D: 4-5/16" (110 mm)

Optional components

Housing

Console 1

Console 2

Console 3
