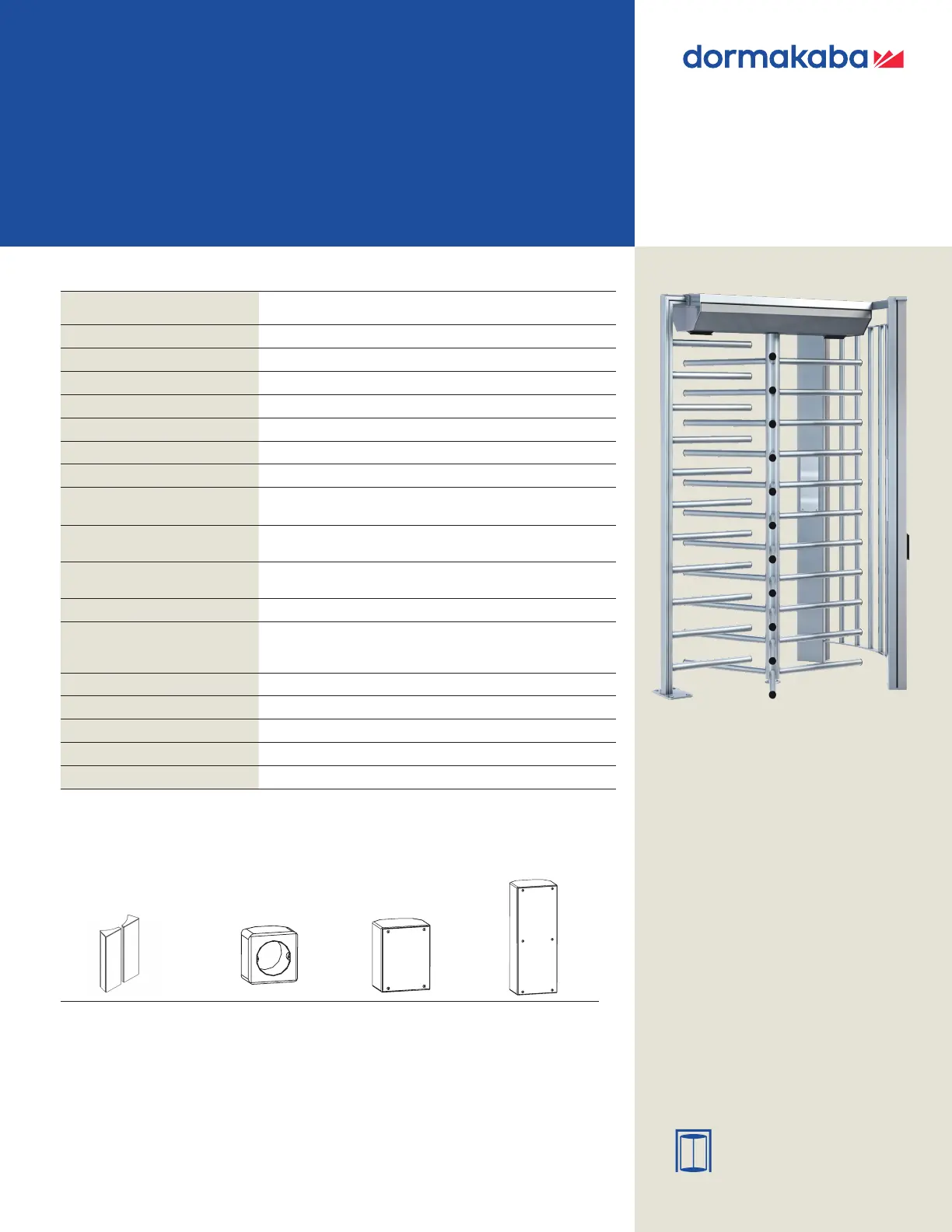

FTS-E05

Most economical

full height turnstile

Entrance systems

Standard unitsFTS-E05

Construction column diameter

51-13/16" (1300 mm)

Portal width

59-1/16" (1500 mm)

Total height

89-3/8" (2270 mm)

Passage height

81-1/8" (2060 mm)

Passage width

25-7/16" (646 mm)

Portal and housing

Steel

Lockable maintenance opening

Aluminum

Rotating unit with tubular

column, Ø3-1/2" (Ø89 mm)

120° each with 11 bar-shaped crossbars Ø1-9/16" (Ø40 mm)

in hot-dip galvanized steel with black plastic cover caps.

Barrier element

With 11 straight horizontal crossbars Ø1-5/8" (Ø42 mm),

made of steel.

Finish

Rotating unit made of steel, hot-dip galvanized steel

elements.

Rotor3-blade rotor

Function

Power assist—Power-assisted motion; servo-positioning drive/

electronically controlled in both directions (behavior in event of

power failure can be selected for each direction: free or blocked).

Electrical equipment

Control system integrated in the unit.

Power supply

100 – 240 VAC, 50/60 Hz, 253 VA.

Standby power consumption

10 VA.

Installation

Finish floor

Protection classes

Housing IP33, components conducting supply voltage IP43.

Konsole 4

Konsole 2

Konsole 1

Konsole 3

Konsole 5

Konsole 4

Konsole 2

Konsole 1

Konsole 3

Konsole 5

Konsole 4

Konsole 2

Konsole 1

Konsole 3

Konsole 5

Housing with lockable front

panel made of silver

anodized aluminum,

plastic-coated according to

RAL or glossy stainless steel

Plastic in color of

unit or in RAL 9006

W: 3-11/16" (94 mm)

H: 3-11/16" (94 mm)

D: 2-9/16" (65 mm)

Aluminum in color of

unit or in RAL 9006

W: 5-1/2" (140 mm)

H: 7-1/16" (180 mm)

D: 4-5/16" (110 mm)

Aluminum in color of

unit or in RAL 9006

W: 5-1/2" (140 mm)

H: 14-3/8" (365 mm)

D: 4-5/16" (110 mm)

Optional components

Housing

Console 1

Console 2

Console 3
