Subject to change without notice

TPB-E02

Tripod turnstiles

Entrance systems

Standard unitsTPB-E02

ConstructionHousing and base columns in a single unit (open design).

Housing materialAISI 304 stainless steel.

Base column, base or

flange plate material

AISI 304 stainless steel.

Crossbar materialAISI 304 stainless steel.

FinishStainless steel satin finish.

Function (see Function below)Mechanical (Manual).

Power assist.

Electrical equipmentControl system integrated in the unit.

Power supply110 – 230 VAC, 50/60 Hz, 253 VA.

Standby power consumption10 VA.

InstallationFinished floor.

Suitable for outdoor installation.

Protection classesHousing IP33, components conducting supply voltage IP43.

Function

• Manual—Mechanical operation, free in

one direction/opposite direction blocked.

• Power assist—Power-assisted motion;

servo-positioning drive/ electronically

controlled in both directions (behavior in

event of power failure can be selected

for each direction: free or blocked).

35-7/16"

(900)

35-7/16"

(900)

40-9/16"

(1030)

40-3/16"

(1020)

43-5/16"

(1110)

Ø1-7/8"

(Ø48)

20-1/16"

(510)

11-13/16"

(300)

16-9/16"

(420)

19-1/4"

(488)

10-1/4"

(260)

6-5/16"

(160)

6-5/16"

(160)

46-1/16"

(1170)

30-5/16"

(770)

6-5/16" (160)

6-5/16" (160)

46-1/16"

(1170)

33-7/16"

(850)

20-1/16"

(510)

10-1/4"

(260)

35-7/16"

(900)

40-3/16"

(1020)

30-5/16"

(770)

20-1/16"

(510)

Note

Dimensions shown as inches

followed by millimeters; for

example, 1" (25).

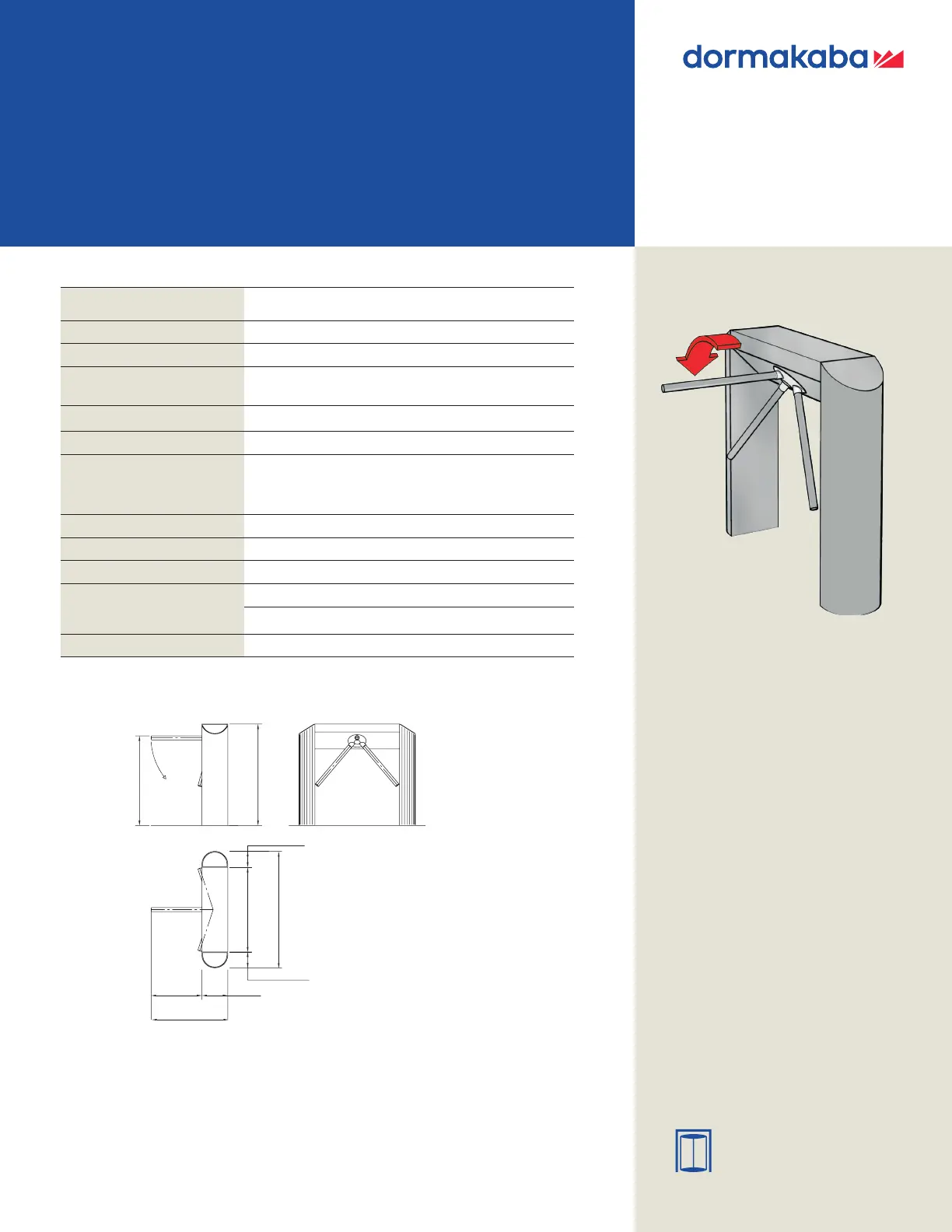

TPB-E02 elevation drawings
