Oldal 1/5

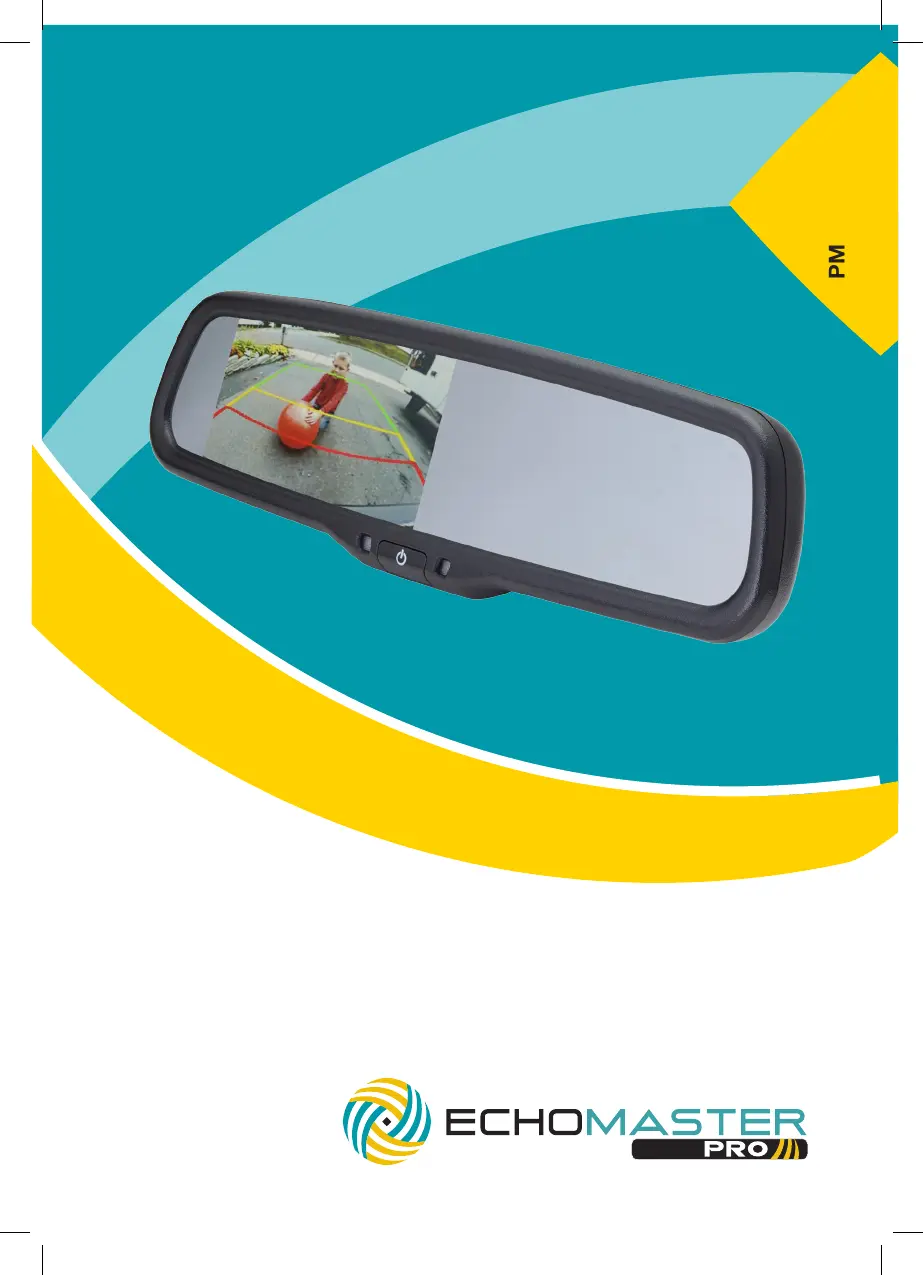

User Manual
4.3” Factory Mount Mirror Monitor with
Auto-Dimming and Adjustable Parking Lines
PMM-43-ADPL
3
email - support@aampglobal.com (US)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - technical.eu@aampglobal.com (Europe)
Installation Guide
2
Installation Guide
email - support@aampglobal.com (US)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - technical.eu@aampglobal.com (Europe)
Fitting Instructions
PMM-43-ADPL
4.3” Factory Mount Mirror Monitor
with Auto-Dimming and Adjustable
Parking Lines
Introduction
Box Contents
Key Features
u User Guide
u Mirror Monitor
u Main Harness
u Cable Management
u Allen Key
Thank you for purchasing your EchoMaster Pro automotive monitor.
Your monitor displays a clear, high resolution image of the area
surrounding your vehicle, meaning your maneuvering and vehicle
awareness will be greatly improved.
Please ensure you read and understand all aspects of this manual before
tting or using your EchoMaster monitor.
Operating Instructions
u Dual video inputs
u Reverse trigger input
u Adjustable parking lines
u Remote control included
u Auto-dimming display
u OEM style mirror dimming
The PMM-43-ADPL will replace your factory tted rearview mirror.
Remove the original mirror from the vehicle and replace with the
PMM-43-ADPL.
Once the unit is in place, run the connections cable across the headliner of
the vehicle and down the A pillar.
Please ensure that you do not impede the operation of any airbags that
may be located in the A pillar of the vehicle. Any cable passing these
airbags should be run behind the airbag and not in front of it.
Once the cable has been routed down to the dashboard connect the
camera inputs and power connections as shown in the wiring diagram
section of this manual.
The vehicle ignition is required to be on for the unit to operate.
The unit will only turn on when a video signal is present.
To turn it on or off hold the POWER button for 1 second. The screen will
show the video signal connected to Video 1.
A short press of the POWER button will turn the auto-dimming glass
feature on or off.
PMM-43-ADPL
4.3” Factory Mount Mirror Monitor
with Auto-Dimming and Adjustable
Parking Lines
5
email - support@aampglobal.com (US)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - technical.eu@aampglobal.com (Europe)
Installation Guide
4
Installation Guide
email - support@aampglobal.com (US)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - technical.eu@aampglobal.com (Europe)
Operating Instructions (continued)

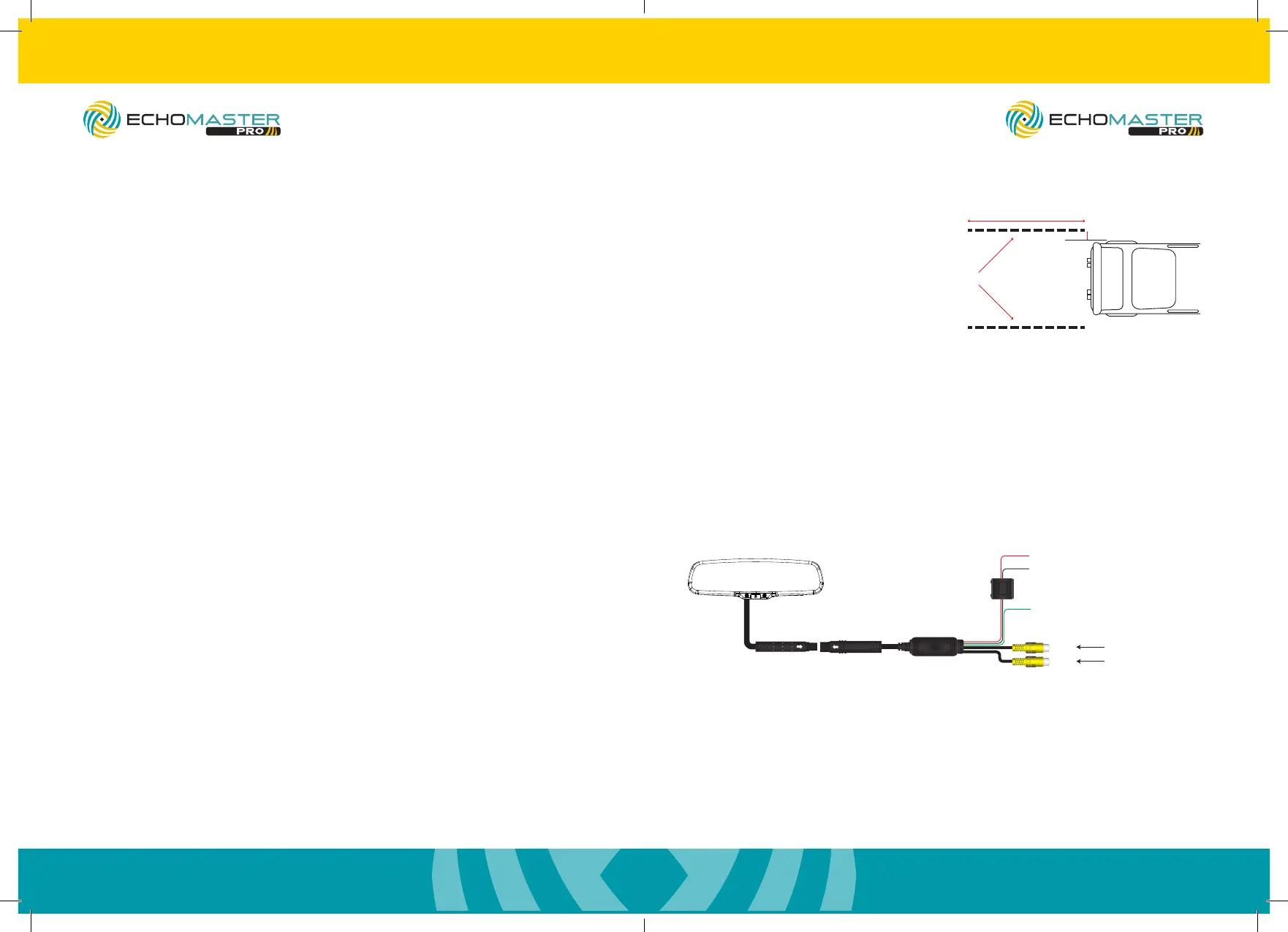

Wiring Diagram
To enter the menu press the MENU button on the remote. Scroll through
the various options by pressing the SEL button. Adjust options using
the – and + buttons (top right of remote).
Settings available are as follows.
Brightness Adjusts the screen brightness.
Contrast Adjusts the screen contrast.
Color Adjusts the screen color.
Scale Turns the parking guidelines on or off.
Language Allows you tochoose what language the on-screen
menus are displayed in.
Preset Resets all values to default.
Setting This adjusts the rate that the screen dims under
different lighting conditions (adjustable separately
for front and rear sensors).
The parking guidelines can also be adjusted when the reverse trigger is
activated. To enter the adjustment mode, press and hold the top center
button on the remote.
You will then notice the XL (left) and XR (right) menus appear at the top of
the screen. The bottom 3 rows of buttons on the remote adjust the
right-hand guide and the next 3 up adjust the left.
To set the lines accurately place some 2” wide tape at the rear of the
vehicle parallel to each other. The tape should be about 12ft long and 6”
outside the maximum width of the vehicle (please see image on next page).
It must be visible on the display
when the vehicle is in reverse.
You can then set the guidelines to
match the tape. Press and hold
the top center button again to exit
the guidelines setting function.
PMM-43-ADPL
4.3” Factory Mount Mirror Monitor
with Auto-Dimming and Adjustable
Parking Lines
PMM-43-ADPL
4.3” Factory Mount Mirror Monitor
with Auto-Dimming and Adjustable
Parking Lines
+12V Ignition
GND
V1
Reverse Camera Input
Video Input
Main Harness
(Black)
Reverse Trigger
(Green)
(Red)
FILTER &
FUSE BOX
IN
OUT
2” Wide Tape
12ft
6”
