All disclosures, notices and warranty conditions are being written on the back of the box. Revision 1.0. Released on 15

of October, 2013.

Installation and mounting manual for EK-FC R9-290X Backplate

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

STEP 1: GENERAL INFORMATION. Sample picture of AMD Radeon R9-290X graphics card.

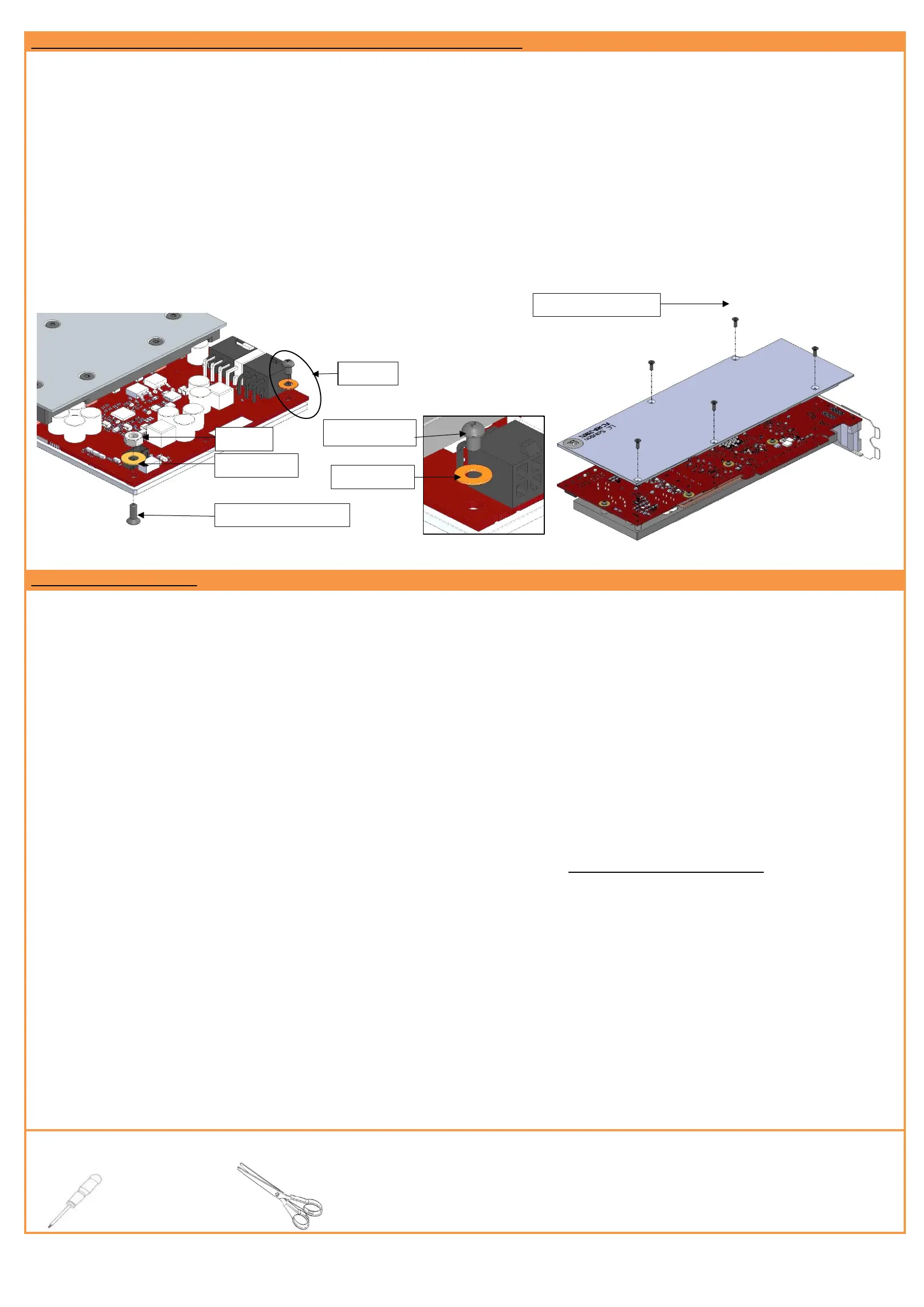

STEP 2: PREPARING YOUR GRAPHICS CARD

EK-FC R9-290X Backplate is very easy to install. First install EK-FC R9-290X series water block according to its installation manual. If you have it

already installed, please check the picture below to see which mounting screws are to be left in their position and which are to be removed. Please

remove the five (5) M3x4 DIN7985 screws and their washers as well (marked with arrow).

STEP 3: APPLYING THE THERMAL PADS

EK-FC R9-290X Backplate features passive cooling of the printed circuit board and it’s components therefore it is mandatory to install the enclosed

thermal pad. Please install enclosed 1mm and 1,5mm thick thermal pad (Thermal Pad A – 1mm (100x16), Thermal Pad C – 1,5mm (25x25)) as

shown on the picture below. You may need to trim the excess thermal pad.
