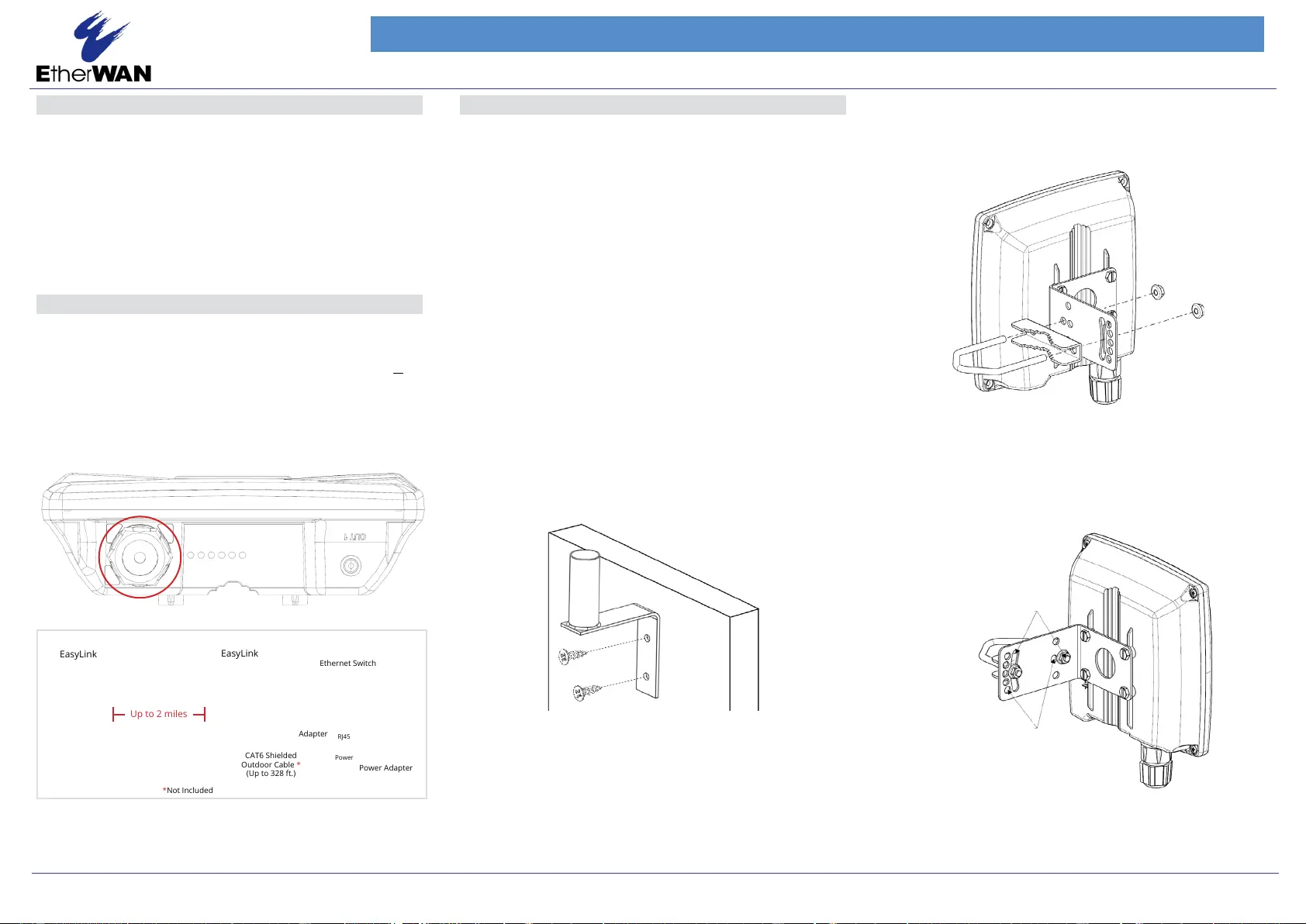

EasyLink Pro Hardened Wireless Bridge
Installation Guide
1 Unpacking
Open the carton and unpack the items. Your package should include:
• 1 x EasyLink A outdoor-rated wireless bridge Unit
• 1 x EasyLink B outdoor-rated wireless bridge Unit
• 2 x Passive PoE Injectors
• 2 x Power Supplies
• 2 x Active to Passive PoE Converters (for use with a PoE Switch)
• 2 x Pole Mount kits
• 2 x Wall Mount Poles
If any items are missing or damaged, notify your EtherWAN representative.
2 Supplying Power
All EasyLink series models are Passive PoE Powered Devices and
no AC or DC power socket. Power is supplied through an Ethernet cable
plugged into the RJ45 port (shown in the figure below). The cable must be
connected to the included inline PoE power injector and power supply or
the active PoE to passive PoE converter (supplied) with a standard PoE
switch. The maximum power consumption is 12 watts. The power supplies
that come with the EasyLink are 24VDC, 36W, and have been tested over
ethernet up to 328 feet (100 meters) distance. The EasyLink units them-
selves support DC input from 8-30V for customer supplied power options.
RJ-45 PoE Port
Up to 2 miles
3 Physical Installation
NOTE: It is recommended to test all wireless devices before the nal
installation. This includes bench testing and signal testing of the EasyLink
unit in the positions where they will be mounted. Loosely mount EasyLink
units in the intended installation spots and ensure that the transmission
signal is strong enough for the intended application.
The minimum and maximum recommended distance between EasyLink A
and EasyLink B are 100 feet minimum to 2 miles maximum.
This product is designed for outdoor installation on a pole or wall. It is
recommended to install the EasyLink at a height of at least 15 feet. A
higher mounting position will result in a stronger signal, especially at
longer distances. If there are obstacles between the EasyLinks, mount the
EasyLinks at a higher distance to avoid the obstacles. Mount the EasyLink
with the ethernet port and LEDs facing down.
The EasyLink Kit comes with two mounting Options. Pole mount and wall
mount.
Wall Mount
The mall mount pole is used when a mounting pole is not already in place.
Attach the wall mount pole to the location where the EasyLink will be
mounted (see figure below). Be sure to use mounting bolts appropriate for
the location the Pole will be mounted. Once the wall mount pole is in place,
use the EasyLink pole mount kit to attach the EasyLink to the wall mount
pole.
Pole Mount
1. Align the four holes on the housing bracket with those on the back face
of the housing and use the four screws and lock washers to attach the
bracket to the housing.
1.
2. Position the Wireless unit and mount on the pole. Use the supplied
U-Bolt and position the wireless unit as shown in the graphic below.
Once the wireless unit is in position, tighten the supplied nuts with
washers to the U-Bolt until the wireless unit is securely attached to the
pole.
Using this pair of holes allows
freely adjusting tilt up to +/- 17°
EasyLink Pro Series
8/7/2023
Copyright 2023 EtherWAN Systems, Inc.
All Rights Reserved.
Page 1
Using this pair of holes allows
adjusting tilt in increments of
8.5° (up to +/- 17°)
(Up to 328 ft.)
CAT6 Shielded
Outdoor Cable *
*Not Included
EasyLink
EasyLink
Ethernet Switch
Power Adapter
Adapter
Power
RJ45

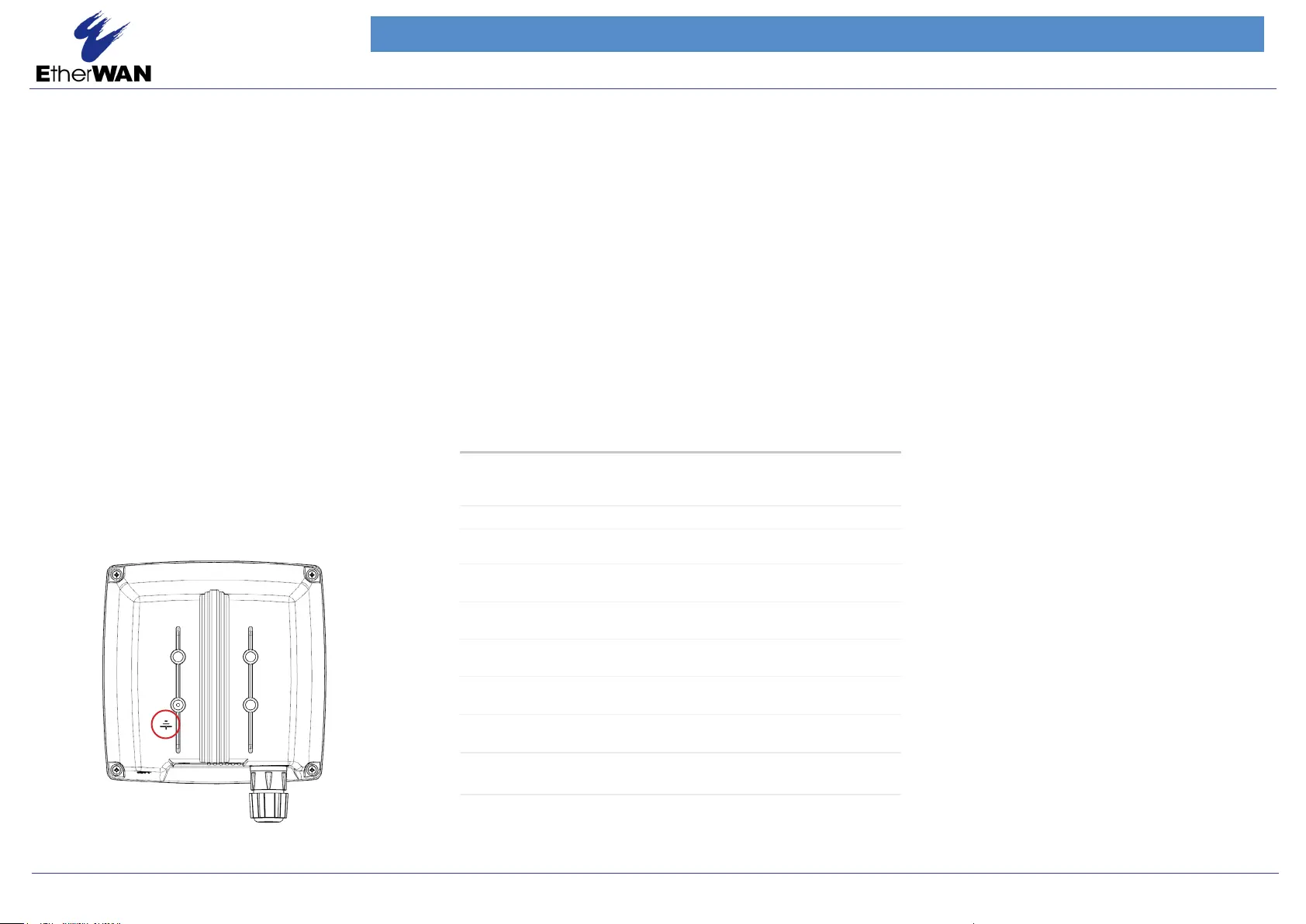

Grounding
The EtherWAN EasyLink Series is grounded internally to the screw that
attaches to the mounting kit. Attaching the mount to a grounded pole
will also ground the Wireless unit.
Ethernet Cable Requirements
The EasyLink Outdoor Wireless Bridge requires Shielded Ethernet cables for outdoor use.
• Shielded CAT 5e or better
• Shielded Metal RJ45 Connectors
• Grounded Ethernet Switch
Contact your EtherWAN representative for Ethernet cables available designed specically
for the EasyLink and other EtherWAN Wireless devices.
Surge Protection
In areas with a high incidence of lightning, it is suggested to install surge protection
devices on the e
thernet cable, such as the PD1041 hardened surge protection device
available from EtherWAN. This will protect the indoor network from damage caused by
electrical surges through the data cable. Check your local electrical codes and contact
your EtherWAN representative to nd out more.
Led Indicators
• System On LED is on once the unit is booted up and running
• Link activity shows ethernet activity
• Signal Strength
- One LED lit indicates low signal strength.
- Two LEDs lit indicate medium signal strength.
- Three LEDs lit indicate high signal strength.
- Four LEDs lit indicate very high signal strength.
EasyLink Alignment
Once the EasyLinks are in place, adjust each individual unit to point directly
at the opposite unit. The EasyLink Outdoor Bridge indicates wireless signal
strength using LEDs on the bottom of the unit.
• Left to Right adjustments are made by loosening the pole mount
and turning the unit left or right on the pole to align EasyLink pairs
• Up and Down adjustments are made using the tilt screws in the pole
mount kit
EasyLink Pro Series
8/7/2023
Copyright 2023 EtherWAN Systems, Inc.
All Rights Reserved.
Page 2
Ordering Information
Model
EasyLink-Pro-US
Wireless Bridge Kit - Two paired Wireless Bridge Units, 2 x 24VDC,
1.5A Power Supplies, 2 x Passive PoE Injectors 2 x Active PoE to
Passive PoE converters and 2 x Mounting Kits
EW-JPole18 18” Wall Mount J-Pole
EasyLink-PSU-INJ
Replacement Power Supply and Gigabit Passive PoE Injector for
EasyLink Wireless Bridge Series
Cable 25
25' Shielded Twisted Pair CAT 6 Cable with UV
Resistant Coating
Cable 50
50' Shielded Twisted Pair CAT 6 Cable with UV
Resistant Coating
Cable 150
150' Shielded Twisted Pair CAT 6 Cable with UV
Resistant Coating
Cable 300
300' Shielded Twisted Pair CAT 6 Cable with UV
Resistant Coating
PWR-H
Harde
ned Power Supply Rated for Use in Temperatures -40°F
to 165°F
PoEPowerEZ
*Included - Active PoE to Passive PoE Converter Hardened -40°F
to 165°F (Powers the EasyLink Pro using a Standard PoE Switch)
Ordering Information
EasyLink Pro Hardened Wireless Bridge
Installation Guide
