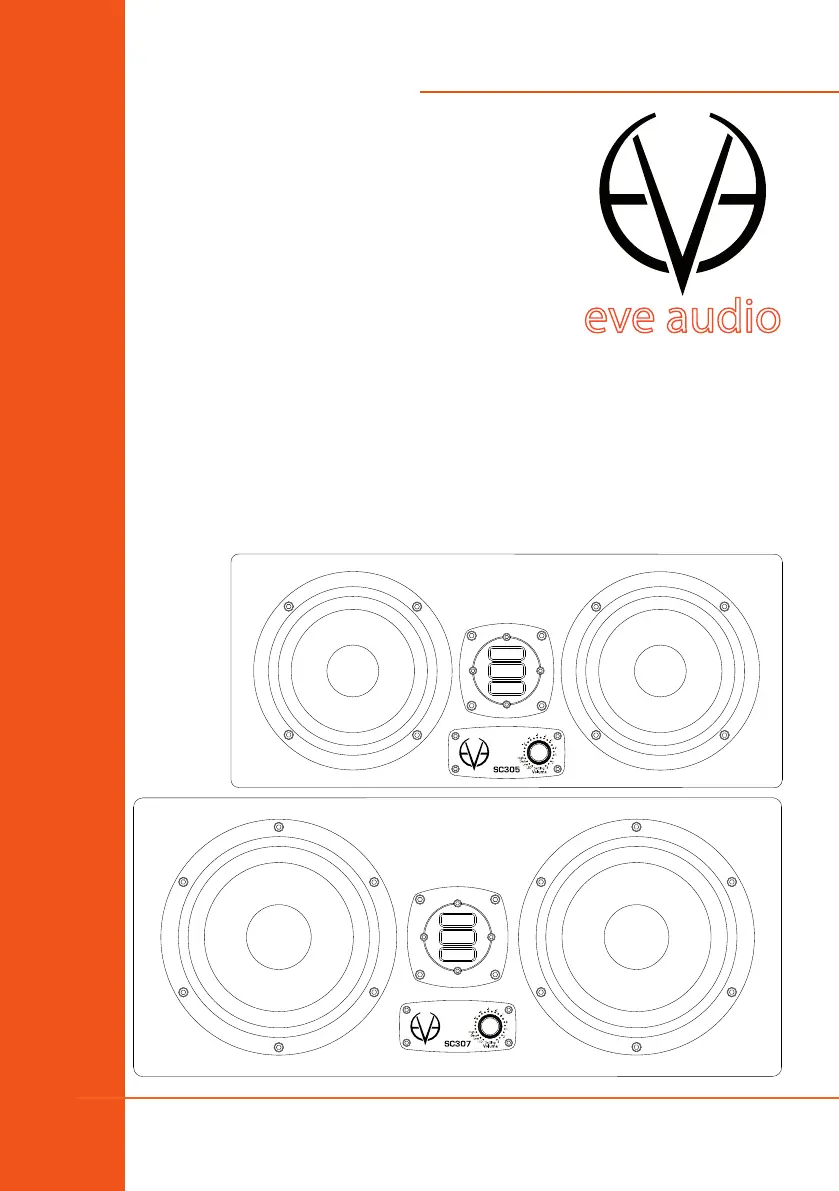

EVE AUDIO PRODUCT MANUAL
SC307
SC305
AUG 2013
SC307
SC305
EVE Audio product manual
2 3
SAFETY INSTRUCTIONS
To avoid the risk of electrical shock, do not attempt to open the unit.
There are no user-serviceable parts inside. Do not attempt to service the
equipment yourself. In case of problems, please contact your local dealer
or distributor.
This unit should be connected to a grounded power outlet. If you use
extension cords and power distributors they should be grounded as well.
Verify that the specied operating voltage on the rear side matches the
local mains voltage. If these values do not match you will have to adjust
the loudspeaker setting appropriately and change the fuse type.
Use only the fuse types specied on the rear side of the unit. Never bypass
the fuse.
Make sure that no liquids wet the inside of the cabinet. Never spray, pour
or spill liquids directly onto the unit.
Do not use a wet cloth nor ammable or acid chemicals for cleaning.
Do not touch the diaphragms of the loudspeaker and do not obstruct the
bass reex ports.
Make sure there is enough air ow behind the loudspeaker to maintain the
electronic components cool.
Do not expose this product to extreme temperatures.
The diaphragms build up a magnetic eld around the loudspeaker.
High sound pressure levels can damage your hearing permanently! Avoid
standing close to loudspeakers producing high sound pressure levels.
TABLE OF CONTENTS
1. INTRODUCTION ............................................................................4
2. QUICK START .................................................................................5
2.1. First Steps ............................................................................................................................. 5
2.2. Speaker Connection .........................................................................................................5
2.3. Powering On .......................................................................................................................5
3. OPERATION ...................................................................................6
3.1. First Steps ............................................................................................................................. 6
3.2. The Grid ................................................................................................................................6
3.3. Operating Modes ..............................................................................................................7
3.4. Powering on/o: Standby Mode .................................................................................7
3.5. Volume Mode .....................................................................................................................8
3.6. Settings Menu ....................................................................................................................9
3.7. Filters .....................................................................................................................................9
3.8. Low Filter .............................................................................................................................. 9
3.9. High Filter.......................................................................................................................... 10
3.10. Low and High Filter Combinations .......................................................................... 11
3.11. Desk Filter ......................................................................................................................... 11
3.12. LED Mode .......................................................................................................................... 12
3.13. Saving Your Settings ..................................................................................................... 12
3.14. Power Switch ................................................................................................................... 12
3.15. DIP Switches ..................................................................................................................... 13
3.16. Mains Voltage Selector ................................................................................................. 13
3.17. Power Connector (IEC) ................................................................................................. 14
4. POSITIONING ..............................................................................14
4.1. Speaker Positioning + Rubber Feet ......................................................................... 14
4.2. Height and Distance ..................................................................................................... 15
4.3. Stereo Setup..................................................................................................................... 15
4.4. Stereo Setup + Subwoofer (2.1) ................................................................................ 16
4.5. Multichannel Setup (5.1) ............................................................................................. 16
4.6. Mixer/Workplace Reections ..................................................................................... 17
4.7. Room Acoustics .............................................................................................................. 18
5. TECHNICAL SPECIFICATIONS .....................................................19
6. DECLARATION OF CONFORMITY ...............................................20
7. WARRANTY .................................................................................. 21
!
!
!
!
!
SC307
SC305
EVE Audio product manual
Powering On
4 5
INTRODUCTION
QUICK START
1. INTRODUCTION
Thank you for your time and interest in the EVE Audio product range.
EVE Audio is a loudspeaker manufacturer based in Berlin, Germany, that
specializes in the development and design of unique studio monitors.
The use of rst-class components is our highest priority because we rmly
believe this is the only way to manufacture rst-class products.
You have chosen a loudspeaker from our Silvercone SC series. Both models
— SC305 and SC307 — were conceived as three-way systems. Through
additional subdivision of the frequency range, they allow multiple
applications for use in both stereo and surround setups. In the latter case
both models are ideal as center speaker.
These models combine a pair of 5” or 6.5” SilverCone chassis with the
Air Motion Transformer developed by EVE Audio for the RS series. The
loudspeaker systems are completed by high-performance ampliers
and high-resolution DSP technology. The SC305 is powered by three
independent 50W ampliers, while the SC307 includes two 100W amps
plus a 50W amp.
We wish you enjoy your new EVE Audio monitor. If you have any questions
regarding our products, do not hesitate to contact your nearest dealer or
get directly in touch with us... We will be more than happy to help you
out!
All the best from Berlin.
The EVE Audio Team
2. QUICK START
If you already have experience with studio monitors, the Quick Start guide
ought to be more than enough to get you started.
For unexperienced users we recommend reading the whole user’s manual
in order to prevent any misuse.
2.1. First Steps
Check the package components (loudspeaker, user’s manual, power cord,
grid, rubber feet).
Check the voltage setting (see “Mains Voltage Selector”).
Check the setting of the DIP Switches (variable).
2.2. Speaker Connection
Connect one of the monitor inputs on the rear side (RCA or XLR) to the line
output of a playback source, for instance an audio interface. The output
level should be as low as possible.
2.3. Powering On
Engage the Power switch on the rear side of the loudspeaker to turn it on
or o.
The LEDs around the Volume control on the front panel will light up
clockwise. If the LED on the right end is dimly lit, this indicates that the
loudspeaker is in Standby Mode. Press the Volume control to turn the
loudspeaker on. If you turn the Volume control counter clockwise until the
LED on the left end lights up dimly the loudspeaker will be muted.
Increase the output level on the source device until the LED ring starts to
blink, then reduce the output level a bit. The maximum operating level for
the input (i.e. the analog to digital converter) is now set optimally. To set
the desired listening volume use the Volume control on the loudspeaker.
The LED ring indicates the volume setting. If the LED ring starts to blink,
reduce the output level on the signal source.
