Oldal 1/15

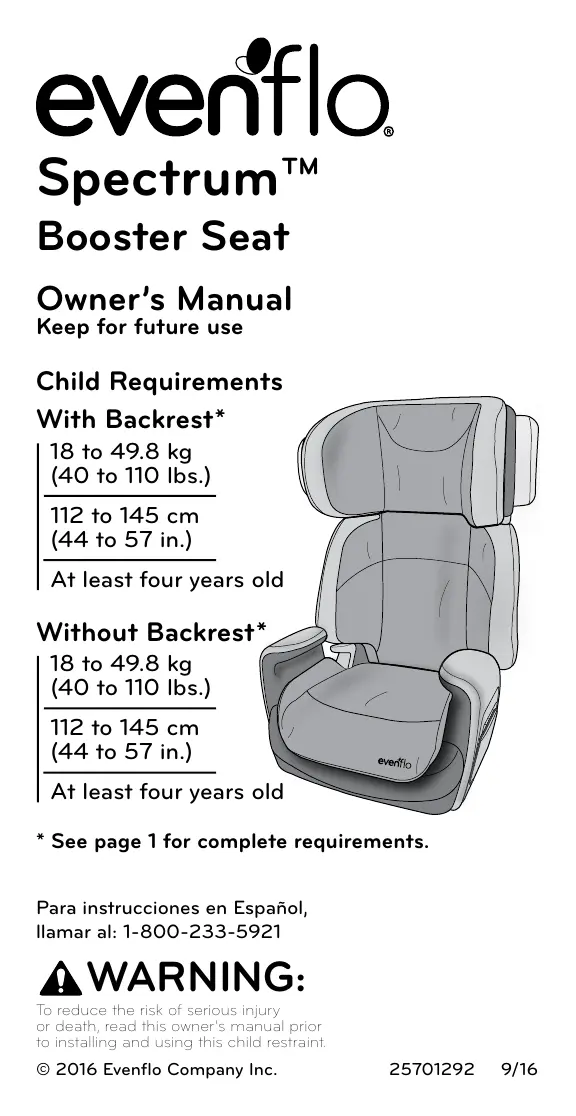

Child Requirements
Spectrum™
Owner’s Manual
Booster Seat
Keep for future use
To reduce the risk of serious injury
or death, read this owner’s manual prior
to installing and using this child restraint.
WARNING:
© 2016 Evenflo Company Inc. 25701292 9/16
18 to 49.8 kg
(40 to 110 lbs.)
112 to 145 cm
(44 to 57 in.)
At least four years old
18 to 49.8 kg
(40 to 110 lbs.)
112 to 145 cm
(44 to 57 in.)
At least four years old
With Backrest*
Without Backrest*
Para instrucciones en Español,
llamar al: 1-800-233-5921
* See page 1 for complete requirements.
1
General Warnings
• Failure to follow each of the following instructions
can result in your child striking the vehicle’s interior
during a sudden stop or crash, potentially resulting
in serious injury or death. These instructions and the
instructions in your vehicle owner’s manual must be
followed carefully. If there is a conflict between the
two, the vehicle owner’s manual regarding booster
seat installation must be followed.
• NEVER leave child unattended.
• In addition to the height and weight requirements,
your child must be at least four years old to use this
booster seat. See page 12 for more guidance.
Warnings ....................................................................... 1
Safe Practices ................................................................. 4
Motor Vehicle / Aircraft Usage ........................................ 4
Recall Information .......................................................... 5
Public Notice for Canadian Customers ............................ 5
Storing Your Instructions .................................................5
Visual Glossary ............................................................... 6
Child Seat Features .........................................................8
Assembling Your Booster Seat ...................................... 10
When to Put Your Child in a Booster Seat ...................... 12
Using Your Booster Seat with the Backrest
Installation Checklist ................................................. 15
Using Your Booster Seat without the Backrest
Installation Checklist ................................................. 17
Adjusting the Headrest ................................................. 18
Removing the Backrest ................................................. 19
Using the Shoulder Belt Clip .......................................... 20
Using the Cup Holders .................................................. 21
Removing the Seat Pad ................................................ 22
Care and Cleaning ...................................................... 23
Replacement Parts ........................................................ 24
Limited Warranty ......................................................... 25
With Backrest
• 18 – 49.8 kg (40 – 110 lbs)
• 112 – 145 cm (44 – 57 inches)
• Child is at least four years old or older
• The tops of the child’s ears are below the top
of the child restraint headrest.
Child Requirements
Without Backrest
• 18 – 49.8 kg (40 – 110 lbs)
• 112 – 145 cm (44 – 57 inches)
• Child is at least four years old or older
• The tops of the child’s ears are below the top
of the vehicle headrest.
Table of Contents
WARNING
More children are killed every year as passengers
in car crashes than by any other type of injury.
To reduce the risk of SERIOUS INJURY or DEATH, read
this owner’s manual and your vehicle owner’s manual
before installing and using this child restraint. Using a
child restraint makes a big difference. By properly using
this child restraint and following these instructions (and
the instructions that accompany your vehicle), you will
greatly reduce the risk of serious injury or death to your
child from a crash. Do not be misled by the commonly
used term “safety seat;” no restraint system can prevent
all injuries in all crashes. Many properly restrained
adults and children are injured in motor vehicle crashes,
including relatively minor crashes. A properly used child
restraint is the best way to minimize injuries to your
child and to increase the chances for your child’s survival
in most crashes.
Child Requirements
• No booster seat can guarantee absolute protection
from injury in every crash.
• To use this booster seat properly, children MUST meet
weight/size specifications as follows:
U.S. REGULATORY NOTICE
This booster seat meets all applicable requirements of
Federal Motor Vehicle Safety Standard 213.
CANADIAN REGULATORY NOTICE
(Model numbers ending in “C.”)
This booster seat meets all applicable requirements of
Canadian Motor Vehicle Safety Standard CMVSS 213.2.
2 3
Location Warnings
• According to statistics, children are safer when
properly restrained in a rear seating position than
in the front seating position. Children 12 and under
should ride in the back seat of the vehicle.
• Use this booster seat only on forward facing vehicle
seats. DO NOT use this booster seat with vehicle seats
which face the rear or side of the vehicle.
• Use this booster seat only on vehicle seats with backs
that lock into place.
• Some booster seats do not fit in all vehicles. If the
booster seat cannot be properly installed, DO NOT
use the booster seat. Consult your vehicle owner’s
manual, try a different seating location, or call Evenflo
for further assistance.
Booster Seat Position Warnings
• DO NOT use this booster seat rear-facing.
• When using this booster seat, the headrest on the
vehicle seat that the child faces should be put in its
lowest position. The vehicle seat back that the child
faces must be fully padded and free of any hard objects.
Seat Belt Warnings
• DO NOT use this booster seat in a vehicle with door-
mounted seat belts.
• DO NOT use this booster seat in a vehicle with seat
belts that automatically move along the vehicle frame
when the door is opened. These seat belts will not
hold a booster seat properly.
• Warning! Use only the vehicle’s lap and
shoulder belt system when restraining
the child in this booster seat. Using the
lap belt only may result in serious injury
or death in a crash.
• DO NOT use this booster seat if the
child’s ears are above the back of the booster seat.
• Failure to adjust the seat belts snugly around your
child may result in your child striking the vehicle’s
interior during a sudden stop or crash. Serious injury
or death may occur.
• DO NOT use this booster seat if it is damaged or has
broken or missing parts.
WARNING WARNING
The forward-facing rear seat is the
safest place for children 12 and under.
Airbag Warnings
• DO NOT use this restraint in the front seat of a vehicle
equipped with an active air bag. Air bags may cause
serious injury or death to children 12 and under.
If your vehicle has an air bag, refer to your vehicle
owner’s manual for child restraint installation.
• If the rear seat of your vehicle is equipped with side
air bags, refer to the following information for proper
usage:
Vehicles built prior to the 2002 model year:
DO NOT use this restraint in a vehicle seating position
equipped with a side air bag unless authorized by the
vehicle manufacturer.
Model year 2002 and newer vehicles: Refer to
your vehicle owner’s manual before placing this
restraint in a seating position equipped with a side
air bag.
• DO NOT place any objects between the restraint and
the side air bag, as an expanding air bag may cause
the items to strike your child.
