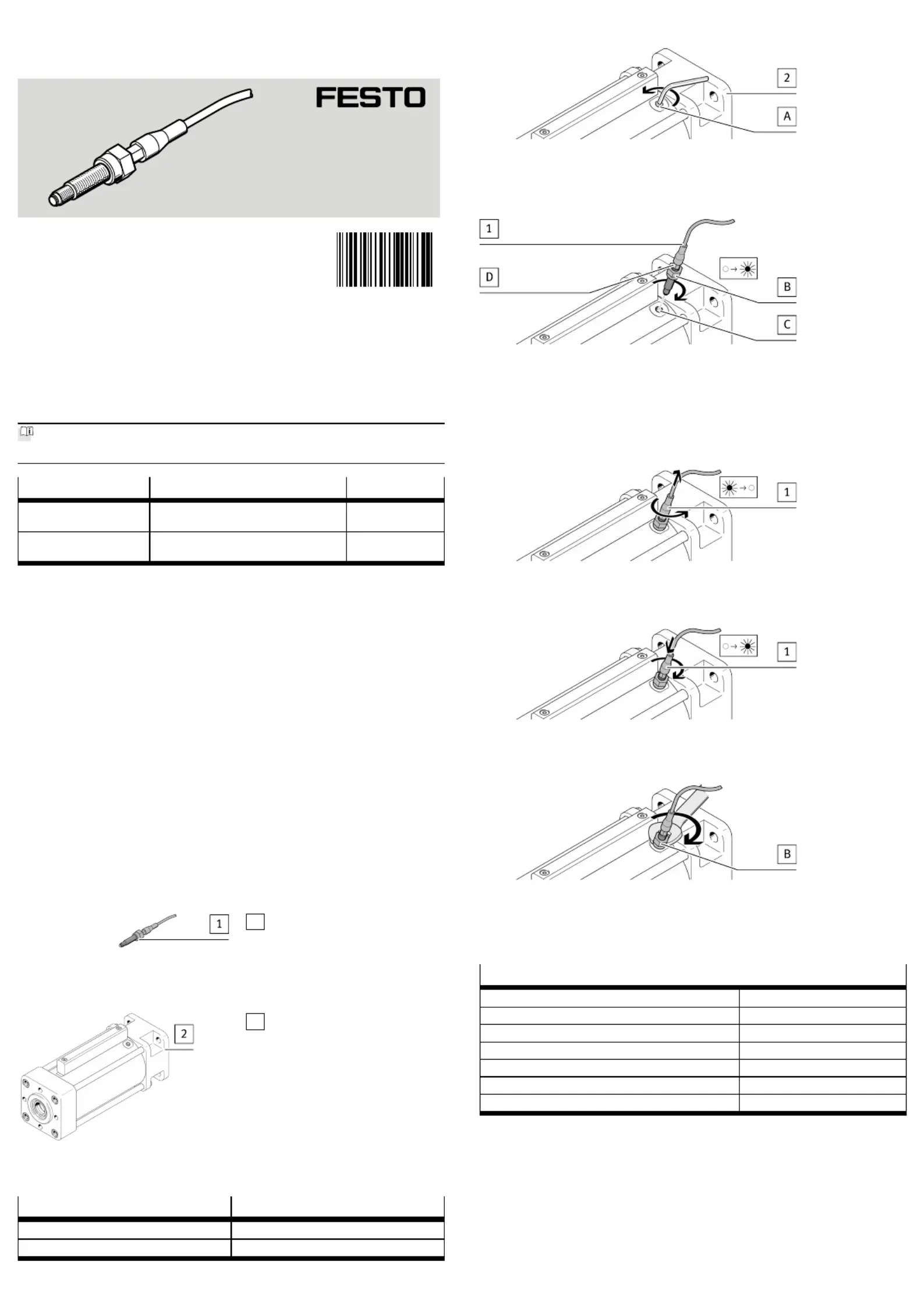

Translation of the original instructions

1Applicable documents

All available documents for the product www.festo.com/pk.è

DocumentProductContents

InstructionsHolding brake DACS-...-S

Cylinder with holding brake DFLC/DFLG-...-S

Operating

Instruction manual from the

original manufacturer

Proximity sensor Contrinex DW-AD-603-M4Installation

Tab. 1 Applicable documents

2Safety

2.1Safety instructions

–Only assemble the product on components that are in a condition to be safely

operated.

–Observe tightening torques. Unless otherwise specified, the tolerance

is±20%.

2.2Intended use

Status monitoring of holding brakes DACS, DFLC und DFLG.

2.3Foreseeable misuse

The inductive proximity sensor DADG-D-F8 is exclusively provided for status mon-

itoring and is not suitable as a safety-relevant test system.

3Further information

–Accessories www.festo.com/catalogue.è

–Spare parts www.festo.com/spareparts.è

4Product overview

4.1Product range overview

4.1.1Scope of delivery

1

Proximity sensor (1x)

Fig. 1

4.1.2Not in scope of delivery

2

Holding brake (1x)

DACS-...-S,

Cylinder with holding brake

DFLC/DFLG-...-S

Fig. 2

4.2Function

Holding brake statusSignal status

ClosedOn

OpenOff

Tab. 2 Status monitoring

5Assembly

Fig. 3 Remove threaded pin

1.Depressurise holding brake.2

2.Unscrew the threaded pin[A] from the outer surface.

Fig. 4 Screw in the proximity sensor

1.Screw the proximity sensor into the thread[C] up to the stop. Use the1

hexagon(D) on the sensor.

Ä

The lock nut[B] does not rest on the outer surface.

2.Connect the proximity sensor.1

Ä

The signal lights up.

Fig. 5 Adjust proximity sensor

•Unscrew the proximity sensor slowly until the signal goes out.1

Fig. 6 Adjust proximity sensor

•Screw the proximity sensor in slowly until the signal lights up.1

Fig. 7 Lock the proximity sensor

•Tighten the lock nut[B]. Tightening torque:4Nm

6Technical data

DADG-D-F8

Mounting typeFlush

Ambient temperature[°C]–25 ... 70+

Switching frequencyf[Hz]5000

Degree of protectionIP67

Housing materialSteel, phosphated

Cable materialTPE-U (PUR)

Voltage dropUd[V]

£ 2

Tab. 3 Technical data

8107310

DADG-D-F8

Proximity sensor

Instructions |

Assembly

8107310

2019-06

[8107312]

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com
