3.

DADP-DGC

Shock absorber retainer

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

Assembly instructions

8174040

2022-11c

[8174042]

8174040

Translation of the original instructions

© 2023 all rights reserved to Festo SE & Co. KG

1

Applicable documents

All available documents for the product

è

www.festo.com/sp.

DocumentProductTable of contents

Operating instructionLinear drive DGC(I)–

Assembly instructionsStop KYC–

Operating instructionIntermediate-position module

DADM-DGC-25...40

–

Tab. 1:

Applicable documents

2Safety

2.1Safety instructions

–

Only use the product in its original condition without unauthorised modifica-

tions.

–Observe the tightening torques. Unless otherwise specified, the tolerance is

±20%.

2.2Intended use

The shock absorber retainer fastens shock absorbersYSR(W)-DGC to the slide of

linear drivesDGC-...-GF/-KF/-FA or DGCI. Use the shock absorber retainer only in

combination with a counter part for the cushioning:

–Stop KYC

–Intermediate-position module DADM-DGC

3

Additional information

–Contact the regional Festo contact if you have technical problems

è

www.festo.com.

–Accessories

è

www.festo.com/catalogue.

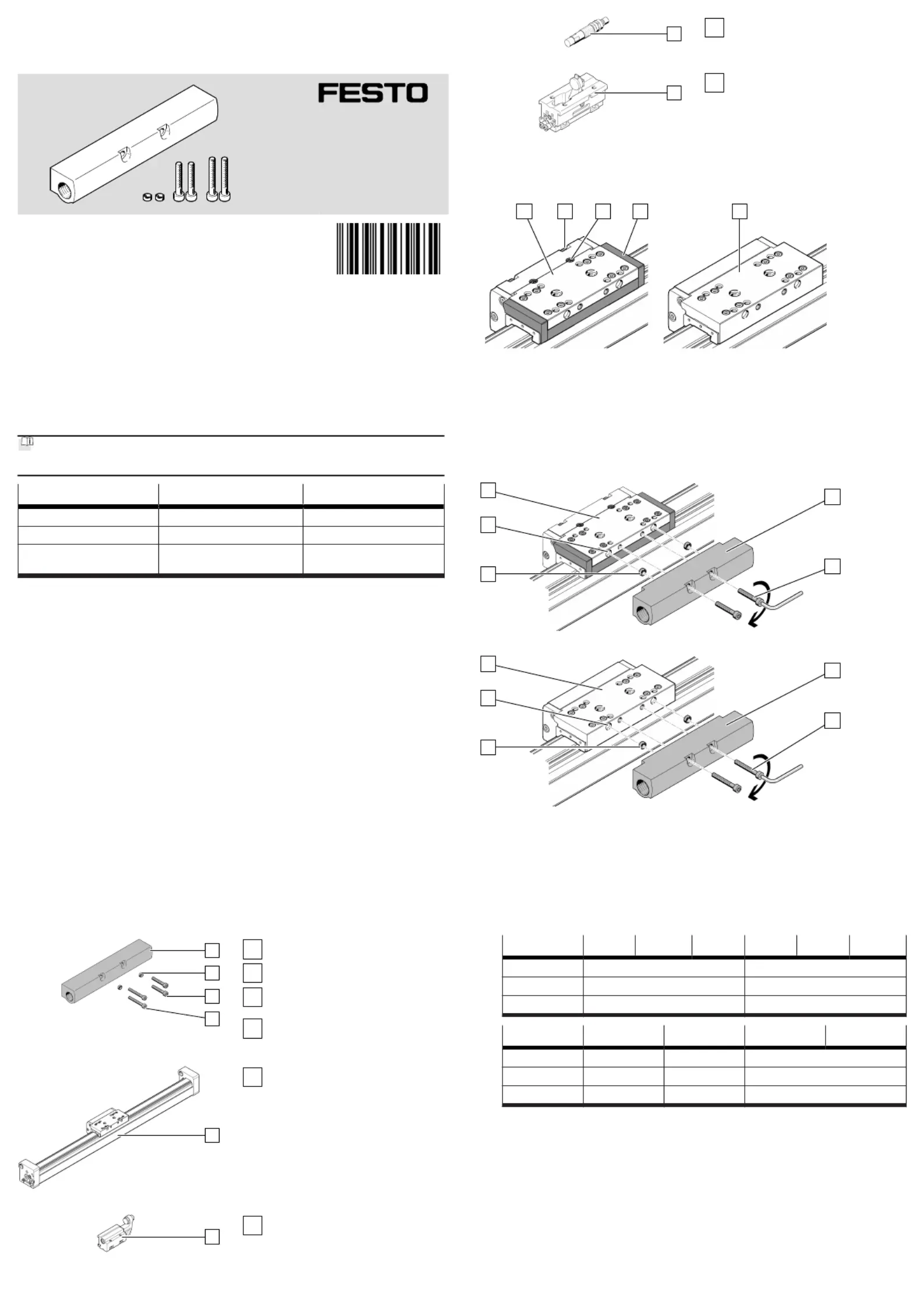

4Product Range Overview

4.1Scope of delivery

1

2

3

4

Fig.1

1

Shock absorber retainer (1x)

2

Centring sleeve (2x)

3

Screw (2x),

only with DADP-DGC-…-KF

4

Screw (2x)

4.2

Not in scope of delivery

5

Fig.2

5

Linear drive (1x)

DGC-...-GF

DGC-...-KF,

DGC-...-FA,

DGCI

6

Fig.3

6

Stop (1x/2x)

KYC

7

Fig.4

7

Shock absorber (1x/2x)

YSR(W)-DGC

8

Fig.5

8

Intermediate-position module

DADM-DGC

5

Assembly

5.1Preparation for DADP-DGC-18…-40

ZWXYV

Fig.6

•Check the slide of the linear drive.5

Steel slide:

–Multi-piece slide[V]

–

Screws[W], spring pins[X] and plastic cover[Y]

Aluminium slide:

–

One-piece slide[Z]

5.2Mounting shock absorber retainer

2

A

1

3

V

Fig. 7:

Mounting on steel slide

2

A

1

4

Z

Fig. 8:

Mounting on aluminium slide

1.Place the centring sleeves in the seats[A].2

2.Place the shock absorber holder on the centring sleeves.12

Select the appropriate screws/:34

–shorter screws for multi-piece steel slide[V].3

–

longer screws for one-piece aluminium slide[Z].4

Two screws are left over with DADP-DGC-…-KF.

4.

Tighten the screws/. Observe the tightening torque.34

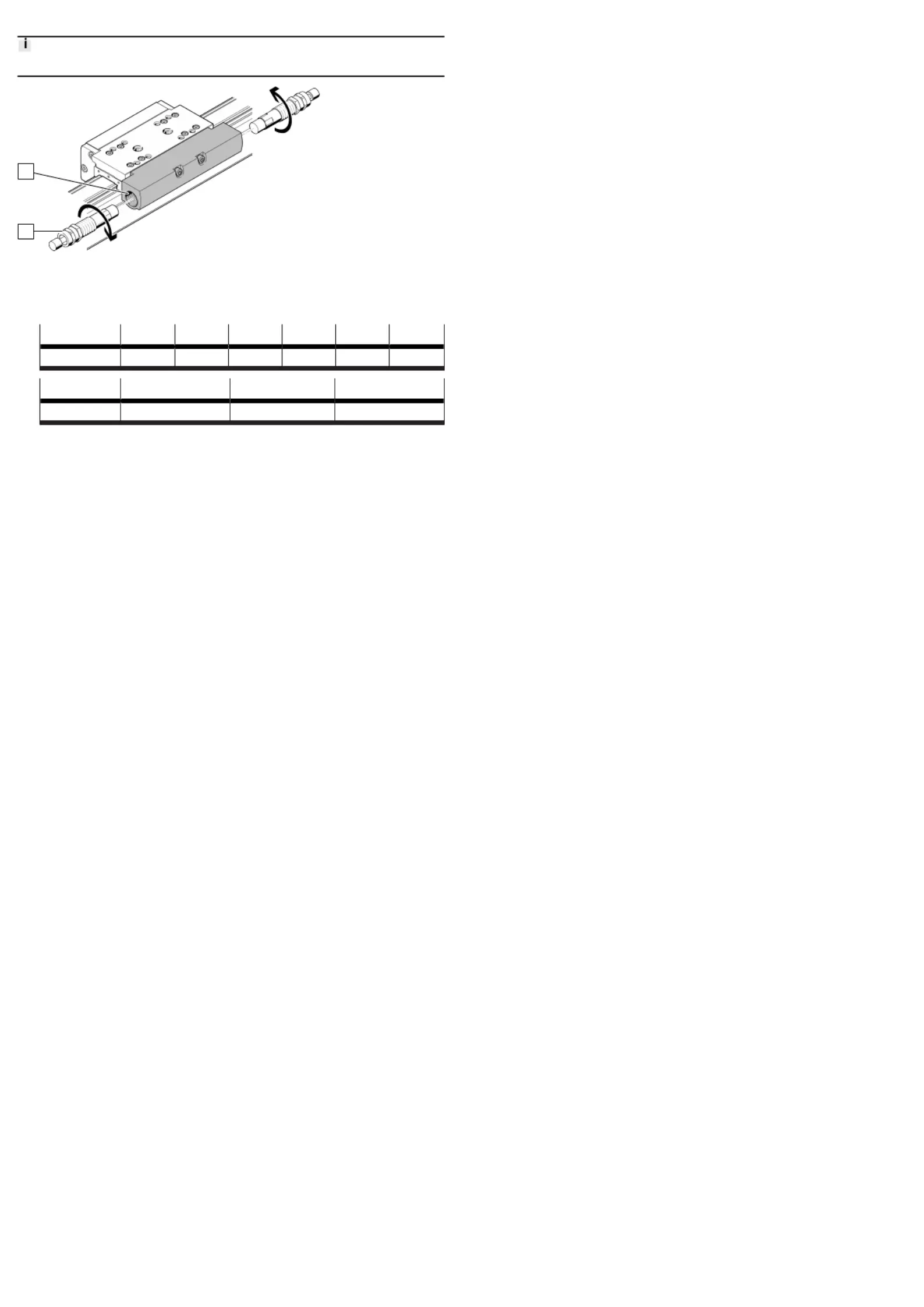

DADP-DGC-18-GF-25-GF-32-GF-18-KF-25-KF-32-KF

Screw–M5 x 303

ScrewM5 x 30M5 x 354

[Nm]46

DADP-DGC-40-GF-40-KF-50-63

Screw–M6 x 35–3

ScrewM6 x 35M6 x 45M8 x 454

[Nm]81025
