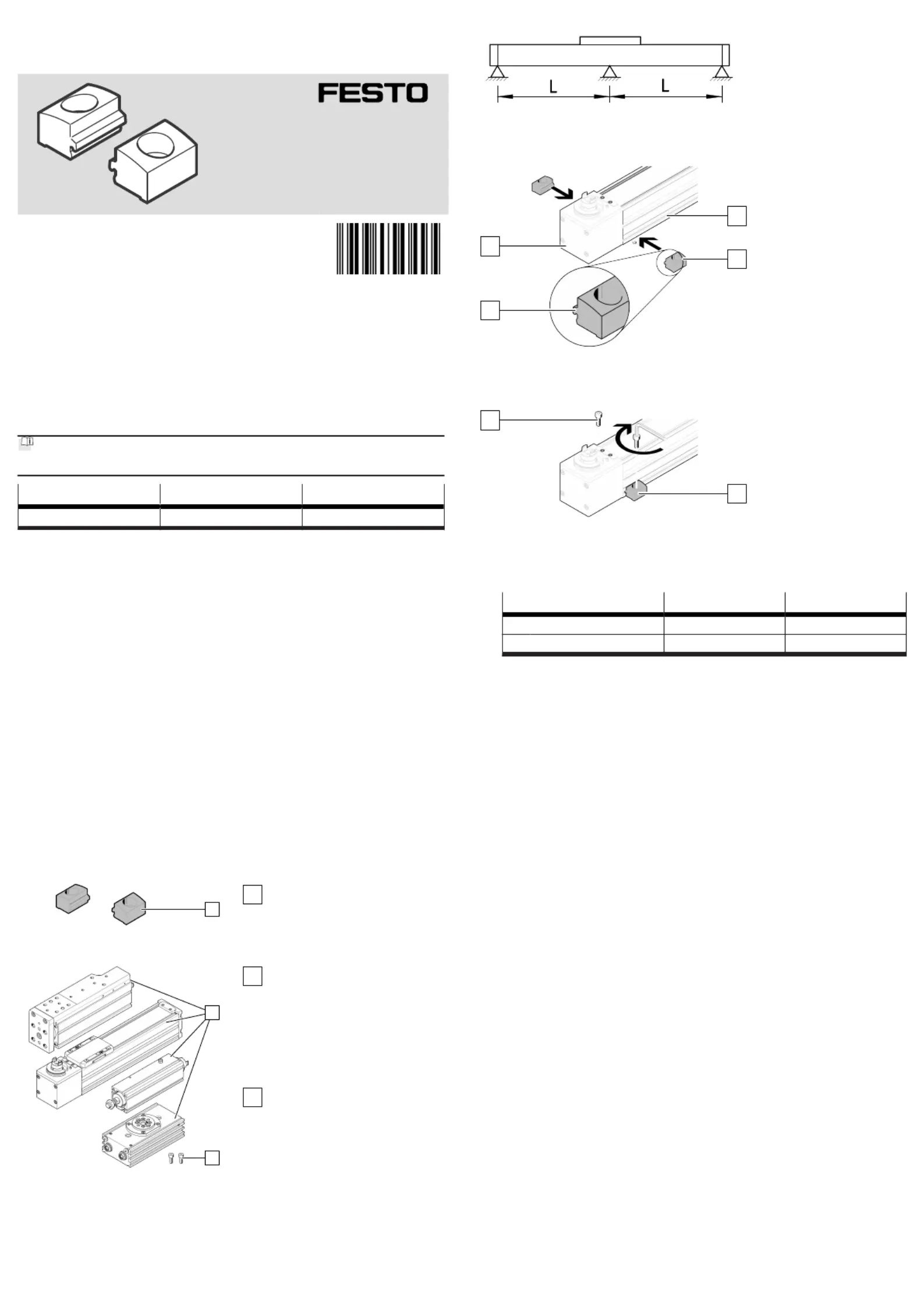

EAHF-L2-...-P-S

Profile mounting

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

Assembly instructions

8179869

2023-10c

[8179871]

8179869

Translation of the original instructions

© 2023 all rights reserved to Festo SE & Co. KG

1

Applicable documents

All available documents for the product

è

www.festo.com/sp.

DocumentProductContent

User documentationActuatorAssembly2

Tab. 1:

Applicable documents

2Safety

2.1Safety instructions

–Only mount the product on components that are in a condition to be safely

operated.

2.2

Intended use

The profile mounting fastens an actuator to a mounting surface via the basic2

profile.

2.3Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can eval-

uate the work and detect dangers. Personnel must have the relevant mechanical

training.

3

Additional information

–Contact the regional Festo contact if you have technical problems

è

www.festo.com.

–Accessories

è

www.festo.com/catalogue.

4Product Range Overview

4.1Scope of delivery

1

Fig.1

1

Profile mounting (2x)

4.2Not in scope of delivery

3

2

Fig.2

2

Actuator (1x):

Axis ELGC, ELFC;

Axis unit ELGS;

Mini slide EGSC;

Mini slide unit EGSS;

Quarter turn actuator DRRS;

Cylinder EPCC;

Cylinder unit EPCE, EPCS

3

Screw (2x)

5

Assembly

Fig. 3:Determine support spacings L and mounting points

•Determine the required support spacingsL and mounting points of the

actuator Other applicable documents.è

1

A

2

B

Fig. 4:Positioning profile mountings

•Position profile mountings at the support points of the actuator.12

Ä

The lug(A) is in slot(B).

1

3

Fig. 5:Mounting actuator

1.

Select the screws suitable for the installation situation.3

2.

Fasten the profile mountings on the mounting surface with screws.13

Observe maximum tightening torque.

EAHF-L2-...-P-S-25-45

3ScrewM4M5

Max. tightening torque[Nm]2.44.8

3.

Repeat the mounting steps for all mounting points.
