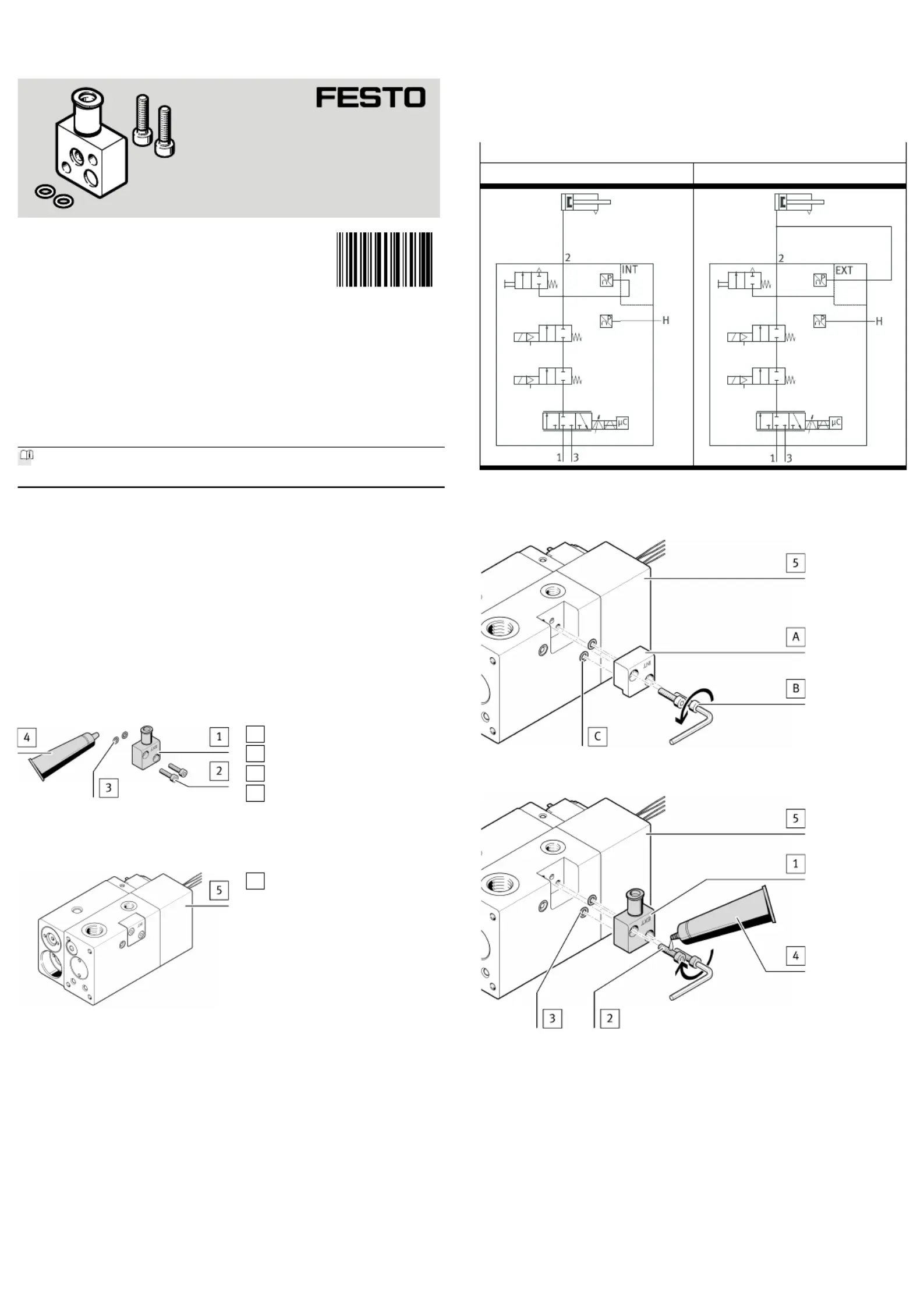

Translation of the original instructions

© 2020 all rights reserved to Festo SE & Co. KG

1Applicable Documents

All available documents for the product www.festo.com/sp.è

2Safety

2.1Safety instructions

–Only mount the product on components that are in a condition to be safely

operated.

–Observe the safety data sheet for the adhesive from the original manufac

turer.

2.2Intended use

The connection set is intended to create a supply port for measuring the external

working pressure in the valve unit.5

3Product range overview

3.1Scope of delivery

1

Plate (1x)

2

Screw (2x)

3

Oring (2x)

4

Adhesive (1x)

Fig. 1

3.2Not in scope of delivery

5

Valve unit (1x)

VPCB...

Fig. 2

4Function example

–The working pressure for a valve unit without connection set is measured

internally.

–The external working pressure for a valve unit with connection set is meas

ured using the connection set. This requires an external connection from the

EXT port to the working port2. Typical application examples:

–For long distances between the valve and cylinder.

–Use of several cylinders.

Valve unit VPCB

Without connection set VABSwith connection set VABS

Tab. 1

5Assembly

Fig. 3 Demount plate (A)

Fig. 4 Mount plate [1]

•Tighten screws. Tightening torque: 2.9 Nm ± 10%.2

8148825

VABS-P15-S-B6

Connection set

8148825

202012b

[8148827]

Assembly instructions

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 3470

www.festo.com
