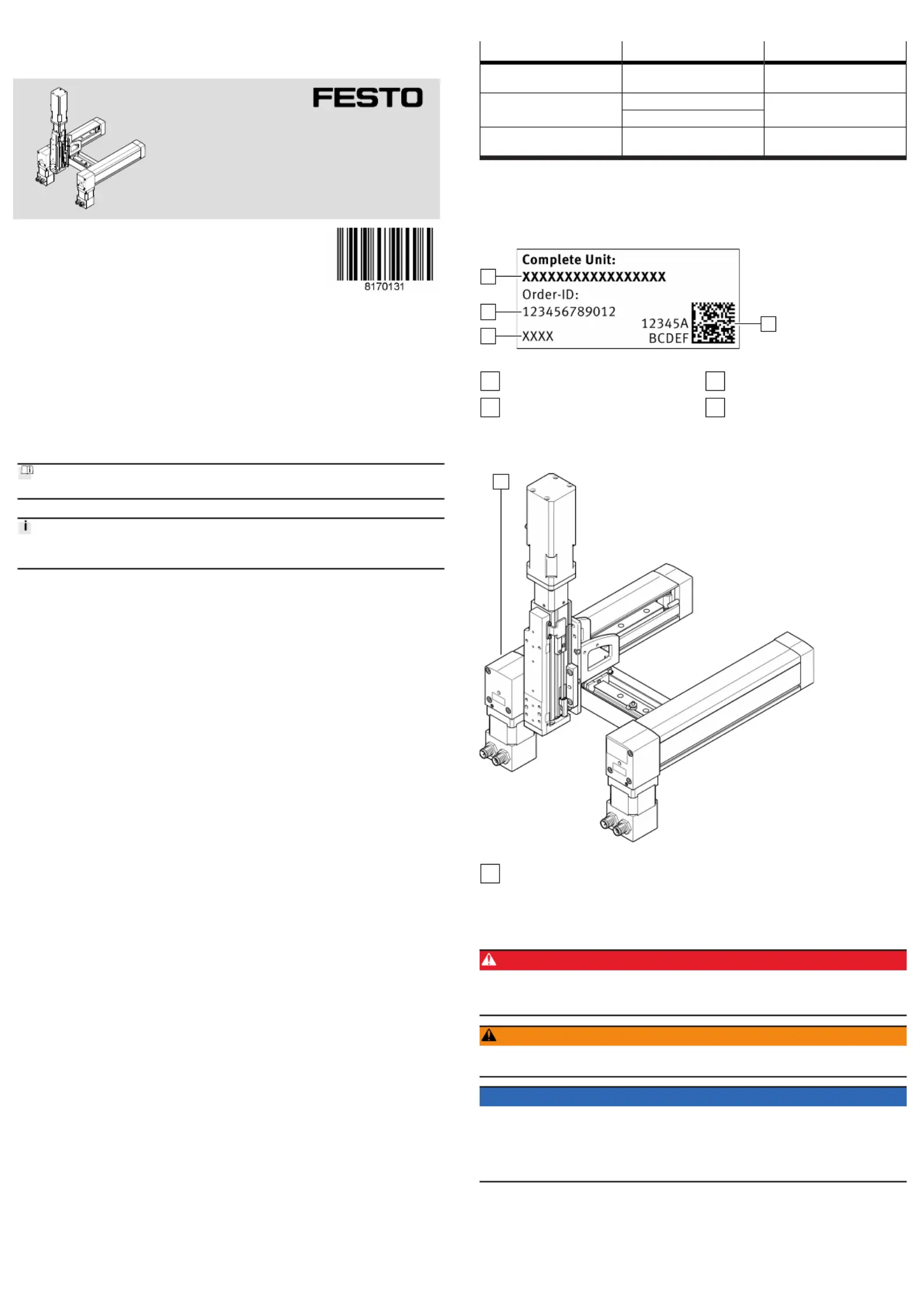

YXMR

Three-dimensional gantry

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Deutschland

+49 711 347-0

www.festo.com

Operating instructions

8170131

2022-03a

[8170133]

Translation of the original instructions

© 2022 all rights reserved to Festo SE & Co. KG

1

About this document

1.1Applicable documents

All available documents for the product

è

www.festo.com/sp.

The area of application and the approvals of the individual components of the kit

are described in separate documents

è

www.festo.com/sp.

Download configuration-dependent documents

The technical data for the product are described in configuration-dependent docu-

ments.

These documents form part of the product documentation and can be down-

loaded as follows.

1.

Read the order ID of the product.

2.

Download the documents from the Festo Support Portal by entering the order

ID

è

www.festo.com/sp.

3.

Print out the documents and keep them together with these operating

instructions.

2

Safety

2.1General safety instructions

–

Only use the product in its original condition without unauthorised modifica-

tions.

–Only use the product if it is in perfect technical condition.

–

Observe labelling on the product.

–Before working on the product, switch off the power supply and secure it

against being switched on again.

–Observe tightening torques. Unless otherwise specified, the tolerance is

± 20 %.

2.2Intended use

The intended use of the product is to execute positioning tasks within machines

or automation systems with a higher-order controller in an industrial environment.

2.3Foreseeable misuse

Never use the product as follows:

–

With unauthorised modifications or alterations to the product

–With load limits exceeded

–

In an invalid mounting position

3Additional information

–

Contact the regional Festo contact if you have technical problems

è

www.festo.com.

–

Accessories and spare parts

è

www.festo.com/catalogue.

4Product overview

3-dimensional gantryXY module typeZ module type

YXMR-1EXCM-30DHMZ-DGSL-8/-10/-12

EHMZ-EGSC-25/-32

YXMR-2EXCM-40DHMZ-DGSL-16

EHMZ-EGSL-45

EXCH-40

YXMR-3EXCH-60DHMZ-DGSL-20

EHMZ-EGSL-55

Tab. 1:Product allocation

Product labelling

In addition to product labelling of individual components, the product also has

configuration-specific, higher-order product labelling in accordance with the fol-

lowing schematic:

4

1

2

3

Fig. 1:Configuration-specific product labelling

1

Product name

2

Configuration-specific order ID

3

Festo serial number

4

Configuration-specific

Product Key

The configuration-specific, higher-order product labelling is attached to all prod-

ucts at a specifically defined position.

1

Fig. 2:

Position of higher-order product labelling, EXCM-30 as example

1

Position of higher-order product

labelling

5

Assembly

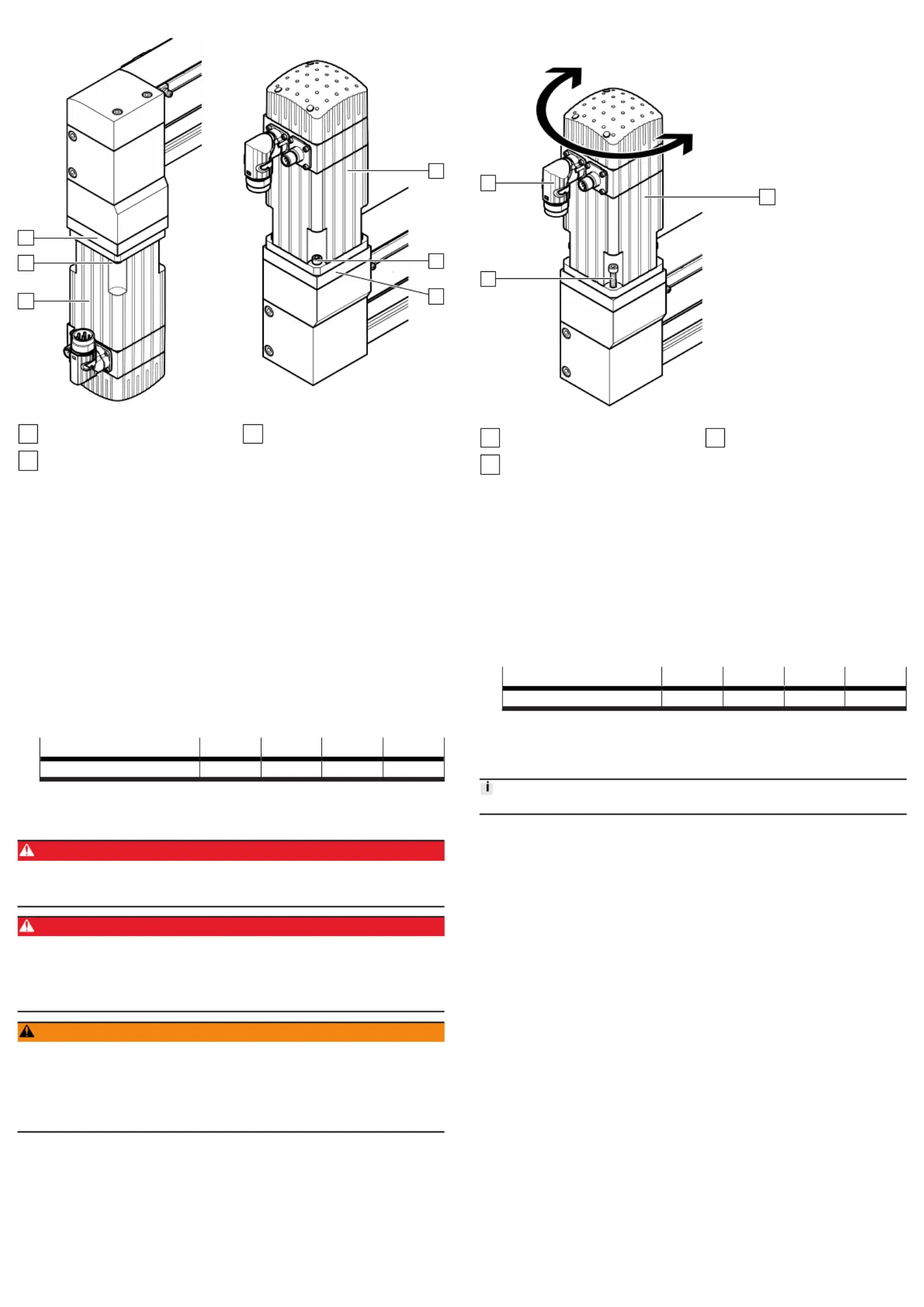

5.1Demounting/mounting motors

DANGER

Serious injuries due to the motor falling from an elevated position.

•Demount motors with brake before assembling the product.

•Before loosening the retaining screws: secure the motor against falling.

WARNING

Electric shock.

•Make sure that the motors are disconnected from the power supply.

NOTICE

Third-party motors with a driving torque that is too high can damage the product.

When using third-party motors observe the following:

•Maximum approved driving torque

è

www.festo.com/catalogue

•Attachment dimensions motor interface

è

www.festo.com/catalogue

•Matching combination of coupling, coupling housing and motor flange
