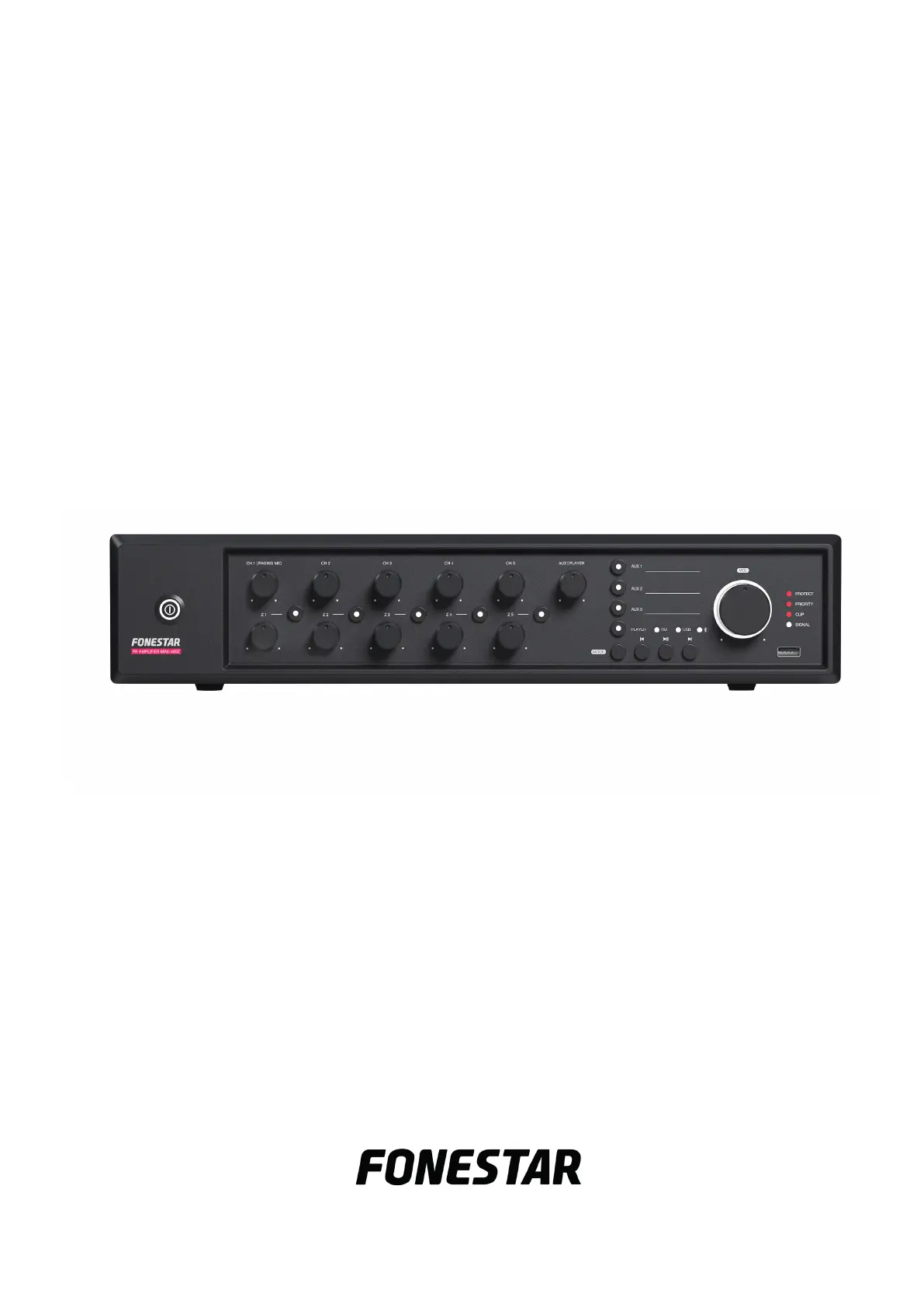

INSTRUCTION MANUAL/MANUAL DE USUARIO/
MODE D’EMPLOI/MANUAL DE INSTRUÇÕES
MAX-480Z
BLUETOOTH®/USB/FM PA AND ZONE PA AMPLIFIER
AMPLIFICADOR DE MEGAFONÍA BLUETOOTH®/USB/FM Y ZONAS
AMPLIFICATEUR PUBLIC ADDRESS BLUETOOTH®/USB/FM ET ZONES
AMPLIFICADOR DE MEGAFONIA BLUETOOTH®/USB/FM E ZONAS
EN
- 2 -
DESCRIPTION
- High efficiency and reliability Class D amplifier with built-in Bluetooth®/USB player and FM radio.
- 5
input channels, 3 auxiliary inputs and 5 zone outputs with independent volume controls.
- Inputs with adjustable VOX priority control.
CONTROLS AND FUNCTIONS

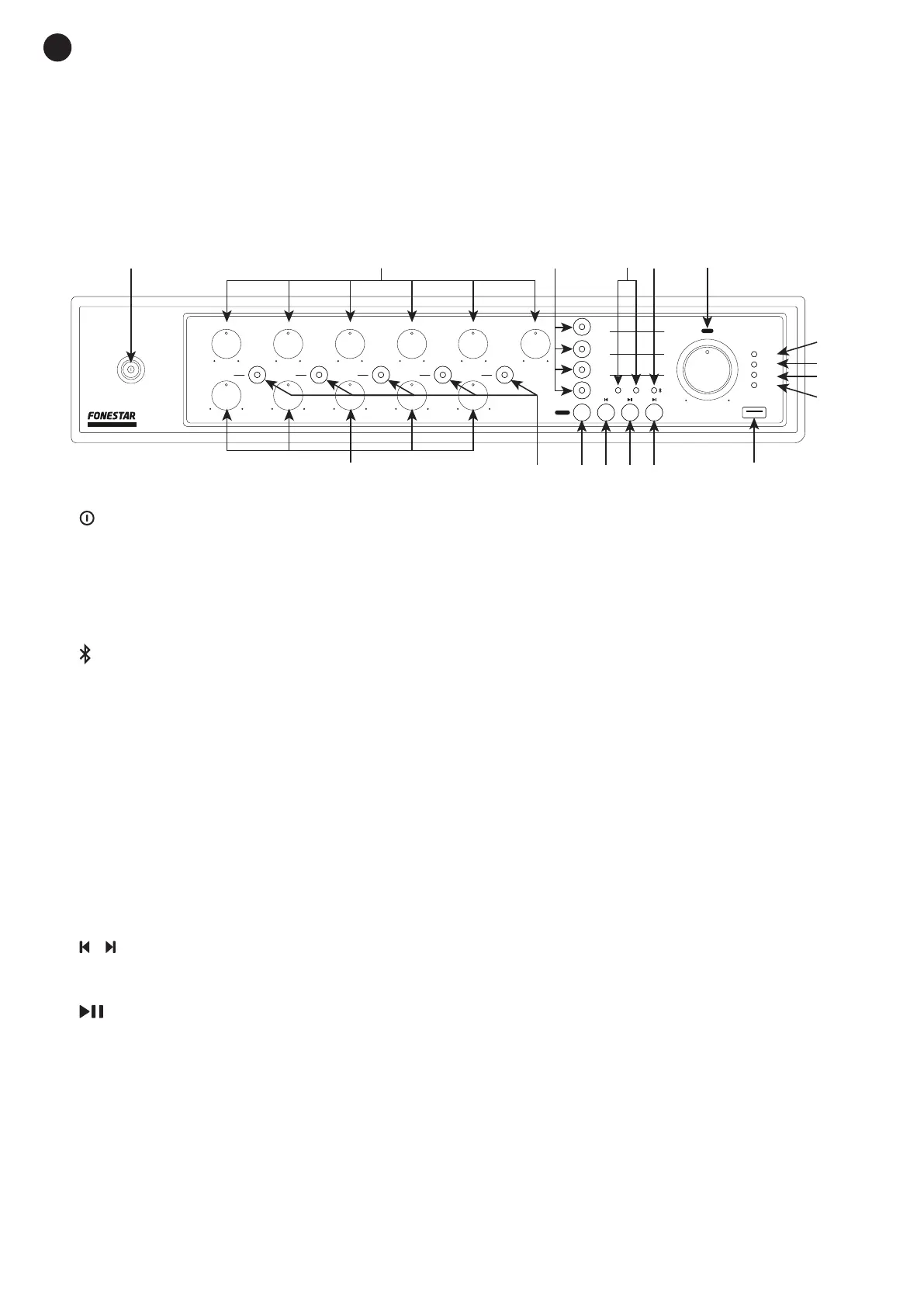

FRONT PANEL
CHIME
CH 1
CH 1
CH 2CH 1 REM. WALL PANEL CH 3 CH 4 CH 5
VOX 1 VOX 2
EMERGENCY IN
CHIME
CH 2-5
VOX 3
REMOTE MUTE
EMERGENCY IN | REM. MUTE
ZONE MICROPHONE
REMOTE WALL PANEL
1
2
3
CH 1 | PAGING MIC
CH 2 | 3 | 4 | 5
AUX | PLAYER
4
5
6
AUX 1 AUX 2 AUX 3 REC OUT PRE AMP VOICE PRIORITY (VOX) FM ANTENNA
R
L
R
L
R
L
R
L
PRE OUT
AMP IN
ATTENUATOR PRIORITY
ZONE OUTPUT SPEAKER OUTPUT
ALL ZONES: 480 W RMS (MAX)
EACH ZONE: 240 W RMS (MAX)
TONE CONTROL
480 W RMS
COM
4 Ω
70 V
100 V
~115 V AC, 50/60 Hz, FUSE: T12 A 250 V
~230 V AC, 50/60 Hz, FUSE: T6.3 A 250 V
POWER CONSUMPTION: 680 W
BLUETOOTH® ANT.
AC SELECT
ZONE MICROPHONE
RS-485 + AUDIO
COM
100 V
LINE
CH 2-5 CH 2-5 CH 2-5
CHIME
VOX 2
PHANTOM
48 V
LINE
MIC
CHIME
CHIME CHIME CHIME
VOX 3
PHANTOM
48 V
LINE
MIC
CHIME
VOX 3
PHANTOM
48 V
LINE
MIC
CHIME
CH 2-5
CHIME
VOX 3
PHANTOM
48 V
LINE
MIC
CHIME
PHANTOM
48 V
LINE
MIC
CHIME
BASS TREBLE
3 WIRE 24 V
VOX 3
PA MIXING AMPLIFIER
MAX-480Z
100 V
ZONE 4 ZONE 3 ZONE 2 ZONE 1
COM
100 V
COM
100 V
COM
100 V
COM
100 V
ZONE 5
COM
100 V
PA AMPLIFIER MAX-480Z
CH 1 | PAGING MIC
Z 1
CH 2
Z 2
CH 3
Z 3
CH 4 AUX | PLAYER
Z 4
CH 5
Z 5
AUX 1
AUX 2
AUX 3
MODE
VOL
PROTECT
PRIORITY
CLIP
SIGNAL
FM USBPLAYER
1 2
16
3 654
7
8
9
10
1113 12121415
21
19 182122 20
43 5 6 7 8 9 11
10 1312
17
16 15 14
18 19
a bc d
a b
1.- : indicator light and on/off switch of the amplifier.
2.- CH 1|PAGING MIC/CH 2/CH 3/CH 4/CH 5/AUX|PLAYER: volume controls for inputs CH 1, CH 2,
CH 3, CH 4 and CH 5 respectively and AUX|PLAYER for AUX 1-3 and player.
3.- AUX 1/AUX 2/AUX 3/PLAY: indicator lights and buttons to activate AUX input 1, AUX 2, AUX 3 or the
built-in player (Bluetooth, FM radio, USB).
4.- FM/USB: active mode LED indicators on the player.
5.-
: Bluetooth receiver operation indicator light. If there is no paired device it will flash and it will remain
fixed when a paired device is present and ready to send audio.
6.- VOL: master amplifier volume control and amplifier on/off LED indicator.
7.- PROTECT: protection LED indicator. Lights up when the temperature amplifier protection is activated.
With protection enabled, the audio output of that channel is cut off. If this happens, turn off the device,
make sure that the vents for air intake and exhaust are free of obstructions and turn down the input
volume. Wait a few minutes for the appliance to stabilize before you switch it on again.
8.- PRIORITY: light indicator for the existence of a signal with VOX priority.
9.- CLIP: signal peak LED indicator. If it lights up lightly or occasionally you should reduce the output
volume. If the indicator light stays on continuously, it is because the input signal is very high. In this
case, reduce the volume of the input signal that’s causing it.
10.- SIGNAL: signal LED indicator. Lights up when signal is detected at the outputs.
11.- USB port for audio file playback.
12.-
/ : a short press, in Bluetooth or USB mode skips to the previous/next audio track; in FM mode it
skips to the previous/next stored frequency. In all modes, a long press decreases/increases the volume
of the player.
13.-
: in Bluetooth mode, a short press starts/stops audio playback and a long press unpairs the
connected device and awaits pairing again. In USB mode, a short press starts/stops audio playback
and a long press switches the play mode between: repeat all (1 tone) and shuffle (2 tones). In FM mode,
it auto-stores all detected frequencies with sufficient signal quality.
14.- MODE: Short presses of this button allow you to change the mode on the player to choose the desired
audio source: Bluetooth, USB or FM radio.
15.- Z 1/Z 2/Z 3/Z 4/Z 5: light indicators and buttons to activate/deactivate the ZONE 1, ZONE 2, ZONE 3,
ZONE 4 and
ZONE 5 output zones respectively.
16.- Z 1/Z 2/Z 3/Z 4/Z 5: rear panel ZONE 1, ZONE 2, ZONE 3, ZONE 4 and
ZONE 5 output zone
volume controls.
EN
- 3 -

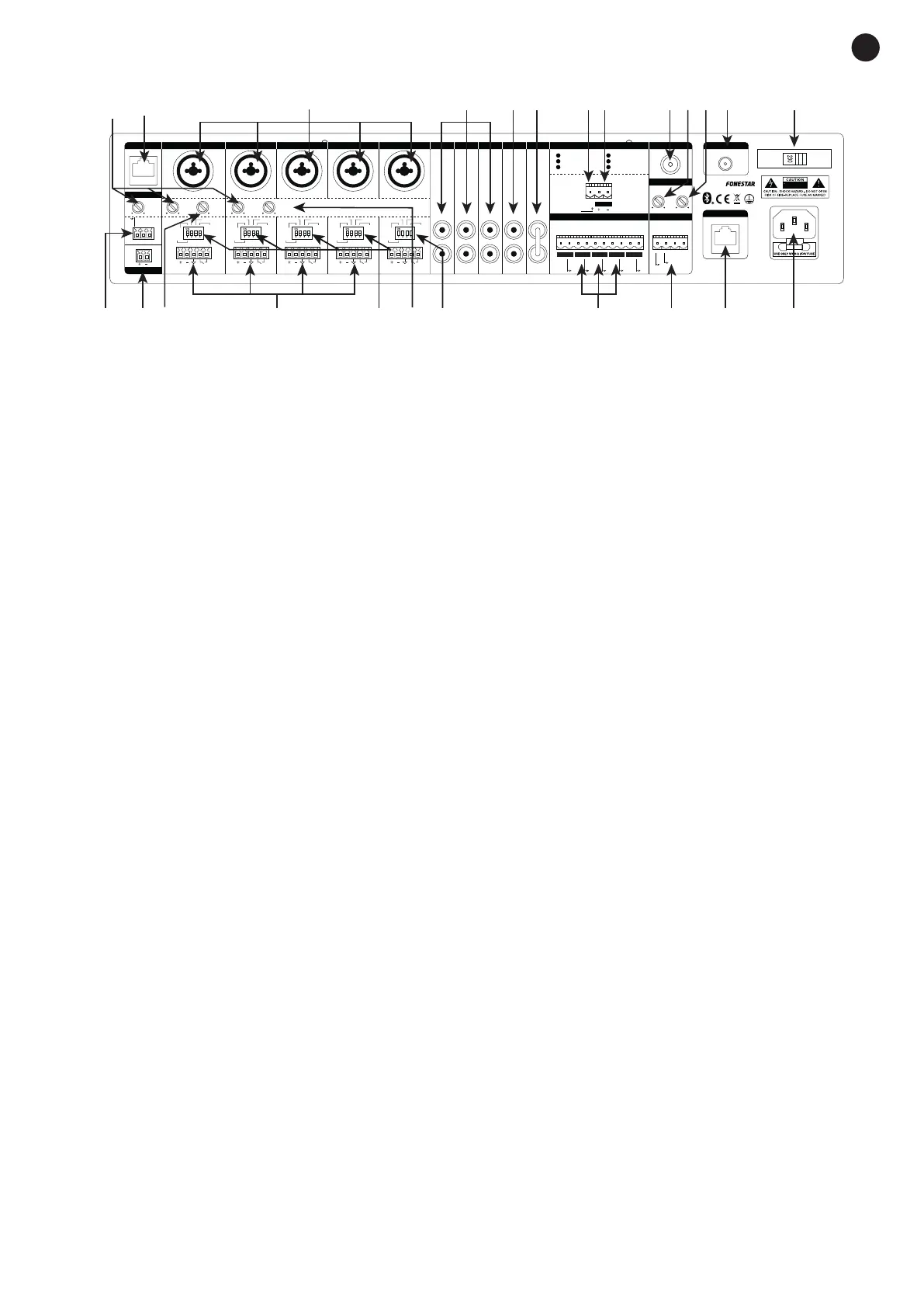

REAR PANEL
CHIME
CH 1
CH 1
CH 2CH 1 REM. WALL PANEL CH 3 CH 4 CH 5
VOX 1 VOX 2
EMERGENCY IN
CHIME
CH 2-5
VOX 3
REMOTE MUTE
EMERGENCY IN | REM. MUTE
ZONE MICROPHONE
REMOTE WALL PANEL
1
2
3
CH 1 | PAGING MIC
CH 2 | 3 | 4 | 5
AUX | PLAYER
4
5
6
AUX 1 AUX 2 AUX 3 REC OUT PRE AMP VOICE PRIORITY (VOX) FM ANTENNA
R
L
R
L
R
L
R
L
PRE OUT
AMP IN
ATTENUATOR PRIORITY
ZONE OUTPUT SPEAKER OUTPUT
ALL ZONES: 480 W RMS (MAX)
EACH ZONE: 240 W RMS (MAX)
TONE CONTROL
480 W RMS
COM
4 Ω
70 V
100 V
~115 V AC, 50/60 Hz, FUSE: T12 A 250 V
~230 V AC, 50/60 Hz, FUSE: T6.3 A 250 V
POWER CONSUMPTION: 680 W
BLUETOOTH® ANT.
AC SELECT
ZONE MICROPHONE
RS-485 + AUDIO
COM
100 V
LINE
CH 2-5 CH 2-5 CH 2-5
CHIME
VOX 2
PHANTOM
48 V
LINE
MIC
CHIME
CHIME CHIME CHIME
VOX 3
PHANTOM
48 V
LINE
MIC
CHIME
VOX 3
PHANTOM
48 V
LINE
MIC
CHIME
CH 2-5
CHIME
VOX 3
PHANTOM
48 V
LINE
MIC
CHIME
PHANTOM
48 V
LINE
MIC
CHIME
BASS TREBLE
3 WIRE 24 V
VOX 3
PA MIXING AMPLIFIER
MAX-480Z
100 V
ZONE 4 ZONE 3 ZONE 2 ZONE 1
COM
100 V
COM
100 V
COM
100 V
COM
100 V
ZONE 5
COM
100 V
PA AMPLIFIER MAX-480Z
CH 1 | PAGING MIC
Z 1
CH 2
Z 2
CH 3
Z 3
CH 4 AUX | PLAYER
Z 4
CH 5
Z 5
AUX 1
AUX 2
AUX 3
MODE
VOL
PROTECT
PRIORITY
CLIP
SIGNAL
FM USBPLAYER
1 2
16
3 654
7
8
9
10
1113 12121415
21
19 182122 20
43 5 6 7 8 9 11
10 1312
17
16 15 14
18
19
a bc d
a b
1.- VOX 1/VOX 2/VOX 3: controls for sensitivity adjustment to give priority to the EMERGENCY IN,
CH 1, and CH 2-5 inputs respectively over the other signals. Depending on this setting, the signal level
required at the inputs to cut audio from other sources will be higher or lower. Please note the order of
priority of the amplifier inputs, for more information see OPERATION - INPUT PRIORITY.
2.- REM. WALL PANEL: connection port for remote wall panel, RJ45 connector. For more information see
section OPERATION - REMOTE WALL PANEL INPUT.
3.- CH 1|PAGING MIC, CH 2, CH 3, CH 4, CH 5: VOX audio inputs, balanced combo connectors (XLR
and 6.3 mm jack) and euroblock (20). In addition, these inputs have a DIP switch (19) to adjust the
sensitivity of the MIC/LINE input, activate phantom power and enable/disable VOX priority (VOX 2 for
CH 1|PAGING MIC and VOX 3 for CH 2, CH 3, CH 4 and CH 5) and CHIME priority (CHIME CH 1 for
CH 1|PAGING MIC and CHIME CH 2-5 for CH 2, CH 3, CH 4 and CH 5).
4.- AUX 1/AUX 2/AUX 3: stereo auxiliary inputs for connection of audio devices such as mixers, computers,
etc. 2 x RCA connectors.
5.- REC OUT: stereo recording output with line level, 2 x RCA connectors.
6.- PRE OUT/AMP IN: pre-amplifier stage signal output (PRE OUT) and amplifier stage input (AMP IN),
RCA connectors. These inputs and outputs have a jumper to connect these 2 stages for the equipment
to function as a whole. If you want to use only the pre-amp stage, remove the jumper and connect your
amplifier to the PRE OUT output; or if you want to use the amp stage, remove the jumper and connect
your mixer/pre-amp output to the AMP IN input.
7.- ATTENUATOR PRIORITY - 3 WIRE: 100 V audio output for message priority on 3-wire attenuators.
For more information, see section OPERATION - 3rd WIRE PRIORITY.
8.- ATTENUATOR PRIORITY - 24 V: 24 V output for message priority on attenuators with priority relay
(4-wire attenuators). This output is at 0 V if no priority is activated, and will provide 24 V when priority is
activated. For more information, see section OPERATION - 24 V PRIORITY.
9.- FM ANTENNA: FM antenna connection input.
10.- TONE CONTROL - BASS: 100 Hz cut-off frequency low pass filter that attenuates/enhances
low frequencies.
11.- TONE CONTROL - TREBLE: high pass filter with 10 kHz cut-off frequency which attenuates/enhances
high frequencies.
12.- BLUETOOTH ANT: Bluetooth signal antenna.
13.- AC SELECT: power supply voltage selector. If you need to change the voltage you should be aware
that the fuse must be modified as specified on the product.
14.- 115/230 V amplifier power supply input .
15.- ZONE MICROPHONE: port for zone microphone connection, RJ45 connector. For further information
see section OPERATION - ZONE MICROPHONE INPUT.
