Oldal 1/72
ARCHITECTS & ENGINEERS
DATA MANUAL
ZONELINE®
Single Packaged
Vertical Units
As the first manufacturer to introduce packaged terminal air conditioners (PTACs) to the
market, GE Appliances led the way in improving comfort and efficiency in lodging properties,
assisted living facilities and apartments. With the single packaged vertical units (SPVUs),
we’re doing it again. The SPVU offers an excellent alternative to standard PTACs for cooling
and heating a variety of rooms—giving guests and travelers home-like comfort wherever they go.
Addressing common complaints, like noise level and precision, the SPVU offers quieter

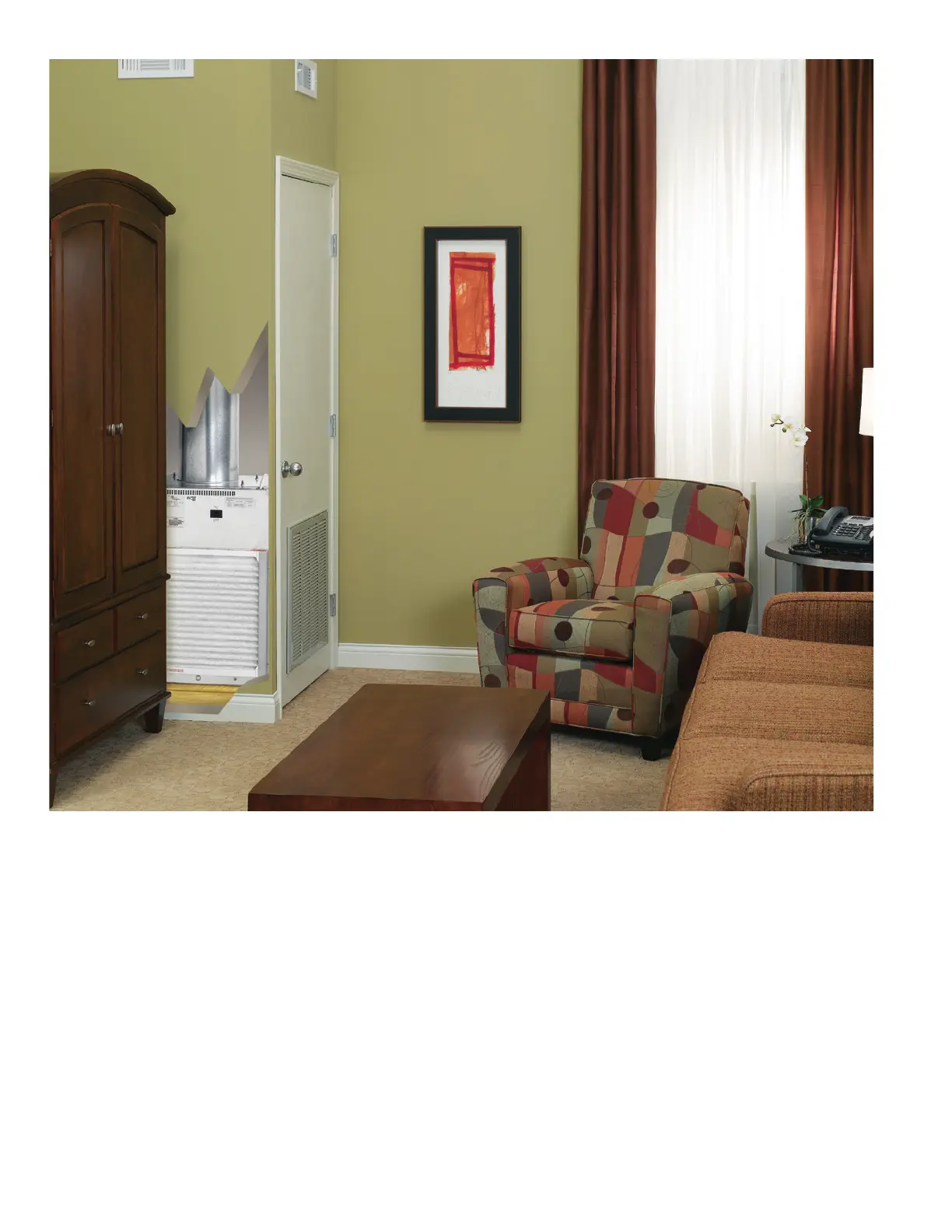

operation with greater temperature control. Closet installation allows for a more home-like
appearance with extra room for versatile design. Most importantly, it provides the cost
benefits of PTACs with the added flexibility of a central system, as the SPVU can serve a
single room or multiple rooms.
WHY VERTICAL
ZONELINE® ?
3
The GE Appliances Zoneline
®
vertical air conditioner is available in ~9,000 BTUh, 12,000 BTUh or
18,000 BTUh cooling capacity, with either resistance heat or heat pump units with resistance heat
backup. Each cooling capacity is available in a dual-rated unit that operates on either 230 volts or 208
volts, and in a unit designed to operate on 265 volts. All units are equipped with a 3-element universal
heater that provides electric heat backup when connected with the appropriate 9-pin power connection
kit to 208-volt, 230-volt or 265-volt power. See page 11 for information on the power connection kits.
IMPORTANT NOTICE
Equipment used as a primary source for heating or
cooling is an integral part of the building in which it is
installed. Proper application is essential for satisfactory
performance over a wide range of operating conditions.
It is strongly recommended that a professional engineer
determine proper application.
If this unit is a replacement unit, its specifications
and performance may differ from those of the unit it
is replacing. For that reason, we again strongly
recommend that a professional engineer determine
proper application.
SYSTEM FEATURES
The single packaged vertical unit, (SPVUs), have a number of
features that help distinguish
them as the leader in the vertical unit industry. Each feature
is discussed in detail in the features and benefits section.
• Excellent efficiency and dehumidification
• Unique sleeve design for easier installation and service
• Three-way slide-out chassis service/maintenance flexibility
• Electronic Temperature Limiting (requires room
air temperature sensor accessory - RAVRMS)
• Freeze Sentinel (requires room air temperature
sensor accessory - RAVRMS)
• Constant ON fan (required in nursing homes in some states)
• Permanently lubricated fan motors
• Standard size air filter (20" x 20" x 1")
• Central desk control capability
• Occupancy sensor interface
• HI and LOW fan speeds controlled by remote thermostat
• 3-speed indoor fan motor for selectable HI and
LOW speeds
• Corrosion protection treatment standard
• Slinger ring condensate removal
• Indoor frost control
• Automatic compressor random restart
• Compressor restart delay
• Quick heat recovery (on heat pump units)
• Extended heat pump operation
• Reverse cycle heat pump defrost
• Warranty (including both parts and labor)
SYSTEM ESSENTIAL COMPONENTS
• Installation platform (field supplied)
• Wall plenum
• Exterior grille
• Chassis
• Case
• Power connection kit
• Remote thermostat
• Filter (field supplied)
• Return air grille
• Ductwork (field supplied)
• Supply register
(field supplied)
THE GE APPLIANCES ZONELINE® SINGLE
PACKAGED VERTICAL AIR CONDITIONER
3
