PREMIER JUMBO
CABINET
Assembly Instructions
GRANDE ARMOIRE
(PREMIER JUMBO)
Instructions d’assemblage
ARMARIO GIGANTE DE
ALTA CALIDAD
Instrucciones de ensamblaje
In U.S.A. call: 1-866-342-4089
Aux États-Unis, composer le : 1 866 342-4089
En los EE. UU., llame al: 1-866-342-4089
W11476042C
In Canada call: 1-800-807-6777
Au Canada, composer le : 1 800 807-6777
En Canadá, llame al: 1-800-807-6777
www.gladiatorgarageworks.com
www.gladiatorgarageworks.ca
TABLE OF CONTENTS/TABLE DES MATIÈRES/ÍNDICE
Model
GAJG36FDYG - Hammered Granite/Silver Tread
GAJG36FDZW - Hammered White/Gray Slate
GAJG36FDKSG - Hammered Granite/Hammered Granite
Modèle
GAJG36FDYG - Ardoise Martelée/Texturé Argenté
GAJG36FDZW - Blanc Martelé/Ardoise Grise
GAJG36FDKSG - Ardoise Martelée/Ardoise Martelée
Modelo
GAJG36FDYG - Granito Martillado/Plateado Huella
GAJG36FDZW - Blanco forjado/Teja gris
GAJG36FDKSG - Granito Martillado/Granito Martillado
CABINET/LOCKER SAFETY ..............2
PARTS .................................................. 2
ASSEMBLY INSTRUCTIONS .............. 3
Tools and Parts .................................3
Cabinet Use Requirements ............... 3
Unpack the Cabinet .......................... 3
Assemble Cabinet .............................3
Complete Assembly ..........................6
INSTALLATION INSTRUCTIONS ........7
ACCESSORIES ....................................8
WARRANTY ......................................... 9
SEGURIDAD DEL ARMARIO ............10
PIÈCES ............................................... 10
INSTRUCTIONS D'ASSEMBLAGE ...11
Outils et pièces ...............................11
Spécications d'utilisation de
l'armoire ..........................................11
Déballage des pièces de l'armoire..11
Assemblage de l'armoire ................11
Fin de l’assemblage ........................ 14
INSTRUCTIONS D'INSTALLATION .. 15
ACCESSOIRES ..................................16
GARANTIE .........................................17
SEGURIDAD DEL ARMARIO ............18
PIEZAS ...............................................18
INSTRUCCIONES DE
ENSAMBLAJE ...................................19
Herramientas y piezas ....................19
Requisitos de uso del armario ........19
Desempaque las piezas del
armario ............................................19
Ensamble el armario .......................19
Complete el ensamblaje .................22
INSTRUCCIONES DE
INSTALACIÓN ...................................23
ACCESORIOS ...................................24
GARANTÍA ......................................... 25
2
CABINET/LOCKER SAFETY

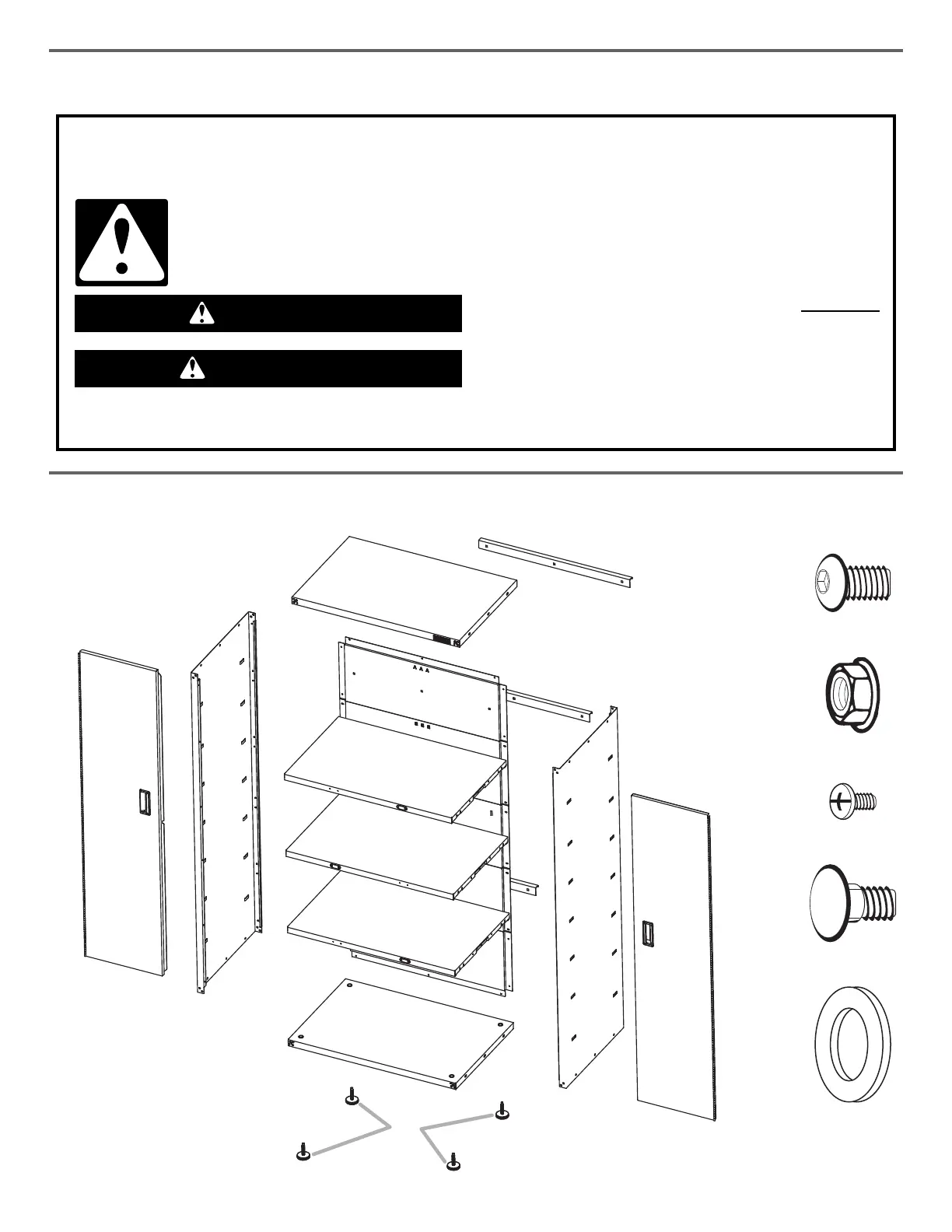

PARTS
You can be killed or seriously injured if you don't immediately
You
can be killed or seriously injured if you don't
follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
F1
F2
F3
F7
F8
P2
P6 P1
AAA
BBB
P8
P8
P4
P3
P1
P7
P5mr
P5ml
P5mr
P8
DDD
EEE
CCC
3
ASSEMBLY INSTRUCTIONS
Tools and Parts
Gather the required tools and parts before starting installation.
Tools Needed:
■ 1/2" Wrench ■ Level
■ Phillips screwdriver
Tools Supplied:
■ Hex key
■ Key
Cabinet Use Requirements
■ Intended for use in a garage.
■ Maximum weight limit is 50 lbs (22.7 kg) for each shelf.
■ Maximum weight limit is 300 lbs (136 kg) for the cabinet.
Unpack the Cabinet
1. Remove and verify the contents. Contents include a hex
key, a key, and the parts and fasteners shown in “Parts.”
2. Dispose of/recycle all packaging materials.
Assemble Cabinet
IMPORTANT: Two people may be required to complete the
assembly. As you assemble the cabinet, make sure the edges
with the holes are facing up. If you are assembling the cabinet on
the oor, fasten the eight front corner bolts, two at each corner,
after you stand the cabinet upright.
WARNING
Excessive Weight Hazard
Use two or more people to move, assemble or install
cabinet.
Failure to do so can result in back or other injury.

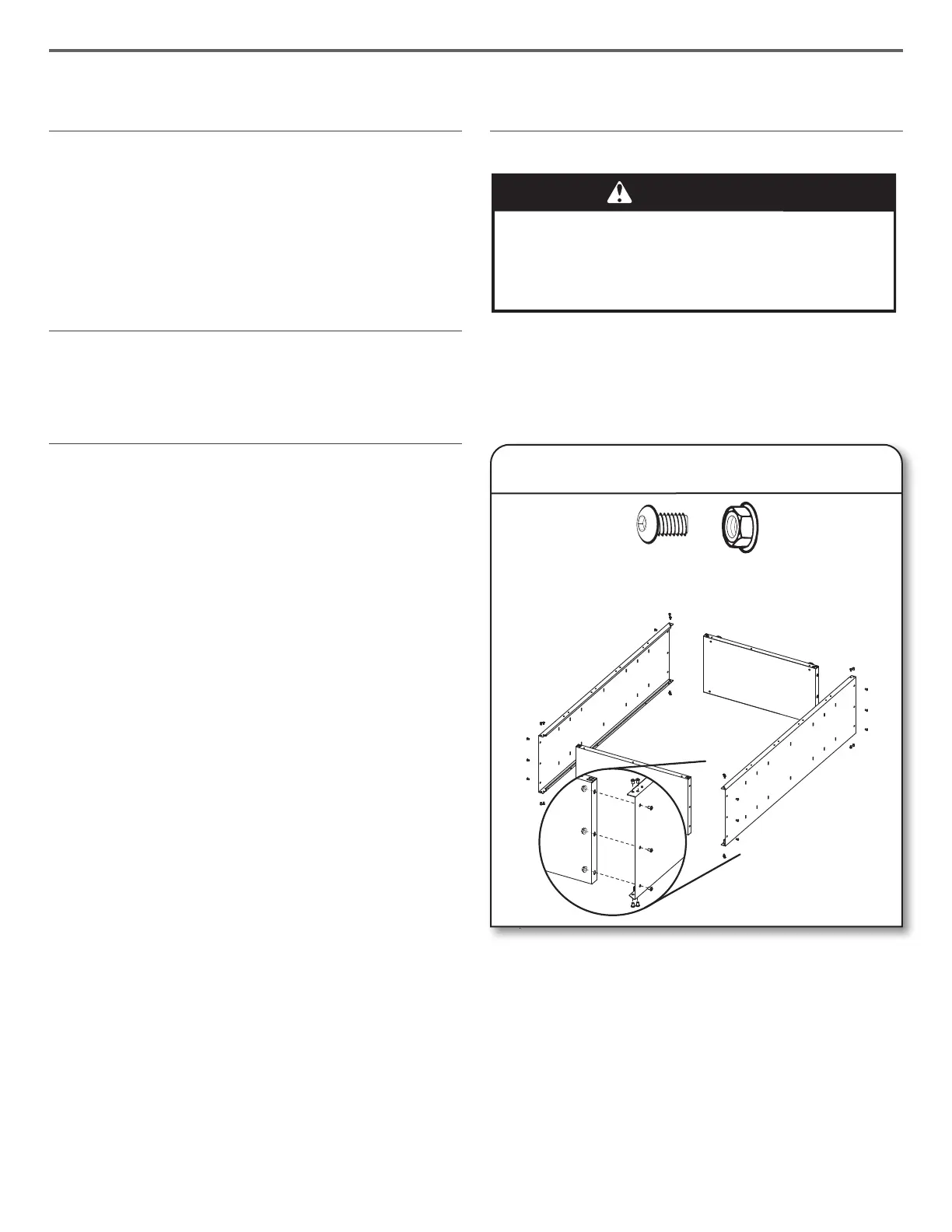

1. Assemble Cabinet
Place side panel (P1) on a at, rm surface so that the edge
with the holes is facing up, as shown. Insert the cabinet top (P2)
between the edges of side panel (P1).
NOTE: Make sure the edges with the holes are facing up.
Align the holes and attach the top (P2) to side panel (P1) using
hex-head bolts (F1) and the three 5/16" ange nuts (F2), as
shown. Do not tighten completely. Position the other side panel
(P1) so that the top (P2) is between the edges of side panel (P1).
Align the holes and attach the top (P2) to the side (P1) using
hexhead bolts (F1) and the three 5/16" ange nuts (F2), as shown.
Do not tighten completely. Insert the cabinet bottom (P3) between
the edges of the side panels (P1).
NOTE: Make sure the edges with the holes are facing up.
Align the holes and attach the bottom (P3) to the sides (P1) using
hex-head bolts (F1) and the three 5/16" ange nuts (F2). Do not
tighten completely.
P1
P1
P2
P3
P1
P2
F1 F2
F1
F2
F1 5/16"
hex-head bolt (28)
F2 5/16" ange nut (12)
