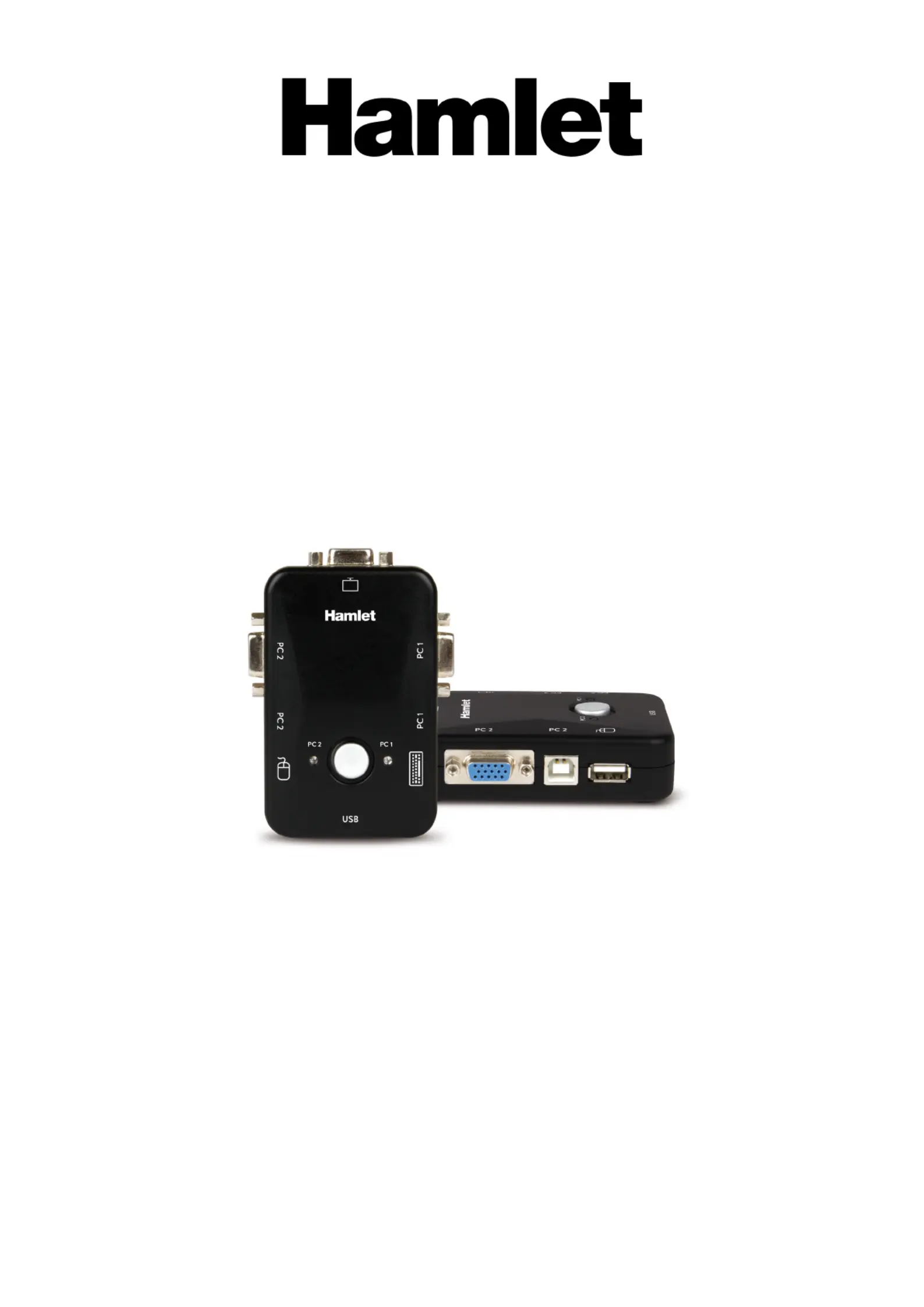

SMART CONTROL SWITCH
3 USB + VGA KVM SWITCH
USER MANUAL
HNKVM3U
www.hamletcom.com
HNKVM User Manual3U
2
Table of contents
Overview..................................................................................................................................................... 3!
Introduction ................................................................................................................................................. 3!
2.1 Package Contents ......................................................................................................................................... 3!
2.2 Features ........................................................................................................................................................ 3!
2.3 Hardware Requirements ................................................................................................................................ 3!
2.4 Top view ......................................................................................................................................................... 4!
2.5 Side view ....................................................................................................................................................... 4!
Installation .................................................................................................................................................. 5!
3.1 Hardware Installation ..................................................................................................................................... 5!
3.2 Scheme of use ............................................................................................................................................... 5!
3.3 Operation Overview ....................................................................................................................................... 5!
Troubleshooting .......................................................................................................................................... 6!
Specification ............................................................................................................................................... 7!
4.1 Technical Specification .................................................................................................................................. 7!
Dear Customer,
thanks for choosing a Hamlet product. Please carefully follow the instructions for its use and maintenance
and, once this item has run its life span, we kindly ask You to dispose of it in an environmentally friendly
way, by putting it in the separate bins for electrical/electronic waste, or to bring it back to your retailer who
will collect it for free.
We inform You this product is manufactured with materials and components in compliance with RoHS
Directive 2011/65/EU, with WEEE Directive 2002/96/EC, 2003/108/EC Italian Legislative Decree 2005/151
and EMC Directive 2014/30 : /EU for the following standards
EN 55032: 2015, EN 55024: 2010 + A1: 2015, EN 61000-3- -3- . 2: 2014, EN 61000 3: 2013
The complete CE declaration of conformity of the product can be obtained by contacting Hamlet at
info@hamletcom.com.
The information on the importer for your country are available in the “About us” section of the Hamlet
website at www.hamletcom.com.
Read the manual thoroughly and follow the installation steps and operation procedure carefully in order to
prevent any damage to the unit and/or any devices that connect to it.
HNKVM User Manual3U
3
Overview
Smart Control Switch is an useful KVM (Keyboard Video Mouse) switch unit that allows to control two
computers from a console set of keyboard, mouse comb and monitor ination. No more extra cables and
space prepared between PC and console. Moreover, the additional USB port allows you to share
another USB device such as a printer, USB HDD flash drive or an external . Smart Control Switch is
purposing to toggle between computers by (PC or Mac) simply pressing the select button on the top of
the device. It has complete keyboard and mouse emulation for simultaneous PCs boot- up process.
Introduction
2.1 Package Contents
• KVM Switch
• 2 sets of cables for computer connection
• User Manual
2.2 Features
• Support USB mode of Windows PC keyboard and mouse, but for MAC, in console port need work
with Windows keyboard.
• Support Windows, Mac and Linux
• Easy PC selection via . push button
• Hot Plug – Add/Remove connected PCs down the KVM switch or PCs.without powering
• Very high ideo v q - uality Up to 1920 440 pixelx1
• No software and driver required
• No external power required
• LED or easy status monitoringindicator f
2.3 Hardware Requirements
Console
• VGA M onitor
• USB Mouse
• USB Keyboard
Computers
The following requirement must be installed on each computer:
• VGA graphic card
• USB Mouse/Keyboard port
Cables
Two sets of cables (VGA + USB) are included for the connection of two computers.
