aemb instructnssslyio

1.Find a clear area in which you can work.

2.Unpack fixture and glass from carton.

3.Carefully review instructions prior to assembly.

1. Prepare gem strap for mounting by threading two screws provided into (A) (B)

back of gull wing bracket of gem strap - see .(A)Drawing 1

• Be sure the holes into which the screws are threaded match the spacing of holes (D)

in the ceiling pan - see .(1)Drawings 1 and 2

2. Mount gem strap to junction box , using the two 1” screws not provided.(A) (J)(C)

Make electrical connections from supply wire to fixture lead wires. Refer to instruction

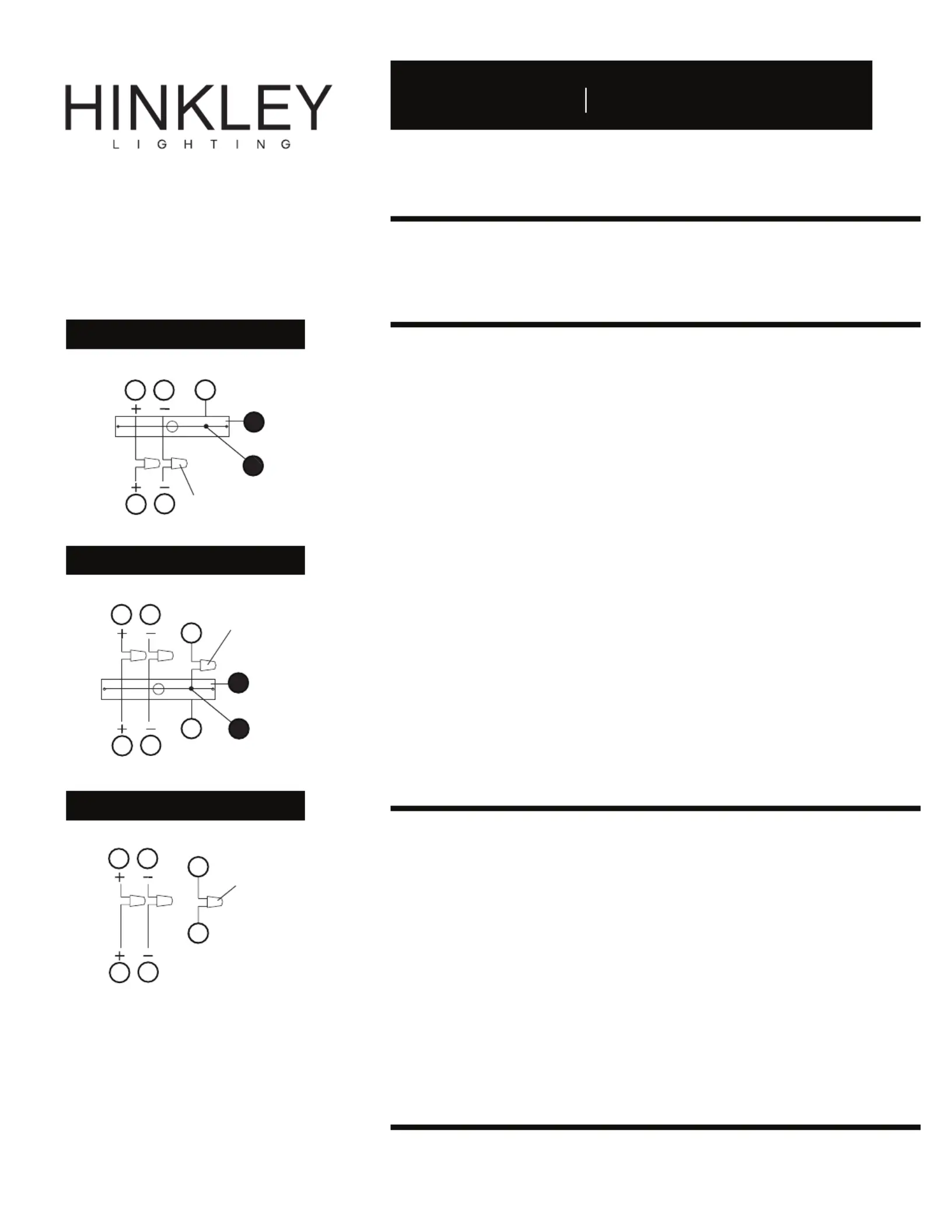

sheet and follow all instructions to make all necessary wiring connections. (I.S. 18)

Then refer back to this sheet to continue installation of this fixture.

1. Hang the fixture by slipping the holes in the ceiling pan over the screws (D) (1)(B)

in the mounting strap - see .(A)Drawing 2

2. Thread on ball knobs to secure fixture to the ceiling.(F)

*** The construction of this fixture will be accomplished by first mounting the

mounting strap to the junction box, making all necessary electrical connections,

hanging the fixture from the ceiling, and then installing the glass.

start here

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)

AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING

INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED

ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

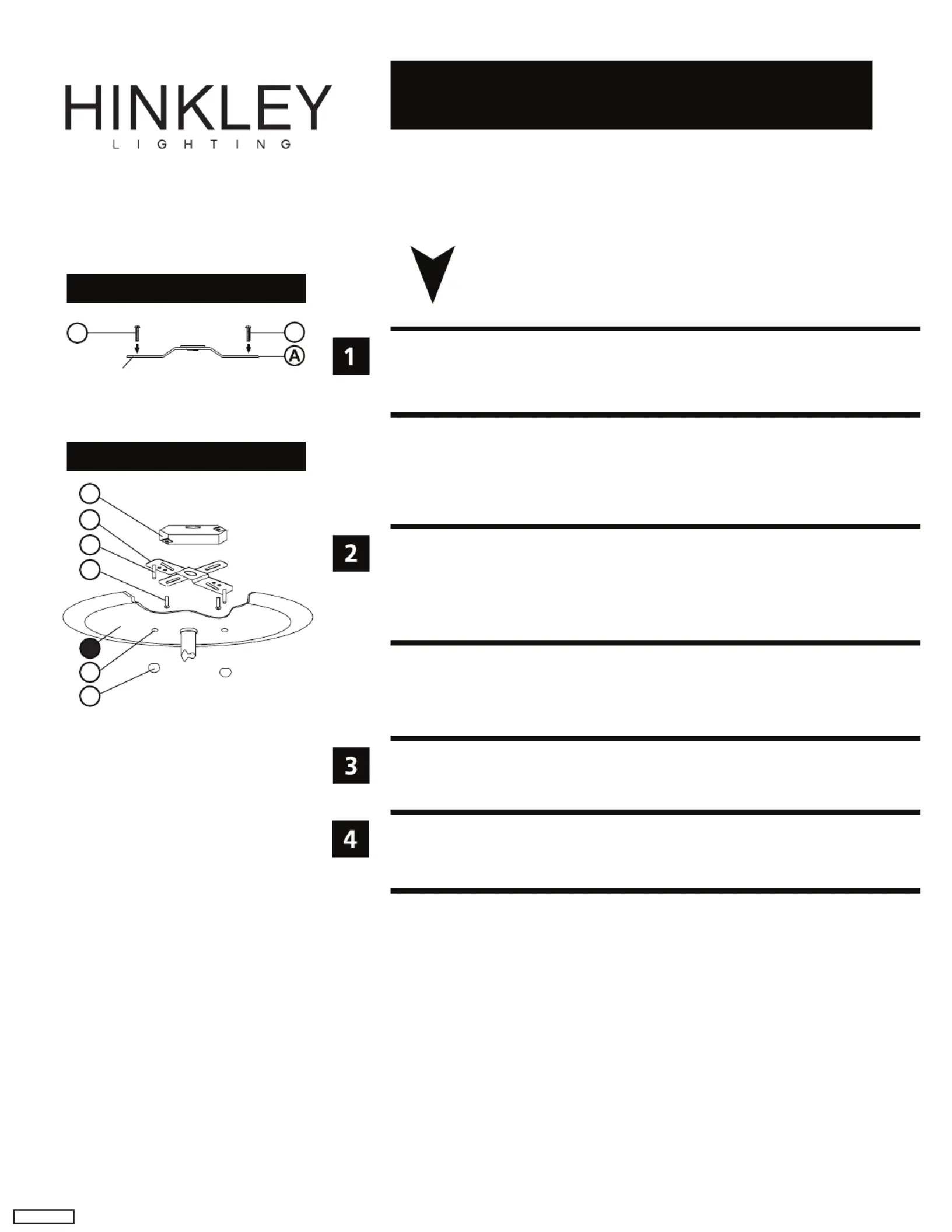

Drawing 2 - Fixture Mounting

B

D

J

C

A

1

Drawing 1 - Strap Detail

B

(side view)

gull wing

bracket

B

Swivel Strap Ceiling Mount

REVISION 1

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
