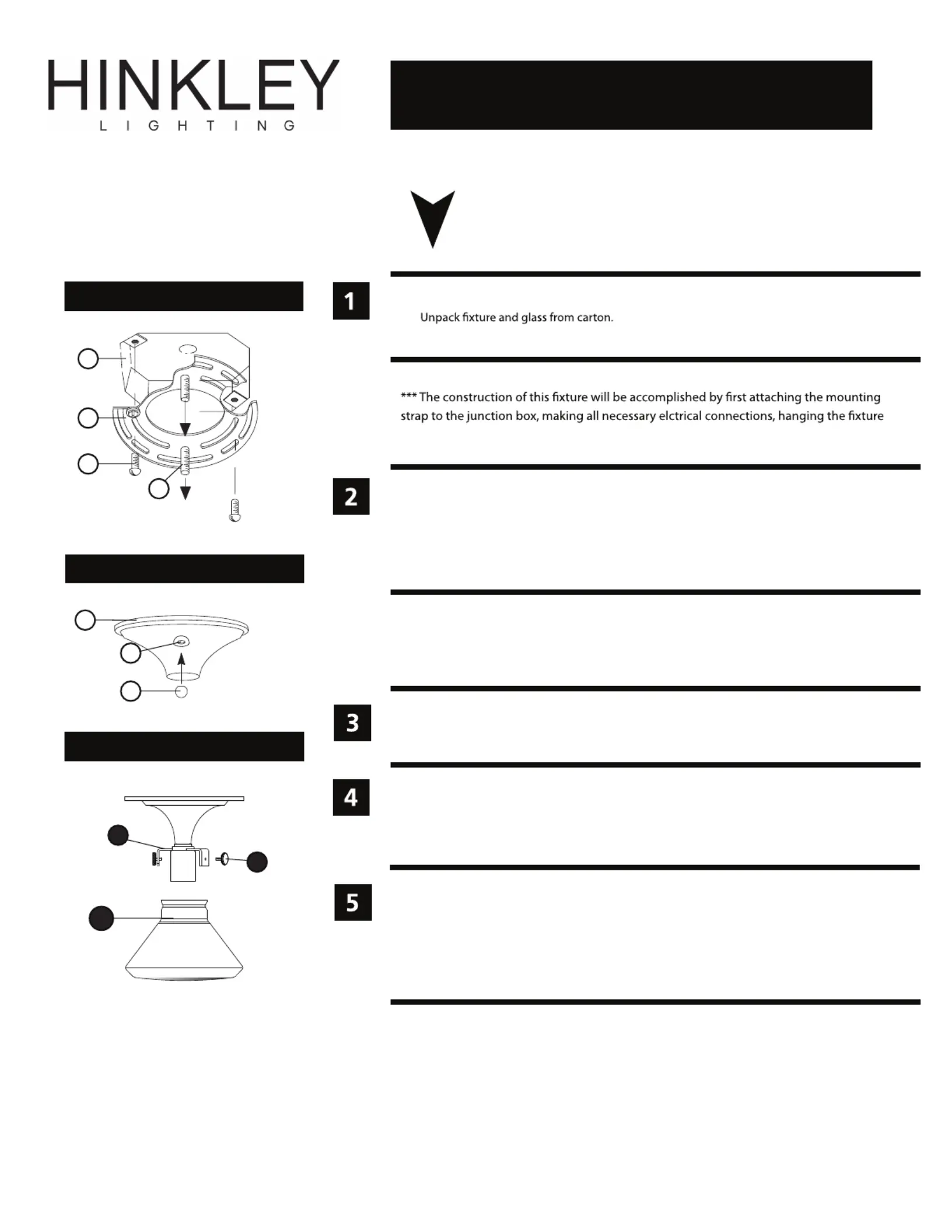

assembly instructions

Item No. 3140

1.Find a clear area in which you can work.

2.

3.Carefully review instructions prior to assembly.

from the ceiling, and then installing the glass.

start here

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)

AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING

INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED

ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Drawing 2 - Fixture Mounting

Drawing 1 - Strap Detail

Drawing 3 - Glass Installation

J

B

G

A

01.01.13

3

2

1

HINKLEY LIGHTING33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com

D

C

E

1. Install screws (A) into mounting plate (B) - see Drawing 1.

Be sure the holes into which the screws are threaded mathc the spacing of the holes

(C) in the canopy (D) - see Drawing 1 and 2.

2. Attach mounting plate (B) to junction box (J), using screws (G) provided and then

slip supply wires through large center hole.

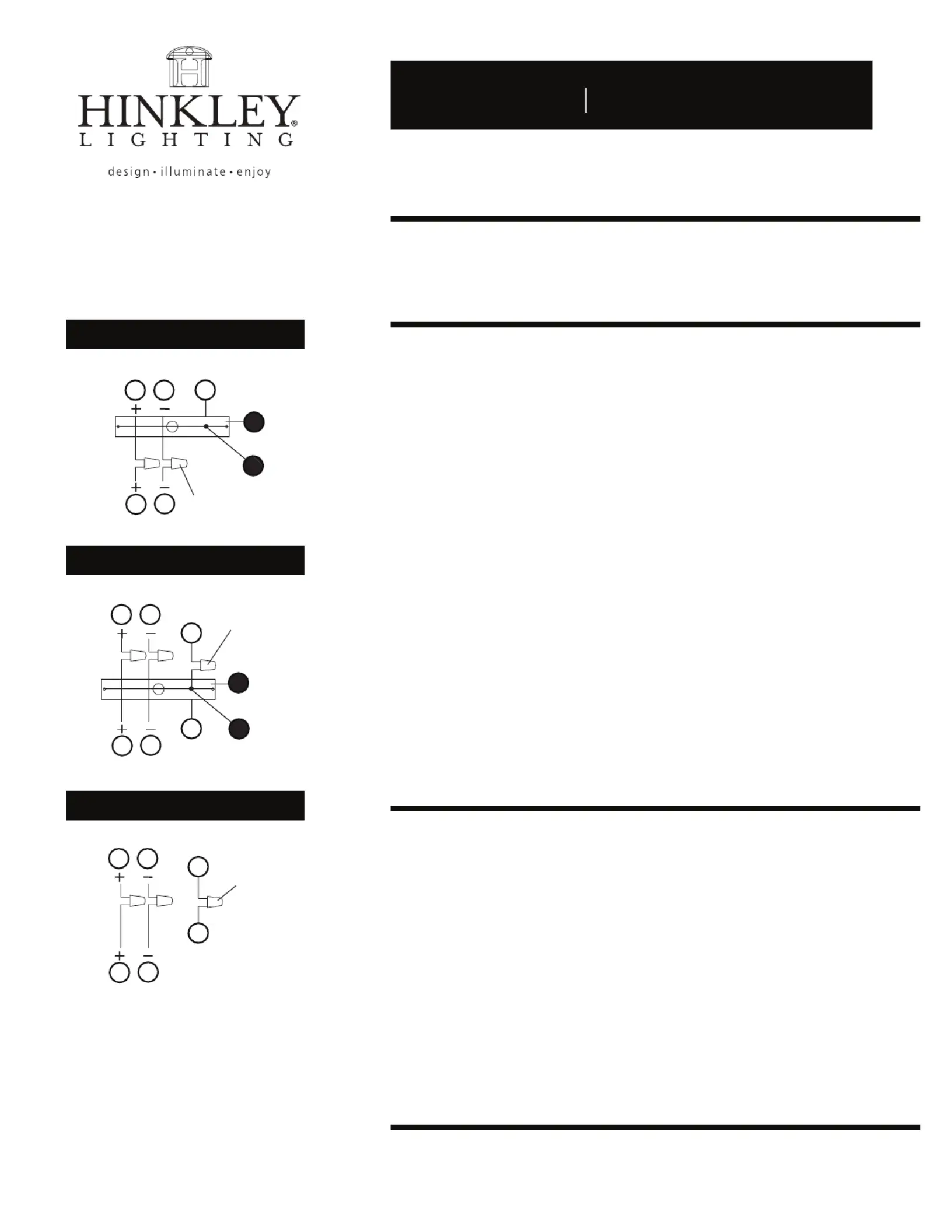

Make electrical connections from supply wire to the fixture lead wires. Refer to

instruction sheet and follow all instructions to make all necessary wiring (IS18)

connnections. Then refer back to this sheet to continue installation of this fixture.

1. Hang the fixture by slipping screws (A) through holes (C) of canopy

(D) - see Drawing 2.

2. (E)(B)Thread on ball knobs onto end of screws and tighten to secure fixture

to ceiling.

1. To install glass unthread knurled in bracket until glass can be slipped into(2)(1)

place - see .Drawing 3

2. Lamp fixture accordingly at this point.

3.(3) (1)(2) Slip glass into bracket and hand tighten knurled knob to secure glass.
