888-ASK-4ICC csr@icc.com icc.com
© Copyright 2011, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved. MSR-0334-RevC

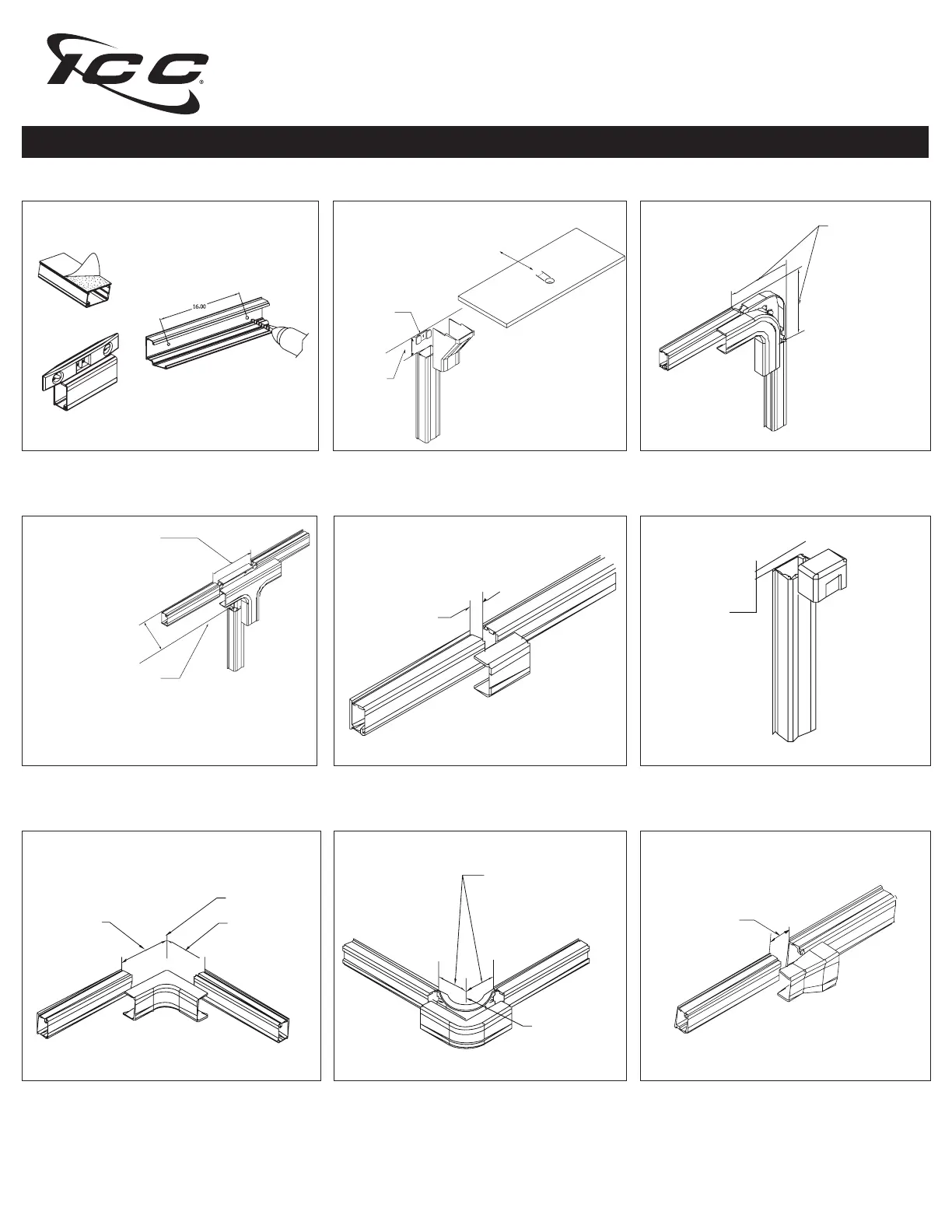

INSTALLATION INSTRUCTIONS
Raceway System
0” min.
1-1/4” max.
Cap will
extend up to
3/16”
from raceway
0” min.
2-1/4” max.
1/2” min.
2-1/4” max.
Ceiling
Max cut out:
ICRW11CExx - 3/4” diameter
ICRW12CExx - 1-3/8” diameter
ICRW13CExx - 1-3/4” diameter
Raceway Placement
With Base
3-27/32” min.
4” max.
Without Base
2-1/2” min.
4” max.
Raceway Placement
With Base
5-1/2” min.
5-3/4” max.
Without Base
3” min.
5-3/4” max.
Raceway Placement
With Base
3-25/32” min.
4” max.
Without Base
2-1/2” min.
4” max.
1-3/4” min.
2-1/2” max.
1-3/4” min.
2-1/2” max.
Inside Wall Corner
Outside Wall Corner
Raceway Placement
With Base Without Base
2” min. 1” min.
2-1/4” max. 2-1/4” max.
Figure 9: Used to transition from one size of raceway
to another
Figure 2: Routes cable from ceiling into the raceway
Figure 3: 90˚ is used for right angle turns on the same
surface. Base is slotted for screw down mounting, if
necessary.
Figure 4: Used to branch raceway runs. Base is slotted
for screw down mounting, if necessary.
Figure 5: Used to cover joint where two sections of
raceway come together
Figure 6: Used for closing the open end of raceway
Figure 7: Used for right angle turns around internal corners
Figure 8: Used for right angle turns around external
corners. Base is slotted for screw down mounting
Figure 1: Secure raceway with included adhesive
backing or drill holes for screw mounting. Use a level
to align raceway.
Ceiling entry
Joint Cover
Outside CornerInside Corner Cover
Tee
Flat Elbow
End Cap
Reducer
888-ASK-4ICC csr@icc.com icc.com
© Copyright 2011, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved. MSR-0334-RevC

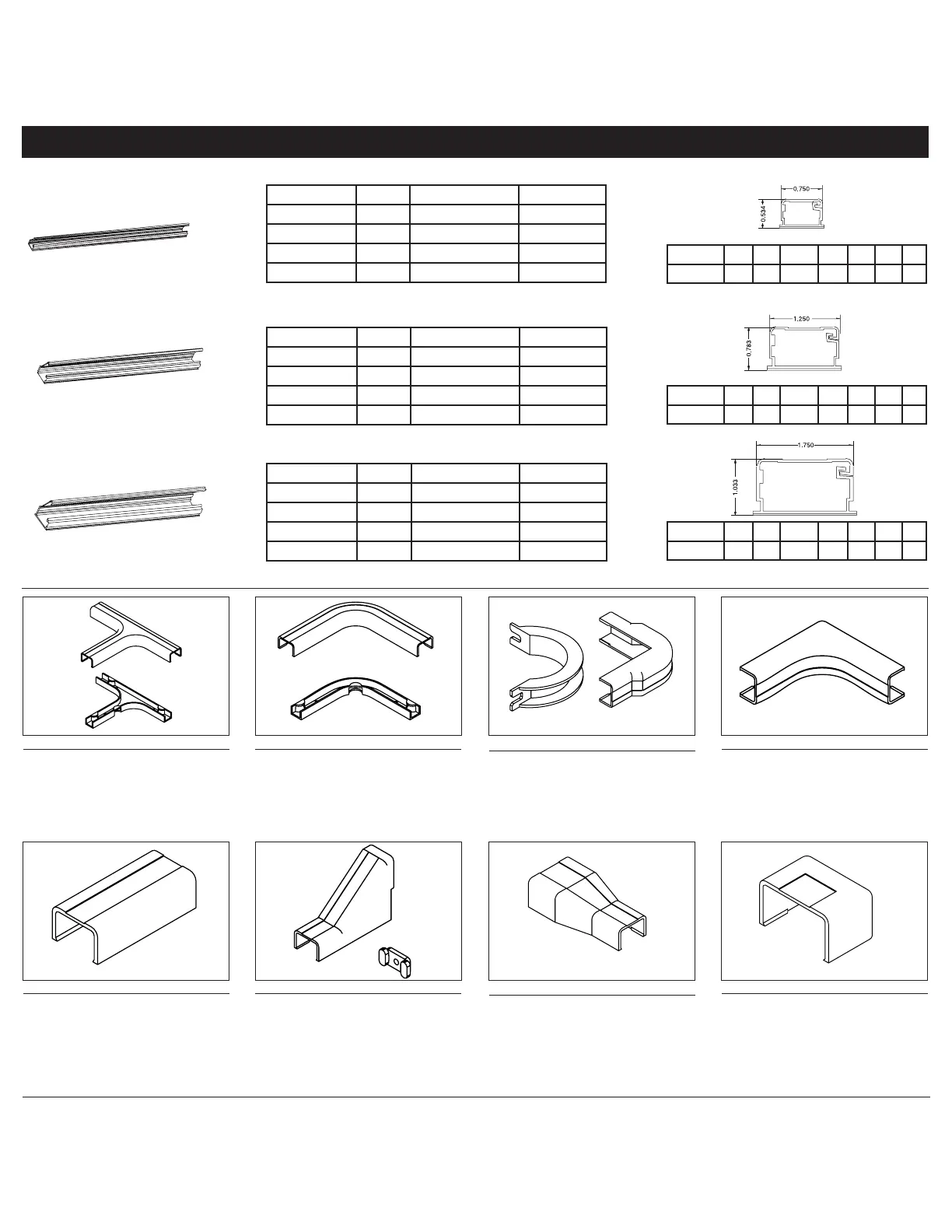

Raceway System
Item # Length Descrption Qty.
ICRWR11Sxx* 1 Ft. 3/4” W x 1/2” H Min. Order 6Ft.
ICRWR118xx* 1 Ft. 3/4” W x 1/2” H Min. Order 8Ft.
ICRW22R6xx* 6 Ft. 3/4” W x 1/2” H Single Pack
ICRW22R8xx* 8 Ft. 3/4” W x 1/2” H Single Pack
Item # Length Descrption Qty.
ICRWR12Sxx* 1 Ft. 1 1/4” W x 3/4” H Min. Order 6Ft.
ICRWR128xx* 1 Ft. 1 1/4” W x 3/4” H Min. Order 8Ft.
ICRW33R6xx* 6 Ft. 1 1/4” W x 3/4” H Single Pack
ICRW33R8xx* 8 Ft. 1 1/4” W x 3/4” H Single Pack
Item # Length Descrption Qty.
ICRWR13Sxx* 1 Ft. 1 3/4” W x 1” H Min. Order 6Ft.
ICRWR138xx* 1 Ft. 1 3/4” W x 1” H Min. Order 8Ft.
ICRW44R6xx* 6 Ft. 1 3/4” W x 1” H Single Pack
ICRW44R8xx* 8 Ft. 1 3/4” W x 1” H Single Pack
Types of Cables
CAT 5e CAT 6 CAT 6A
FTP 25-Pair 6 Fiber 1 Fiber Coax
# of Cables
15 10 6 4 9 39 7
Types of Cables
CAT 5e CAT 6 CAT 6A
FTP 25-Pair 6 Fiber 1 Fiber Coax
# of Cables
64 2 14163
Types of Cables
CAT 5e CAT 6 CAT 6A
FTP 25-Pair 6 Fiber 1 Fiber Coax
# of Cables
29 19 11 7 17 72 14
Tees and Bases
ICRW22TBxx¹ 3/4” 1 set
ICRW33TBxx¹ 1 1/4” 1 set
ICRW44TBxx¹ 1 3/4” 1 set
ICRW11TBxx¹ 3/4” 10 sets
ICRW12TBxx¹ 1 1/4” 10 sets
ICRW13TBxx¹ 1 3/4” 10 sets
¹xx = IV-Ivory, WH-White
Joint Covers
ICRW22JCxx¹ 3/4” 1 pc
ICRW33JCxx¹ 1 1/4” 1 pc
ICRW44JCxx¹ 1 3/4” 1 pc
ICRW11JCxx¹ 3/4” 10 pcs
ICRW12JCxx¹ 1 1/4” 10 pcs
ICRW13JCxx¹ 1 3/4” 10 pcs
¹xx = IV-Ivory, WH-White
Ceiling Entries and Mounting Clips
ICRW22CMxx¹ 3/4” 1 set
ICRW33CMxx¹ 1 1/4” 1 set
ICRW44CMxx¹ 1 3/4” 1 set
ICRW11CExx¹ 3/4” 10 sets
ICRW12CExx¹ 1 1/4” 10 sets
ICRW13CExx¹ 1 3/4” 10 sets
¹xx = IV-Ivory, WH-White
Outside Corner Covers and Bases
ICRW22UCxx¹ 3/4” 1 set
ICRW33UCxx¹ 1 1/4” 1 set
ICRW44UCxx¹ 1 3/4” 1 set
ICRW11OBxx¹ 3/4” 10 sets
ICRW12OBxx¹ 1 1/4” 10 sets
ICRW13OBxx¹ 1 3/4” 10 sets
¹xx = IV-Ivory, WH-White
Reducers
ICRW22RExx¹ 1 1/4” to 3/4” 1 pc
ICRW33RExx¹ 1 3/4” to 3/4” 1 pc
ICRW44RExx¹ 1 3/4” to 11/4” 1 pc
ICRW11ROxx¹ 1 1/4” to 3/4” 10 pcs
ICRW12ROxx¹ 1 3/4” to 3/4” 10 pcs
ICRW13ROxx¹ 1 3/4” to 11/4” 10 pcs
¹xx = IV-Ivory, WH-White
Inside Corner Covers
ICRW22NCxx¹ 3/4” 1 pc
ICRW33NCxx¹ 1 1/4” 1 pc
ICRW44NCxx¹ 1 3/4” 1 pc
ICRW11ICxx¹ 3/4” 10 pcs
ICRW12ICxx¹ 1 1/4” 10 pcs
ICRW13ICxx¹ 1 3/4” 10 pcs
¹xx = IV-Ivory, WH-White
End Caps
ICRW22ECxx¹ 3/4” 1 pc
ICRW33ECXX¹ 1 1/4” 1 pc
ICRW44ECxx¹ 1 3/4” 1 pc
ICRW11ECxx¹ 3/4” 10 pcs
ICRW12ECxx¹ 1 1/4” 10 pcs
ICRW13ECxx¹ 1 3/4” 10 pcs
¹xx = IV-Ivory, WH-White
90
○
Flat Elbows and Bases
ICRW22EBxx¹ 3/4” 1 set
ICRW33EBxx¹ 1 1/4” 1 set
ICRW44EBxx¹ 1 3/4” 1 set
ICRW11EBxx¹ 3/4” 10 sets
ICRW12EBxx¹ 1 1/4” 10 sets
ICRW13EBxx¹ 1 3/4” 10 sets
¹xx = IV-Ivory, WH-White
1. Raceway sections have a one piece design and are easy to install.
2. Latching system: Installations and changes are quick and easy with simple self locking latch.
3. Mounting: Adhesive backing makes installation quick and easy
4. Raceways are easy to cut, trim and paint to ensure a custom look to match the surroundings
5. Raceway can incorporate a wide variety of cable types (UTP, STP, ScTP, coaxial, audio, video, and fi ber optic cables)
6. Raceways are made of 94V-0 for low-power low voltage (under 50V indoor application use only)
FEATURES & BENEFITS
Based on 50% fi ll capacity and ICC cabling O.D.
*Color (xx) = IV=Ivory, WH-White
